Makita 4305T
Makita 4305T: exploded parts diagram, 1 sheet, 92 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 4305T: 92 positions on 1 sheet

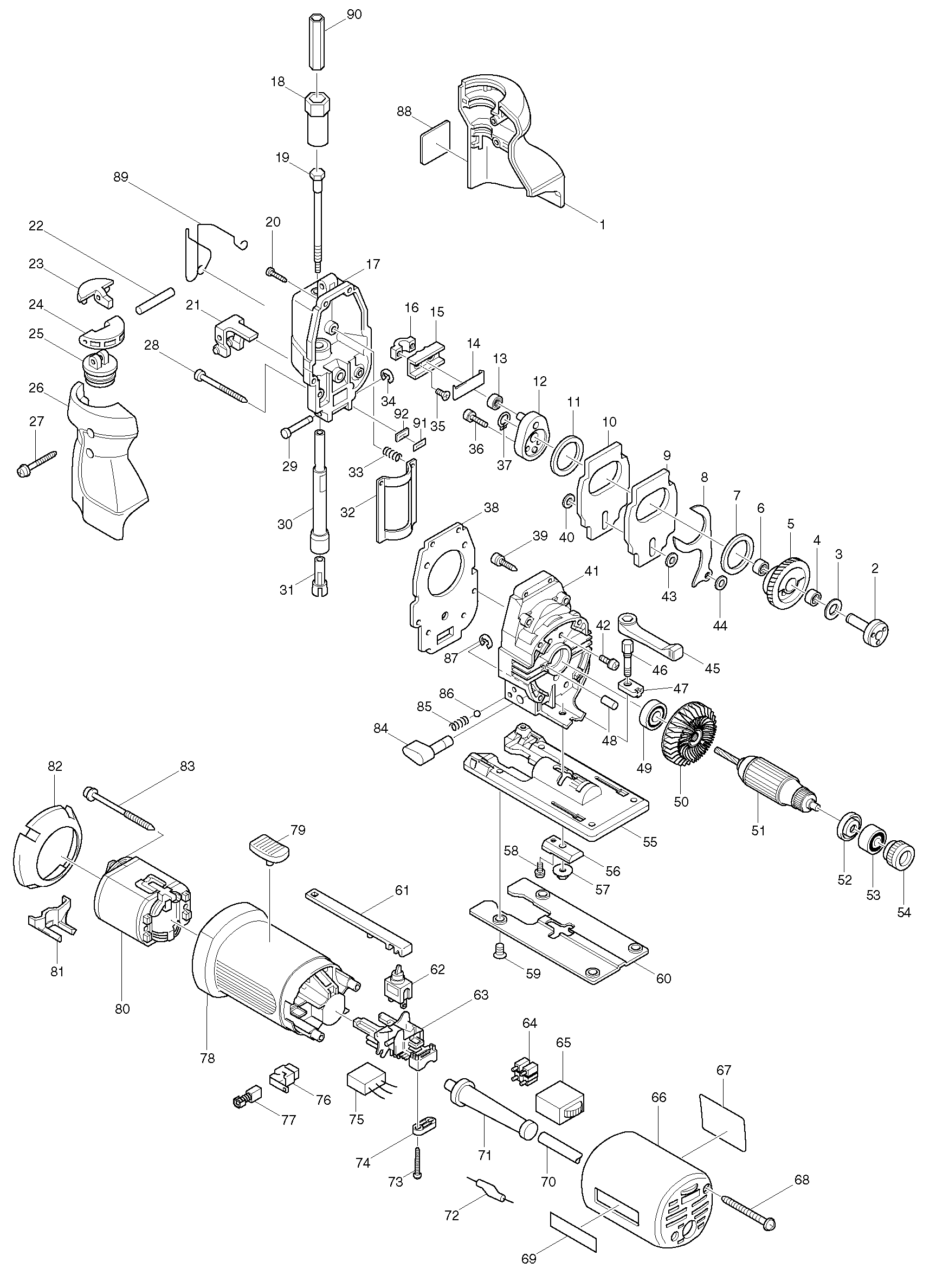

Sheet 1: Makita 4305T parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 182789-3 | Makita 182789-3 HEAD COVER SET FOR |
| 2 | 322691-0 | Makita 322691-0 GEAR SHAFT |
| 3 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |
| 4 | 212043-2 | Makita 212043-2 NEEDLE BEARING HK 0810, 9523NB |
| 5 | 226428-6 | Makita 226428-6 Helical Gear 51 for Jig Saw 4304, 4304T, 4305 ,4306, 4331D |
| 6 | 212043-2 | Makita 212043-2 NEEDLE BEARING HK 0810, 9523NB |
| 7 | 253792-2 | Makita 253792-2 FLAT WASHER 26 |
| 8 | 344134-2 | Makita 344134-2 PUSH PLATE |
| 9 | 344370-0 | Makita 344370-0 BALANCE PLATE |
| 10 | 344370-0 | Makita 344370-0 BALANCE PLATE |
| 11 | 253792-2 | Makita 253792-2 FLAT WASHER 26 |
| 12 | 152454-8 | Makita 152454-8 CRANK COMPLETE |
| 13 | 212010-7 | Makita 212010-7 NEEDLE BEARING 607 |
| 14 | 344232-2 | Makita 344232-2 THRUST PLATE |
| 15 | 313069-8 | Makita 313069-8 SLIDER |
| 16 | 316608-3 | Makita 316608-3 HOLDER, 4304Z |
| 17 | 159716-5 | Makita 159716-5 GEAR HOUSING COVER COMPLE TE |
| 18 | 415882-1 | |
| 19 | 322826-3 | Makita 322826-3 DRIVER ROD FOR |
| 20 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 21 | 151426-0 | Makita 151426-0 RETAINER COMPLETE |
| 22 | 256201-0 | Makita 256201-0 PIN 5 FOR 4305T |
| 23 | 415883-9 | Makita 415883-9 LIFT BUTTON |
| 24 | 415885-5 | Makita 415885-5 KNOB |
| 25 | 415884-7 | Makita 415884-7 BOX WRENCH |
| 26 | 182789-3 | Makita 182789-3 HEAD COVER SET FOR |
| 27 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 28 | 266147-2 | Makita 266147-2 TAPPING SCREW FLANGE PT 4 X55 |
| 29 | 256693-3 | Makita 256693-3 PIN 4 |
| 30 | 168282-1 | Makita 168282-1 Rod for 4304T 4334D |
| 31 | 310005-5 | Makita 310005-5 Blade Clamp 4304T 4334D Jigsaw |
| 32 | 344137-6 | Makita 344137-6 SLIDE PLATE |
| 33 | 233151-6 | Makita 233151-6 COMPRESSION SPRING 4, 4322 |
| 34 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 35 | 265035-0 | Makita 265035-0 COUNTERSUNK HEAD SCREW M4*10, MT430 |
| 36 | 922126-7 | Makita 922126-7 HEX. SOCKET HEAD BOLT M4X |
| 37 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 38 | 442119-3 | Makita 442119-3 PACKING |
| 39 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 40 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 41 | 159852-7 | Makita 159852-7 GEAR HOUSING COMPLETE |
| 42 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 43 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 44 | 253811-4 | Makita 253811-4 FLAT WASHER 5, 5007MG |
| 45 | 272232-1 | Makita 272232-1 LEVER 65 FOR 4304T |
| 46 | 265434-6 | Makita 265434-6 CAP SQUARE NECK BOLT M6X3 |
| 47 | 344332-8 | Makita 344332-8 NUT M6 4304T |
| 48 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 49 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 50 | 241875-0 | Makita 241875-0 FAN 54 |
| 51 | 517098-5 | Makita 517098-5 ARMATURE ASS'Y 220V |
| 52 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 53 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 54 | 421494-0 | Makita 421494-0 Labyrinthhian Rubber Ring 9, 4304Z |
| 55 | 316777-0 | Makita 316777-0 BASE MACHINED FOR |
| 56 | 344333-6 | Makita 344333-6 CLAMP PLATE 4304T |
| 57 | 252142-8 | Makita 252142-8 HEX NUT FLANCE M5 FOR |
| 58 | 911109-2 | Makita 911109-2 PAN HEAD SCREW M4*8, 3612 |
| 59 | 912202-5 | Makita 912202-5 Countersunk Head Screw M5 X 8 |
| 60 | 344136-8 | Makita 344136-8 BASE PLATE |
| 61 | 415522-1 | |
| 62 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 63 | 687070-2 | Makita 687070-2 SUPPORT |
| 64 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 65 | 631183-1 | Makita 631183-1 CONTROLLER 200-240V |
| 66 | 415531-0 | Makita 415531-0 REAR COVER |
| 67 | 858430-7 | Makita 858430-7 NAME PLATE 4305T |
| 68 | 266052-3 | Makita 266052-3 TAPPING SCREW, UB1101 |
| 69 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 70 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 71 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 72 | 646083-2 | Makita 646083-2 CHOKE COIL |
| 73 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 74 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 75 | 645259-8 | Makita 645259-8 NOISE SUPPRESSOR |
| 76 | 643923-5 | Makita 643923-5 BRUSH HOLDER 6.5-9.5, HR2410 |
| 77 | 191962-4 | Old code CB-419 = CB-407 |
| 78 | 415748-5 | Makita 415748-5 MOTOR HOUSING |
| 79 | 415523-9 | |
| 80 | 633288-3 | Makita 633288-3 FIELD 220V |
| 81 | 415879-0 | |
| 82 | 415878-2 | |
| 83 | 266052-3 | Makita 266052-3 TAPPING SCREW, UB1101 |
| 84 | 272231-3 | Makita 272231-3 LEVER 17 |
| 85 | 233151-6 | Makita 233151-6 COMPRESSION SPRING 4, 4322 |
| 86 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 87 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 88 | 810835-9 | Makita 810835-9 CAUTION LABEL |
| 89 | 322893-8 | Makita 322893-8 SAFETY WIRE 4305T |
| 90 | 344537-0 | Makita 344537-0 HEX. SLEEVE |
| 91 | 344784-3 | Makita 344784-3 SEAL PLATE |
| 92 | 443106-5 | Makita 443106-5 FELT 10-12 FOR |
