Makita 4301BV
Makita 4301BV: exploded parts diagram, 1 sheet, 85 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 4301BV: 85 positions on 1 sheet

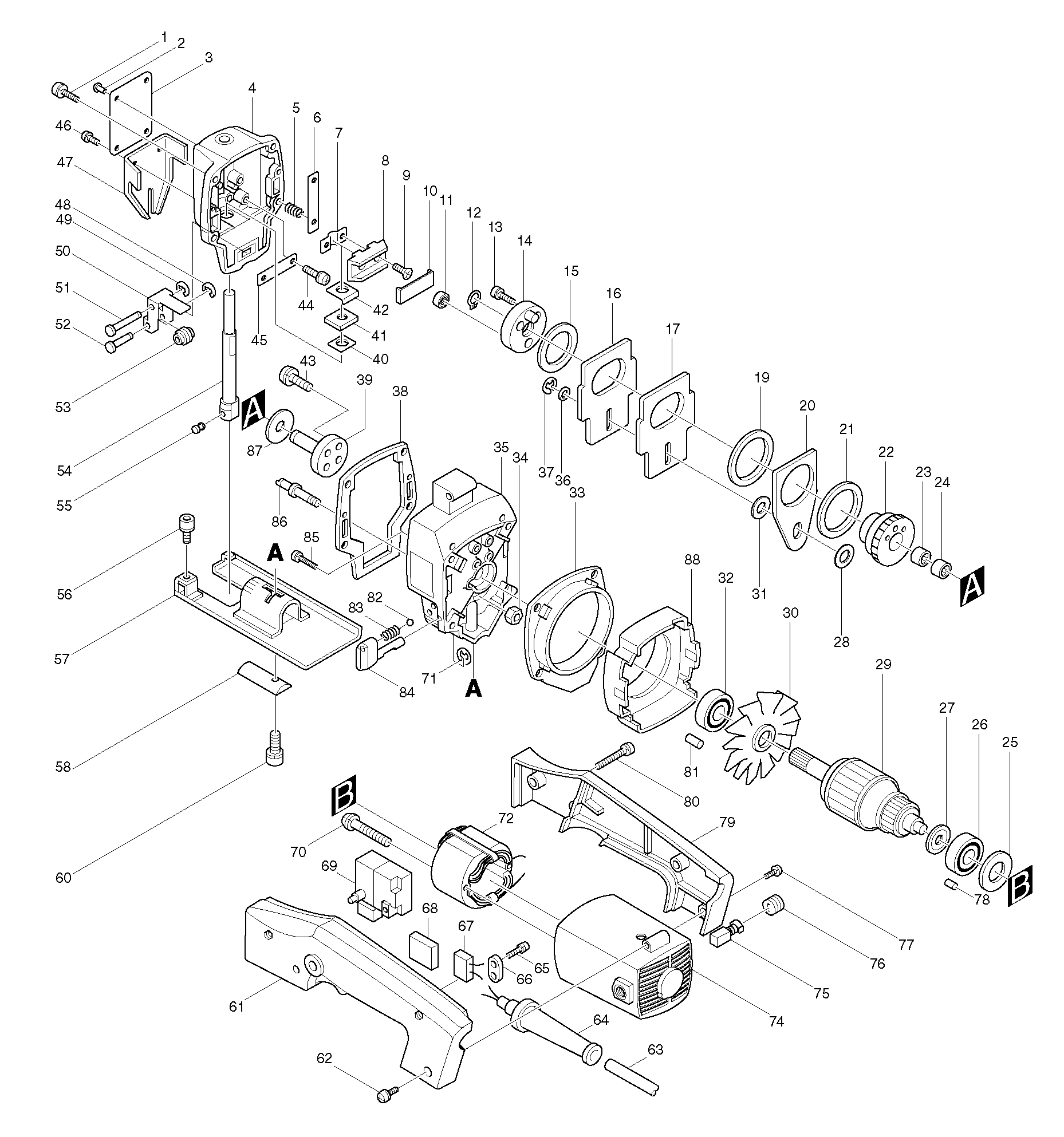

Sheet 1: Makita 4301BV parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911136-9 | Makita 911136-9 P.H. SCREW M4*20 WITH W, M931 |
| 2 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 3 | 854968-0 | |
| 4 | 157219-3 | Makita 157219-3 GEAR HOUSING COVER |
| 5 | 231314-8 | Makita 231314-8 COMPRESSION SPRING 4 |
| 6 | 342688-3 | Makita 342688-3 SLIDE PLATE |
| 7 | 342682-5 | Makita 342682-5 SLIDER SUPPORT |
| 8 | 331237-1 | Makita 331237-1 SLIDER |
| 9 | 251263-3 | |
| 10 | 342685-9 | Makita 342685-9 SLIDER PLATE |
| 11 | 212010-7 | Makita 212010-7 NEEDLE BEARING 607 |
| 12 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 13 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 14 | 152243-1 | Makita 152243-1 CRANK COMPLETE |
| 15 | 253122-7 | Makita 253122-7 FLAT WASHER 26 |
| 16 | 342846-1 | |
| 17 | 342846-1 | |
| 19 | 253880-5 | Makita 253880-5 FLAT WASHER 35 |
| 20 | 342684-1 | Makita 342684-1 PUSH PLATE |
| 21 | 253879-0 | Makita 253879-0 FLAT WASHER 35 |
| 22 | 221725-5 | Makita 221725-5 HELICAL GEAR 51 |
| 23 | 212005-0 | Makita 212005-0 Needle Bearing 810, HR2412 |
| 24 | 212005-0 | Makita 212005-0 Needle Bearing 810, HR2412 |
| 25 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 26 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 27 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 28 | 253758-2 | Makita 253758-2 FLAT WASHER 10 |
| 29 | 512808-5 | Makita 512808-5 ARMATURE ASS Y 220V |
| 30 | 241518-4 | Makita 241518-4 FAN 68 |
| 31 | 253878-2 | Makita 253878-2 FLAT WASHER 10 |
| 32 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 33 | 342689-1 | Makita 342689-1 BAFFLE PLATE |
| 34 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 35 | 157220-8 | Makita 157220-8 GEAR HOUSING |
| 36 | 253077-6 | Makita 253077-6 FLAT WASHER 6 |
| 37 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 38 | 442062-6 | Makita 442062-6 PACKING |
| 39 | 321647-0 | Makita 321647-0 GEAR SHAFT |
| 40 | 253968-1 | Makita 253968-1 WASHER 9 |
| 41 | 443059-8 | Makita 443059-8 FELT |
| 42 | 342736-8 | Makita 342736-8 DUST PLATE |
| 43 | 911116-5 | Makita 911116-5 PAN HEAD SCREW M4*12, 9035 |
| 44 | 911106-8 | Makita 911106-8 PAN HEAD SCREW M4X8, 5007NB |
| 45 | 342686-7 | Makita 342686-7 HOLDER |
| 46 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 47 | 410215-5 | |
| 48 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 49 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 50 | 151364-6 | Makita 151364-6 RETAINER COMPLETE |
| 51 | 256639-9 | |
| 52 | 256667-4 | Makita 256667-4 PIN 4 |
| 53 | 321390-1 | Makita 321390-1 ROLLER |
| 54 | 164861-3 | Makita 164861-3 ROD |
| 55 | 265894-2 | Makita 265894-2 HEX. SOCKET HEAD BOLT M6X |
| 56 | 922117-8 | Makita 922117-8 HEX. SOCKET HEAD BOLT M4X |
| 57 | 164927-9 | Makita 164927-9 BASE |
| 58 | 315643-8 | Makita 315643-8 CLAMP PLATE |
| 60 | 922136-4 | Makita 922136-4 HEX. SOCKET HEAD BOLT M4X |
| 61 | 181150-1 | Makita 181150-1 HANDLE SET |
| 62 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 63 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 64 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 65 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 66 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 67 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 68 | 685700-9 | |
| 69 | 651247-5 | Makita 651247-5 SWITCH 11-12 |
| 70 | 911666-0 | Makita 911666-0 PAN HEAD SCREW M5X45 |
| 71 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 72 | 528719-4 | Makita 528719-4 FIELD ASS Y 220V |
| 74 | 157819-9 | Makita 157819-9 MOTOR HOUSING |
| 75 | 181021-2 | Makita 181021-2 Carbon Brushes CB-51 1901 1902 1923B N1932B 4014B 6300L 9030 |
| 76 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 77 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 78 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 79 | 181150-1 | Makita 181150-1 HANDLE SET |
| 80 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 81 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 82 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 83 | 231314-8 | Makita 231314-8 COMPRESSION SPRING 4 |
| 84 | 272217-7 | Makita 272217-7 LEVER 23 |
| 85 | 911146-6 | Makita 911146-6 PAN HEAD SCREW M4X25 |
| 86 | 321648-8 | Makita 321648-8 GUIDE PIN |
| 87 | 253877-4 | Makita 253877-4 FLAT WASHER 8 |
| 88 | 410199-7 | Makita 410199-7 BAFFLE PLATE |
