Makita 4300BV
Makita 4300BV: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 4300BV: 59 positions on 1 sheet

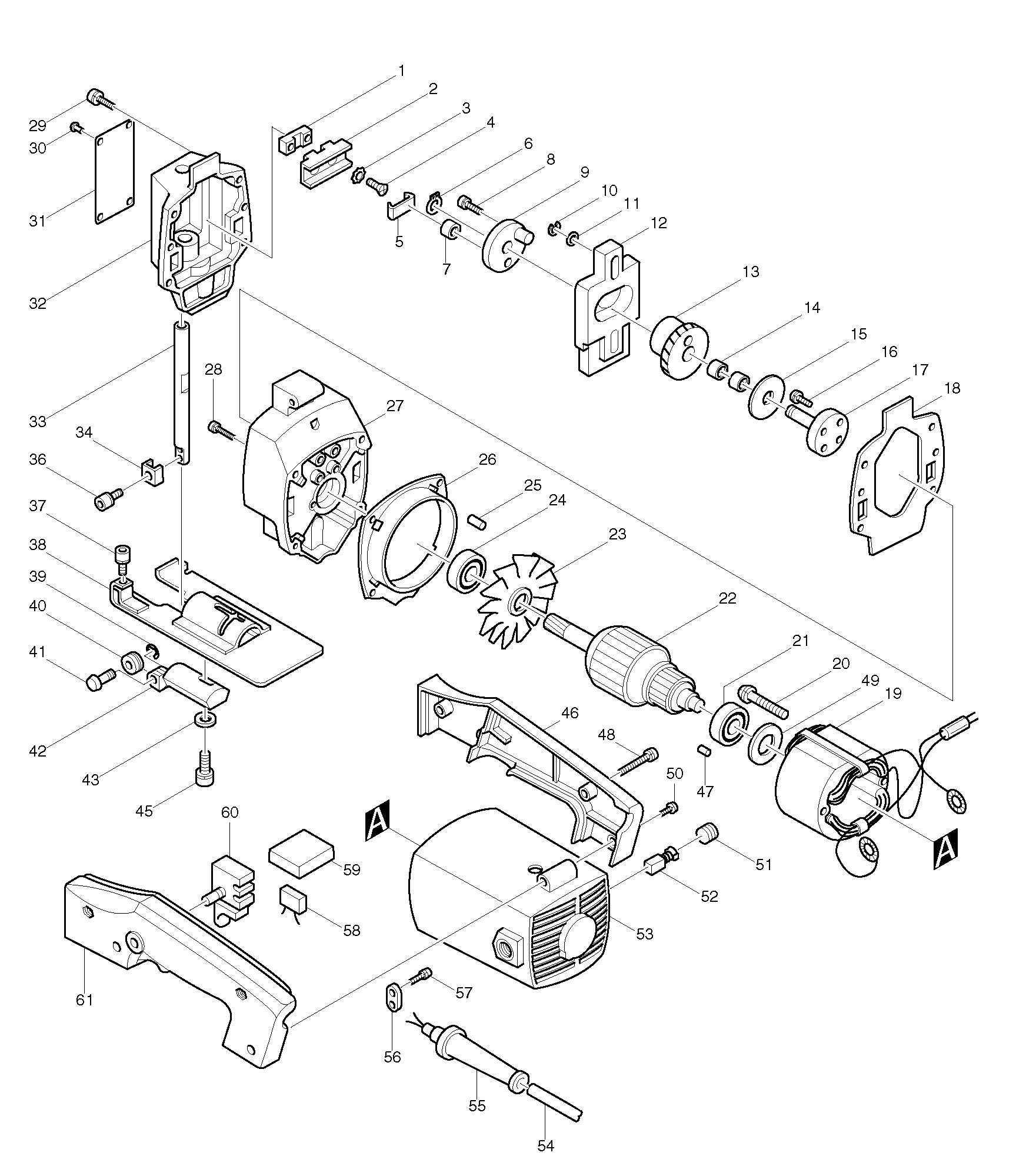

Sheet 1: Makita 4300BV parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 335018-5 | Makita 335018-5 SLIDER SUPPORT |
| 2 | 334018-2 | Makita 334018-2 SLIDER |
| 3 | 943052-7 | Makita 943052-7 TOOTHED LOCK WASHER 4 |
| 4 | 251387-5 | Makita 251387-5 COUNTERSUNK HEAD SCREW M4 X12 |
| 5 | 342483-1 | Makita 342483-1 SLIDER PLATE |
| 6 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 7 | 212049-0 | Makita 212049-0 NEEDLE BEARING 607 |
| 8 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 9 | 163021-4 | Makita 163021-4 CRANK |
| 10 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 11 | 253077-6 | Makita 253077-6 FLAT WASHER 6 |
| 12 | 313014-3 | Makita 313014-3 BALANCE PLATE |
| 13 | 221160-7 | Makita 221160-7 HELICAL GEAR 51 |
| 14 | 212005-0 | Makita 212005-0 Needle Bearing 810, HR2412 |
| 15 | 253076-8 | Makita 253076-8 FLAT WASHER 8 |
| 16 | 911116-5 | Makita 911116-5 PAN HEAD SCREW M4*12, 9035 |
| 17 | 323221-0 | Makita 323221-0 GEAR SHAFT, 4300A |
| 18 | 442082-0 | Makita 442082-0 PACKING |
| 19 | 528719-4 | Makita 528719-4 FIELD ASS Y 220V |
| 20 | 911666-0 | Makita 911666-0 PAN HEAD SCREW M5X45 |
| 21 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 22 | 512065-5 | Makita 512065-5 ARMATURE ASS Y 220V |
| 23 | 241518-4 | Makita 241518-4 FAN 68 |
| 24 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 25 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 26 | 343087-2 | Makita 343087-2 FAN GUIDE, 4300BA |
| 27 | 157406-4 | Makita 157406-4 GEAR HOUSING |
| 28 | 911146-6 | Makita 911146-6 PAN HEAD SCREW M4X25 |
| 29 | 911136-9 | Makita 911136-9 P.H. SCREW M4*20 WITH W, M931 |
| 30 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 31 | 815062-3 | Makita 815062-3 NAME PLATE 4300BV |
| 32 | 157407-2 | Makita 157407-2 GEAR HOUSING COVER |
| 33 | 325125-2 | Makita 325125-2 Blade Holder 4300BA 4300BV |
| 34 | 331211-9 | Makita 331211-9 BLADE SET |
| 36 | 922111-0 | Makita 922111-0 H.S.HEAD BOLT M4*10 WITH W, EBH252L |
| 37 | 922117-8 | Makita 922117-8 HEX. SOCKET HEAD BOLT M4X |
| 38 | 164491-0 | Makita 164491-0 BASE |
| 39 | 257903-1 | Makita 257903-1 STOP RING E-2.3 |
| 40 | 321742-6 | Makita 321742-6 ROLLER |
| 41 | 256644-6 | Makita 256644-6 PIN 3 |
| 42 | 134273-4 | Makita 134273-4 BACK ROLLER ASS'Y |
| 43 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 45 | 922136-4 | Makita 922136-4 HEX. SOCKET HEAD BOLT M4X |
| 46 | 181150-1 | Makita 181150-1 HANDLE SET |
| 47 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 48 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 49 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 50 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 51 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 52 | 181021-2 | Makita 181021-2 Carbon Brushes CB-51 1901 1902 1923B N1932B 4014B 6300L 9030 |
| 53 | 157819-9 | Makita 157819-9 MOTOR HOUSING |
| 54 | 666066-6 | Makita 666066-6 POWER S.CORD HD-21 CORD, 9557PB |
| 55 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 56 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 57 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 58 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 59 | 685700-9 | |
| 60 | 651247-5 | Makita 651247-5 SWITCH 11-12 |
| 61 | 181150-1 | Makita 181150-1 HANDLE SET |
