Makita 4112HS
Makita 4112HS: exploded parts diagram, 1 sheet, 68 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 4112HS: 68 positions on 1 sheet

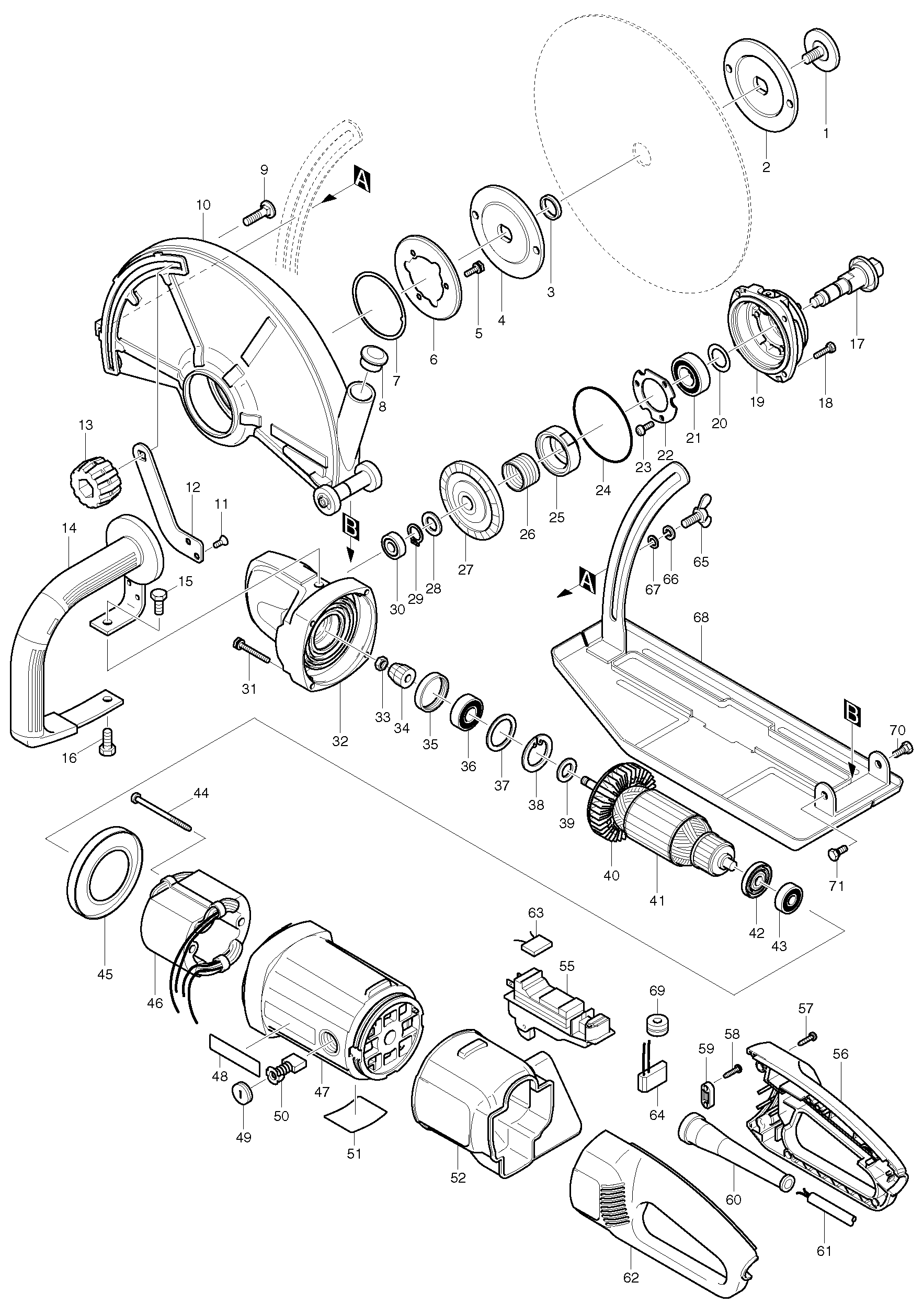

Sheet 1: Makita 4112HS parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265265-3 | Makita 265265-3 HEX. BOLT M10X25 |
| 2 | 224184-2 | Makita 224184-2 INNER FLANGE 100 |
| 3 | 257054-0 | Makita 257054-0 RING 20 |
| 4 | 224184-2 | Makita 224184-2 INNER FLANGE 100 |
| 5 | 925221-2 | Makita 925221-2 HEX. BOLT M5X16 |
| 6 | 345269-2 | Makita 345269-2 PRESSURE PLATE |
| 7 | 341853-1 | Makita 341853-1 PLATE B |
| 8 | 286268-4 | Makita 286268-4 CAP 31 |
| 9 | 265845-5 | Makita 265845-5 CAP SQUARE NECK BOLT M8X3 |
| 10 | 125185-2 | Makita 125185-2 WHEEL COVER ASSY |
| 11 | 912202-5 | Makita 912202-5 Countersunk Head Screw M5 X 8 |
| 12 | 345291-9 | Makita 345291-9 LOCK PLATE |
| 13 | 252648-6 | Makita 252648-6 THUMB NUT M8 |
| 14 | 273655-6 | Makita 273655-6 GRIP |
| 15 | 921432-7 | Makita 921432-7 HEX. BOLT M8X20 |
| 16 | 921432-7 | Makita 921432-7 HEX. BOLT M8X20 |
| 17 | 153541-6 | Makita 153541-6 SPINDLE COMPLETE |
| 18 | 265502-5 | Makita 265502-5 HEX.BOLT M5X20 4112HS |
| 19 | 153539-3 | Makita 153539-3 BEARING BOX COMPLETE |
| 20 | 267041-1 | Makita 267041-1 FLAT WASHER 20 |
| 21 | 211326-7 | Makita 211326-7 BALL BEARING 6004DDW 3612BR,4114S |
| 22 | 285708-9 | Makita 285708-9 BEARING RETAINER 50 |
| 23 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 24 | 213757-6 | Makita 213757-6 O RING 80 |
| 25 | 331644-8 | Makita 331644-8 LOCK SLEEVE |
| 26 | 233922-1 | Makita 233922-1 LOCK SPRING 24 |
| 27 | 227438-6 | Makita 227438-6 Spiral Bevel Gear 48 |
| 28 | 267251-0 | Makita 267251-0 FLAT WASHER 15 |
| 29 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 30 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 31 | 925261-0 | Makita 925261-0 +HEX.BOLT M5X40 |
| 32 | 153542-4 | Makita 153542-4 GEAR HOUSING COMPLETE |
| 33 | 252178-7 | Makita 252178-7 HEX.NUT M8-12 |
| 34 | 227440-9 | Makita 227440-9 SPIRAL BEVEL GEAR 9 |
| 35 | 262554-7 | Makita 262554-7 RUBBER RING 36 |
| 36 | 211228-7 | Makita 211228-7 BALL BEARING 6202DDW, GA9010 |
| 37 | 267250-2 | Makita 267250-2 FLAT WASHER 30 |
| 38 | 962157-4 | Makita 962157-4 RETAINING RING R-40 |
| 39 | 267251-0 | Makita 267251-0 FLAT WASHER 15 |
| 41 | 516888-3 | Makita 516888-3 ARMATURE ASSY |
| 42 | 681630-2 | Makita 681630-2 INSULATION WASHER, GA9020 |
| 43 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 44 | 266059-9 | Makita 266059-9 SELF-TAP FLANGE SCREW PT M5X75 |
| 45 | 416131-9 | Makita 416131-9 BAFFLE PLATE |
| 46 | 626134-7 | Makita 626134-7 FIELD 220-240V 4112HS |
| 47 | 183564-0 | Makita 183564-0 MOTOR HOUSING |
| 48 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 49 | 643710-2 | Makita 643710-2 BRUSHOLDER CAP HM1800 |
| 50 | 191957-7 | Makita 191957-7 Carbon Brushes CB-204 for 9049 9069 GA7040 GA7050 GA9010 |
| 51 | 850449-2 | Makita 850449-2 NAME PLATE 4112HS |
| 52 | 421831-8 | Makita 421831-8 DUST COVER |
| 55 | 651147-9 | Makita 651147-9 SWITCH 1362.0102 |
| 56 | 183615-9 | Makita 183615-9 HANDLE SET |
| 57 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 58 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 59 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 60 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 61 | 695107-1 | Makita 695107-1 Power Supply Cord 1.5-2-2.5 for 9047S |
| 62 | 183615-9 | Makita 183615-9 HANDLE SET |
| 63 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 64 | 631553-4 | Makita 631553-4 SOFT START CIRCUIT |
| 65 | 924426-1 | Makita 924426-1 WING BOLT M8X20 |
| 66 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 67 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 68 | 165343-8 | Makita 165343-8 BASE, 4112 |
| 69 | 688106-0 | |
| 70 | 265506-7 | Makita 265506-7 SHOULDER HEX.BOLT M6 |
| 71 | 265506-7 | Makita 265506-7 SHOULDER HEX.BOLT M6 |
