Makita 4110C
Makita 4110C: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 4110C: 78 positions on 1 sheet

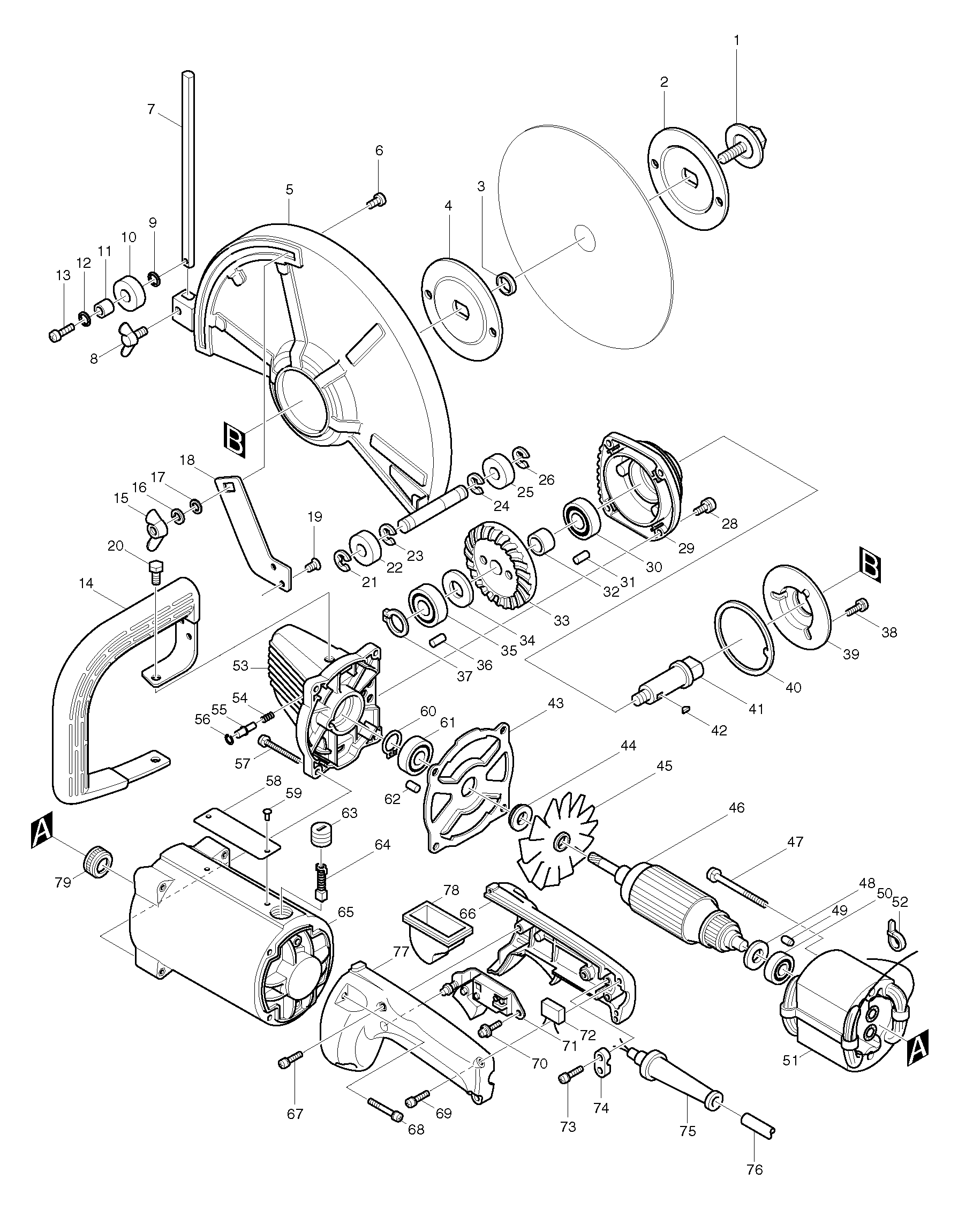

Sheet 1: Makita 4110C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265265-3 | Makita 265265-3 HEX. BOLT M10X25 |
| 2 | 224184-2 | Makita 224184-2 INNER FLANGE 100 |
| 3 | 257054-0 | Makita 257054-0 RING 20 |
| 4 | 224184-2 | Makita 224184-2 INNER FLANGE 100 |
| 5 | 150188-7 | |
| 6 | 251918-0 | Makita 251918-0 CAP SQUARE NECK BOLT M8X2 |
| 7 | 256923-2 | |
| 8 | 251859-0 | Makita 251859-0 WING BOLT M8X12 |
| 9 | 253143-9 | Makita 253143-9 FLAT WASHER 12 FOR |
| 10 | 257091-4 | |
| 11 | 257580-9 | Makita 257580-9 SLEEVE 8 |
| 12 | 253143-9 | Makita 253143-9 FLAT WASHER 12 FOR |
| 13 | 911432-5 | Makita 911432-5 PAN HEAD SCREW M8X20 |
| 14 | 273615-8 | Makita 273615-8 GRIP |
| 15 | 934401-9 | Makita 934401-9 WING NUT M8 |
| 16 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 17 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 18 | 341854-9 | Makita 341854-9 LOCK PLATE |
| 19 | 912202-5 | Makita 912202-5 Countersunk Head Screw M5 X 8 |
| 20 | 921422-0 | Makita 921422-0 HEX. BOLT M8X16 |
| 21 | 961015-1 | Makita 961015-1 STOP RING E-9, 6220D |
| 22 | 257091-4 | |
| 23 | 961015-1 | Makita 961015-1 STOP RING E-9, 6220D |
| 24 | 961015-1 | Makita 961015-1 STOP RING E-9, 6220D |
| 25 | 257091-4 | |
| 26 | 961015-1 | Makita 961015-1 STOP RING E-9, 6220D |
| 28 | 922236-0 | Makita 922236-0 HEX SOCCET HEAD BOLT M5X22 |
| 29 | 152203-3 | Makita 152203-3 BEARING BOX COMPLETE |
| 30 | 211256-2 | Makita 211256-2 BALL BEARING 6203LLB, LS1040 |
| 31 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 32 | 257576-0 | Makita 257576-0 SLEEVE 17 4110C |
| 33 | 221353-6 | Makita 221353-6 SPIRAL BEVEL GEAR 55 |
| 34 | 253180-3 | Makita 253180-3 FLAT WASHER 10, 6220D |
| 35 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 36 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 37 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 38 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 39 | 162107-1 | |
| 40 | 341853-1 | Makita 341853-1 PLATE B |
| 41 | 321443-6 | Makita 321443-6 SPINDLE |
| 42 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 43 | 343453-3 | |
| 44 | 321444-4 | |
| 45 | 241317-4 | |
| 46 | 514713-2 | Makita 514713-2 ARMATURE 4110C |
| 47 | 911938-3 | Makita 911938-3 PAN HEAD SCREW M5X85 |
| 48 | 681635-2 | Makita 681635-2 INSULATION WASHER 4110B |
| 49 | ||
| 50 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 51 | 524673-0 | Makita 524673-0 FIELD 4110C |
| 52 | 687010-0 | Makita 687010-0 BAND, 5704R |
| 53 | 157905-6 | Makita 157905-6 GEAR HOUSING 4110B |
| 54 | 231240-1 | Makita 231240-1 COMPRESSION SPRING 7, 2412N |
| 55 | 256633-1 | Makita 256633-1 PIN 6, LS1016L |
| 56 | 231928-3 | Makita 231928-3 RING SPRING 8, LS1013 |
| 57 | 911261-6 | Makita 911261-6 PAN HEAD SCREW M5X40 |
| 58 | 854730-3 | Makita 854730-3 NAME PLATE 4110C |
| 59 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 60 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 61 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 62 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 63 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 64 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 65 | 156738-6 | Makita 156738-6 MOTOR HOUSING GA7000 |
| 66 | 181442-8 | Makita 181442-8 HANDLE SET |
| 67 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 68 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 69 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 70 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 71 | 651131-4 | Makita 651131-4 Switch C3D-15MS-1D for 2414DB HM1400 HM1810 9005BZ 4110C |
| 72 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 73 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 74 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 75 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 76 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 77 | 181442-8 | Makita 181442-8 HANDLE SET |
| 78 | 421279-4 | Makita 421279-4 DUST COVER FOR AS/DC SWITCH FOR GA7000 |
| 79 | 421417-8 |
