Makita 4103D: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 4103D: 39 positions on 1 sheet

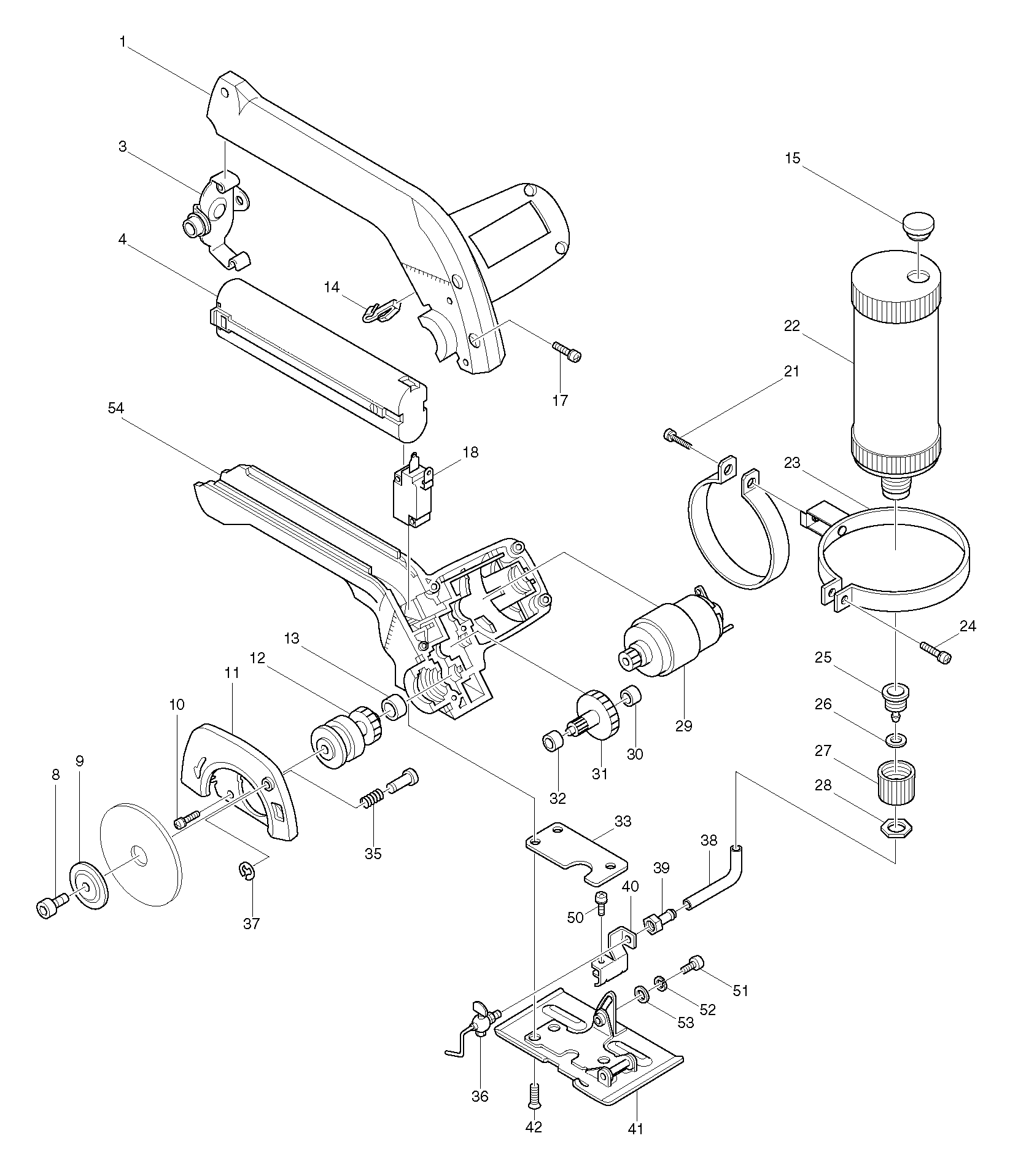

Sheet 1: Makita 4103D parts diagram

Makita 4103D parts diagram, sheet 1
No.Part numberPart name
1182025-7Makita 182025-7 HOUSING SET
3163157-9Makita 163157-9 SET PLATE
4191681-2
8922212-4Makita 922212-4 HEX. SOCKET HEAD BOLT M5X
9224177-9Makita 224177-9 OUTER FLANGE 28, HS300D
10911121-2Makita 911121-2 PAN HEAD SCREW M4*14, GA400D
11164547-9Makita 164547-9 BLADE CASE
12153132-3Makita 153132-3 GEAR COMPLETE
13214017-9Makita 214017-9 PLANE BEARING 5
14232061-4Makita 232061-4 LEAF SPRING
15421198-4Makita 421198-4 CAP FOR
17911148-2Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611
18651866-7Makita 651866-7 SWITCH V-5130E-092
21911146-6Makita 911146-6 PAN HEAD SCREW M4X25
22134152-6Makita 134152-6 TANK ASS'Y
23163159-5Makita 163159-5 TANK HOLDER
24911146-6Makita 911146-6 PAN HEAD SCREW M4X25
25321512-3Makita 321512-3 METALLIC CAP
26261056-0Makita 261056-0 RUBBER WASHER 12
27411988-3Makita 411988-3 CAP
28252064-2Makita 252064-2 HEX. NUT M12-14
29629574-8Makita 629574-8 DC Motor 9.6V for 4103D
30214019-5Makita 214019-5 PLANE BEARING 4
31226053-3Makita 226053-3 GEAR COMPLETE 11-67 FOR
32214019-5Makita 214019-5 PLANE BEARING 4
33423070-6Makita 423070-6 PACKING
35231098-8Makita 231098-8 COMPRESSION SPRING 6
36168104-5Makita 168104-5 COCK
37961011-9Makita 961011-9 STOP RING, HR2450
38412054-9Makita 412054-9 VINYL TUBE 5
39323601-0Makita 323601-0 NUT
40341940-6Makita 341940-6 COCK HOLDER
41168084-5Makita 168084-5 BASE
42912222-9Makita 912222-9 COUNTERSUNK HEAD M5X16, M926
50911111-5Makita 911111-5 PAN HEAD SCREW M4*10, M926
51922212-4Makita 922212-4 HEX. SOCKET HEAD BOLT M5X
52942101-7Makita 942101-7 SPRING WASHER 5, 4100NH
53941101-4Makita 941101-4 FLAT WASHER 5, 3703
54182025-7Makita 182025-7 HOUSING SET
