Makita 4101RH
Makita 4101RH: exploded parts diagram, 1 sheet, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 4101RH: 61 positions on 1 sheet

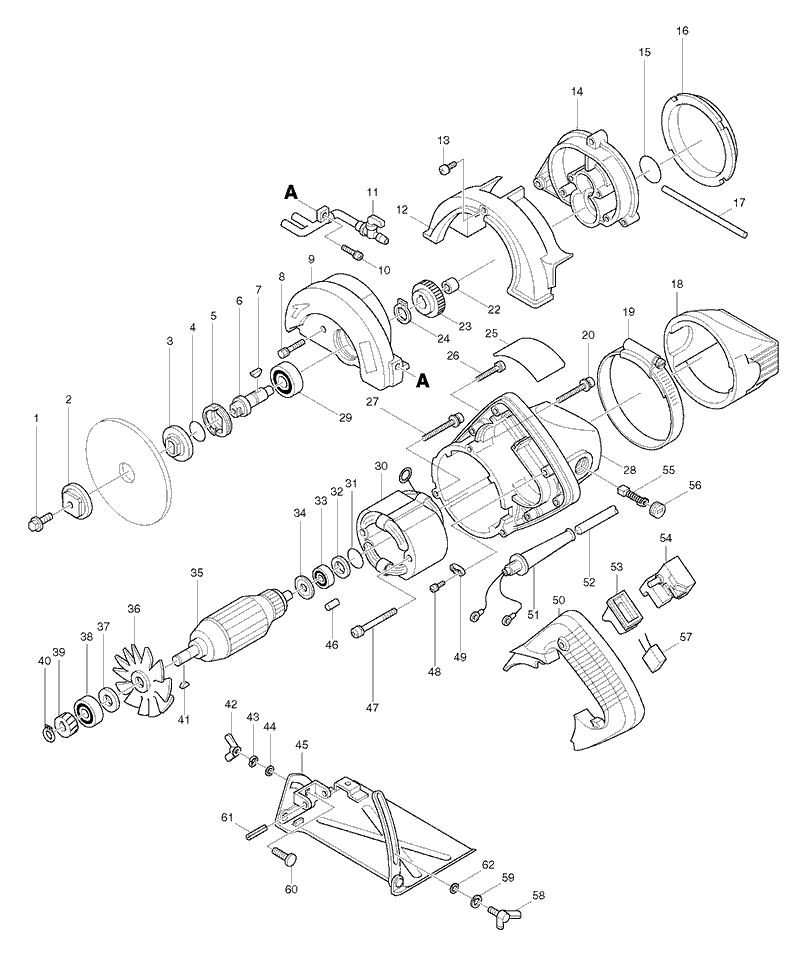

Sheet 1: Makita 4101RH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266133-3 | Makita 266133-3 Hex.Socket Head Bolt M6*20N for SS610D |
| 2 | 224081-2 | Makita 224081-2 OUTER FLANGE 36, 4100NH |
| 3 | 224080-4 | Makita 224080-4 INNER FLANGE 36, 4100NH |
| 4 | 213255-0 | Makita 213255-0 O RING 18 4101RH |
| 5 | 285815-8 | Makita 285815-8 BEARING RETAINER 19-33 |
| 6 | 321197-5 | Makita 321197-5 SPINDLE, JR300VT |
| 7 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 8 | 925146-0 | |
| 9 | 150179-8 | Makita 150179-8 BLADE CASE COMPLETE |
| 10 | 911123-8 | Makita 911123-8 PAN HEAD SCREW M4*14, N5900B |
| 11 | 150172-2 | |
| 12 | 410910-7 | |
| 13 | 911203-0 | Makita 911203-0 PAN HEAD SCREW M5X8 |
| 14 | 150926-7 | |
| 15 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 16 | 415403-9 | |
| 17 | 423155-8 | |
| 18 | 414074-9 | |
| 19 | 163282-6 | |
| 20 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 22 | 212004-2 | Makita 212004-2 NEEDLE BEARING 810 |
| 23 | 226420-2 | Makita 226420-2 HELICAL GEAR 42 4101RH |
| 24 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 25 | 851596-2 | |
| 26 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 27 | 911263-2 | Makita 911263-2 PAN HEAD SCREW M5X40 WR, 4100NH |
| 28 | 150927-5 | Makita 150927-5 MOTOR HOUSING COMPLETE |
| 29 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 30 | 522843-5 | Makita 522843-5 FIELD ASS'Y 220V |
| 31 | 213262-3 | Makita 213262-3 O RING 18 |
| 32 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 33 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 34 | 681613-2 | Makita 681613-2 INSULATION WASHER |
| 35 | 516343-5 | Makita 516343-5 ARMATURE ASS'Y 220V |
| 36 | 240007-6 | Makita 240007-6 FAN 68, 4100NH |
| 37 | 253741-9 | Makita 253741-9 FLAT WASHER 9, HR2432 |
| 38 | 211056-0 | Makita 211056-0 BALL BEARING 629LLB |
| 39 | 226419-7 | Makita 226419-7 HELICAL GEAR 19 4101RH |
| 40 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 41 | 254002-0 | Makita 254002-0 WOOD RUFF KEY 3, 4100NH |
| 42 | 252623-2 | |
| 43 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 44 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 45 | 168216-4 | Makita 168216-4 BASE |
| 46 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 47 | 911290-9 | Makita 911290-9 PAN HEAD SCREW M5X65 |
| 48 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 49 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 50 | 152597-6 | |
| 51 | 682504-0 | Makita 682504-0 CORD GUARD 10-85, 5606B |
| 52 | 699005-1 | Makita 699005-1 POWER SUPPLY CORD UNIT |
| 53 | 421329-5 | Makita 421329-5 DUST COVER, 4100NH |
| 54 | 651252-2 | Makita 651252-2 Switch for 1900 1923H 1911B 4101RH 4200H 4200NH 4100 |
| 55 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 56 | 643755-0 | Makita 643755-0 HOLDER CAP |
| 57 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 58 | 251886-7 | Makita 251886-7 WING BOLT M6X10 |
| 59 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 60 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 61 | 951219-3 | Makita 951219-3 SPRING PIN 6-32 |
| 62 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
