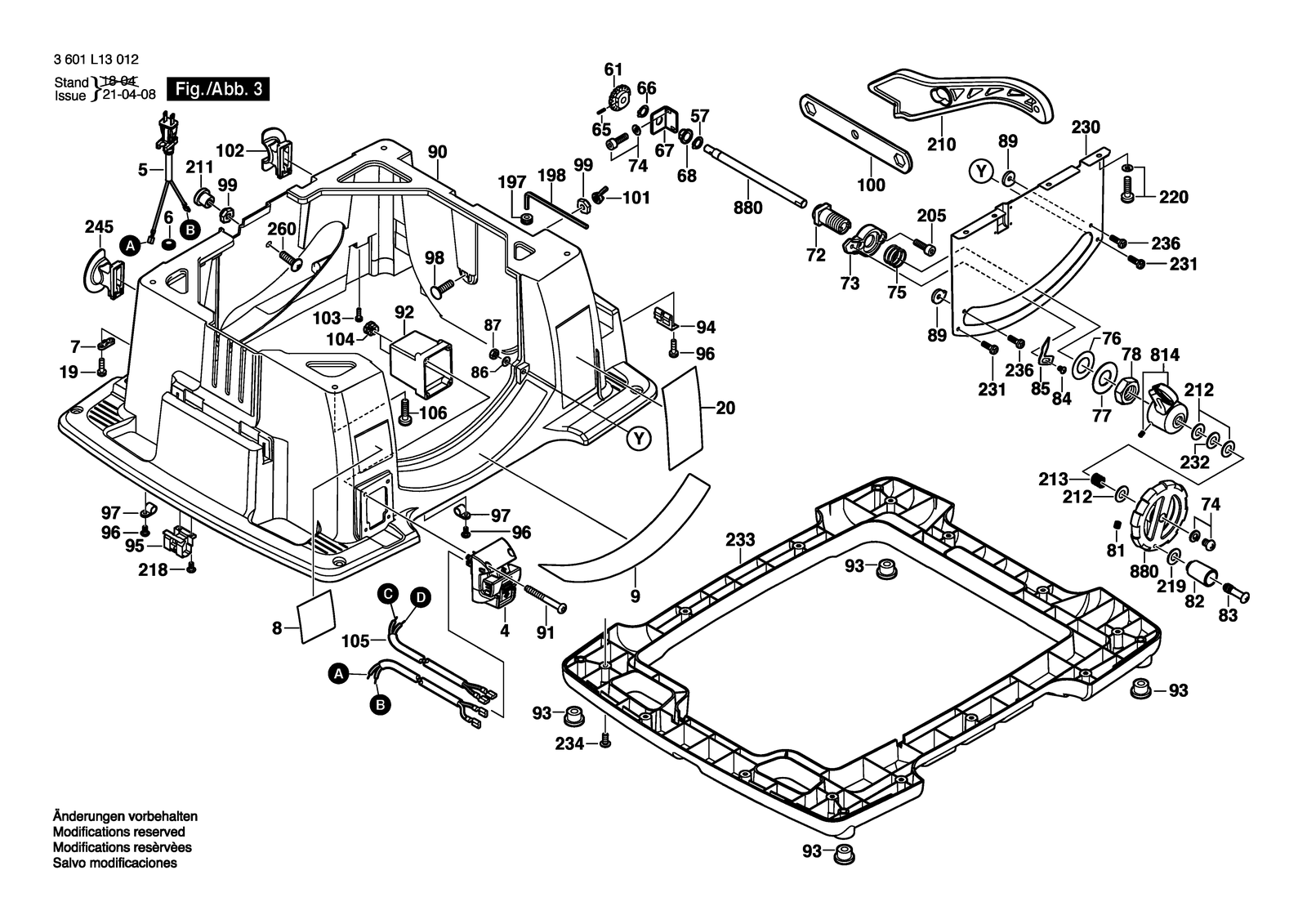

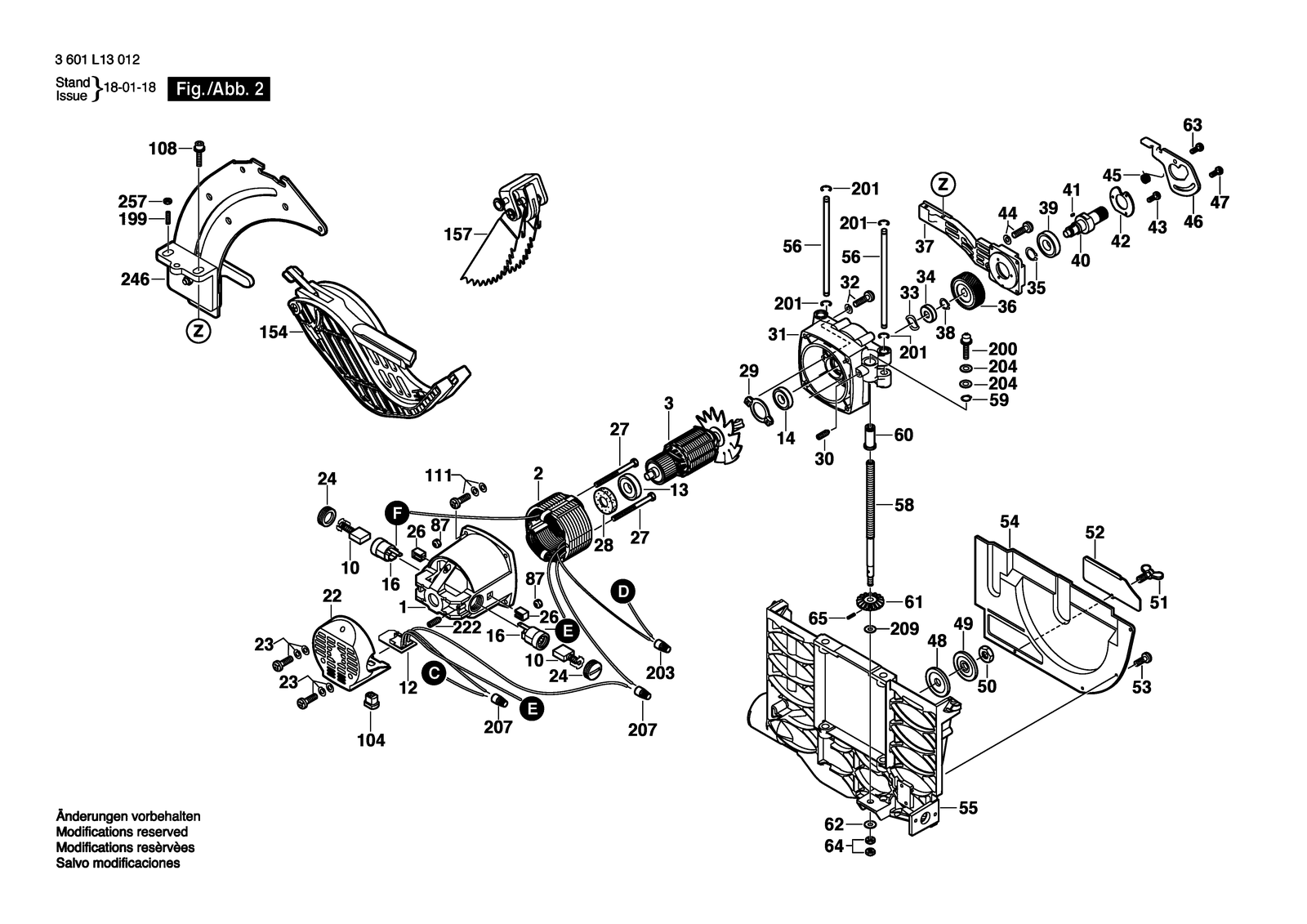

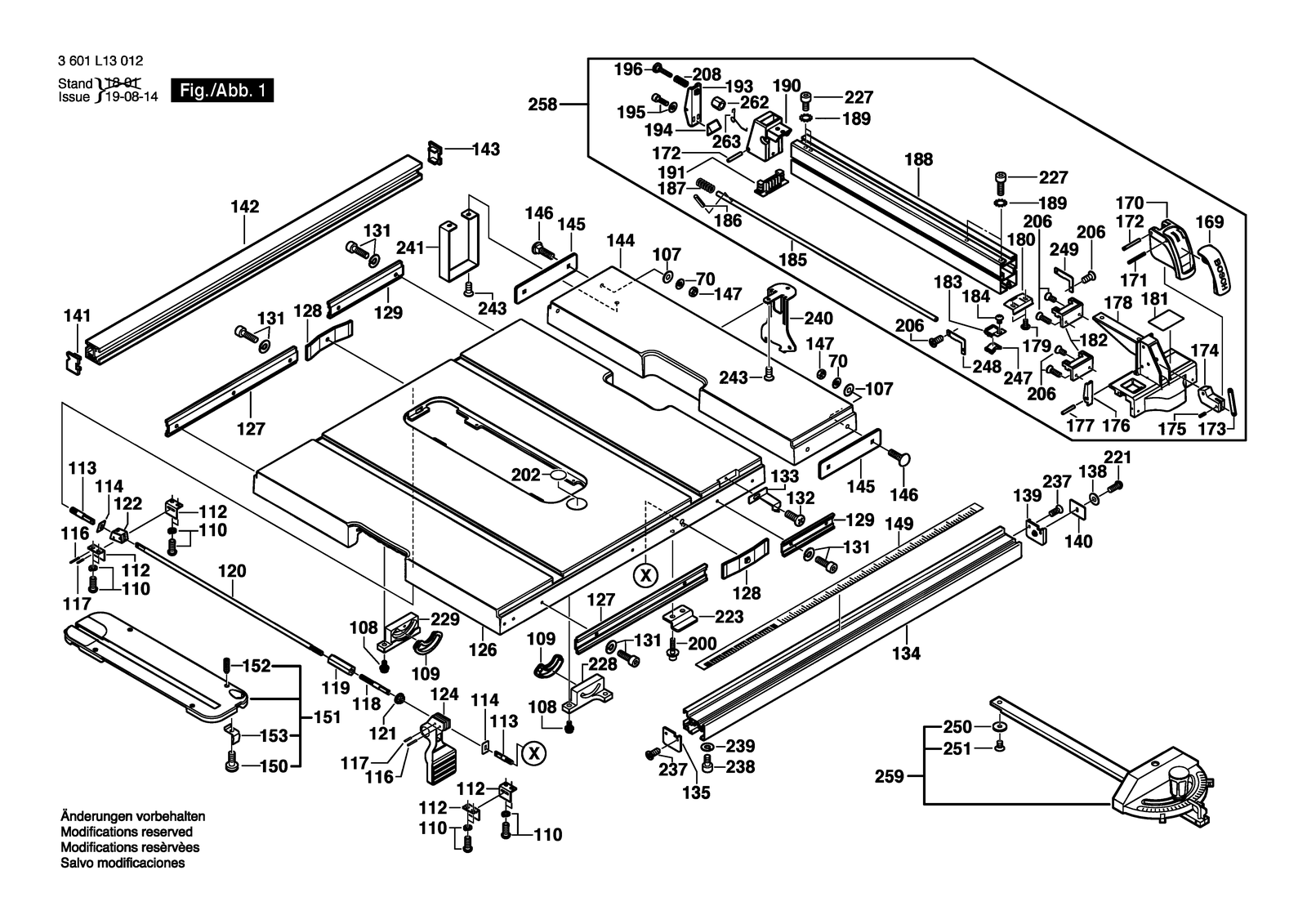

Bosch 4100 table saw: exploded parts diagram, 4 sheets, 222 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 4100: 222 positions on 4 sheets
Bosch 4100 parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA8038 | Motor Spare Parts Set |
| 10 | 2610997207 | Carbon-Brush Set |
| 100 | 2610996880 | Box Wrench |
| 101 | 2610997247 | Wing Nut |
| 102 | 2610950141 | Screw |
| 103 | 2610998574 | Screw |
| 104 | 2610998567 | Cable Clip |
| 105 | 2610998568 | Connecting Cable |
| 106 | 2610997297 | Screw |
| 107 | 2610910013 | Washer |
| 108 | 2610950069 | Screw |
| 109 | 2610950070 | Bushing |
| 110 | 2610950071 | Screw |
| 111 | 2610998587 | Screw |
| 112 | 2610996921 | Holding Bracket |
| 113 | 2610996913 | Pin |
| 114 | 2610996917 | Plate |
| 116 | 2610997275 | Pin |
| 117 | 2610997274 | Pin |
| 118 | 2610996918 | Set screw |
| 119 | 2610996920 | Connecting Nut |
| 12 | 2610997306 | Speed governor 115-120V |
| 120 | 2610996919 | Rod |
| 121 | 2610994262 | Clamp |
| 122 | 2610996915 | Clamping Piece |
| 124 | 2610950073 | Clamping Lever |
| 126 | 1619PB2555 | Table top |
| 127 | 2610950075 | Mounting Rail |
| 128 | 2610996912 | Fixing Plate |
| 129 | 2610950076 | Mounting Rail |
| 13 | 2610004595 | Ball Bearing |
| 131 | 2610951945 | Screw |
| 132 | 2610950077 | Screw |
| 133 | 2610950078 | Pointer |
| 134 | 2610950079 | Profile Rail |
| 135 | 2610018277 | Stamped Part |
| 138 | 2610950080 | Cover |
| 139 | 2610950082 | End stop |
| 14 | 2610911927 | Ball Bearing |
| 140 | 2610950083 | Profile Rail |
| 141 | 2610997218 | Cover |
| 142 | 1619PB2552 | Rail |
| 143 | 2610997216 | Cover |
| 144 | 1619PB2554 | Table top Old |
| 145 | 2610950086 | Mounting plate |
| 146 | 2610950087 | Screw |
| 147 | 2610304772 | Nut |
| 149 | 2610950088 | Profile Rail |
| 150 | 2610950089 | Screw |
| 151 | 2610950090 | Profile Rail |
| 152 | 2610950091 | Set screw |
| 153 | 2610011716 | Holding Spring |
| 154 | 2610950092 | Protective Cover |
| 157 | 2610950093 | Safety Device |
| 16 | 2610013003 | Brush Holder Neu |
| 169 | 2610950094 | Handle Cover |
| 170 | 2610950095 | Housing |
| 171 | 2610950096 | Bolt |
| 172 | 2610950097 | Bolt |
| 173 | 2610996890 | Lever |
| 174 | 2610996889 | Cam |
| 175 | 2610997289 | Pin |
| 176 | 2610950098 | Clamping Plate |
| 177 | 2610997291 | Pin |
| 178 | 2610950099 | Clamping Plate |
| 179 | 2610997249 | Shoulder Screw |
| 180 | 2610950100 | Pad |
| 181 | 2610997810 | Warning Label |
| 182 | 1619PB3866 | Pad |
| 183 | 2610950102 | Bracket |
| 184 | 2610950103 | Screw |
| 185 | 2610950104 | Pin |
| 186 | 2610950105 | Edge Guide |
| 187 | 2610996888 | Spring |
| 188 | 2610950106 | Profile Rail |
| 189 | 2610358802 | Washer |
| 19 | 2610358841 | Attachment Screw |
| 190 | 2610950107 | Edge Guide |
| 191 | 1619PB3867 | Pad |
| 193 | 2610996885 | Clamping Plate |
| 194 | 2610997240 | Clamping Piece |
| 195 | 2610997293 | Screw |
| 196 | 2610997245 | Adjusting Screw |
| 197 | 2610911920 | Rubber Bushing |
| 198 | 2610998551 | Hexagon Socket Screw Key |
| 199 | 2610998580 | Screw |
| 2 | 1619PA5590 | Field |
| 20 | 2610950041 | Warning Label |
| 200 | 2610950108 | Screw |
| 201 | 2610992380 | Spring retaining ring |
| 202 | 2610997817 | Adhesive Label |
| 203 | 2610358932 | Connector |
| 204 | 2610950109 | Washer |
| 205 | 2610950110 | Profile Rail |
| 206 | 2610950111 | Pusher |
| 207 | 2610911933 | Connector |
| 208 | 2610998593 | Spring |
| 209 | 2610912588 | Plain Washer |
| 210 | 2610950112 | Knob |
| 211 | 2610950113 | Clamping Flange |
| 212 | 2610950114 | Linkage |
| 213 | 2610950115 | Spring |
| 218 | 2610950117 | Screw |
| 219 | 2610950389 | Washer |
| 22 | 2610996865 | Cover |
| 220 | 2610950118 | Screw |
| 221 | 2610950119 | Profile Rail |
| 222 | 2610950120 | Set screw |
| 223 | 2610950121 | End stop |
| 227 | 2610950125 | Profile Rail |
| 228 | 2610950126 | Mounting Bracket |
| 229 | 2610950127 | Mounting Bracket |
| 23 | 2610018983 | Screw Neu |
| 230 | 2610950128 | Housing |
| 231 | 2610945488 | Screw |
| 232 | 2610950129 | Plain Washer |
| 233 | 2610950130 | Profile Rail |
| 234 | 2610950131 | Screw |
| 236 | 2610950132 | Screw |
| 237 | 2610950133 | Screw |
| 238 | 2610950134 | Bolt |
| 239 | 2610950135 | Washer |
| 24 | 2610916802 | Brush-Cover Ø 22MM |
| 240 | 2610950136 | Mounting Bracket |
| 241 | 1619PB2556 | Strap |
| 243 | 2610950139 | Cam |
| 245 | 2610950068 | Protective Cover |
| 246 | 1600A01R19 | Riving Knife |
| 247 | 2610950143 | Lens |
| 248 | 2610950144 | Magnet |
| 249 | 2610950145 | Edge Guide |
| 250 | 2610950146 | Washer |
| 251 | 2610950147 | Screw |
| 257 | 2610911896 | Nut |
| 258 | 2610950148 | Edge Guide |
| 259 | 2610950149 | Mitre Fence |
| 26 | 2610911569 | Insert |
| 260 | 2610958586 | Stamped Part |
| 262 | 2610028342 | Cap Nut |
| 263 | 1600A00J57 | Contact strap |
| 27 | 2610911929 | Screw |
| 28 | 2610996948 | Rubber Ring |
| 29 | 2610911566 | Bearing cover |
| 3 | 1619PA5591 | Armature |
| 30 | 2610950427 | Set screw |
| 31 | 2610996863 | Gear Housing |
| 32 | 2610945505 | Screw |
| 33 | 2610950042 | Spring Washer |
| 34 | 2610996949 | Ball Bearing |
| 35 | 2610997282 | Spring retaining ring |
| 36 | 2610997208 | Toothed Gear |
| 37 | 2610996869 | Gear Cover |
| 38 | 2610997281 | Spring retaining ring |
| 39 | 2610997210 | Ball Bearing |
| 4 | 2610008538 | Switch |
| 40 | 2610950043 | Spindle |
| 41 | 2610012984 | Woodruff Key |
| 42 | 2610996932 | Bearing Sleeve |
| 43 | 2610950044 | Screw |
| 44 | 2610998572 | Screw |
| 45 | 2610996875 | Torsion Spring |
| 46 | 2610996874 | Locking Lever |
| 47 | 2610996876 | Shoulder Screw |
| 48 | 2610950045 | Washer |
| 49 | 2610950046 | Clamping Flange |
| 5 | 2610996945 | Power supply cord |
| 50 | 2610950047 | Arbor |
| 51 | 2610996879 | Wing Screw |
| 52 | 2610950048 | Cover Plate |
| 53 | 2610950049 | Screw |
| 54 | 2610950050 | Cover Panel |
| 55 | 2610950051 | Cover Plate |
| 56 | 2610950052 | Guiding bolt |
| 57 | 2610997276 | Spring retaining ring |
| 58 | 2610950053 | Threaded Rod |
| 59 | 2610998573 | Spring retaining ring |
| 6 | 2610950038 | Grommet |
| 60 | 2610997221 | Bushing |
| 61 | 2610996896 | Toothed Gear |
| 62 | 2610912587 | Plain Washer |
| 63 | 2610998588 | Screw |
| 64 | 2610358149 | Nut |
| 65 | 2610950054 | Bolt |
| 66 | 2610997277 | Spring retaining ring |
| 67 | 2610997212 | Mounting Bracket |
| 68 | 1619PA5649 | Bushing |
| 7 | 2610358842 | Clamp |
| 70 | 2610355325 | Spring Washer |
| 72 | 2610996933 | Threaded Bushing |
| 73 | 2610996938 | Bushing |
| 74 | 2610950055 | Screw |
| 75 | 2610997271 | Spring |
| 76 | 2610998550 | Plain Washer |
| 77 | 2610950114 | Linkage |
| 78 | 2610997298 | Nut |
| 8 | 2610050484 | Nameplate |
| 81 | 2610950058 | Threaded Rod |
| 813 | 1619PA7214 | Lever |
| 814 | 1609B06826 | Clamping Lever |
| 82 | 2610950059 | Handle |
| 821 | 1619PB2873 | Wheel |
| 83 | 2610950060 | Screw |
| 839 | 1619PB2847 | Set of screws |
| 84 | 2610950061 | Pin |
| 85 | 2610950062 | Pointer |
| 850 | 1619PB2871 | Stand Foot |
| 853 | 1619PB2860 | Set of screws |
| 86 | 2610347092 | Plain Washer |
| 87 | 2610911901 | Self-locking nut |
| 880 | 1619PB2533 | Handwheel |
| 89 | 2610996929 | End stop |
| 9 | 2610950040 | Packaging Instructions |
| 90 | 2610950063 | Base |
| 91 | 2610997294 | Screw |
| 92 | 2610950064 | Screw |
| 93 | 2610358846 | Rubber Bushing |
| 94 | 2610996930 | Pickup Clip |
| 95 | 2610950065 | Housing |
| 96 | 2610950066 | Switch Cover |
| 97 | 2610990504 | Cable Clip |
| 98 | 2610950067 | Holding Spring |
| 99 | 2610997246 | Nut |
