Bosch 4000
Bosch 4000 saw table: exploded parts diagram, 3 sheets, 210 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 4000: 210 positions on 3 sheets

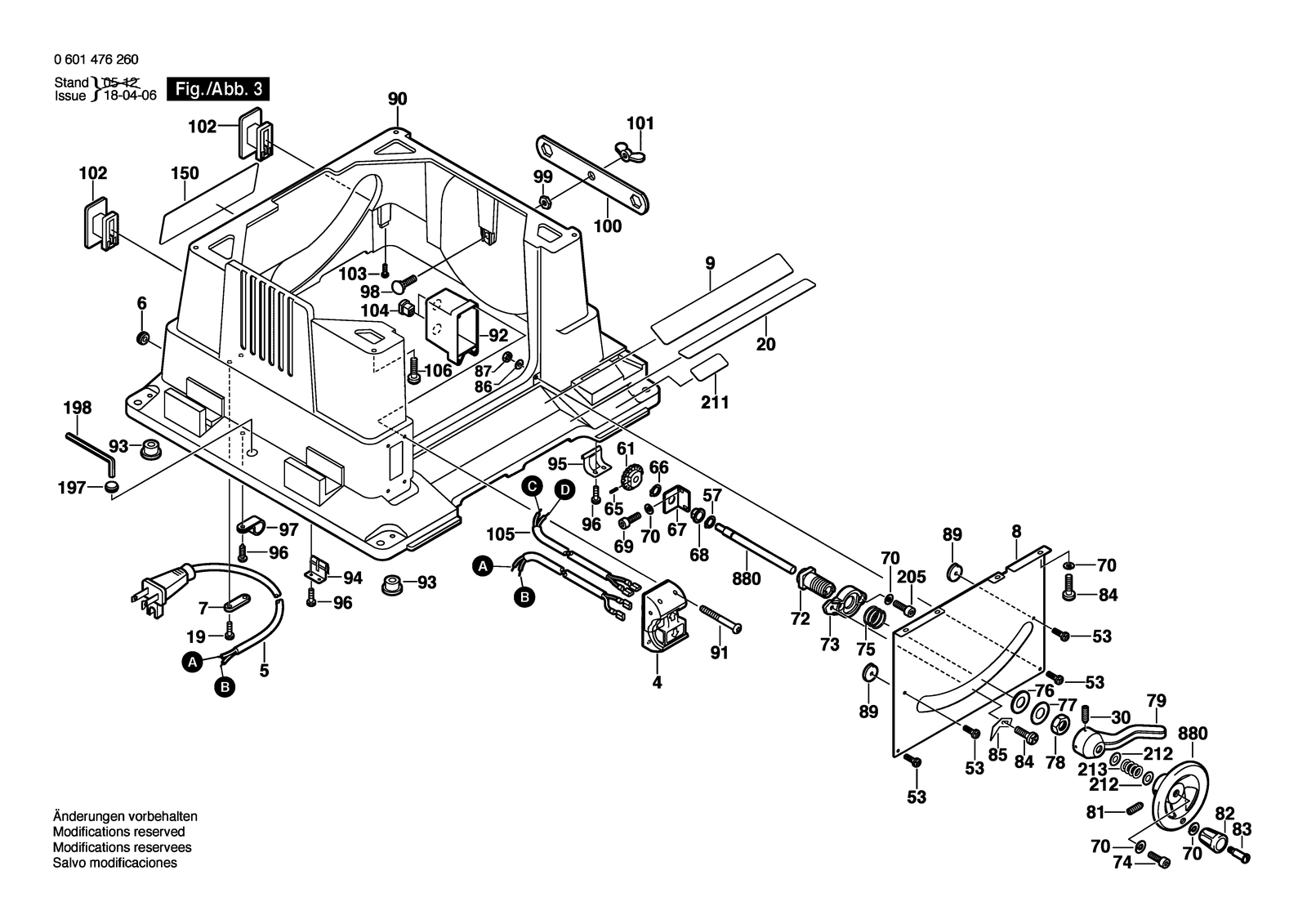

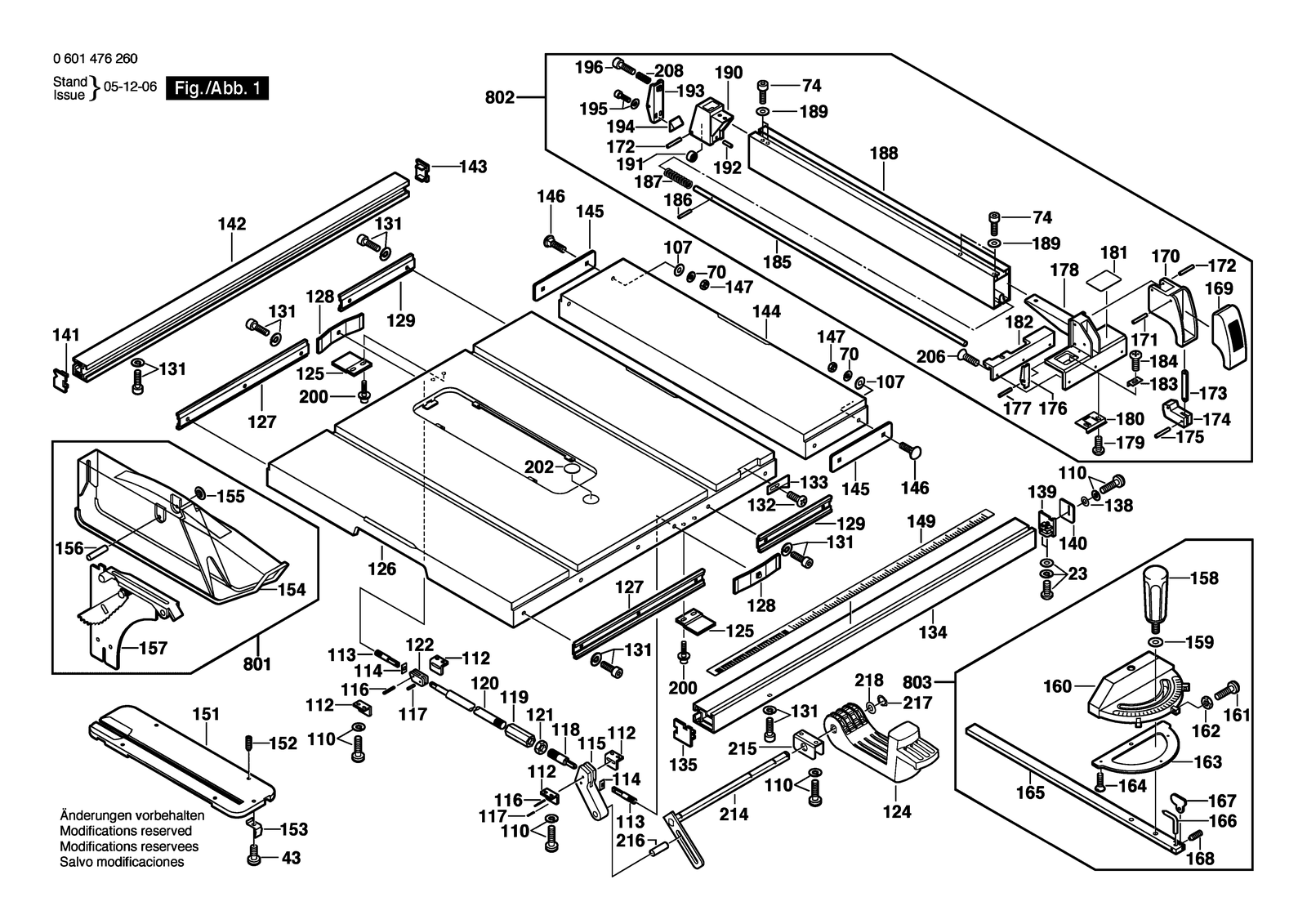

Bosch 4000 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA8038 | Motor Spare Parts Set |
| 100 | 2610996880 | Box Wrench |
| 101 | 2610997247 | Wing Nut |
| 102 | 2610996922 | Holder |
| 103 | 2610998574 | Screw |
| 104 | 2610998567 | Cable Clip |
| 105 | 2610998568 | Connecting Cable |
| 106 | 2610997297 | Screw |
| 107 | 2610910013 | Washer |
| 108 | 2610998575 | Screw |
| 109 | 2610996894 | Bearing Pedestal |
| 110 | 2610908271 | Tapping Screw |
| 111 | 2610998587 | Screw |
| 112 | 2610996921 | Holding Bracket |
| 113 | 2610996913 | Pin |
| 114 | 2610996917 | Plate |
| 115 | 2610937294 | Cam |
| 116 | 2610997275 | Pin |
| 117 | 2610997274 | Pin |
| 118 | 2610996918 | Set screw |
| 119 | 2610996920 | Connecting Nut |
| 12 | 2610997306 | Speed governor 115-120V |
| 120 | 2610996919 | Rod |
| 121 | 2610994262 | Clamp |
| 122 | 2610996915 | Clamping Piece |
| 124 | 2610937289 | Rotary Handle |
| 125 | 2610997217 | End stop |
| 126 | 2610937308 | Table top |
| 127 | 2610996855 | Mounting Rail |
| 128 | 2610996912 | Fixing Plate |
| 129 | 2610996856 | Mounting Rail |
| 13 | 2610004595 | Ball Bearing |
| 131 | 2610951945 | Screw |
| 132 | 2610950077 | Screw |
| 133 | 2610996941 | Pointer |
| 134 | 2610996853 | Profile Rail |
| 135 | 2610996923 | Cover |
| 138 | 2610908270 | Washer |
| 139 | 2610997244 | Cover |
| 14 | 2610911927 | Ball Bearing |
| 140 | 2610996926 | End stop |
| 141 | 2610997218 | Cover |
| 142 | 2610996854 | Profile Rail |
| 143 | 2610997216 | Cover |
| 144 | 2610996858 | Table top |
| 145 | 2610996928 | Retaining Plate |
| 146 | 2610950087 | Screw |
| 147 | 2610304772 | Nut |
| 148 | 2610998577 | Protective Cover |
| 149 | 2610997808 | Rule |
| 150 | 2610997807 | Sticker |
| 151 | 2610997227 | Insert |
| 152 | 2610950091 | Set screw |
| 153 | 2610011716 | Holding Spring |
| 154 | 2610996900 | Protective Cover |
| 155 | 2610997285 | Slide Nut |
| 156 | 2610996902 | Roller Pin |
| 157 | 2610998578 | Toothed Knife |
| 158 | 2610998579 | Clamp Handle |
| 159 | 2610909178 | Plain Washer |
| 16 | 2610911858 | Brush Holder Alt |
| 160 | 2610996936 | Mitre Gauge |
| 161 | 2610358519 | Screw |
| 162 | 2610908272 | Nut |
| 163 | 2610997213 | Base Support |
| 164 | 2610358832 | Screw |
| 165 | 2610996937 | Guide Bar |
| 166 | 2610997214 | Pointer |
| 167 | 2610997215 | End stop |
| 168 | 2615296243 | Screw |
| 169 | 2610998558 | Clamping Lever |
| 170 | 2610997248 | Housing |
| 171 | 2610997290 | Pin |
| 172 | 2610997291 | Pin |
| 173 | 2610996890 | Lever |
| 174 | 2610996889 | Cam |
| 175 | 2610997289 | Pin |
| 176 | 2610996893 | Clamping Plate |
| 177 | 2610997288 | Pin |
| 178 | 2610996881 | Stop Holder |
| 179 | 2610997249 | Shoulder Screw |
| 180 | 2610997223 | Clamping Plate |
| 181 | 2610997810 | Warning Label |
| 182 | 2610996891 | Slide Rail |
| 183 | 2610998570 | Bracket |
| 184 | 2610358892 | Cover |
| 185 | 2610996887 | Rod |
| 186 | 2610911577 | Retaining Pin |
| 187 | 2610996888 | Spring |
| 188 | 2610996883 | Profile Rail |
| 189 | 2610358802 | Washer |
| 19 | 2610358844 | Screw |
| 190 | 2610996884 | Housing |
| 191 | 2610996886 | Roller |
| 192 | 2610997292 | Pin |
| 193 | 2610996885 | Clamping Plate |
| 194 | 2610997240 | Clamping Piece |
| 195 | 2610997293 | Screw |
| 196 | 2610997245 | Adjusting Screw |
| 197 | 2610911920 | Rubber Bushing |
| 198 | 2610998551 | Hexagon Socket Screw Key |
| 199 | 2610998580 | Screw |
| 2 | 1619PA5590 | Field |
| 20 | 2610997809 | Nameplate |
| 200 | 2610950108 | Screw |
| 201 | 2610992380 | Spring retaining ring |
| 202 | 2610997817 | Adhesive Label |
| 203 | 2610358932 | Connector |
| 204 | 2610950109 | Washer |
| 205 | 2610950110 | Profile Rail |
| 206 | 2610950111 | Pusher |
| 207 | 2610911933 | Connector |
| 208 | 2610998593 | Spring |
| 209 | 2610912588 | Plain Washer |
| 211 | 2610912589 | Sticker |
| 212 | 2610341465 | Washer |
| 213 | 2610913192 | Compression Spring |
| 214 | 2610937290 | Axle |
| 215 | 2610937291 | Mounting Bracket |
| 216 | 2610937292 | Guide Pin |
| 217 | 2610937293 | Retaining ring |
| 218 | 2610921458 | Washer |
| 22 | 2610996865 | Cover |
| 23 | 2610018983 | Screw Neu |
| 24 | 2610911859 | Brush-Cover Ø 20MM |
| 25 | 2610327868 | Nut |
| 257 | 2610911896 | Nut |
| 26 | 2610911569 | Insert |
| 27 | 2610911929 | Screw |
| 28 | 2610996948 | Rubber Ring |
| 29 | 2610911566 | Bearing cover |
| 3 | 1619PA5591 | Armature |
| 30 | 2610355295 | Screw |
| 31 | 2610996863 | Gear Housing |
| 32 | 2610945505 | Screw |
| 33 | 2610911924 | Spring Washer |
| 34 | 2610996949 | Ball Bearing |
| 35 | 2610997281 | Spring retaining ring |
| 36 | 2610997208 | Toothed Gear |
| 37 | 2610996869 | Gear Cover |
| 38 | 2610358916 | Spring retaining ring |
| 39 | 2610997210 | Ball Bearing |
| 4 | 1600A003AU | Service Kit |
| 40 | 2610997211 | Output Shaft |
| 41 | 2610993102 | Woodruff Key |
| 42 | 2610996932 | Bearing Sleeve |
| 43 | 2610950089 | Screw |
| 44 | 2610998572 | Screw |
| 45 | 2610996875 | Torsion Spring |
| 46 | 2610996874 | Locking Lever |
| 47 | 2610996876 | Shoulder Screw |
| 48 | 2610996870 | Clamping Flange |
| 49 | 2610996871 | Clamping Flange |
| 5 | 2610996945 | Power supply cord |
| 50 | 2610358858 | Nut |
| 51 | 2610996879 | Wing Screw |
| 52 | 2610996878 | Cover Plate |
| 53 | 2610910784 | Screw |
| 54 | 2610996877 | Cover Plate |
| 55 | 2610996861 | Holding Plate |
| 56 | 2610996862 | Guiding bolt |
| 57 | 2610997276 | Spring retaining ring |
| 58 | 2610996895 | Threaded Rod |
| 59 | 2610998573 | Spring retaining ring |
| 6 | 2610358840 | Grommet |
| 60 | 2610997221 | Bushing |
| 61 | 2610996896 | Toothed Gear |
| 62 | 2610912587 | Plain Washer |
| 63 | 2610998588 | Screw |
| 64 | 2610358149 | Nut |
| 65 | 2610910796 | Bolt |
| 66 | 2610997277 | Spring retaining ring |
| 67 | 2610997212 | Mounting Bracket |
| 68 | 1619PA5649 | Bushing |
| 69 | 2615297323 | Screw |
| 7 | 2610358842 | Clamp |
| 70 | 2610911891 | Spring Washer |
| 72 | 2610996933 | Threaded Bushing |
| 73 | 2610996938 | Bushing |
| 74 | 2610950125 | Profile Rail |
| 75 | 2610997271 | Spring |
| 76 | 2610998550 | Plain Washer |
| 77 | 2610997299 | Plain Washer |
| 78 | 2610997298 | Nut |
| 79 | 2610996898 | Clamping Lever |
| 8 | 2610997805 | Front Panel |
| 801 | 2610997205 | Protective Cover |
| 802 | 2610997206 | Edge Guide |
| 803 | 2610997204 | Mitre Fence |
| 81 | 2610911914 | Set screw |
| 810 | 2610997207 | Carbon-Brush Set |
| 82 | 2610996925 | Knob |
| 83 | 2610997270 | Shoulder Screw |
| 84 | 2610355278 | Screw |
| 85 | 2610996927 | Pointer |
| 86 | 2610355570 | Washer |
| 87 | 2610356706 | Nut |
| 880 | 1619PB2533 | Handwheel |
| 89 | 2610996929 | End stop |
| 9 | 2610997806 | Sticker |
| 90 | 2610996859 | Housing |
| 91 | 2610997294 | Screw |
| 92 | 2610996924 | Switch Cover |
| 93 | 2610358846 | Rubber Bushing |
| 94 | 2610996930 | Pickup Clip |
| 95 | 2610996931 | Pickup Clip |
| 96 | 2610910047 | Screw |
| 97 | 2610990504 | Cable Clip |
| 98 | 2610997273 | Screw |
| 99 | 2610997246 | Nut |
