Bosch 400 WATT-SERIE

Bosch 400 WATT-SERIE pn-straight grinder-ind.: exploded parts diagram, 1 sheet, 53 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 400 WATT-SERIE: 53 positions on 1 sheet

Bosch 400 WATT-SERIE parts list (1 sheet)

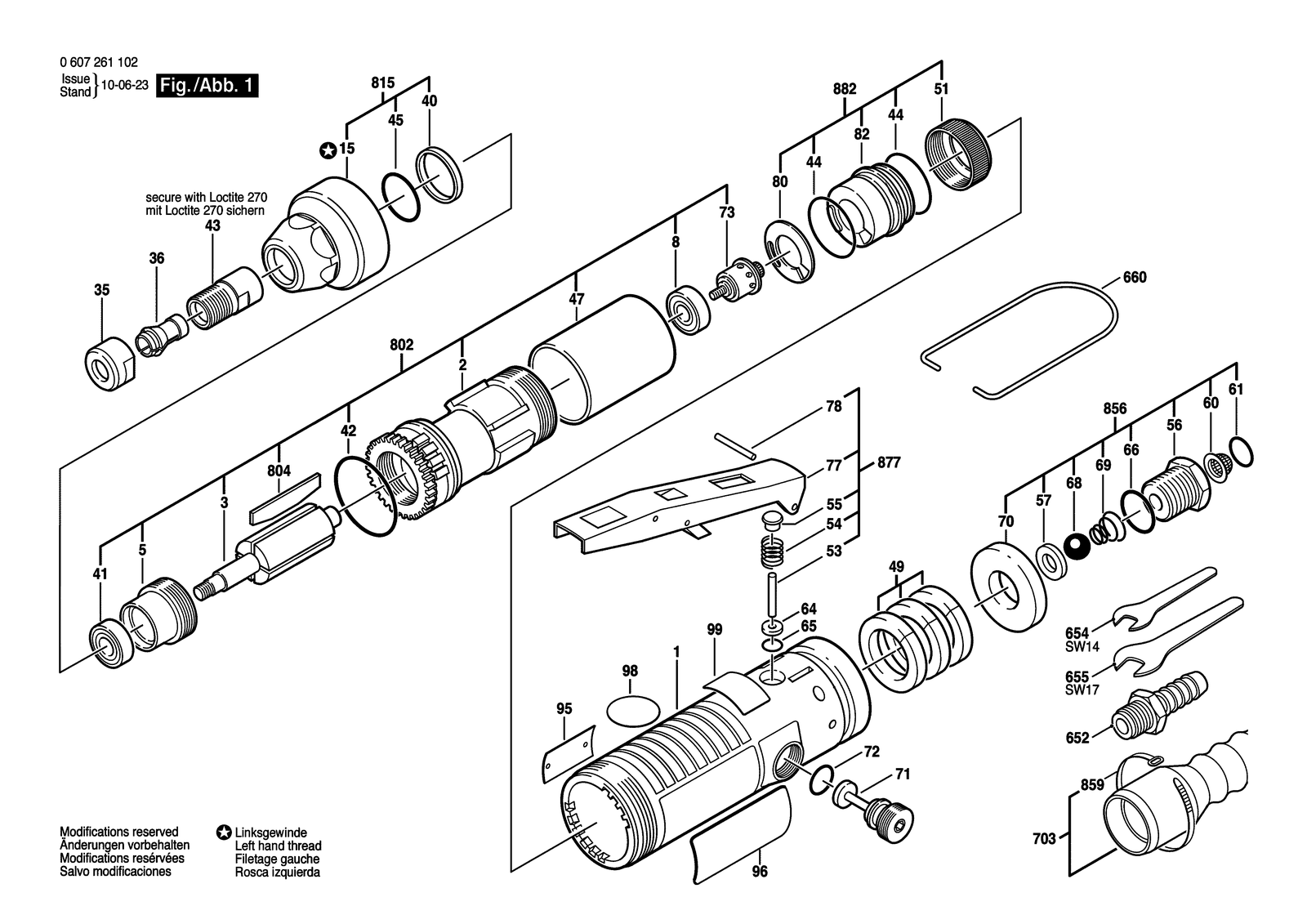

Bosch 400 WATT-SERIE parts diagram, sheet 1
No.Part numberPart name
13605108070Motor Housing
153605108068Spindle Housing
23604090046Stator 400W
33604220076Rotor
353603342009Round Nut
362608570129Collet Ø 6 MM
401600206025Rubber Ring
413600905043Groove ball bearing
422600210019O-Ring 33,0X2,0 MM
433608570003Collet Jaws
442600210018O-Ring 26,0X1,5 MM
453600210082O-Ring 18,77X1,78 MM
473600700032Spigot
493601010006Silencer
53605700084Bearing Flange
513603313001Union Nut
533603201050Needle Roller
543604611006Compression Spring
553603132000Valve Cone
563603458008Fitting
573600206006Sealing disk
603600002000Strainer
611900210306O-Ring 10X2 MM
642916011006Plain Washer DIN 125-A3,2-ST
652600210007O-Ring 2,4X1,9 MM
6522603386002Hose fitting
6541907950508Single-Head Eng. Wrench SW 14
6552607950511Single-Head Eng. Wrench SW17
663600210036O-Ring 16X1,25 MM
6603604720004Suspension Loop
681903230528Ball DIN 5401-9,5MM-III-ST
693604616008Compression Spring
703600105002Silencer
7033607000027Air Hose
713608750028Valve piston
721900210307O-Ring
733607021013Centrifugal Governor
773601902003Control Lever
782917700040Grooved Pin DIN 1475-2X18-ST
81900905028Groove ball bearing 7X17X5
803600054004Sealing Plate
8023607030183Motor
8043607030049Rotor Lamella
8153607030052Spindle Housing
823608750027Intermediate Piece
8563607030033Assembly Of Service Parts
8593604710062Holding Belt Black
8773607030051Control Lever
8823607030368Assembly Of Service Parts
95160111A3HFNameplate
963601110039Manufacturer's nameplate
983601110574Reference Plate
993601119236Reference Plate
