Bosch 400 WATT-SERIE

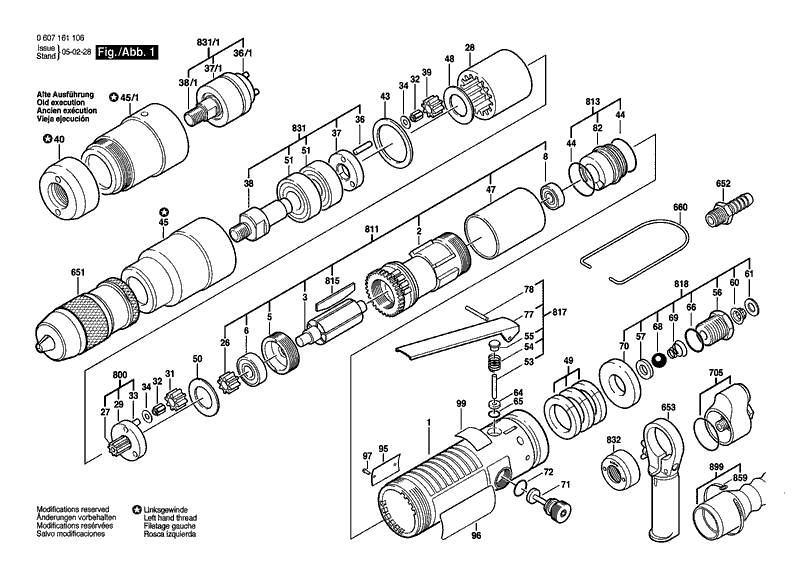

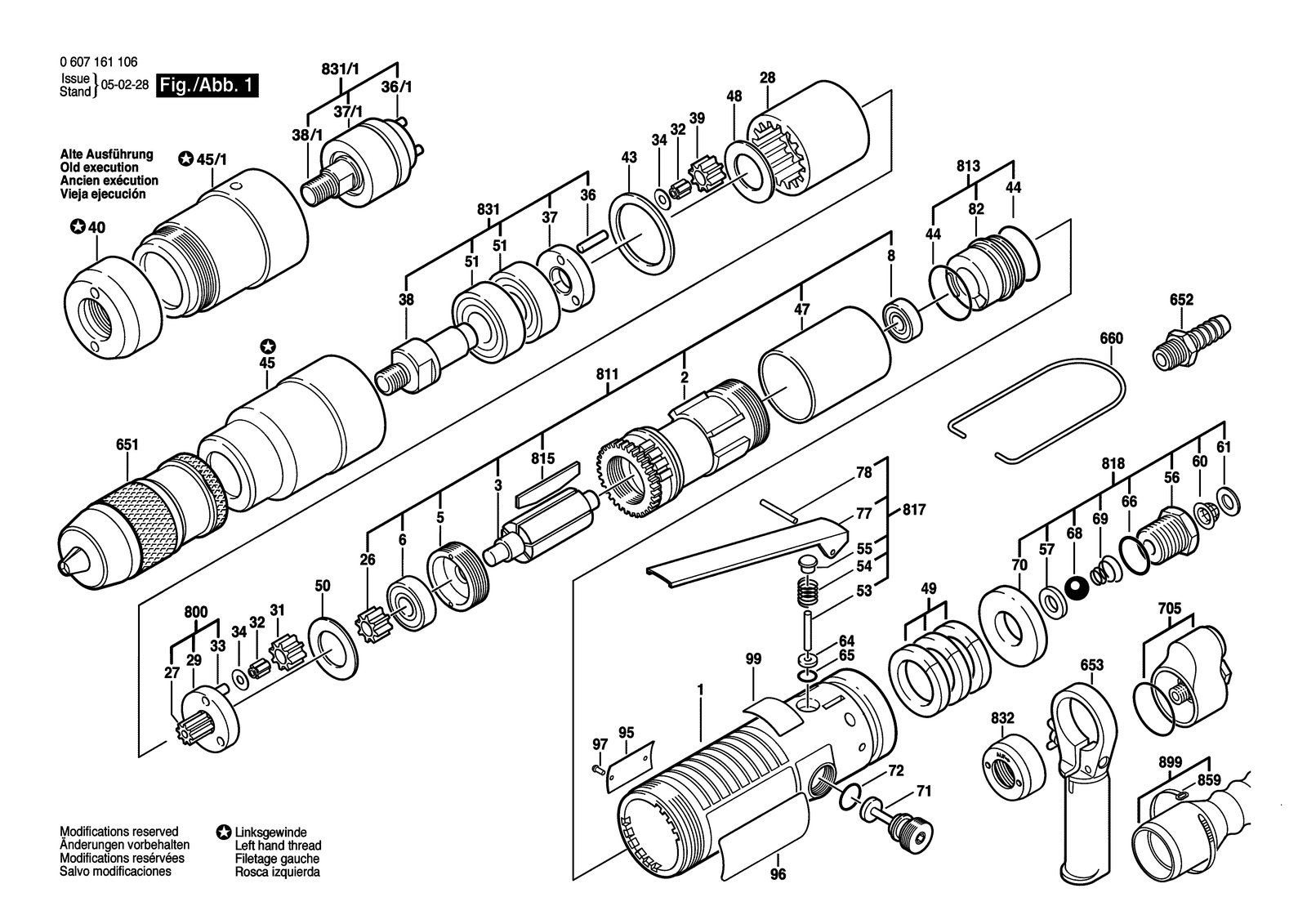

Bosch 400 WATT-SERIE pn-drill - (industr.): exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 400 WATT-SERIE: 63 positions on 1 sheet
Bosch 400 WATT-SERIE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108070 | Motor Housing |
| 2 | 3604090046 | Stator 400W |
| 26 | 3606316063 | Cylindrical Gear Z=15 |
| 27 | 3606300071 | Pinion Z=12 |
| 28 | 3606334054 | Ring Gear Z=42 |
| 29 | 3606337113 | Carrier |
| 3 | 3604220060 | Rotor |
| 31 | 3606316117 | Cylindrical Gear |
| 32 | 3600913006 | Needle-Roller Cage |
| 33 | 3603201047 | Needle Roller |
| 34 | 2600100586 | Shim 0,20 MM |
| 36 | 3603201047 | Needle Roller |
| 37 | 3606337123 | Carrier |
| 38 | 3603100022 | Stud bolt |
| 39 | 3606316116 | Cylindrical Gear |
| 43 | 3600102021 | Stop Disc |
| 44 | 2600210018 | O-Ring 26,0X1,5 MM |
| 45 | 3605125036 | Gear Housing |
| 47 | 3600700032 | Spigot |
| 48 | 3600101040 | Stop Disc |
| 49 | 3601010006 | Silencer |
| 5 | 3605700076 | Bearing Flange |
| 50 | 3600101036 | Retaining Washer |
| 51 | 3600905045 | Groove ball bearing |
| 53 | 3603201050 | Needle Roller |
| 54 | 3604611006 | Compression Spring |
| 55 | 3603132000 | Valve Cone |
| 56 | 3603458010 | Fitting |
| 57 | 3600206006 | Sealing disk |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 60 | 3600002000 | Strainer |
| 61 | 1600100617 | Shim Thick 0,5 MM |
| 64 | 2916011006 | Plain Washer DIN 125-A3,2-ST |
| 65 | 2600210007 | O-Ring 2,4X1,9 MM |
| 651 | 1608572007 | Keyless Chuck Ø1-10 Mm, 1/2" |
| 652 | 3603386068 | Hose fitting |
| 653 | 3602025009 | Auxiliary Handle |
| 66 | 3600210036 | O-Ring 16X1,25 MM |
| 660 | 3604720004 | Suspension Loop |
| 68 | 1903230528 | Ball DIN 5401-9,5MM-III-ST |
| 69 | 3604616008 | Compression Spring |
| 70 | 3600105002 | Silencer |
| 705 | 3607030024 | Air Hose Set |
| 71 | 3608750028 | Valve piston |
| 72 | 1900210307 | O-Ring |
| 77 | 3601902001 | Control Lever |
| 78 | 2917700040 | Grooved Pin DIN 1475-2X18-ST |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 800 | 3606337110 | Planetary-Gear Carrier |
| 811 | 3607030026 | Assembly Of Service Parts |
| 813 | 3607030028 | Assembly Of Service Parts |
| 815 | 3607030030 | Rotor Lamella 5 Piece |
| 817 | 3607030032 | Control Lever |
| 818 | 3607030187 | Assembly Of Service Parts |
| 82 | 3608750027 | Intermediate Piece |
| 831 | 3600905081 | Ring Ball Bearing |
| 832 | 3600508013 | Cover |
| 859 | 3604700062 | Holding Belt |
| 899 | 3607000027 | Air Hose |
| 95 | 160111A3HF | Nameplate |
| 96 | 3601110039 | Manufacturer's nameplate |
| 97 | 3603133000 | Grooved Nail |
| 99 | 3601119236 | Reference Plate |
