Bosch 3931A-PBH

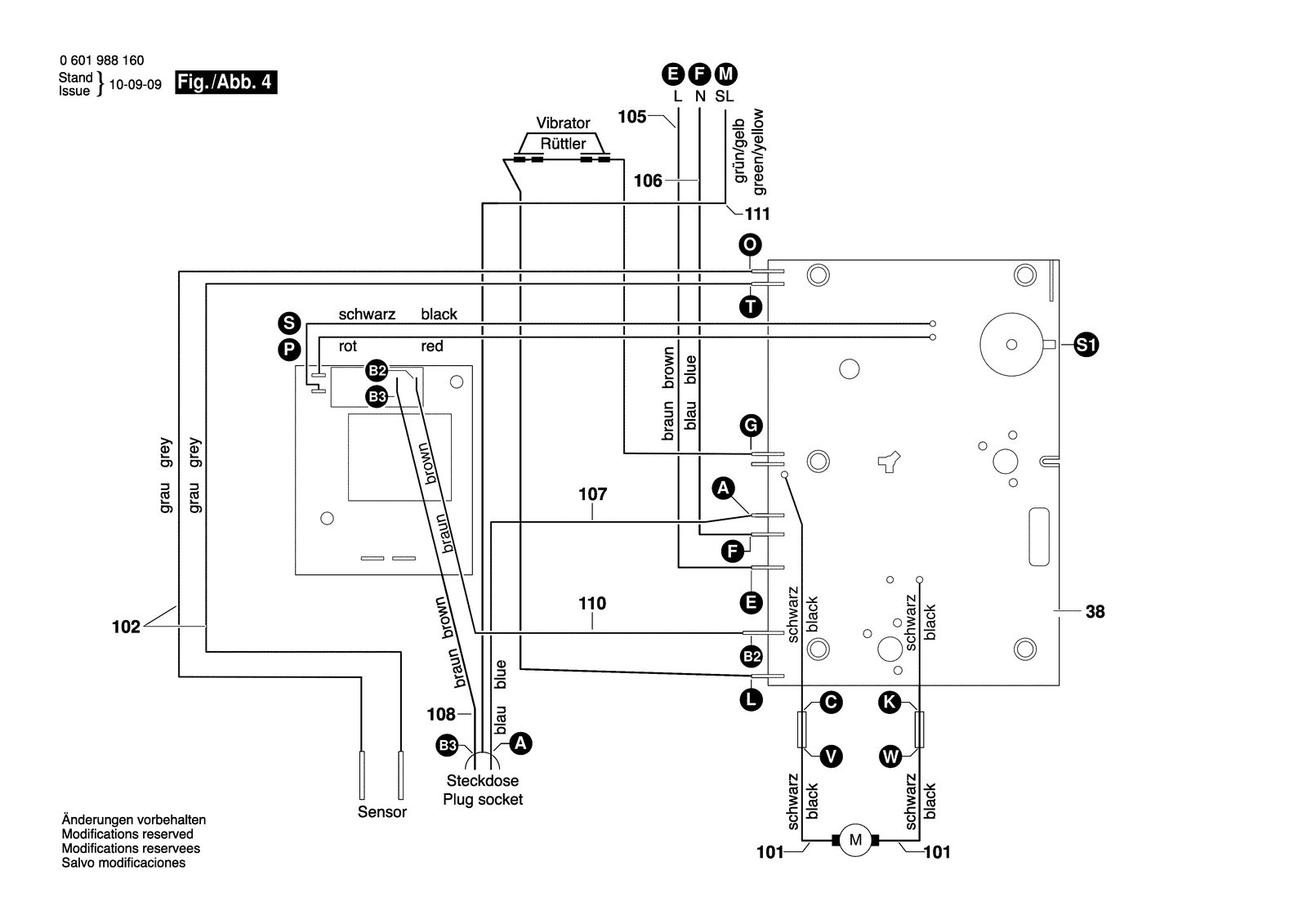

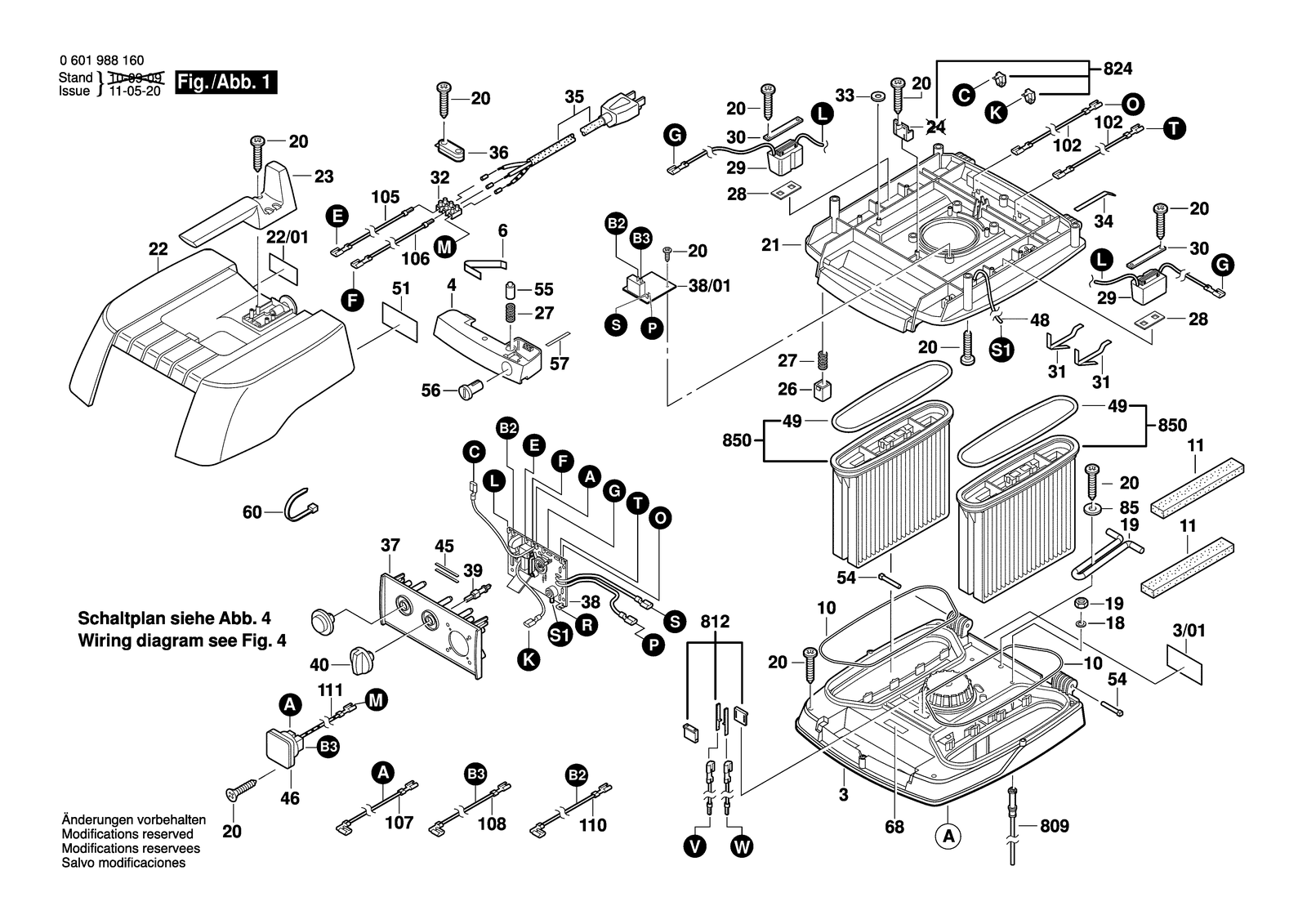

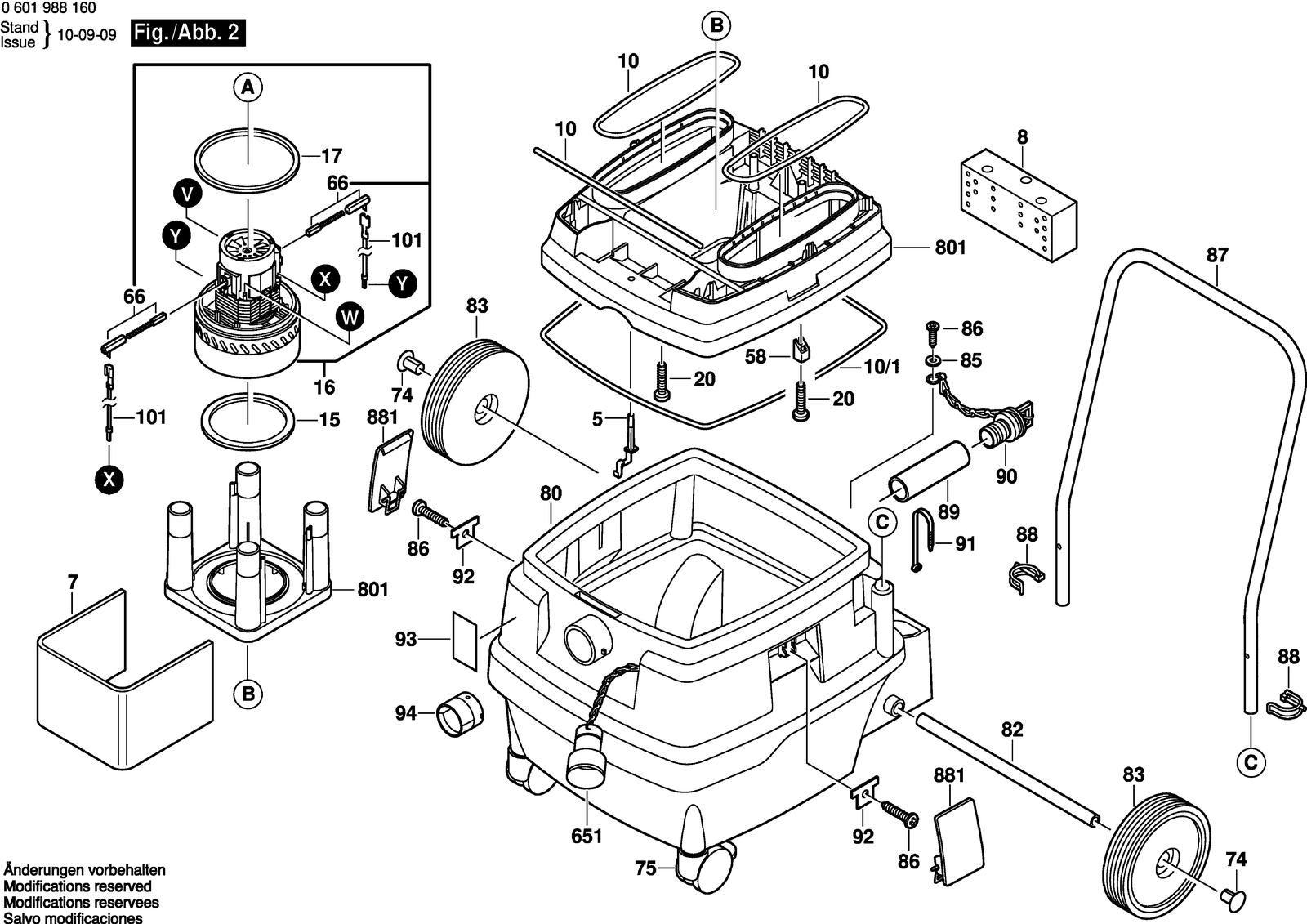

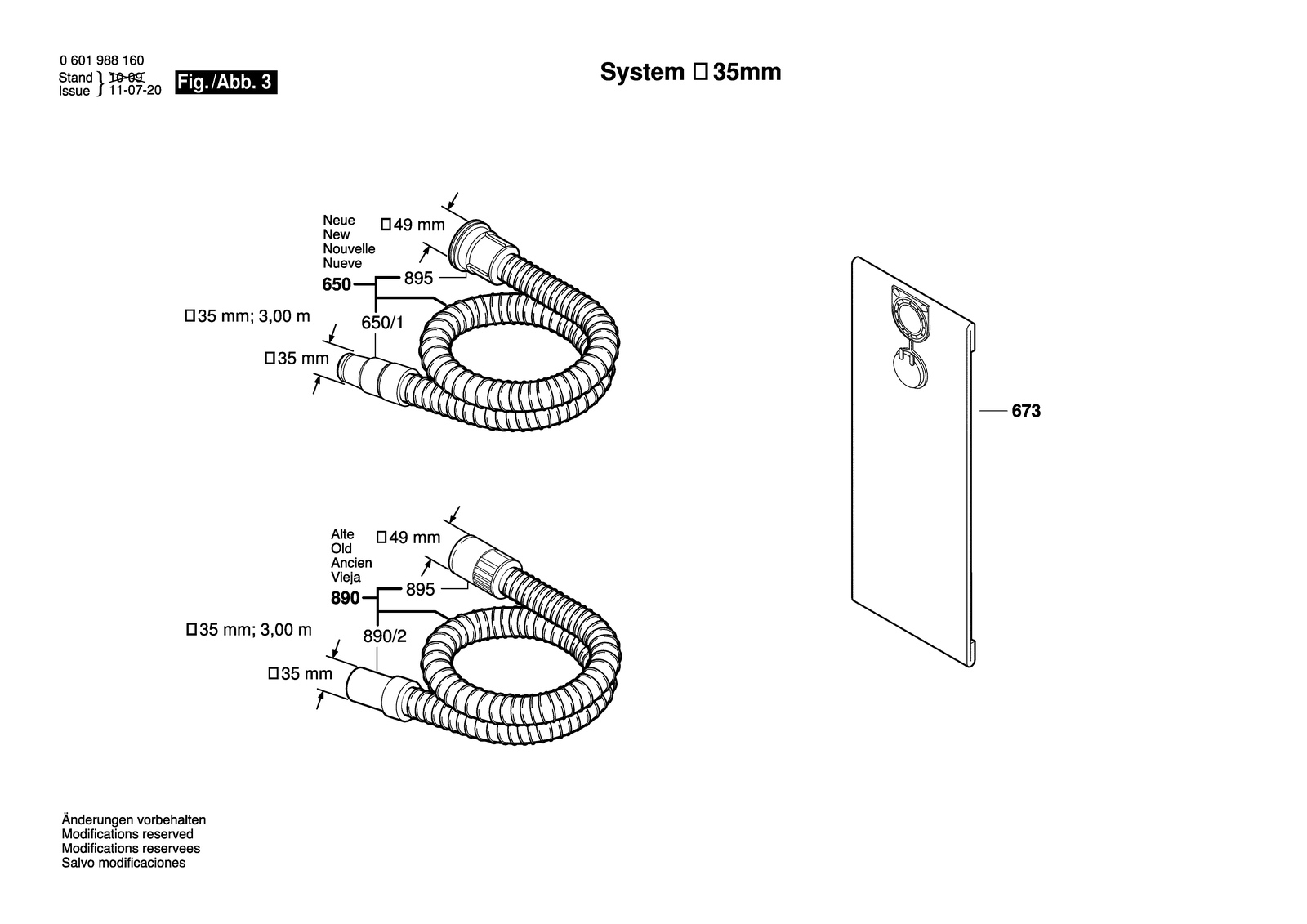

Bosch 3931A-PBH all purpose vacuum cleane: exploded parts diagram, 4 sheets, 168 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3931A-PBH: 168 positions on 4 sheets
Bosch 3931A-PBH parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1609203C32 | Sealing Cord 3 M |
| 10 | 1609203C32 | Sealing Cord 3 M |
| 10/1 | 1609203C33 | Sealing Cord 1,5 M |
| 10/1 | 1609203C33 | Sealing Cord 1,5 M |
| 101 | 1609203K70 | Connecting Cable |
| 101 | 1609203K70 | Connecting Cable |
| 102 | 1609203C96 | Connecting Cable |
| 102 | 1609203C96 | Connecting Cable |
| 105 | 1609203C97 | Connecting Cable |
| 105 | 1609203C97 | Connecting Cable |
| 106 | 1609203C98 | Connecting Cable |
| 106 | 1609203C98 | Connecting Cable |
| 107 | 1609203W24 | Connecting Cable |
| 107 | 1609203W24 | Connecting Cable |
| 108 | 1609203W25 | Connecting Cable |
| 108 | 1609203W25 | Connecting Cable |
| 11 | 1609203C34 | Air Filter |
| 11 | 1609203C34 | Air Filter |
| 110 | 1609203V67 | Connecting Cable |
| 110 | 1609203V67 | Connecting Cable |
| 111 | 1609203V66 | Connecting Cable |
| 111 | 1609203V66 | Connecting Cable |
| 15 | 1609201669 | Seal Ring |
| 15 | 1609201669 | Seal Ring |
| 16 | 1609203K57 | Suction Blower 120V |
| 16 | 1609203K57 | Suction Blower 120V |
| 17 | 1609203B13 | Seal Ring |
| 17 | 1609203B13 | Seal Ring |
| 19 | 1600A000RW | Load Absorber |
| 19 | 1600A000RW | Load Absorber |
| 20 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 20 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 21 | 1600A000SD | Intermediate housing |
| 21 | 1600A000SD | Intermediate housing |
| 22 | 1609203K59 | Covering hood |
| 22 | 1609203K59 | Covering hood |
| 22/01 | 1601118F25 | Warning Plate |
| 22/01 | 1601118F25 | Warning Plate |
| 23 | 1609203K60 | Handle |
| 23 | 1609203K60 | Handle |
| 26 | 1609203C46 | Thrust Member |
| 26 | 1609203C46 | Thrust Member |
| 27 | 1609201685 | Compression Spring |
| 27 | 1609201685 | Compression Spring |
| 28 | 1609201663 | Sealing disk |
| 28 | 1609201663 | Sealing disk |
| 29 | 1609203K62 | Attachment Vibrator 120V |
| 29 | 1609203K62 | Attachment Vibrator 120V |
| 3 | 1600A000SE | Motor Housing |
| 3 | 1600A000SE | Motor Housing |
| 3/01 | 1601118M65 | Warning Plate |
| 3/01 | 1601118M65 | Warning Plate |
| 30 | 1609203C48 | Holding Plate |
| 30 | 1609203C48 | Holding Plate |
| 31 | 1609203C49 | Contact Strap |
| 31 | 1609203C49 | Contact Strap |
| 32 | 1609203C50 | Connecting terminal |
| 32 | 1609203C50 | Connecting terminal |
| 33 | 1609203C51 | Holding-Down-Appliance |
| 33 | 1609203C51 | Holding-Down-Appliance |
| 34 | 1609203C52 | Contact Spring |
| 34 | 1609203C52 | Contact Spring |
| 35 | 1609203U92 | Power supply cord |
| 35 | 1609203U92 | Power supply cord |
| 36 | 1609203C54 | Cable Clip |
| 36 | 1609203C54 | Cable Clip |
| 37 | 1609203U93 | Front Shield |
| 37 | 1609203U93 | Front Shield |
| 38 | 1609203U94 | Printed-Board Assembly |
| 38 | 1609203U94 | Printed-Board Assembly |
| 38/01 | 1609203U95 | Printed Circuit Board |
| 38/01 | 1609203U95 | Printed Circuit Board |
| 39 | 1609203W42 | Axle |
| 39 | 1609203W42 | Axle |
| 4 | 1609203K54 | Locking-Bar |
| 4 | 1609203K54 | Locking-Bar |
| 40 | 1609203C58 | Switch Button |
| 40 | 1609203C58 | Switch Button |
| 45 | 1609203C62 | Switch Spring |
| 45 | 1609203C62 | Switch Spring |
| 46 | 1609203K66 | Socket |
| 46 | 1609203K66 | Socket |
| 48 | 1609203C65 | Plastic Hose |
| 48 | 1609203C65 | Plastic Hose |
| 49 | 1609203C66 | Seal Ring |
| 49 | 1609203C66 | Seal Ring |
| 5 | 1609203C27 | Contact Finger |
| 5 | 1609203C27 | Contact Finger |
| 51 | 2610011434 | Nameplate |
| 51 | 2610015519 | Nameplate |
| 54 | 1609203C70 | Bearing bolt |
| 54 | 1609203C70 | Bearing bolt |
| 55 | 1609203C71 | Locking Pin |
| 55 | 1609203C71 | Locking Pin |
| 56 | 1609203C72 | Coupler Link |
| 56 | 1609203C72 | Coupler Link |
| 57 | 1609203C73 | Lock Spring |
| 57 | 1609203C73 | Lock Spring |
| 58 | 1609203C74 | Support |
| 58 | 1609203C74 | Support |
| 6 | 1609203C28 | Leaf Spring |
| 6 | 1609203C28 | Leaf Spring |
| 60 | 1609203C76 | Cable tie |
| 60 | 1609203C76 | Cable tie |
| 650 | 1600A000VY | Air Hose |
| 650 | 1600A000VY | Air Hose |
| 650/1 | 1609203V36 | Fitting |
| 650/1 | 1609203V36 | Fitting |
| 651 | 2610011317 | Plug |
| 651 | 2610011317 | Plug |
| 66 | 1609203L60 | Carbon-Brush Set |
| 66 | 1609203L60 | Carbon-Brush Set |
| 673 | 1609203N74 | Dust Bag |
| 673 | 1609203N74 | Dust Bag |
| 68 | 1601118C61 | Warning Plate |
| 68 | 1601118C61 | Warning Plate |
| 7 | 1609203C29 | Sound Insulation Mat |
| 7 | 1609203C29 | Sound Insulation Mat |
| 74 | 1609203U96 | Plug |
| 74 | 1609203U96 | Plug |
| 75 | 1609203U97 | Caster Wheel |
| 75 | 1609203U97 | Caster Wheel |
| 8 | 1609203K55 | Sound Insulation Mat |
| 8 | 1609203K55 | Sound Insulation Mat |
| 80 | 2610011316 | Dust container |
| 80 | 2610011316 | Dust container |
| 801 | 1609203K72 | Intermediate Flange |
| 801 | 1609203K72 | Intermediate Flange |
| 809 | 1609203M84 | Electrode |
| 809 | 1609203M84 | Electrode |
| 812 | 1609203K73 | Connector |
| 812 | 1609203K73 | Connector |
| 82 | 1609203C90 | Axle |
| 82 | 1609203C90 | Axle |
| 824 | 1609203K74 | Socket Contact |
| 824 | 1609203K74 | Socket Contact |
| 83 | 1609203U98 | Impeller |
| 83 | 1609203U98 | Impeller |
| 85 | 1609202726 | Plain Washer Ø4,2XØ11X1,2MM |
| 85 | 1609202726 | Plain Washer Ø4,2XØ11X1,2MM |
| 850 | 1609203C78 | Air Filter |
| 850 | 2610015520 | Accessory Set |
| 86 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 86 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 87 | 1609203C93 | Bow |
| 87 | 1609203C93 | Bow |
| 88 | 1609203C94 | Retaining Spring |
| 88 | 1609203C94 | Retaining Spring |
| 881 | 1609203L96 | Bent-Lever Closure |
| 881 | 1609203L96 | Bent-Lever Closure |
| 89 | 1609203C87 | Hose Ø38XØ32X125MM |
| 89 | 1609203C87 | Hose Ø38XØ32X125MM |
| 890 | 1600A000VY | Air Hose |
| 890 | 1600A000VY | Air Hose |
| 890/2 | 1609203V36 | Fitting |
| 890/2 | 1609203V36 | Fitting |
| 895 | 1600A000W0 | Fitting |
| 895 | 1600A000W0 | Fitting |
| 90 | 1609203D00 | Plug |
| 90 | 1609203D00 | Plug |
| 91 | 1609203D01 | Cable tie |
| 91 | 1609203D01 | Cable tie |
| 92 | 1609203E24 | Pressure Plate |
| 92 | 1609203E24 | Pressure Plate |
| 93 | 2610012256 | Label |
| 93 | 2610012256 | Label |
| 94 | 2610011435 | Air Valve |
| 94 | 2610011435 | Air Valve |
