Bosch 3924

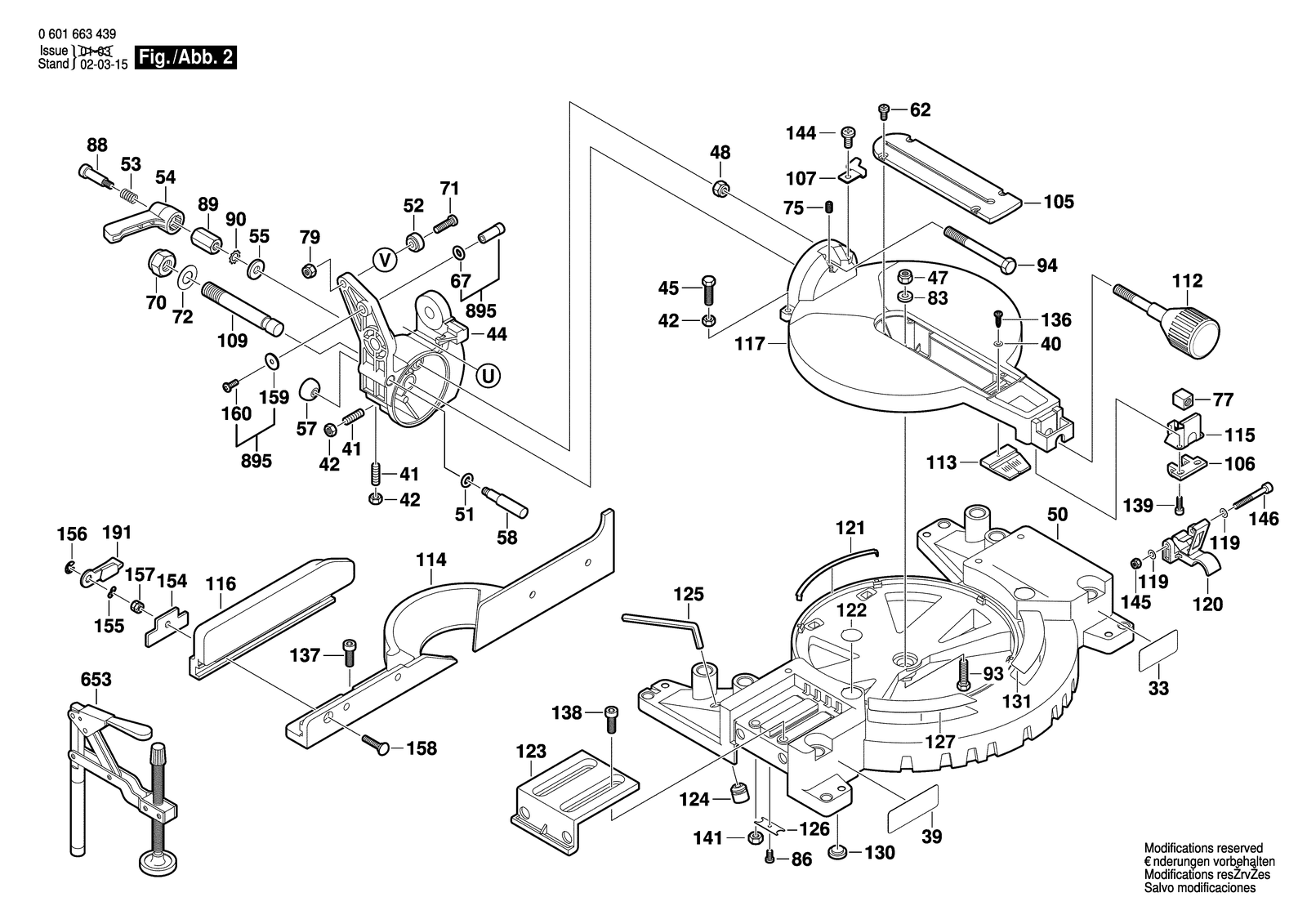

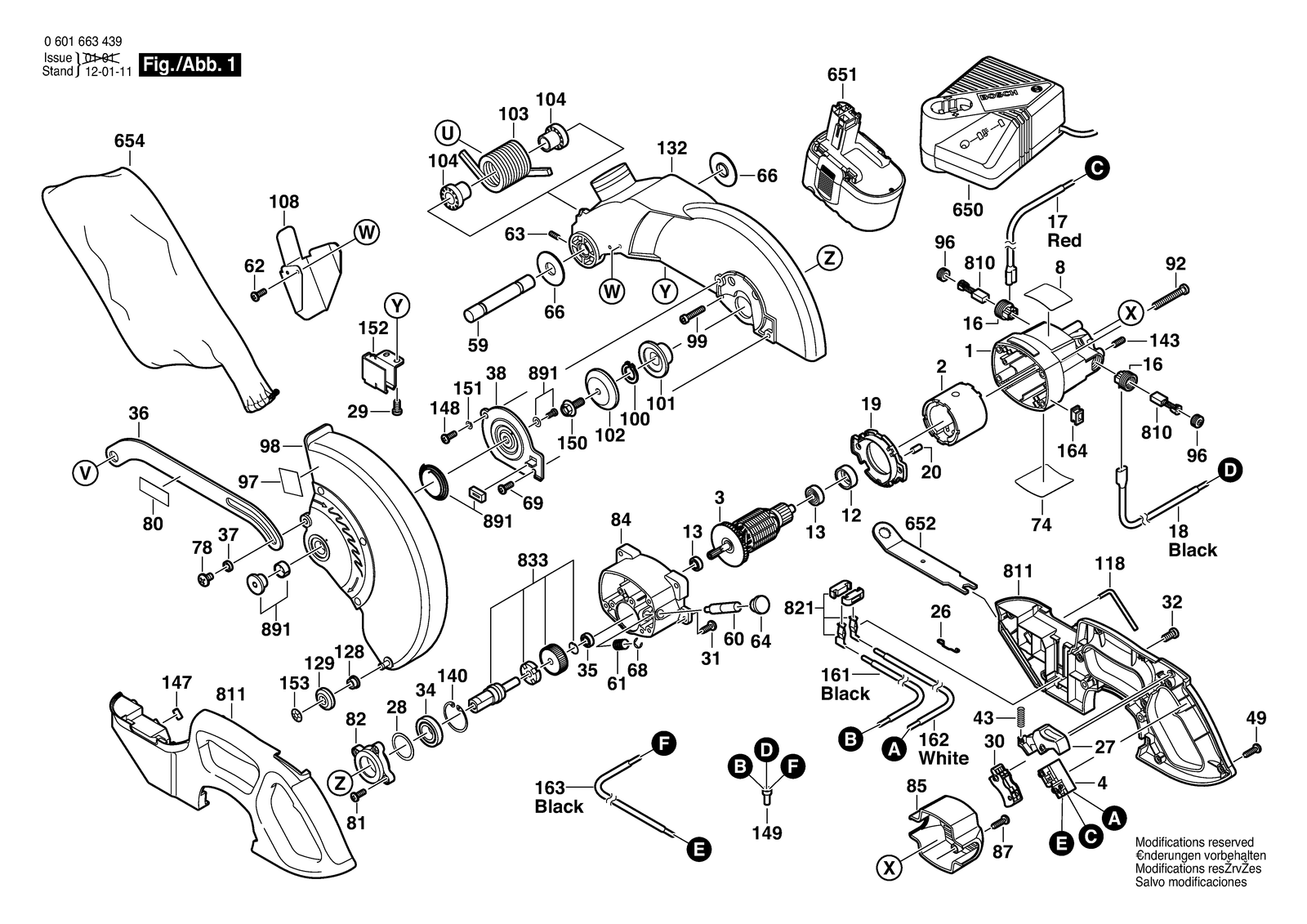

Bosch 3924 saw table: exploded parts diagram, 2 sheets, 298 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3924: 298 positions on 2 sheets
Bosch 3924 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610907835 | Motor Housing |
| 1 | 2610907835 | Motor Housing |
| 100 | 2610912559 | Retaining snap ring |
| 100 | 2610912559 | Retaining snap ring |
| 101 | 2610907849 | Washer |
| 101 | 2610907849 | Washer |
| 102 | 2610907848 | Washer |
| 102 | 2610907848 | Washer |
| 103 | 2610912560 | Torsion Spring |
| 103 | 2610912560 | Torsion Spring |
| 104 | 2610910753 | Sleeve |
| 104 | 2610910753 | Sleeve |
| 105 | 2610907814 | Insertion Plate |
| 105 | 2610907814 | Insertion Plate |
| 106 | 2610910833 | End Plate |
| 106 | 2610910833 | End Plate |
| 107 | 2610907852 | Pointer |
| 107 | 2610907852 | Pointer |
| 108 | 2610912561 | Reflector |
| 108 | 2610912561 | Reflector |
| 109 | 2610908288 | Shaft |
| 109 | 2610908288 | Shaft |
| 112 | 2610907850 | Knob |
| 112 | 2610907850 | Knob |
| 113 | 2610907846 | Scale Plate |
| 113 | 2610907846 | Scale Plate |
| 114 | 2610907822 | Riving Knife |
| 114 | 2610907822 | Riving Knife |
| 115 | 2610916122 | Plate |
| 115 | 2610916122 | Plate |
| 116 | 2610907824 | Mitre Fence |
| 116 | 2610907824 | Mitre Fence |
| 117 | 2610907813 | Saw Table |
| 117 | 2610907813 | Saw Table |
| 118 | 1907950004 | Offset Screwdriver DIN 911, SW3 |
| 118 | 1907950004 | Offset Screwdriver DIN 911, SW3 |
| 119 | 2610309996 | Washer |
| 119 | 2610309996 | Washer |
| 12 | 2610912535 | Bearing Sleeve |
| 12 | 2610912535 | Bearing Sleeve |
| 120 | 2610910775 | Lever |
| 120 | 2610910775 | Lever |
| 121 | 2610907854 | Wear Plate |
| 121 | 2610907854 | Wear Plate |
| 122 | 2610909006 | Warning Label |
| 122 | 2610909006 | Warning Label |
| 123 | 2610907826 | Extension Stand |
| 123 | 2610907826 | Extension Stand |
| 124 | 2610911470 | Set Of Keys |
| 124 | 2610911470 | Set Of Keys |
| 125 | 2610355777 | Hexagon Socket Wrench |
| 125 | 2610355777 | Hexagon Socket Wrench |
| 126 | 2610910844 | Threaded Plate |
| 126 | 2610910844 | Threaded Plate |
| 127 | 2610907894 | Warning Label |
| 127 | 2610907894 | Warning Label |
| 128 | 2610990522 | Bearing |
| 128 | 2610990522 | Bearing |
| 129 | 2610990518 | Roller |
| 129 | 2610990518 | Roller |
| 13 | 2610912536 | Groove ball bearing |
| 13 | 2610912536 | Groove ball bearing |
| 130 | 1619P03548 | Rubber Bushing |
| 130 | 1619P03548 | Rubber Bushing |
| 131 | 2610907895 | Warning Label |
| 131 | 2610907895 | Warning Label |
| 132 | 2610907818 | Dummy |
| 132 | 2610907818 | Dummy |
| 136 | 2610910777 | Screw |
| 136 | 2610910777 | Screw |
| 137 | 2610911893 | Screw |
| 137 | 2610911893 | Screw |
| 138 | 2610356733 | Screw |
| 138 | 2610356733 | Screw |
| 139 | 2610911469 | Screw |
| 139 | 2610911469 | Screw |
| 140 | 2610912562 | Retaining snap ring |
| 140 | 2610912562 | Retaining snap ring |
| 141 | 2610910794 | Hex Nut |
| 141 | 2610910794 | Hex Nut |
| 143 | 2610911456 | Screw |
| 143 | 2610911456 | Screw |
| 144 | 2610910782 | Screw |
| 144 | 2610910782 | Screw |
| 145 | 2610910774 | Nut |
| 145 | 2610910774 | Nut |
| 146 | 2610910776 | Screw |
| 146 | 2610910776 | Screw |
| 147 | 2610912564 | Grommet |
| 147 | 2610912564 | Grommet |
| 148 | 2610910799 | Screw |
| 148 | 2610910799 | Screw |
| 149 | 3608098501 | Nut |
| 149 | 3608098501 | Nut |
| 150 | 2610911467 | Stud bolt |
| 150 | 2610911467 | Stud bolt |
| 151 | 2610911450 | Washer |
| 151 | 2610911450 | Washer |
| 152 | 2610907845 | Chip Deflector |
| 152 | 2610907845 | Chip Deflector |
| 153 | 2610990521 | Spring retaining ring |
| 153 | 2610990521 | Spring retaining ring |
| 154 | 2610967433 | Clamping Plate |
| 154 | 2610967433 | Clamping Plate |
| 155 | 2610358439 | Plain Washer |
| 155 | 2610358439 | Plain Washer |
| 156 | 2610967438 | Spring retaining ring |
| 156 | 2610967438 | Spring retaining ring |
| 157 | 2610967439 | Nut |
| 157 | 2610967439 | Nut |
| 158 | 2610992372 | Stud bolt |
| 158 | 2610992372 | Stud bolt |
| 159 | 2610027372 | Plain Washer |
| 159 | 2610027372 | Plain Washer |
| 16 | 2610912538 | Brush Holder |
| 16 | 2610912538 | Brush Holder |
| 160 | 2910951118 | Oval-Head Screw DIN 7985-M4X8-8.8-H |
| 160 | 2910951118 | Oval-Head Screw DIN 7985-M4X8-8.8-H |
| 161 | 2610912565 | Wire |
| 161 | 2610912565 | Wire |
| 162 | 2610912566 | Wire |
| 162 | 2610912566 | Wire |
| 163 | 2610912567 | Wire |
| 163 | 2610912567 | Wire |
| 164 | 2610912862 | Grommet |
| 164 | 2610912862 | Grommet |
| 17 | 2610912539 | Connecting Cable |
| 17 | 2610912539 | Connecting Cable |
| 18 | 2610912540 | Connecting Cable |
| 18 | 2610912540 | Connecting Cable |
| 19 | 2610907837 | Baffle |
| 19 | 2610907837 | Baffle |
| 191 | 2610967432 | Clamp |
| 191 | 2610967432 | Clamp |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 20 | 2610912541 | Pin |
| 20 | 2610912541 | Pin |
| 26 | 2610912543 | Clip |
| 26 | 2610912543 | Clip |
| 27 | 2610907834 | Button |
| 27 | 2610907834 | Button |
| 28 | 2610912544 | Spring Washer |
| 28 | 2610912544 | Spring Washer |
| 29 | 2615296765 | Screw |
| 29 | 2615296765 | Screw |
| 3 | 2610909066 | Armature 14,4-24V |
| 3 | 2610909086 | Armature |
| 30 | 2610907832 | Lever |
| 30 | 2610907832 | Lever |
| 31 | 2615303036 | Screw |
| 31 | 2615303036 | Screw |
| 32 | 2610910545 | Screw |
| 32 | 2610910545 | Screw |
| 33 | 2610907898 | Warning Label |
| 33 | 2610907898 | Warning Label |
| 34 | 2610912546 | Groove ball bearing |
| 34 | 2610912546 | Groove ball bearing |
| 35 | 2610912547 | Needle-Roller Bearing |
| 35 | 2610912547 | Needle-Roller Bearing |
| 36 | 2610907840 | Linkage part |
| 36 | 2610907840 | Linkage part |
| 37 | 2610910849 | Collar |
| 37 | 2610910849 | Collar |
| 38 | 2610907844 | Cover |
| 38 | 2610907844 | Cover |
| 39 | 2610907897 | Warning Label |
| 39 | 2610907897 | Warning Label |
| 4 | 2610997469 | On-Off Switch |
| 4 | 2610997469 | On-Off Switch |
| 40 | 2610908270 | Washer |
| 40 | 2610908270 | Washer |
| 41 | 2610912548 | Screw |
| 41 | 2610912548 | Screw |
| 42 | 2610912549 | Hex Nut |
| 42 | 2610912549 | Hex Nut |
| 43 | 2610992376 | Spring |
| 43 | 2610992376 | Spring |
| 44 | 2610907820 | Bracket |
| 44 | 2610907820 | Bracket |
| 45 | 2610355267 | Screw |
| 45 | 2610355267 | Screw |
| 47 | 2610358172 | Nut |
| 47 | 2610358172 | Nut |
| 48 | 2610912551 | Nut |
| 48 | 2610912551 | Nut |
| 49 | 2610912552 | Screw |
| 49 | 2610912552 | Screw |
| 50 | 2610907816 | Base Plate |
| 50 | 2610907816 | Base Plate |
| 51 | 2610912553 | O-Ring |
| 51 | 2610912553 | O-Ring |
| 52 | 2610910768 | Retaining Pin |
| 52 | 2610910768 | Retaining Pin |
| 53 | 2610910765 | Compression Spring |
| 53 | 2610910765 | Compression Spring |
| 54 | 2610910838 | Tensioning Lever |
| 54 | 2610910838 | Tensioning Lever |
| 55 | 2615297329 | Washer |
| 55 | 2615297329 | Washer |
| 57 | 2610912554 | Knob |
| 57 | 2610912554 | Knob |
| 58 | 2610907847 | Locking Bolt |
| 58 | 2610907847 | Locking Bolt |
| 59 | 2610910842 | Pivot |
| 59 | 2610910842 | Pivot |
| 60 | 2610908274 | Shaft |
| 60 | 2610908274 | Shaft |
| 61 | 2610908275 | Spring |
| 61 | 2610908275 | Spring |
| 62 | 2610910781 | Screw |
| 62 | 2610910781 | Screw |
| 63 | 2610328605 | Screw |
| 63 | 2610328605 | Screw |
| 64 | 2610912555 | Knob |
| 64 | 2610912555 | Knob |
| 650 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 650 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 651 | 2607335451 | Slide-In Accu Package 24V, 2,4AH, Nicd |
| 651 | 2607335717 | Accumulator package 18V,2,4AH, Hd |
| 652 | 2610907853 | Adjusting Wrench |
| 652 | 2610907853 | Adjusting Wrench |
| 653 | 2610907851 | Drive-Machine Holder |
| 653 | 2610907851 | Drive-Machine Holder |
| 66 | 2610911465 | Washer |
| 66 | 2610911465 | Washer |
| 67 | 2610910788 | O-Ring |
| 67 | 2610910788 | O-Ring |
| 68 | 2610912556 | Retaining snap ring |
| 68 | 2610912556 | Retaining snap ring |
| 69 | 2615297323 | Screw |
| 69 | 2615297323 | Screw |
| 70 | 2610355332 | Square Nut |
| 70 | 2610355332 | Square Nut |
| 71 | 2610910790 | Screw |
| 71 | 2610910790 | Screw |
| 72 | 2610910792 | Washer |
| 72 | 2610910792 | Washer |
| 74 | 2610918223 | Nameplate |
| 74 | 2610933734 | Warning Label |
| 75 | 2610910786 | Set screw |
| 75 | 2610910786 | Set screw |
| 77 | 2610910760 | Nut |
| 77 | 2610910760 | Nut |
| 78 | 2610910797 | Screw |
| 78 | 2610910797 | Screw |
| 79 | 2610905940 | Nut |
| 79 | 2610905940 | Nut |
| 8 | 2610918222 | Nameplate |
| 8 | 2610933732 | Nameplate |
| 80 | 2610910956 | Sticker |
| 80 | 2610910956 | Sticker |
| 81 | 2610910784 | Screw |
| 81 | 2610910784 | Screw |
| 810 | 2610907839 | Carbon-Brush Set |
| 810 | 2610907839 | Carbon-Brush Set |
| 811 | 2610907831 | Set Of Handles |
| 811 | 2610933743 | Set Of Handles |
| 82 | 2610908261 | Pivot Plate |
| 82 | 2610908261 | Pivot Plate |
| 821 | 2610907859 | Clip |
| 821 | 2610907859 | Clip |
| 83 | 2610910779 | Washer |
| 83 | 2610910779 | Washer |
| 833 | 2610912568 | Shaft |
| 833 | 2610912568 | Shaft |
| 84 | 2610907828 | Gear Housing |
| 84 | 2610907828 | Gear Housing |
| 85 | 2610907836 | Cover |
| 85 | 2610907836 | Cover |
| 86 | 2610911466 | Screw M 8X0.8-10 |
| 86 | 2610911466 | Screw M 8X0.8-10 |
| 87 | 2610912557 | Screw |
| 87 | 2610912557 | Screw |
| 88 | 2610910762 | Screw |
| 88 | 2610910762 | Screw |
| 89 | 2610910766 | Sleeve |
| 89 | 2610910766 | Sleeve |
| 891 | 2610021152 | Service Kit |
| 891 | 2610021152 | Service Kit |
| 895 | 2610914374 | Pin |
| 895 | 2610914374 | Pin |
| 90 | 2610355264 | Plain Washer |
| 90 | 2610355264 | Plain Washer |
| 92 | 2610912558 | Screw |
| 92 | 2610912558 | Screw |
| 93 | 2610992377 | Stud bolt M8X1,25-30 |
| 93 | 2610992377 | Stud bolt M8X1,25-30 |
| 94 | 2610910778 | Stud bolt |
| 94 | 2610910778 | Stud bolt |
| 96 | 2610908266 | Protection cover |
| 96 | 2610908266 | Protection cover |
| 97 | 2610907900 | Label |
| 97 | 2610933733 | Sticker |
| 98 | 2610907843 | Flap Guard |
| 98 | 2610907843 | Flap Guard |
| 99 | 2610911461 | Screw |
| 99 | 2610911461 | Screw |
