Bosch 3814

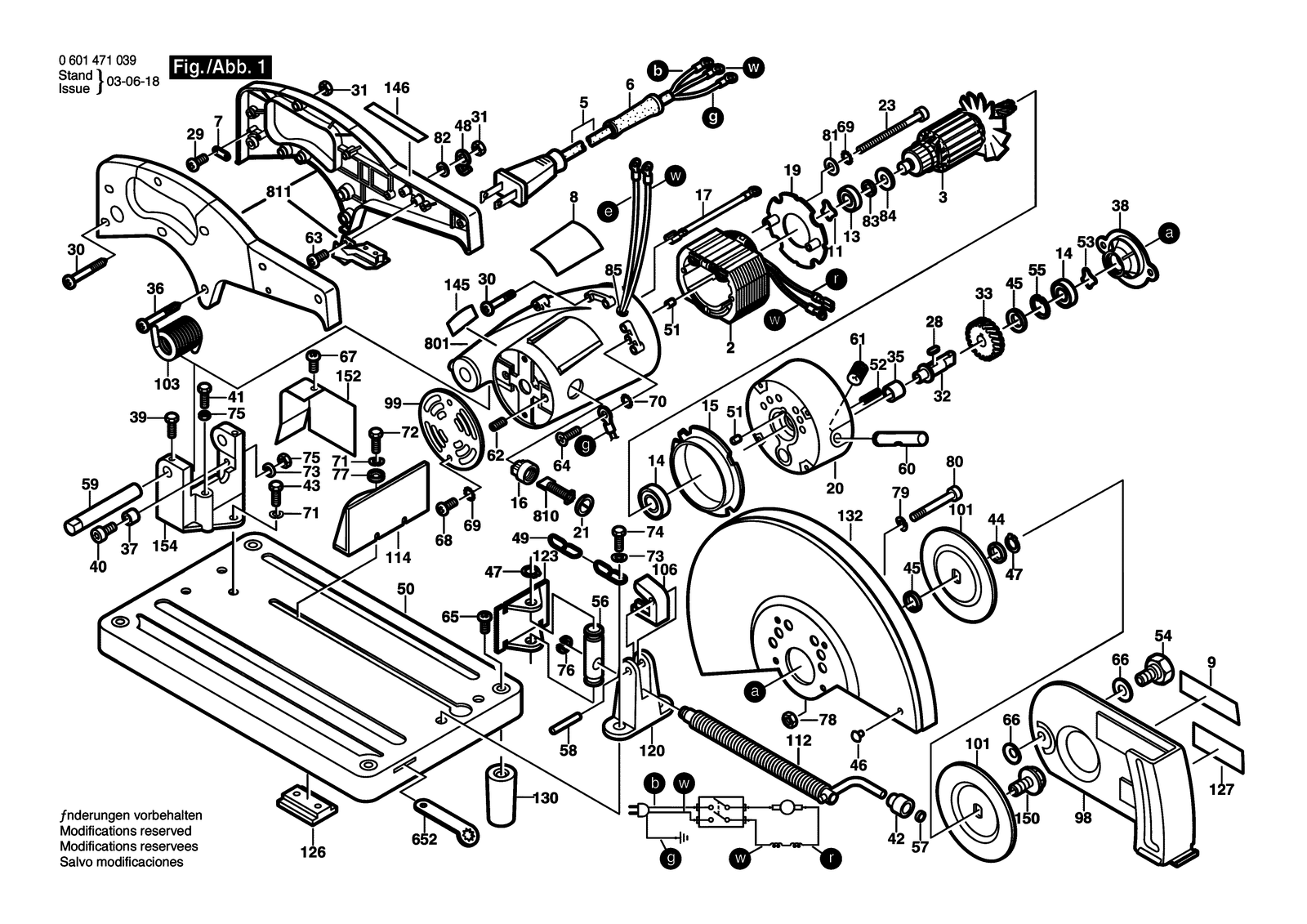

Bosch 3814 rotary tool: exploded parts diagram, 1 sheet, 96 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3814: 96 positions on 1 sheet
Bosch 3814 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 2610910022 | Flange |
| 103 | 2610355266 | Spring |
| 106 | 2610994515 | Drive Clutch |
| 11 | 2610355310 | Connecting Cable |
| 112 | 2610355289 | Screw |
| 114 | 2610994511 | Parts Set |
| 120 | 2610995518 | Plunger Sleeve |
| 123 | 2610994509 | Clamp |
| 126 | 2610355275 | Plate |
| 127 | 2610994086 | Reference Plate Caution |
| 13 | 2610010824 | Ball Bearing |
| 130 | 2610355258 | Supporting foot |
| 132 | 2610355328 | Protective Cover |
| 14 | 2610023268 | Groove ball bearing |
| 145 | 2610994085 | Reference Plate |
| 146 | 2610994084 | Reference Plate |
| 15 | 2610355311 | Air-Deflector Ring |
| 150 | 2610910023 | Bolt |
| 152 | 2610994512 | Cover Plate |
| 154 | 2610994513 | Retaining Pin |
| 16 | 2610355297 | Holder |
| 17 | 2610355309 | Plain Washer |
| 19 | 2610355349 | Air-Deflector Ring |
| 2 | 2610355302 | Field 115V |
| 20 | 2610994505 | Gear Housing |
| 21 | 2610355298 | Protective Cap |
| 23 | 2610355303 | Screw |
| 28 | 2610355343 | Key |
| 29 | 2610355341 | Screw |
| 3 | 2610355301 | Armature 115V |
| 30 | 2610355337 | Screw |
| 31 | 2610356706 | Nut |
| 32 | 2610355323 | Spindle |
| 33 | 2610355322 | Gear |
| 35 | 2610355313 | Bearing box |
| 36 | 2610355338 | Screw |
| 37 | 2610352729 | Sleeve |
| 38 | 2610355317 | Spring retaining ring |
| 39 | 2610355267 | Screw |
| 40 | 2610355270 | Screw |
| 41 | 2610355268 | Screw |
| 42 | 2610355286 | Knob |
| 43 | 2610358055 | Socket head cap screw |
| 44 | 2610355345 | Collar |
| 45 | 2610355344 | Collar |
| 46 | 2610355347 | Bumper |
| 47 | 2610355284 | Retaining snap ring |
| 48 | 2610355340 | Hook |
| 49 | 2610355279 | Chain |
| 5 | 2610355306 | Power supply cord |
| 50 | 2610994516 | Base |
| 51 | 2610355314 | Plug |
| 52 | 2610355348 | Roller Pin |
| 53 | 2610355321 | Plain Washer |
| 54 | 2610355331 | Screw |
| 55 | 2610355320 | Retaining snap ring |
| 56 | 2610994510 | Bolt |
| 57 | 2610328702 | Push-Button |
| 58 | 2610355280 | Roller Pin |
| 59 | 2610355265 | Shaft |
| 6 | 2610355307 | Grommet |
| 60 | 2610355315 | Tappet |
| 61 | 2610355316 | Spring |
| 62 | 2610355295 | Screw |
| 63 | 2610355336 | Screw |
| 64 | 2610357149 | Screw |
| 65 | 2610355259 | Screw |
| 652 | 2610355260 | Key |
| 66 | 2610355330 | Plain Washer |
| 67 | 2610355278 | Screw |
| 68 | 2610355293 | Screw |
| 69 | 2610355304 | Plain Washer |
| 7 | 2610355342 | Cable Clip |
| 70 | 2610355269 | Plain Washer |
| 71 | 2610355264 | Plain Washer |
| 72 | 2610355263 | Screw |
| 73 | 2610355271 | Plain Washer |
| 74 | 2610355277 | Screw |
| 75 | 2610910794 | Hex Nut |
| 76 | 2610355290 | Retaining snap ring |
| 77 | 2610355274 | Washer |
| 78 | 2610355332 | Square Nut |
| 79 | 2610355325 | Spring Washer |
| 8 | 2610994082 | Nameplate |
| 80 | 2610355324 | Screw |
| 801 | 2610994504 | Motor Housing Blue |
| 81 | 2610355570 | Washer |
| 810 | 2610995539 | Carbon-Brush Set |
| 811 | 2610920371 | Handle |
| 82 | 2610345391 | Plain Washer |
| 83 | 2610355318 | Plain Washer |
| 84 | 2610355319 | Plain Washer |
| 85 | 2610355299 | Grommet |
| 9 | 2610994083 | Manufacturer's nameplate |
| 98 | 2610355329 | Protection Sleeve |
| 99 | 2610994522 | Reference Plate |
