Bosch 37618

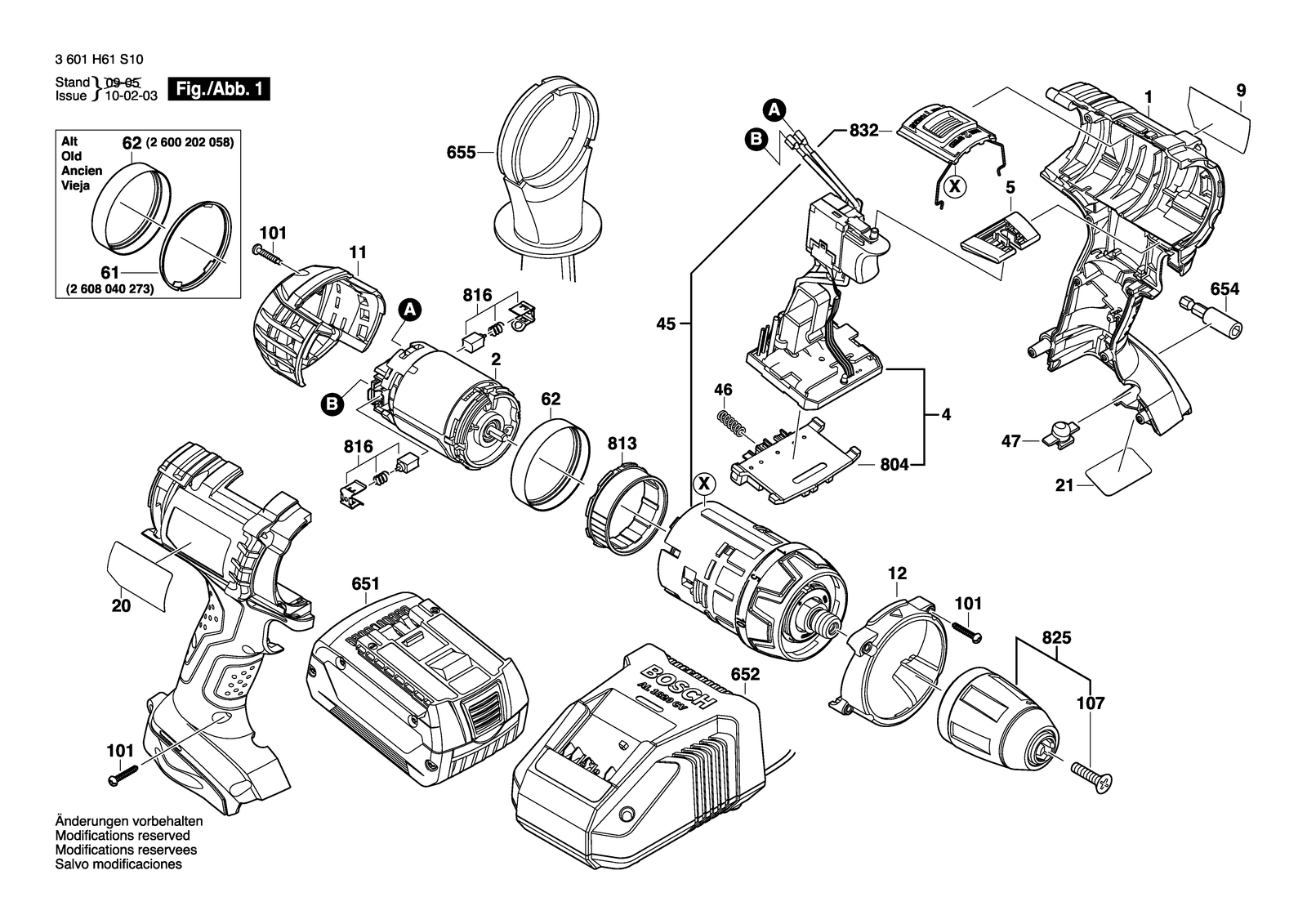

Bosch 37618 cordless drill driver: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 37618: 24 positions on 1 sheet
Bosch 37618 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105140 | Housing Section Blue |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 11 | 2600508066 | End cap Black |
| 12 | 2600510011 | Front Cap |
| 2 | 2607022320 | DC motor 18V |
| 20 | 2601115735 | Warning Plate |
| 21 | 2601115732 | Nameplate Usa |
| 4 | 1607233332 | Electronics Module |
| 45 | 2606200256 | Planetary Gear Train |
| 46 | 1609280477 | Compression Spring |
| 47 | 2605190895 | Lens |
| 5 | 2601099196 | Adjusting lever Red |
| 62 | 2600202067 | Retaining snap ring |
| 651 | 2607336819 | Battery Pack Usa BAT620 18V 4,0AH |
| 652 | 2607225927 | Charger Usa BC 1880 CV 13,3-18V/120V |
| 654 | 2610917319 | Holder |
| 655 | 2602025158 | Auxiliary Handle |
| 804 | 1609280478 | Contact retainer |
| 813 | 2600510012 | Locating ring |
| 816 | 2607034904 | Carbon-Brush Set |
| 825 | 2608572902 | Keyless Chuck |
| 832 | 2601099213 | Adjusting lever |
| 9 | 2601115641 | Manufacturer's nameplate |
