Bosch 37614 cordless drill driver: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 37614: 23 positions on 1 sheet

Bosch 37614 parts list (1 sheet)

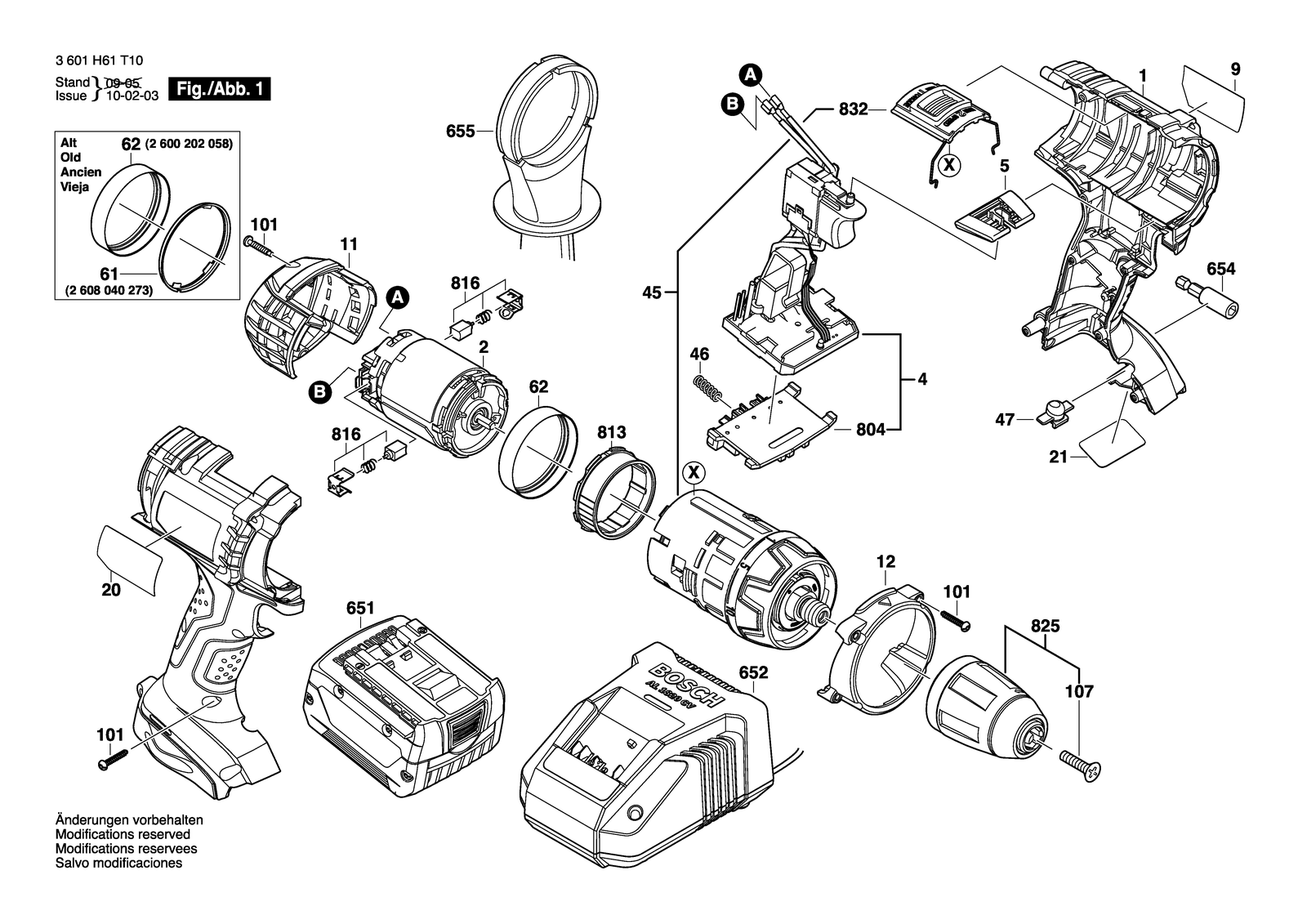

Bosch 37614 parts diagram, sheet 1
No.Part numberPart name
12605105140Housing Section Blue
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
112600508066End cap Black
122600510011Front Cap
22607022319DC motor 14,4V
202601115648Warning Plate
212601115730Nameplate Usa
41607233331Electronics Module
452606200256Planetary Gear Train
461609280477Compression Spring
472605190895Lens
52601099196Adjusting lever Red
622600202067Retaining snap ring
6512607336079Battery Set 14,4V, 2,6AH, Li, Ms
6542610917319Holder
6552602025158Auxiliary Handle
8041609280474Contact retainer
8132600510012Locating ring
8162607034904Carbon-Brush Set
8252608572902Keyless Chuck
8322601099213Adjusting lever
92601115740Manufacturer's nameplate
