Bosch 3725 DEVS random orbital sander: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3725 DEVS: 43 positions on 1 sheet

Bosch 3725 DEVS parts list (1 sheet)

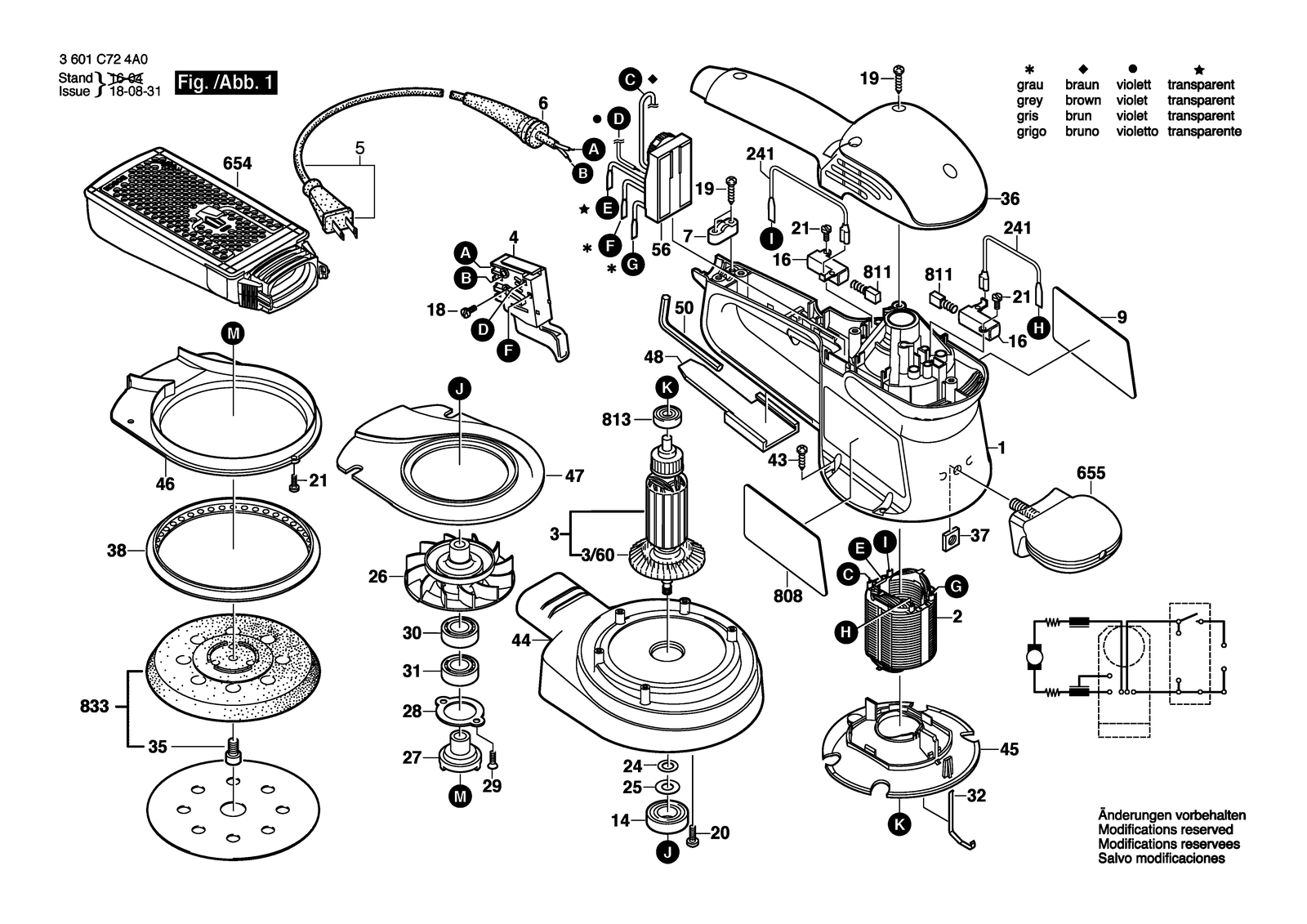

Bosch 3725 DEVS parts diagram, sheet 1
No.Part numberPart name
12605104410Housing Section Blue
142600905034Groove ball bearing
162604337016Brush Holder
182603410001Socket head cap screw M3X6,5-4.8
192603490022Screw 4X16
22604220663Field 220-240V
201600A00RD6Special Screw
212603490017Torx Oval-Head Screw 3X10
242600101047Shim 0,3 MM
2412604448100Connecting Cable White L=68 MM
252600100041Plain Washer DIN 315-M8-GT-C
262606610069Fan
272600328025Carrier
282600190060Tab Washer
293603391003Thread-forming tap. Screw M3X8
32604011240Armature 110-127V
3/602606610076Fan
302600905047Groove ball bearing
312600905048Groove ball bearing 12X28X8
322601329053Contact Strap
352603414062Hex Socket Head Cap Screw
362605500124Housing Cover Blue
372915121006Square Nut DIN 562-M6-04
382600206028Friction Ring
42607200260Switch
432603435042Thread-forming tap. Screw
442600282015Suction Hood
452601328047Air-Deflector Ring
462601328048Suction Piece
472601328049Suction Piece
482601035002Pusher
52604460229Power supply cord SAM 2,68M 2 X 082MM SJ 18/2
502610364015Hexagon Socket Screw Key 5 MM
562607230118Speed governor 100-120V
62600703018Grommet Ø7,3-Ø8,6X76 MM
6541600A020YJDust Chamber
6552602026069Auxiliary Handle Black
72601035001Cable Clip
808160111A23HNameplate
8111607014117Carbon Brush
8132600905051Groove ball bearing 7X19X6
8332608601901Backing Pad
92601117729Manufacturer's nameplate
