Bosch 370W DWAS 28-360
Bosch 370W DWAS 28-360 pn-angle screwdriver ind.: exploded parts diagram, 1 sheet, 107 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

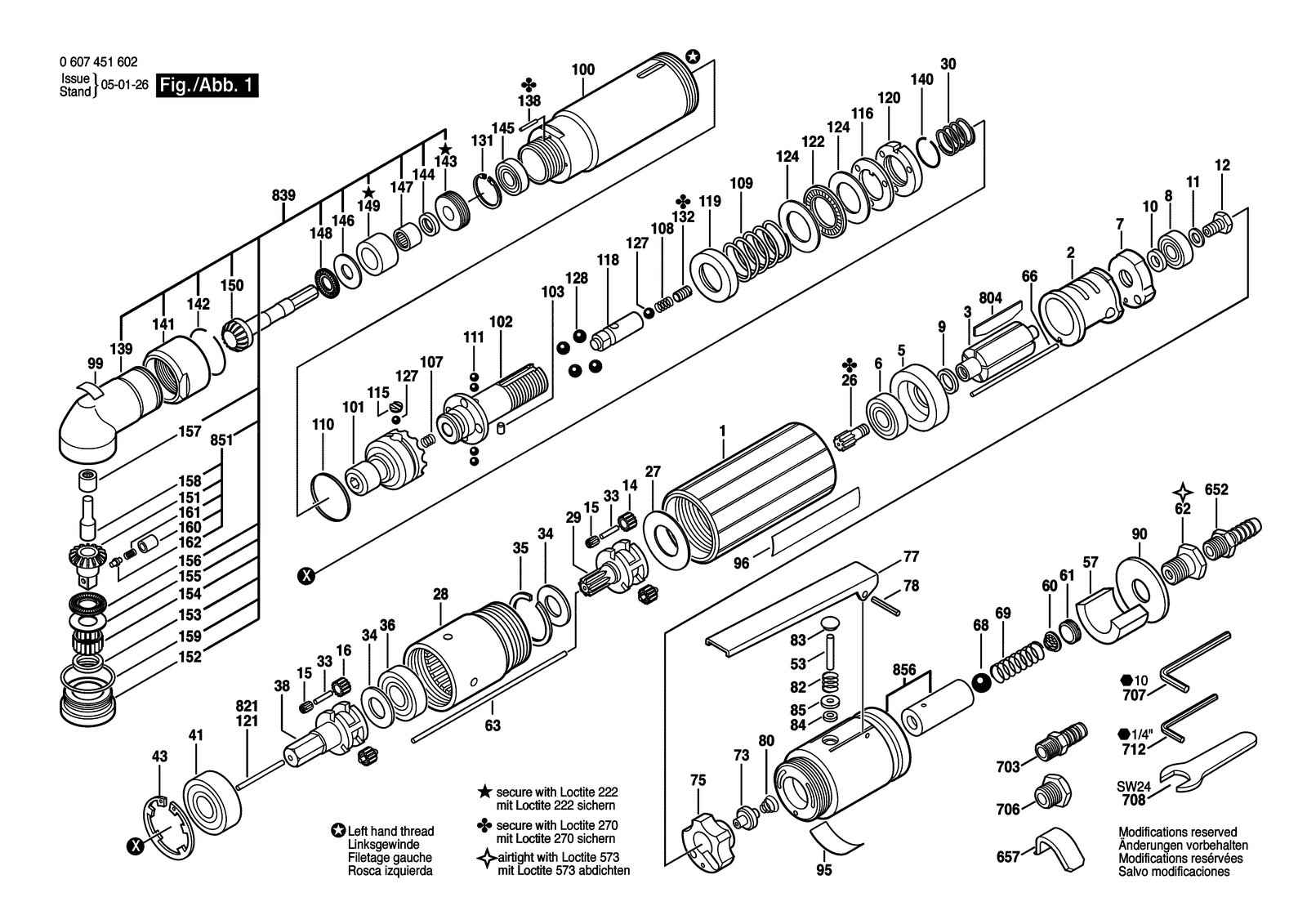

All parts of Bosch 370W DWAS 28-360: 107 positions on 1 sheet
Bosch 370W DWAS 28-360 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3600760015 | Motor Housing |
| 10 | 2600202014 | Spacer Ring |
| 100 | 3605125029 | Housing |
| 101 | 3606445030 | Clutch Element |
| 102 | 3606122008 | Drive Shaft |
| 103 | 2917800033 | Coiled Spring Pin DIN 7343-2X5 |
| 107 | 3604610003 | Compression Spring |
| 108 | 3604610002 | Compression Spring |
| 109 | 3604619004 | Compression Spring |
| 11 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 110 | 3604601001 | Retaining ring |
| 111 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 115 | 3609992353 | Sealing plate |
| 116 | 3600134000 | Adjusting Disc |
| 118 | 3603150203 | Locking Bolt |
| 119 | 3600114001 | Coupling Plate |
| 12 | 3603450007 | Hex Screw |
| 120 | 3603301004 | Round Nut |
| 121 | 3603201025 | Straight Pin 37,0 MM |
| 121 | 3604710021 | Straight Pin |
| 121 | 3604710022 | Straight Pin |
| 122 | 3600921000 | Roller Thrust Bearing |
| 124 | 3600101002 | Support Disc |
| 127 | 1903230009 | Ball DIN 5401-5 G28 |
| 128 | 1903230011 | Ball DIN 5401-6 G28 |
| 131 | 2916660003 | Spring retaining ring 16X1 Mm, DIN 472 |
| 132 | 3603400001 | Set screw |
| 138 | 2917530057 | Straight Pin DIN 6325-5M2,5X12 |
| 139 | 3605106008 | Spindle Housing |
| 14 | 3606316100 | Cylindrical Gear |
| 140 | 2916600008 | Retaining ring 14 DIN 9045 |
| 141 | 3603342002 | Union Nut |
| 142 | 2916600013 | Retaining ring DIN 9045-24 |
| 143 | 3603344011 | Threaded Ring |
| 144 | 3600283034 | Rotary shaft lip seal 8X12X3 |
| 145 | 1280905004 | Groove ball bearing |
| 146 | 3600100096 | Support Disc |
| 147 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 148 | 3600929003 | Roller Thrust Bearing |
| 149 | 3600300006 | Bearing Sleeve |
| 15 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 150 | 3608871840 | Bevel Gear Set |
| 152 | 3603462006 | Bearing Flange |
| 153 | 3600283013 | Radial Seal |
| 154 | 2600914016 | Needle bearing Ø 12 MM |
| 155 | 3600101015 | Support Disc |
| 156 | 3600929005 | Roller Thrust Bearing |
| 157 | 9001140359 | Needle bearing |
| 158 | 3603120003 | Bearing bolt |
| 159 | 3600102010 | Shim |
| 159 | 3600102012 | Shim |
| 16 | 3606316100 | Cylindrical Gear |
| 160 | 3600320016 | Guide Sleeve |
| 161 | 1604611004 | Compression Spring |
| 162 | 1603124060 | Pressure Spindle |
| 2 | 3604090003 | Stator 370W |
| 26 | 3606300165 | Pinion |
| 27 | 3600101001 | Stop Disc |
| 28 | 3606334000 | Ring Gear Z=49 |
| 29 | 3606337009 | Planetary-Gear Carrier |
| 3 | 3604220002 | Rotor |
| 30 | 3604617000 | Compression Spring |
| 33 | 3603201000 | Needle Roller |
| 34 | 3600103002 | Shim washer |
| 35 | 3600224000 | Retaining ring |
| 36 | 1900900287 | Groove ball bearing 12X28X8 |
| 38 | 3606337005 | Planetary-Gear Carrier |
| 41 | 3600905069 | Groove ball bearing |
| 43 | 3600119000 | Spring retaining ring |
| 5 | 3605700005 | Bearing Flange |
| 53 | 3604710053 | Straight Pin |
| 57 | 3601010018 | Silencer |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 60 | 3600002001 | Strainer |
| 61 | 3603344003 | Threaded Ring |
| 62 | 3603386010 | Fitting |
| 63 | 3604710029 | Straight Pin |
| 652 | 2603386002 | Hose fitting |
| 657 | 3601329007 | Angle Piece |
| 66 | 3604710051 | Straight Pin |
| 68 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 69 | 3604611006 | Compression Spring |
| 7 | 3605700007 | Bearing Flange |
| 703 | 3603386001 | Hose fitting Ø 8 MM |
| 706 | 3603462000 | Silencer |
| 707 | 1907950009 | Offset Screwdriver DIN 911 SW10 |
| 708 | 1907950513 | Single-Head Eng. Wrench DIN 894 SW24 |
| 712 | 3607950001 | Hexagon-Socket Key |
| 73 | 3603203012 | Valve Cone |
| 75 | 3600290003 | Intermediate Piece |
| 77 | 3601902001 | Control Lever |
| 78 | 2917700040 | Grooved Pin DIN 1475-2X18-ST |
| 8 | 3600905135 | Groove ball bearing |
| 80 | 3604643011 | Compression Spring |
| 804 | 3607030248 | Assembly Of Service Parts |
| 82 | 3604611006 | Compression Spring |
| 83 | 3603132000 | Valve Cone |
| 839 | 3607020041 | Angle Screwdriver Head |
| 84 | 2916011006 | Plain Washer DIN 125-A3,2-ST |
| 85 | 2600210007 | O-Ring 2,4X1,9 MM |
| 851 | 3607031159 | Assembly Of Service Parts |
| 856 | 3607031157 | Spare Valve Body |
| 9 | 2600202013 | Spacer Ring |
| 90 | 3600113011 | Silencer |
| 95 | 160111A3HF | Nameplate |
| 96 | 3601119055 | Manufacturer's nameplate |
| 99 | 3601119236 | Reference Plate |
