Makita 3709
Makita 3709: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 3709: 34 positions on 1 sheet

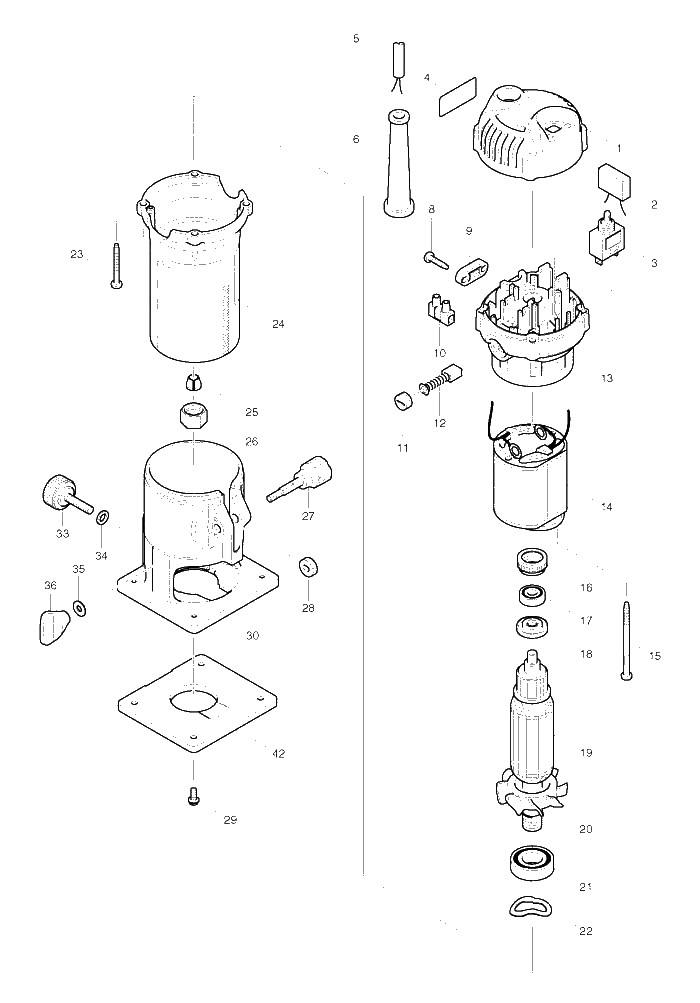

Sheet 1: Makita 3709 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 419137-6 | |
| 2 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 3 | 651425-7 | Makita 651425-7 SWITCH STL115ADT |
| 4 | 861695-2 | |
| 5 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 6 | 682569-2 | Makita 682569-2 Cord Guard |
| 8 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 9 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 10 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
| 11 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 12 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 13 | 154669-3 | |
| 14 | 590019-2 | |
| 15 | 266340-8 | Makita 266340-8 TAPPING SCREW 4*65, MT370 |
| 16 | 421494-0 | Makita 421494-0 Labyrinthhian Rubber Ring 9, 4304Z |
| 17 | 210034-7 | Makita 210034-7 Ball Bearing for 607LLB BO4556 |
| 18 | 681668-7 | Makita 681668-7 INSULATION WASHER |
| 19 | 515634-1 | Makita 515634-1 ARMATURE ASS Y 240V 3710 |
| 21 | 211489-9 | |
| 22 | 267785-3 | Makita 267785-3 WAVE WASHER 23 |
| 23 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 24 | 154668-5 | |
| 25 | 763662-2 | Makita 763662-2 Collet Cone 6 mm for 3709 3710 M3700 MT372 |
| 26 | 763661-4 | Makita 763661-4 Collet Nut 6 mm for 3709 3710 M3700 MT372 |
| 27 | 265771-8 | |
| 28 | 226217-9 | Makita 226217-9 SPUR GEAR 16, 3901 |
| 29 | 265142-9 | Makita 265142-9 PAN HEAD SCREW M4X10, MT370 |
| 30 | 419138-4 | Makita 419138-4 BASE 3709 |
| 33 | 265763-7 | Makita 265763-7 THUMB SCREW M6X25 |
| 34 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 35 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 36 | 252652-5 | |
| 42 | 410585-2 | Makita 410585-2 BASE PROTECTOR, 3703 |
| 20 | 241667-7 | Makita 241667-7 FAN |
