Makita 3703
Makita 3703: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 3703: 46 positions on 1 sheet

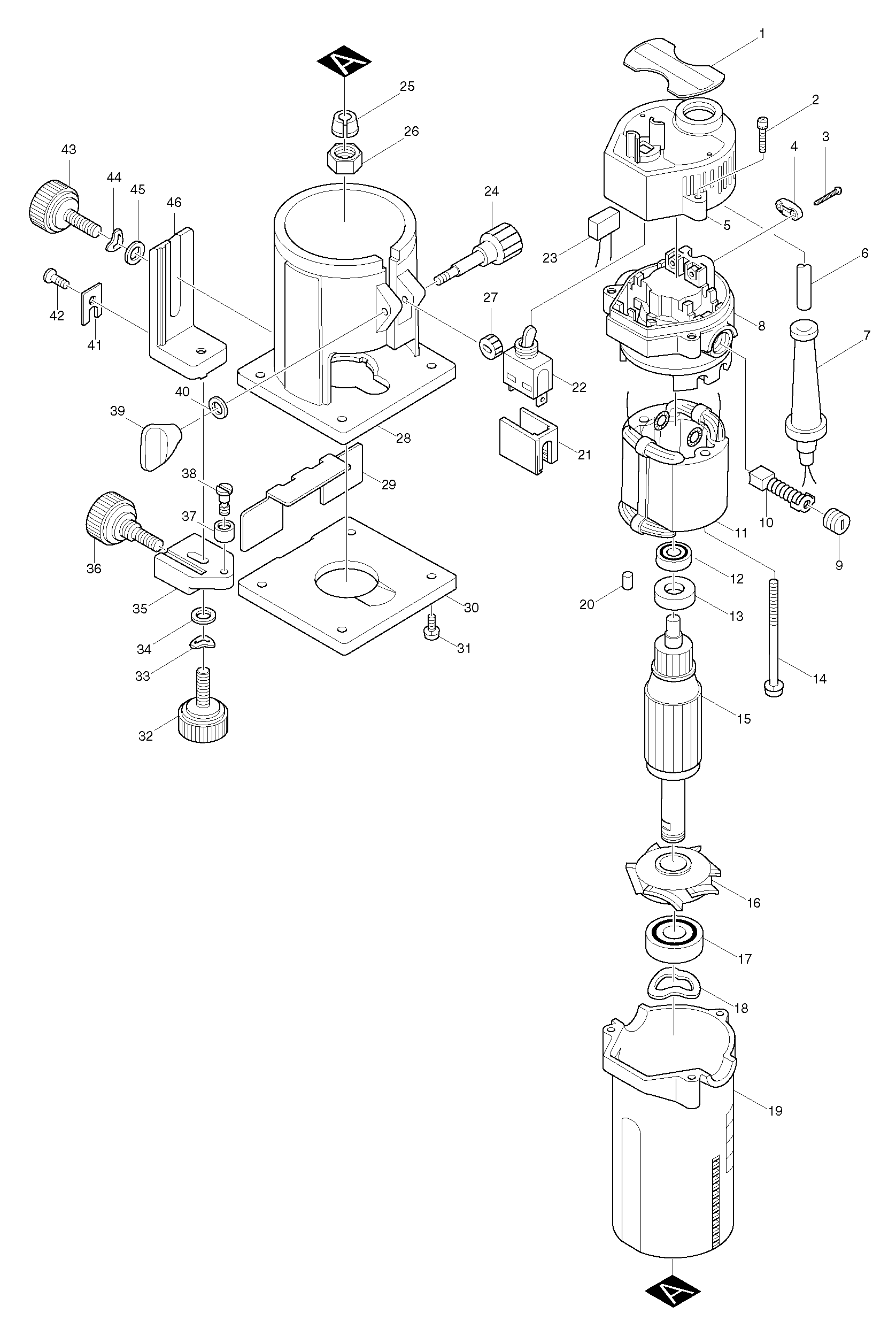

Sheet 1: Makita 3703 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 856566-6 | |
| 2 | 911168-6 | Makita 911168-6 PAN HEAD SCREW M4X40 |
| 3 | 265941-9 | Makita 265941-9 TAPPING SCREW 4X18 |
| 4 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 5 | 410062-4 | Makita 410062-4 REAR COVER |
| 6 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 7 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 8 | 159301-4 | Makita 159301-4 MOTOR REAR HOUSING |
| 9 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 10 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 11 | 593148-0 | Makita 593148-0 FIELD ASS'Y 220V |
| 12 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 13 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 14 | 911596-5 | Makita 911596-5 PAN HEAD SCREW M4X70 |
| 15 | 511918-5 | Makita 511918-5 ARMATURE ASS'Y 220V |
| 16 | 241615-6 | Makita 241615-6 FAN 52 |
| 17 | 211223-7 | Makita 211223-7 BALL BEARING 6002DDW, 3703 |
| 18 | 253905-5 | Makita 253905-5 WAVE WASHER 23 |
| 19 | 414567-6 | Makita 414567-6 MOTOR HOUSING |
| 20 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 21 | 410069-0 | Makita 410069-0 SWITCH HOLDER |
| 22 | 651467-1 | LOST Makita 651467-1 SWITCH STE206K |
| 23 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 24 | 251890-6 | Makita 251890-6 SCREW M5X33 |
| 25 | 763607-0 | Makita 763607-0 Collet Cone 6,0mm DCO180 3700 3703 3705 3706 3707 3708 3709 |
| 26 | 763606-2 | Makita 763606-2 Collet Nut DCO180 DCO181 3700 3703 3705 3706 3707 |
| 27 | 226217-9 | Makita 226217-9 SPUR GEAR 16, 3901 |
| 28 | 411930-4 | Makita 411930-4 BASE, 3703 |
| 29 | 411115-2 | Makita 411115-2 CHIP DEFLECTOR |
| 30 | 410585-2 | Makita 410585-2 BASE PROTECTOR, 3703 |
| 31 | 251308-7 | Makita 251308-7 COUNTERSUNK HEAD SCREW M4*10, 3703 |
| 32 | 251815-0 | Makita 251815-0 SCREW M6X25 |
| 33 | 253903-9 | Makita 253903-9 WAVE WASHER 6, 2414NB |
| 34 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 35 | 312650-2 | |
| 36 | 251819-2 | Makita 251819-2 SCREW M6 |
| 37 | 323495-3 | Makita 323495-3 ROLLER 11 |
| 38 | 251420-3 | Makita 251420-3 - FLAT HEAD SCREW M5 |
| 39 | 252632-1 | Makita 252632-1 WING NUT M5 |
| 40 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 41 | 341136-9 | Makita 341136-9 HOOK, MT370 |
| 42 | 912116-8 | Makita 912116-8 COUNTERSUNK HEAD SCREW M4 X12 |
| 43 | 251815-0 | Makita 251815-0 SCREW M6X25 |
| 44 | 253903-9 | Makita 253903-9 WAVE WASHER 6, 2414NB |
| 45 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 46 | 312396-0 | Makita 312396-0 GUIDE HOLDER |
