Bosch 370 WATT-SERIE
Bosch 370 WATT-SERIE pn-installation motor ind: exploded parts diagram, 1 sheet, 135 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

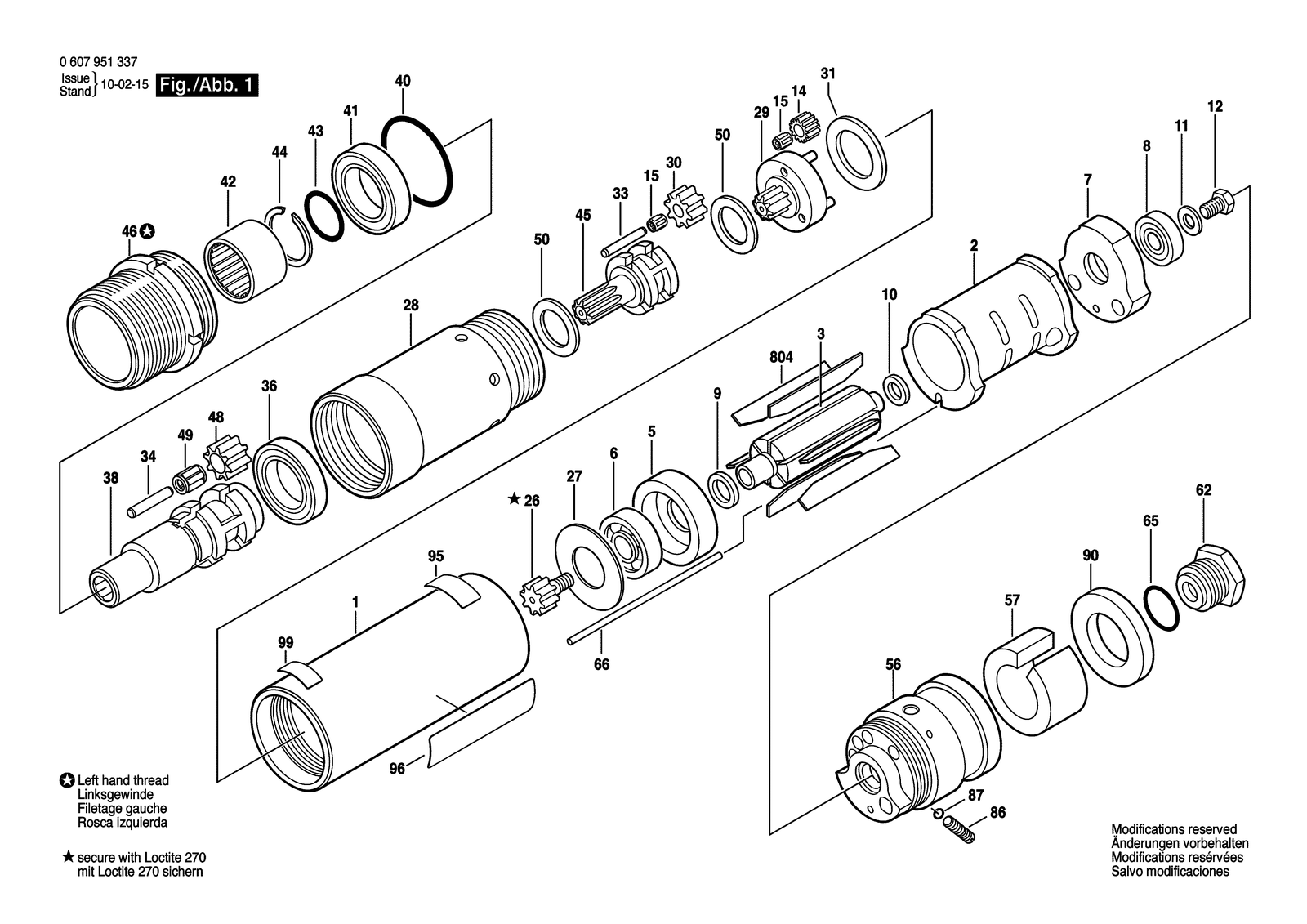

All parts of Bosch 370 WATT-SERIE: 135 positions on 1 sheet
Bosch 370 WATT-SERIE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3600760015 | Motor Housing |
| 1 | 3600760114 | Motor Housing Blue |
| 1 | 3600760015 | Motor Housing |
| 10 | 2600202014 | Spacer Ring |
| 10 | 2600202014 | Spacer Ring |
| 10 | 2600202014 | Spacer Ring |
| 11 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 11 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 11 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 14 | 3606316098 | Cylindrical Gear Z=12 |
| 14 | 3606316098 | Cylindrical Gear Z=12 |
| 14 | 3606316098 | Cylindrical Gear Z=12 |
| 15 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 15 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 15 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 2 | 3604090062 | Stator 370W |
| 2 | 3604090062 | Stator 370W |
| 2 | 3604090062 | Stator 370W |
| 26 | 3606300002 | Pinion Z=23 |
| 26 | 3606300002 | Pinion Z=23 |
| 26 | 3606300002 | Pinion Z=23 |
| 27 | 3600101001 | Stop Disc |
| 27 | 3600101001 | Stop Disc |
| 27 | 3600101001 | Stop Disc |
| 28 | 3606334091 | Ring Gear |
| 28 | 3606334091 | Ring Gear |
| 28 | 3606334091 | Ring Gear |
| 29 | 3606337071 | Planetary-Gear Carrier |
| 29 | 3606337071 | Planetary-Gear Carrier |
| 29 | 3606337070 | Planetary-Gear Carrier |
| 3 | 3604220025 | Rotor |
| 3 | 3604220025 | Rotor |
| 3 | 3604220025 | Rotor |
| 30 | 3606316099 | Cylindrical Gear Z=16 |
| 30 | 3606316099 | Cylindrical Gear Z=16 |
| 30 | 3606316100 | Cylindrical Gear |
| 31 | 3600113010 | Friction Washer |
| 31 | 3600113010 | Friction Washer |
| 31 | 3600113010 | Friction Washer |
| 33 | 3603201000 | Needle Roller |
| 33 | 3603201000 | Needle Roller |
| 33 | 3603201000 | Needle Roller |
| 34 | 3603201044 | Needle Roller |
| 34 | 3603201044 | Needle Roller |
| 34 | 3603201044 | Needle Roller |
| 36 | 3600900016 | Groove ball bearing |
| 36 | 3600900016 | Groove ball bearing |
| 36 | 3600900016 | Groove ball bearing |
| 38 | 3606337208 | Planetary-Gear Carrier |
| 38 | 3606337208 | Planetary-Gear Carrier |
| 38 | 3606337208 | Planetary-Gear Carrier |
| 40 | 2600210024 | O-Ring 32,0X2,0 MM |
| 40 | 2600210024 | O-Ring 32,0X2,0 MM |
| 40 | 2600210024 | O-Ring 32,0X2,0 MM |
| 41 | 3600905145 | Groove ball bearing 20X32X7 |
| 41 | 3600905145 | Groove ball bearing 20X32X7 |
| 41 | 3600905145 | Groove ball bearing 20X32X7 |
| 42 | 3600910018 | Freewheeling |
| 42 | 3600910018 | Freewheeling |
| 42 | 3600910018 | Freewheeling |
| 43 | 1900210113 | O-Ring 15X2,5 MM |
| 43 | 1900210113 | O-Ring 15X2,5 MM |
| 43 | 1900210113 | O-Ring 15X2,5 MM |
| 44 | 2916650011 | Spring retaining ring DIN 471 20X1,2 |
| 44 | 2916650011 | Spring retaining ring DIN 471 20X1,2 |
| 44 | 2916650011 | Spring retaining ring DIN 471 20X1,2 |
| 45 | 3606337105 | Planetary-Gear Carrier |
| 45 | 3606337105 | Planetary-Gear Carrier |
| 45 | 3606337105 | Planetary-Gear Carrier |
| 46 | 3603344051 | Threaded Ring |
| 46 | 3603344055 | Threaded Ring |
| 46 | 3603344058 | Threaded Ring |
| 48 | 3606316053 | Cylindrical Gear Z=14 |
| 48 | 3606316053 | Cylindrical Gear Z=14 |
| 48 | 3606316053 | Cylindrical Gear Z=14 |
| 49 | 3600903001 | Needle-Roller Assembly |
| 49 | 3600903001 | Needle-Roller Assembly |
| 49 | 3600903001 | Needle-Roller Assembly |
| 5 | 3605700005 | Bearing Flange |
| 5 | 3605700005 | Bearing Flange |
| 5 | 3605700005 | Bearing Flange |
| 50 | 3600101024 | Friction Washer |
| 50 | 3600101024 | Friction Washer |
| 50 | 3600101024 | Friction Washer |
| 56 | 3605190191 | Valve Housing |
| 56 | 3605190191 | Valve Housing |
| 56 | 3605190191 | Valve Housing |
| 57 | 3601010002 | Silencer |
| 57 | 3601010002 | Silencer |
| 57 | 3601010002 | Silencer |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 62 | 3603458019 | Fitting |
| 62 | 3603458019 | Fitting |
| 62 | 3603458019 | Fitting |
| 65 | 3600210036 | O-Ring 16X1,25 MM |
| 65 | 3600210036 | O-Ring 16X1,25 MM |
| 65 | 3600210036 | O-Ring 16X1,25 MM |
| 66 | 3604710051 | Straight Pin |
| 66 | 3604710051 | Straight Pin |
| 66 | 3604710051 | Straight Pin |
| 7 | 3605700006 | Bearing Flange |
| 7 | 3605700006 | Bearing Flange |
| 7 | 3605700006 | Bearing Flange |
| 8 | 2600905072 | Groove ball bearing 7X19X6 |
| 8 | 2600905072 | Groove ball bearing 7X19X6 |
| 8 | 2600905072 | Groove ball bearing 7X19X6 |
| 804 | 3607030249 | Assembly Of Service Parts |
| 804 | 3607030249 | Assembly Of Service Parts |
| 804 | 3607030249 | Assembly Of Service Parts |
| 86 | 3603435048 | Adjusting Screw |
| 86 | 3603435048 | Adjusting Screw |
| 86 | 3603435048 | Adjusting Screw |
| 87 | 3600210015 | O-Ring 4,0X1,0 MM |
| 87 | 3600210015 | O-Ring 4,0X1,0 MM |
| 87 | 3600210015 | O-Ring 4,0X1,0 MM |
| 9 | 2600202013 | Spacer Ring |
| 9 | 2600202013 | Spacer Ring |
| 9 | 2600202013 | Spacer Ring |
| 90 | 3600105002 | Silencer |
| 90 | 3600105002 | Silencer |
| 90 | 3600105002 | Silencer |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 96 | 3601110331 | Manufacturer's nameplate |
| 96 | 3601110331 | Manufacturer's nameplate |
| 96 | 3601110331 | Manufacturer's nameplate |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
