Bosch 370 WATT-SERIE

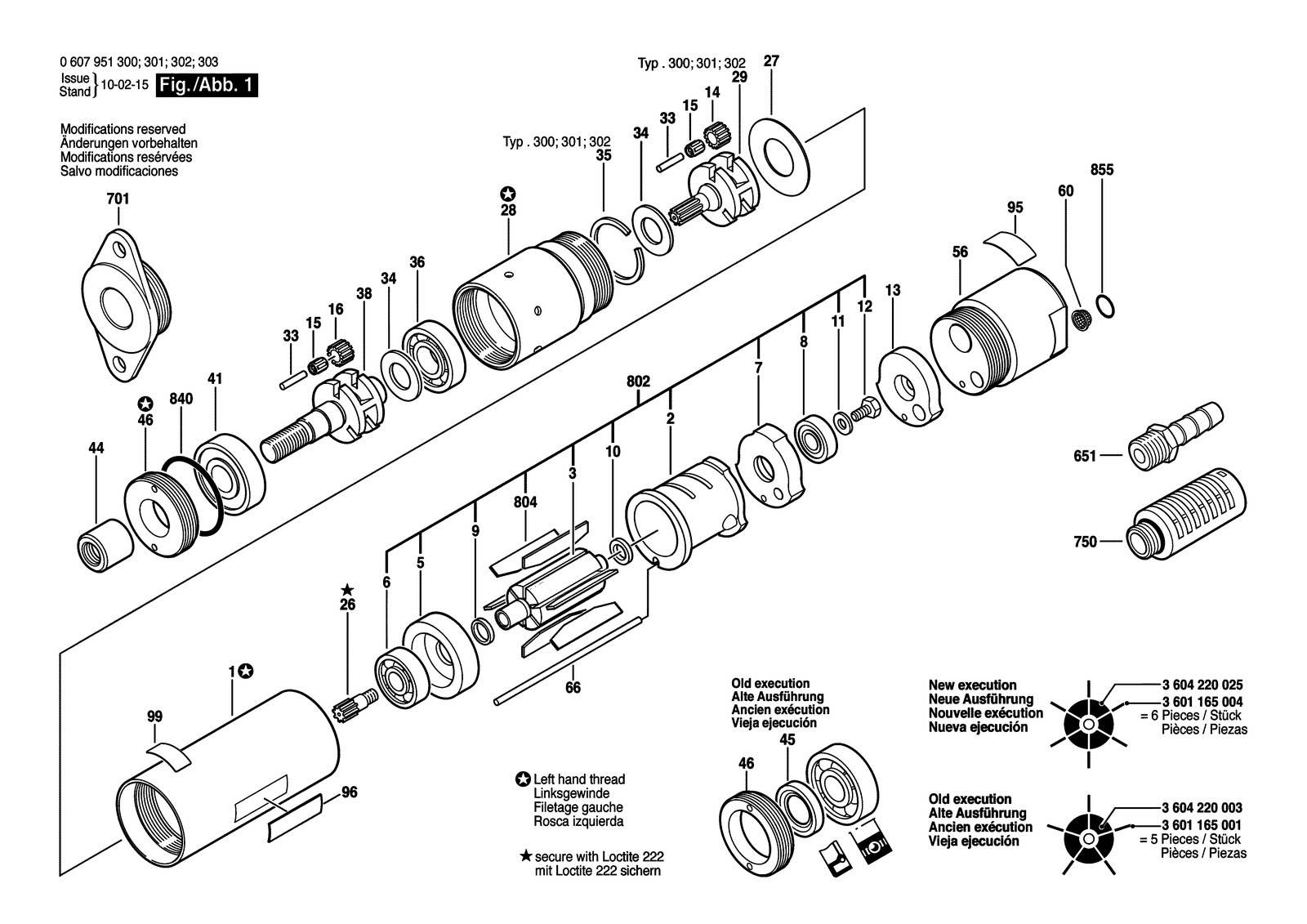

Bosch 370 WATT-SERIE pn-installation motor ind: exploded parts diagram, 1 sheet, 157 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 370 WATT-SERIE: 157 positions on 1 sheet
Bosch 370 WATT-SERIE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3600760001 | Motor Housing |
| 1 | 3600760001 | Motor Housing |
| 1 | 3600760001 | Motor Housing |
| 1 | 3600760001 | Motor Housing |
| 10 | 2600202014 | Spacer Ring |
| 10 | 2600202014 | Spacer Ring |
| 10 | 2600202014 | Spacer Ring |
| 10 | 2600202014 | Spacer Ring |
| 11 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 11 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 11 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 11 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 13 | 3602305000 | Intermediate Piece |
| 13 | 3602305000 | Intermediate Piece |
| 13 | 3602305000 | Intermediate Piece |
| 13 | 3602305000 | Intermediate Piece |
| 14 | 3606316101 | Cylindrical Gear |
| 14 | 3606316100 | Cylindrical Gear |
| 14 | 3606316098 | Cylindrical Gear Z=12 |
| 15 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 15 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 15 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 15 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 16 | 3606316100 | Cylindrical Gear |
| 16 | 3606316099 | Cylindrical Gear Z=16 |
| 16 | 3606316099 | Cylindrical Gear Z=16 |
| 16 | 3606316101 | Cylindrical Gear |
| 2 | 3604090003 | Stator 370W |
| 2 | 3604090003 | Stator 370W |
| 2 | 3604090003 | Stator 370W |
| 2 | 3604090003 | Stator 370W |
| 26 | 3606300005 | Pinion |
| 26 | 3606300164 | Pinion |
| 26 | 3606300002 | Pinion Z=23 |
| 26 | 3606300004 | Pinion Z=8 |
| 27 | 3600101001 | Stop Disc |
| 27 | 3600101001 | Stop Disc |
| 27 | 3600101001 | Stop Disc |
| 27 | 3600101001 | Stop Disc |
| 28 | 3606334000 | Ring Gear Z=49 |
| 28 | 3606334000 | Ring Gear Z=49 |
| 28 | 3606334000 | Ring Gear Z=49 |
| 28 | 3606334001 | Ring Gear Z=49 |
| 29 | 3606337004 | Planetary-Gear Carrier |
| 29 | 3606337003 | Planetary-Gear Carrier |
| 29 | 3606337002 | Planetary-Gear Carrier |
| 3 | 3604220025 | Rotor |
| 3 | 3604220025 | Rotor |
| 3 | 3604220025 | Rotor |
| 3 | 3604220025 | Rotor |
| 33 | 3603201000 | Needle Roller |
| 33 | 3603201000 | Needle Roller |
| 33 | 3603201000 | Needle Roller |
| 33 | 3603201000 | Needle Roller |
| 34 | 3600103002 | Shim washer |
| 34 | 3600103002 | Shim washer |
| 34 | 3600103002 | Shim washer |
| 34 | 3600103002 | Shim washer |
| 35 | 3600224000 | Retaining ring |
| 35 | 3600224000 | Retaining ring |
| 35 | 3600224000 | Retaining ring |
| 36 | 1900900287 | Groove ball bearing 12X28X8 |
| 36 | 1900900287 | Groove ball bearing 12X28X8 |
| 36 | 1900900287 | Groove ball bearing 12X28X8 |
| 36 | 1900900287 | Groove ball bearing 12X28X8 |
| 38 | 3606337006 | Planetary-Gear Carrier |
| 38 | 3606337006 | Planetary-Gear Carrier |
| 38 | 3606337006 | Planetary-Gear Carrier |
| 38 | 3606337006 | Planetary-Gear Carrier |
| 41 | 3600905069 | Groove ball bearing |
| 41 | 3600905069 | Groove ball bearing |
| 41 | 3600905069 | Groove ball bearing |
| 41 | 3600905069 | Groove ball bearing |
| 44 | 3600390003 | Threaded Bushing |
| 44 | 3600390003 | Threaded Bushing |
| 44 | 3600390003 | Threaded Bushing |
| 44 | 3600390003 | Threaded Bushing |
| 46 | 3603344000 | Threaded Ring |
| 46 | 3603344000 | Threaded Ring |
| 46 | 3603344000 | Threaded Ring |
| 46 | 3603344000 | Threaded Ring |
| 5 | 3605700005 | Bearing Flange |
| 5 | 3605700005 | Bearing Flange |
| 5 | 3605700005 | Bearing Flange |
| 5 | 3605700005 | Bearing Flange |
| 56 | 3605190201 | Connection Housing |
| 56 | 3605190202 | Connection Housing |
| 56 | 3605190202 | Connection Housing |
| 56 | 3605190202 | Connection Housing |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 60 | 3600002001 | Strainer |
| 60 | 3600002001 | Strainer |
| 60 | 3600002001 | Strainer |
| 60 | 3600002001 | Strainer |
| 651 | 3603386067 | Hose fitting |
| 651 | 3603386067 | Hose fitting |
| 651 | 3603386067 | Hose fitting |
| 651 | 3603386067 | Hose fitting |
| 66 | 3604710000 | Straight Pin |
| 66 | 3604710000 | Straight Pin |
| 66 | 3604710000 | Straight Pin |
| 66 | 3604710000 | Straight Pin |
| 7 | 3605700007 | Bearing Flange |
| 7 | 3605700007 | Bearing Flange |
| 7 | 3605700007 | Bearing Flange |
| 7 | 3605700007 | Bearing Flange |
| 701 | 3605700045 | Fastening Flange |
| 701 | 3605700045 | Fastening Flange |
| 701 | 3605700045 | Fastening Flange |
| 701 | 3605700045 | Fastening Flange |
| 750 | 3607000074 | Silencer |
| 750 | 3607000074 | Silencer |
| 750 | 3607000074 | Silencer |
| 750 | 3607000074 | Silencer |
| 8 | 2600905072 | Groove ball bearing 7X19X6 |
| 8 | 2600905072 | Groove ball bearing 7X19X6 |
| 8 | 2600905072 | Groove ball bearing 7X19X6 |
| 8 | 2600905072 | Groove ball bearing 7X19X6 |
| 802 | 3607031016 | Assembly Of Service Parts |
| 802 | 3607031016 | Assembly Of Service Parts |
| 802 | 3607031016 | Assembly Of Service Parts |
| 802 | 3607031016 | Assembly Of Service Parts |
| 804 | 3607030249 | Assembly Of Service Parts |
| 804 | 3607030249 | Assembly Of Service Parts |
| 804 | 3607030249 | Assembly Of Service Parts |
| 804 | 3607030249 | Assembly Of Service Parts |
| 840 | 3607010007 | Parts Set 10 Piece |
| 840 | 3607010007 | Parts Set 10 Piece |
| 840 | 3607010007 | Parts Set 10 Piece |
| 840 | 3607010007 | Parts Set 10 Piece |
| 855 | 3607010020 | Parts Set 10 Piece |
| 855 | 3607010020 | Parts Set 10 Piece |
| 855 | 3607010020 | Parts Set 10 Piece |
| 855 | 3607010020 | Parts Set 10 Piece |
| 9 | 2600202013 | Spacer Ring |
| 9 | 2600202013 | Spacer Ring |
| 9 | 2600202013 | Spacer Ring |
| 9 | 2600202013 | Spacer Ring |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 96 | 3601110331 | Manufacturer's nameplate |
| 96 | 3601110331 | Manufacturer's nameplate |
| 96 | 3601110331 | Manufacturer's nameplate |
| 96 | 3601110331 | Manufacturer's nameplate |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
