Bosch 370 WATT-SERIE pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 178 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 370 WATT-SERIE: 178 positions on 1 sheet

Bosch 370 WATT-SERIE parts list (1 sheet)

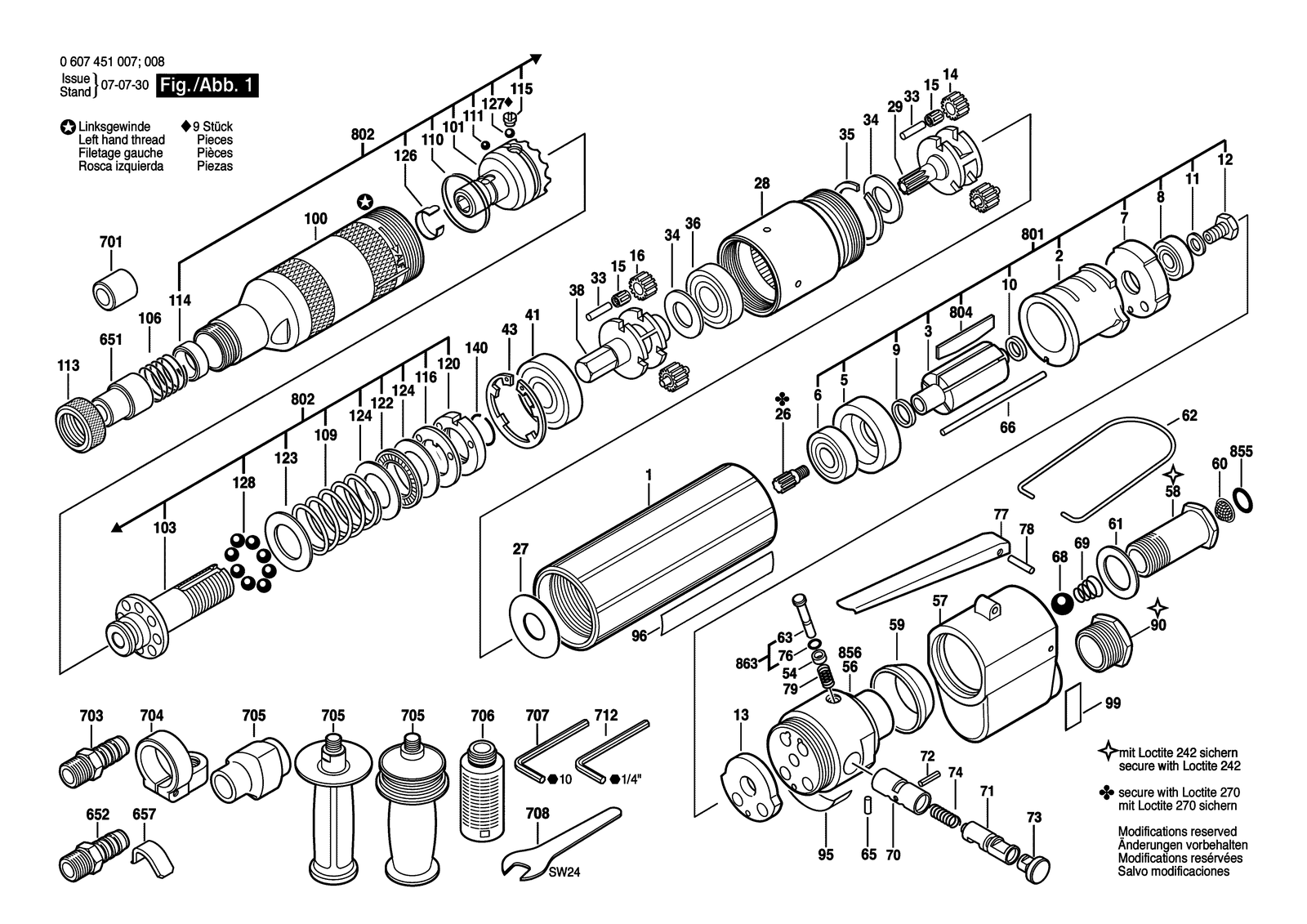

Bosch 370 WATT-SERIE parts diagram, sheet 1
No.Part numberPart name
13600760015Motor Housing
13600760015Motor Housing
102600202014Spacer Ring
102600202014Spacer Ring
1003605125013Housing
1003605125013Housing
1013606445030Clutch Element
1013606445030Clutch Element
1033606122013Drive Shaft
1033606122013Drive Shaft
1063604615000Compression Spring
1063604615000Compression Spring
1093604619000Compression Spring Ø 4 MM
1093604619005Compression Spring Ø 3,5 MM
112916011012Plain Washer DIN 125-A5,3-ST
112916011012Plain Washer DIN 125-A5,3-ST
1103604601001Retaining ring
1103604601001Retaining ring
1111903230003Ball DIN 5401-2,5MM-III-ST
1111903230003Ball DIN 5401-2,5MM-III-ST
1133603340000Union Nut
1133603340000Union Nut
1143600322002Bushing
1143600322002Bushing
1153600001000Sealing plate
1153600001000Sealing plate
1163600134000Adjusting Disc
1163600134000Adjusting Disc
122911061150Hex Screw DIN 933-M5X8-8.8
122911061150Hex Screw DIN 933-M5X8-8.8
1203603301004Round Nut
1203603301004Round Nut
1223600921000Roller Thrust Bearing
1223600921000Roller Thrust Bearing
1233600103004Support Disc
1233600103004Support Disc
1243600101002Support Disc
1243600101002Support Disc
1262601250001Leaf Spring
1262601250001Leaf Spring
1271903230009Ball DIN 5401-5 G28
1271903230009Ball DIN 5401-5 G28
1281903230011Ball DIN 5401-6 G28
1281903230011Ball DIN 5401-6 G28
133602305000Intermediate Piece
133602305000Intermediate Piece
143606316100Cylindrical Gear
143606316098Cylindrical Gear Z=12
1402916600008Retaining ring 14 DIN 9045
1402916600008Retaining ring 14 DIN 9045
153600913000Needle-Roller Assembly Ina K3X5X7
153600913000Needle-Roller Assembly Ina K3X5X7
163606316099Cylindrical Gear Z=16
163606316099Cylindrical Gear Z=16
23604090002Stator 370W
23604090002Stator 370W
263606300164Pinion
263606300002Pinion Z=23
273600101001Stop Disc
273600101001Stop Disc
283606334000Ring Gear Z=49
283606334000Ring Gear Z=49
293606337003Planetary-Gear Carrier
293606337002Planetary-Gear Carrier
33604220003Rotor
33604220003Rotor
333603201000Needle Roller
333603201000Needle Roller
343600103002Shim washer
343600103002Shim washer
353600224000Retaining ring
353600224000Retaining ring
361900900287Groove ball bearing 12X28X8
361900900287Groove ball bearing 12X28X8
383606337014Planetary-Gear Carrier
383606337014Planetary-Gear Carrier
411600905007Groove ball bearing 12X32X10
411600905007Groove ball bearing 12X32X10
433600119000Spring retaining ring
433600119000Spring retaining ring
53605700005Bearing Flange
53605700005Bearing Flange
543600328021Spacer Bushing
543600328021Spacer Bushing
563605190005Valve Body
563605190005Valve Body
573605190014Silencer
573605190014Silencer
583603458001Fitting
583603458001Fitting
593600521000Sintered-Metal Bushing
593600521000Sintered-Metal Bushing
63600905039Groove ball bearing 9X24X7 MM
63600905039Groove ball bearing 9X24X7 MM
603600002000Strainer
603600002000Strainer
613600101003Plain Washer
613600101003Plain Washer
622604720004Suspension Loop
622604720004Suspension Loop
633603123000Pressure Spindle
633603123000Pressure Spindle
652917500074Straight Pin 3 H 8X6 DIN 7
652917500074Straight Pin 3 H 8X6 DIN 7
6513600329000Guide Sleeve
6513600329000Guide Sleeve
6522603386002Hose fitting
6522603386002Hose fitting
6573601329007Angle Piece
6573601329007Angle Piece
663604710000Straight Pin
663604710000Straight Pin
681903230529Ball III DIN 5401 St
681903230529Ball III DIN 5401 St
693604643002Compression Spring
693604643002Compression Spring
73605700006Bearing Flange
73605700006Bearing Flange
703607031094Assembly Of Service Parts
703607031094Assembly Of Service Parts
7013600328003Guide Sleeve
7013600328003Guide Sleeve
7033603386001Hose fitting Ø 8 MM
7033603386001Hose fitting Ø 8 MM
7043608040000Support clamp
7043608040000Support clamp
705160202509ZAuxiliary Handle
70516020250A1Auxiliary Handle
7053600499000Handle
705160202509ZAuxiliary Handle
70516020250A1Auxiliary Handle
7053600499000Handle
7063607000073Silencer
7063607000073Silencer
7071907950009Offset Screwdriver DIN 911 SW10
7071907950009Offset Screwdriver DIN 911 SW10
7081907950513Single-Head Eng. Wrench DIN 894 SW24
7081907950513Single-Head Eng. Wrench DIN 894 SW24
713608750000Control Piston
713608750000Control Piston
7123607950001Hexagon-Socket Key
7123607950001Hexagon-Socket Key
722917760037Slotted Spring Pin 2X12 DIN 1481
722917760037Slotted Spring Pin 2X12 DIN 1481
733603122000Push-Button
733603122000Push-Button
743604611002Compression Spring
743604611002Compression Spring
763600210002O-Ring 1,8X1,0 MM
763600210002O-Ring 1,8X1,0 MM
773601902000Control Lever
773601902000Control Lever
782917500081Straight Pin 3 H 8X20 DIN 7
782917500081Straight Pin 3 H 8X20 DIN 7
793604610001Compression Spring
793604610001Compression Spring
82600905032Ball Bearing 7X19X6
82600905032Ball Bearing 7X19X6
8013607031016Assembly Of Service Parts
8013607031016Assembly Of Service Parts
8023607031105Overriding Clutch
8023607031106Overriding Clutch
8043607030248Assembly Of Service Parts
8043607030248Assembly Of Service Parts
8551900210306O-Ring 10X2 MM
8551900210306O-Ring 10X2 MM
8563607031007Assembly Of Service Parts
8563607031007Assembly Of Service Parts
92600202013Spacer Ring
92600202013Spacer Ring
903603462000Silencer
903603462000Silencer
95160111A3HFNameplate
95160111A3HFNameplate
961601110481Manufacturer's nameplate Shadow Side
961601110481Manufacturer's nameplate Shadow Side
993601119236Reference Plate
993601119236Reference Plate
