Bosch 370 WATT-SERIE

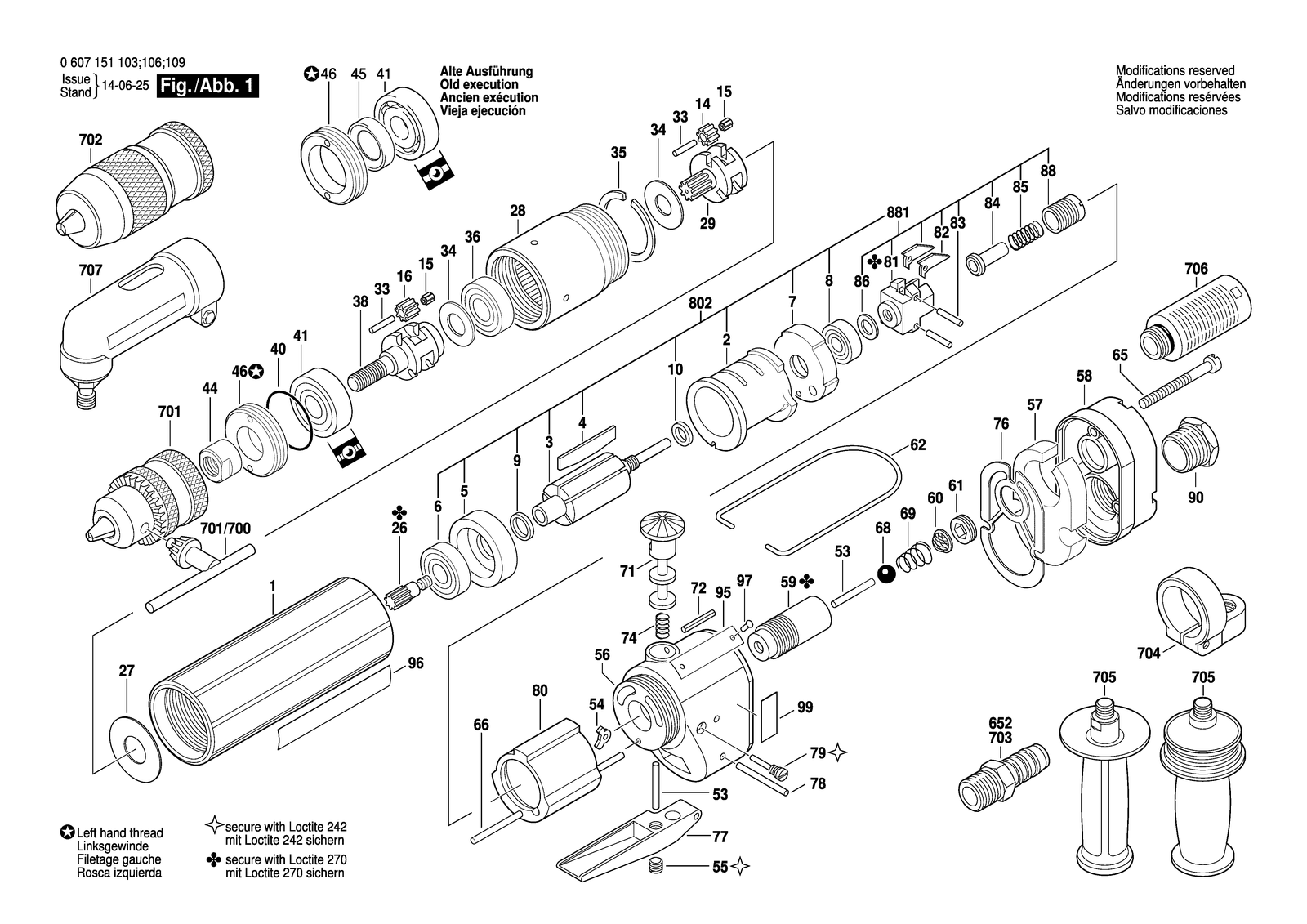

Bosch 370 WATT-SERIE pn-drill - (industr.): exploded parts diagram, 1 sheet, 72 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 370 WATT-SERIE: 72 positions on 1 sheet
Bosch 370 WATT-SERIE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3600760016 | Motor Housing |
| 10 | 2600202014 | Spacer Ring |
| 14 | 3606316100 | Cylindrical Gear |
| 15 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 16 | 3606316099 | Cylindrical Gear Z=16 |
| 2 | 3604090003 | Stator 370W |
| 26 | 3606300164 | Pinion |
| 27 | 3600101001 | Stop Disc |
| 28 | 3606334000 | Ring Gear Z=49 |
| 29 | 3606337003 | Planetary-Gear Carrier |
| 3 | 3604220004 | Rotor |
| 33 | 3603201000 | Needle Roller |
| 34 | 3600103002 | Shim washer |
| 35 | 3600224000 | Retaining ring |
| 36 | 1900900287 | Groove ball bearing 12X28X8 |
| 38 | 3606337006 | Planetary-Gear Carrier |
| 4 | 3607030248 | Assembly Of Service Parts |
| 40 | 3607010007 | Parts Set 10 Piece |
| 41 | 3600905069 | Groove ball bearing |
| 44 | 3600390003 | Threaded Bushing |
| 46 | 3603344000 | Threaded Ring |
| 5 | 3605700005 | Bearing Flange |
| 53 | 3603100026 | Needle Roller DIN 5402-A 2X19,8G5 |
| 54 | 3601960000 | Reverse-Transfer Lever |
| 55 | 3603400000 | Set screw |
| 56 | 3607031135 | Spare Valve Body |
| 57 | 3601015007 | Damping Plate |
| 58 | 3605500014 | Connection cover |
| 59 | 3603373002 | Fitting |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 60 | 3600002000 | Strainer |
| 61 | 3603340005 | Threaded Ring |
| 62 | 3604720004 | Suspension Loop |
| 65 | 2910001134 | Socket head cap screw DIN 84-AM4X15-4.8 |
| 652 | 2603386002 | Hose fitting |
| 66 | 3604710025 | Straight Pin |
| 68 | 1903230524 | Ball 8 MM III DIN 5401 St |
| 69 | 3604643002 | Compression Spring |
| 7 | 3605700007 | Bearing Flange |
| 701 | 1607000F3W | Key Chuck |
| 701/700 | 2607950007 | Chuck Wrench SG2 |
| 702 | 1608572012 | Chuck Ø 0-8 MM,3/8", |
| 703 | 3603386001 | Hose fitting Ø 8 MM |
| 704 | 3608040000 | Support clamp |
| 705 | 160202509Z | Auxiliary Handle |
| 705 | 16020250A1 | Auxiliary Handle |
| 706 | 3607000073 | Silencer |
| 707 | 1608580011 | Combi Angle Drive |
| 71 | 3608750010 | Control Piston |
| 72 | 2917800037 | Coiled Spring Pin 2X12 DIN 7343 |
| 74 | 3604611002 | Compression Spring |
| 76 | 3601015006 | Sealing Plate |
| 77 | 3602033000 | Control Lever |
| 78 | 2917550088 | Straight Pin DIN 6325-3M6X32 |
| 79 | 3603412001 | Stud |
| 8 | 2600905032 | Ball Bearing 7X19X6 |
| 80 | 3600328023 | Control Housing |
| 802 | 3607031014 | Assembly Of Service Parts |
| 81 | 3602125000 | Flyweight Carrier |
| 82 | 3602190004 | Flyweight |
| 83 | 1903201002 | Needle Roller A 2X11,8G2DIN5402 |
| 84 | 3600322000 | Control Sleeve |
| 85 | 3604612001 | Compression Spring |
| 86 | 2600100570 | Shim 0,3 MM |
| 88 | 3600361000 | Threaded Bushing |
| 881 | 3607031005 | Assembly Of Service Parts |
| 9 | 2600202013 | Spacer Ring |
| 90 | 3603462000 | Silencer |
| 95 | 160111A3HF | Nameplate |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 97 | 3603133000 | Grooved Nail |
| 99 | 3601119236 | Reference Plate |
