Bosch 36V Litheon HDD

Bosch 36V Litheon HDD cordless impact drill: exploded parts diagram, 2 sheets, 24 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 36V Litheon HDD: 24 positions on 2 sheets

Bosch 36V Litheon HDD parts list (2 sheets)

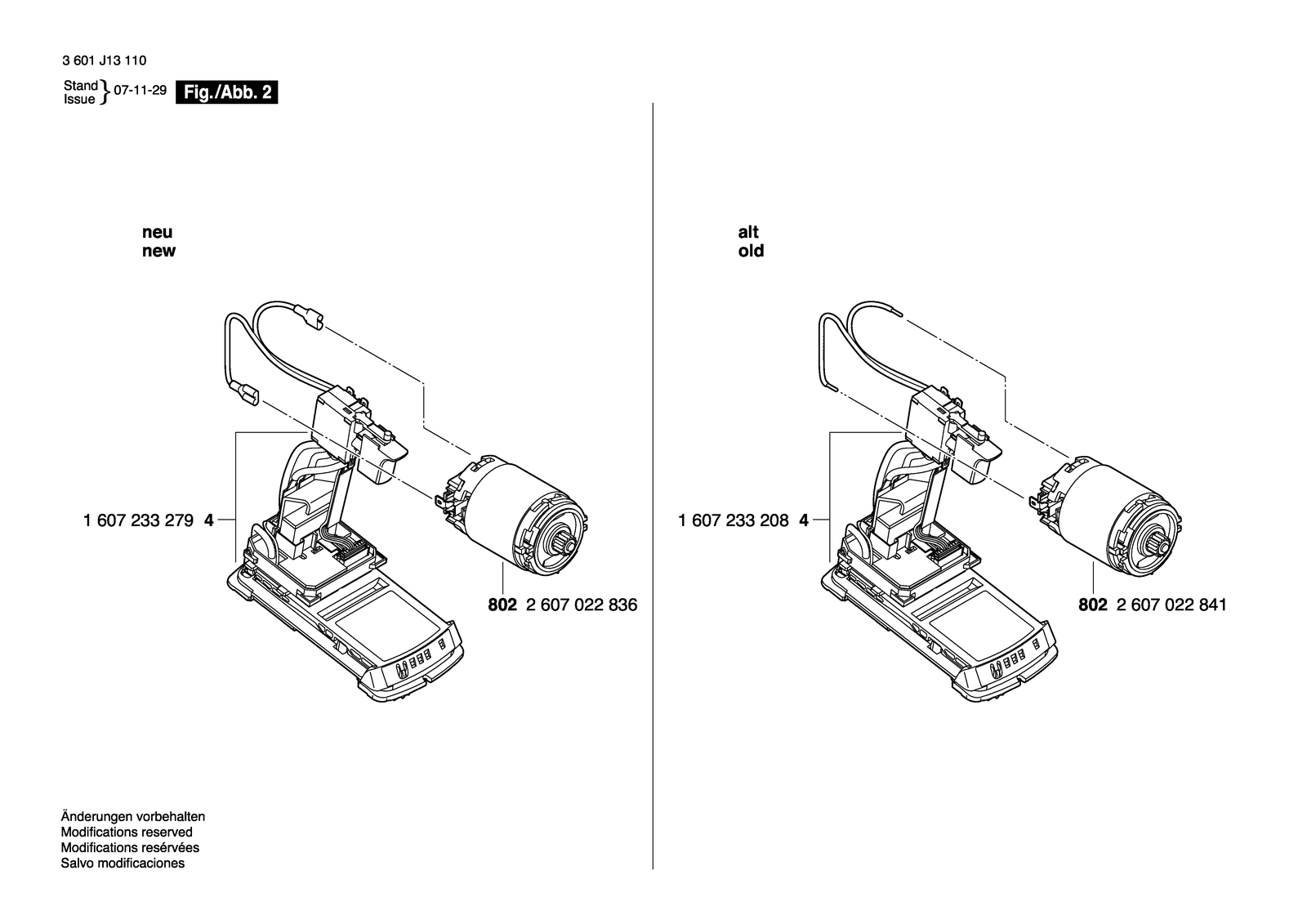

Bosch 36V Litheon HDD parts diagram, sheet 1Bosch 36V Litheon HDD parts diagram, sheet 2
No.Part numberPart name
12605105089Housing Section Blue
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
112600508056Cover
122600508057Cover
322601099152Adjusting Slide Red
41607233279Electronics Module
52601099149Adjusting Slide
612608040190Support
6532607225905Fast Charger Usa/cnd GAL 3680 CV 120/14,4-36V
6552602025135Auxiliary Handle
702605190571Push-Button Red
712604610104Compression Spring
8022607022836DC motor
8092601115377Manufacturer's nameplate
8162607034904Carbon-Brush Set
8202601115375Warning Plate
8212601115378Nameplate
8222601115411Warning Plate
8232601115412Warning Plate
8252608572903Keyless Chuck
8452606200948Planetary Gear Train
912607336007Battery Pack 36V, 1,3AH, LI
912607336891Slide-In Accu Package BAT838 36V 4,0AH
