Bosch 36618 cordless screw driver: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 36618: 40 positions on 1 sheet

Bosch 36618 parts list (1 sheet)

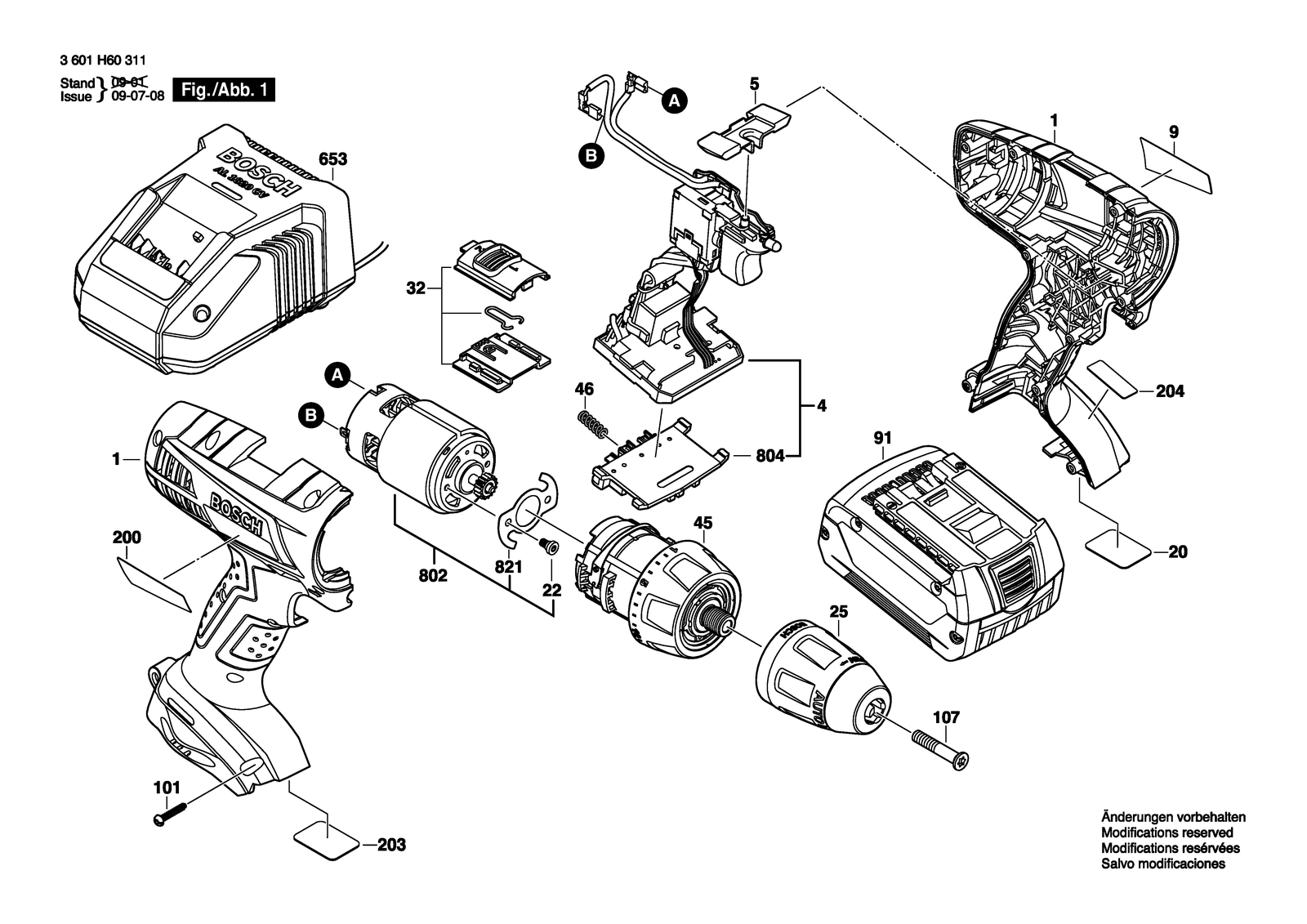

Bosch 36618 parts diagram, sheet 1
No.Part numberPart name
12605105134Housing Section Blue
12605105134Housing Section Blue
1012609110201Torx Flat-Head Screw 3X16
1012609110201Torx Flat-Head Screw 3X16
1072609110635Pan head screw M 6X30
1072609110635Pan head screw M 6X30
202601115610Nameplate
202609132033Nameplate
2002601115571Warning Plate
2002601115571Warning Plate
2032609131694Reference Plate
2032609131694Reference Plate
2042601115574Warning Plate
2042601115574Warning Plate
222609110634Screw
222609110634Screw
252608572251Keyless Chuck 13 MM
252608572251Keyless Chuck 13 MM
322601099189Adjusting Slide Red
322601099189Adjusting Slide Red
41607233302Electronics Module
41607233302Electronics Module
452606200263Planetary Gear Train
452606200263Planetary Gear Train
462604690055Compression Spring
462604690055Compression Spring
52601099188Adjusting Slide
52601099188Adjusting Slide
8022607022832DC motor 18V
8022607022832DC motor 18V
8041609280478Contact retainer
8041609280478Contact retainer
8212609110633Tab Washer
8212609110633Tab Washer
92601115609Manufacturer's nameplate
92601115609Manufacturer's nameplate
911607A350BMBattery Pack BAT612 18V 2.0AH LI Scm
912607336819Battery Pack Usa BAT620 18V 4,0AH
911607A350BMBattery Pack BAT612 18V 2.0AH LI Scm
912607336819Battery Pack Usa BAT620 18V 4,0AH
