Bosch 36614

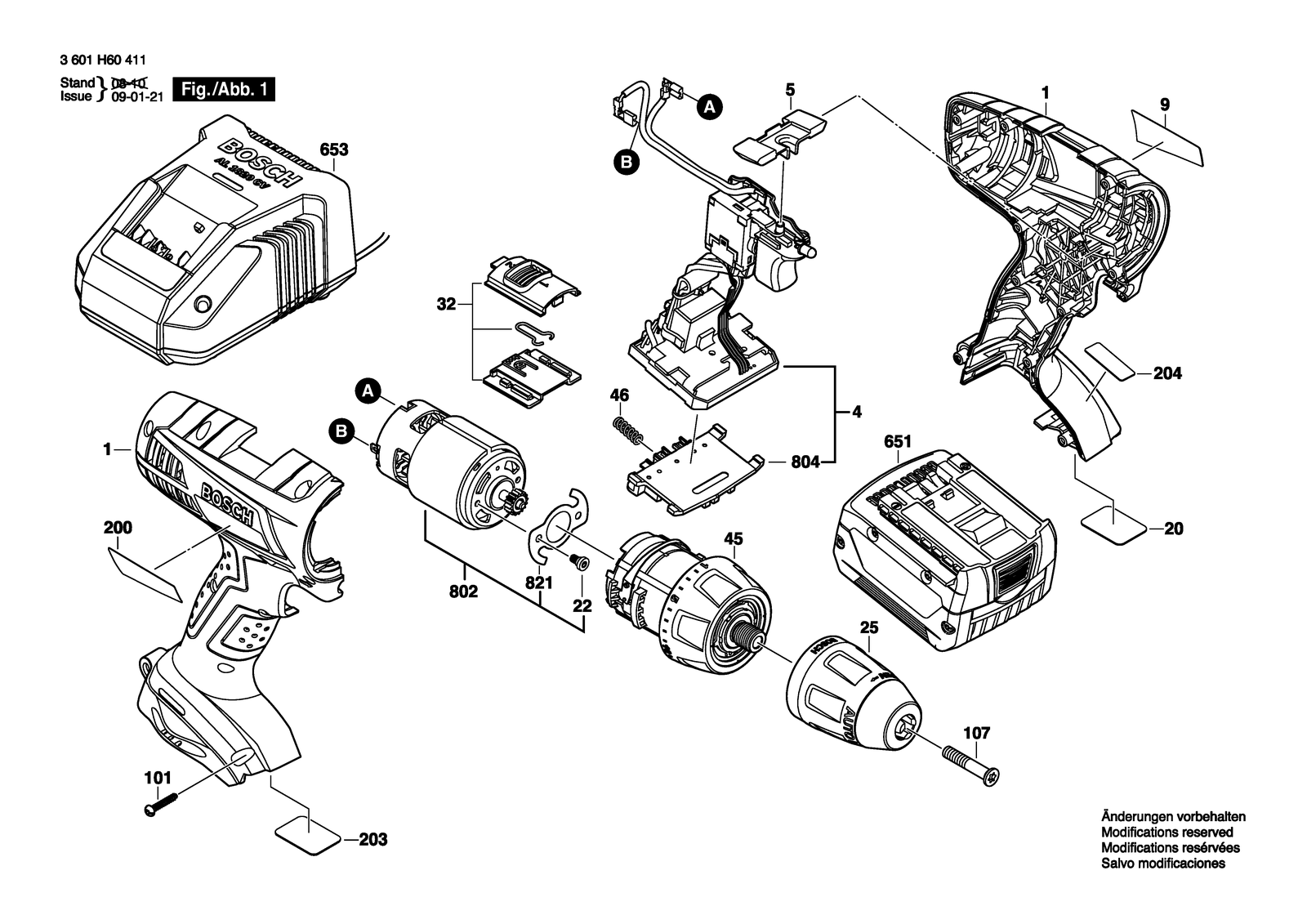

Bosch 36614 cordless drill driver: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 36614: 20 positions on 1 sheet
Bosch 36614 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105134 | Housing Section Blue |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 107 | 2609110635 | Pan head screw M 6X30 |
| 20 | 2601115572 | Nameplate |
| 200 | 2601115571 | Warning Plate |
| 203 | 2601115573 | Reference Plate |
| 204 | 2601115574 | Warning Plate |
| 22 | 2609110634 | Screw |
| 25 | 2608572251 | Keyless Chuck 13 MM |
| 32 | 2601099189 | Adjusting Slide Red |
| 4 | 1607233300 | Electronic Module |
| 45 | 2606200262 | Planetary Gear Train |
| 46 | 2604690055 | Compression Spring |
| 5 | 2601099188 | Adjusting Slide |
| 651 | 2607336079 | Battery Set 14,4V, 2,6AH, Li, Ms |
| 651 | 2607336153 | Battery Set 14,4V, 1,3AH, Li, Ms |
| 802 | 2607022833 | DC motor 14,4V |
| 804 | 1609280474 | Contact retainer |
| 821 | 2609110633 | Tab Washer |
| 9 | 2601115570 | Manufacturer's nameplate Litheon Compact Tough 14,4V |
