Bosch 3655

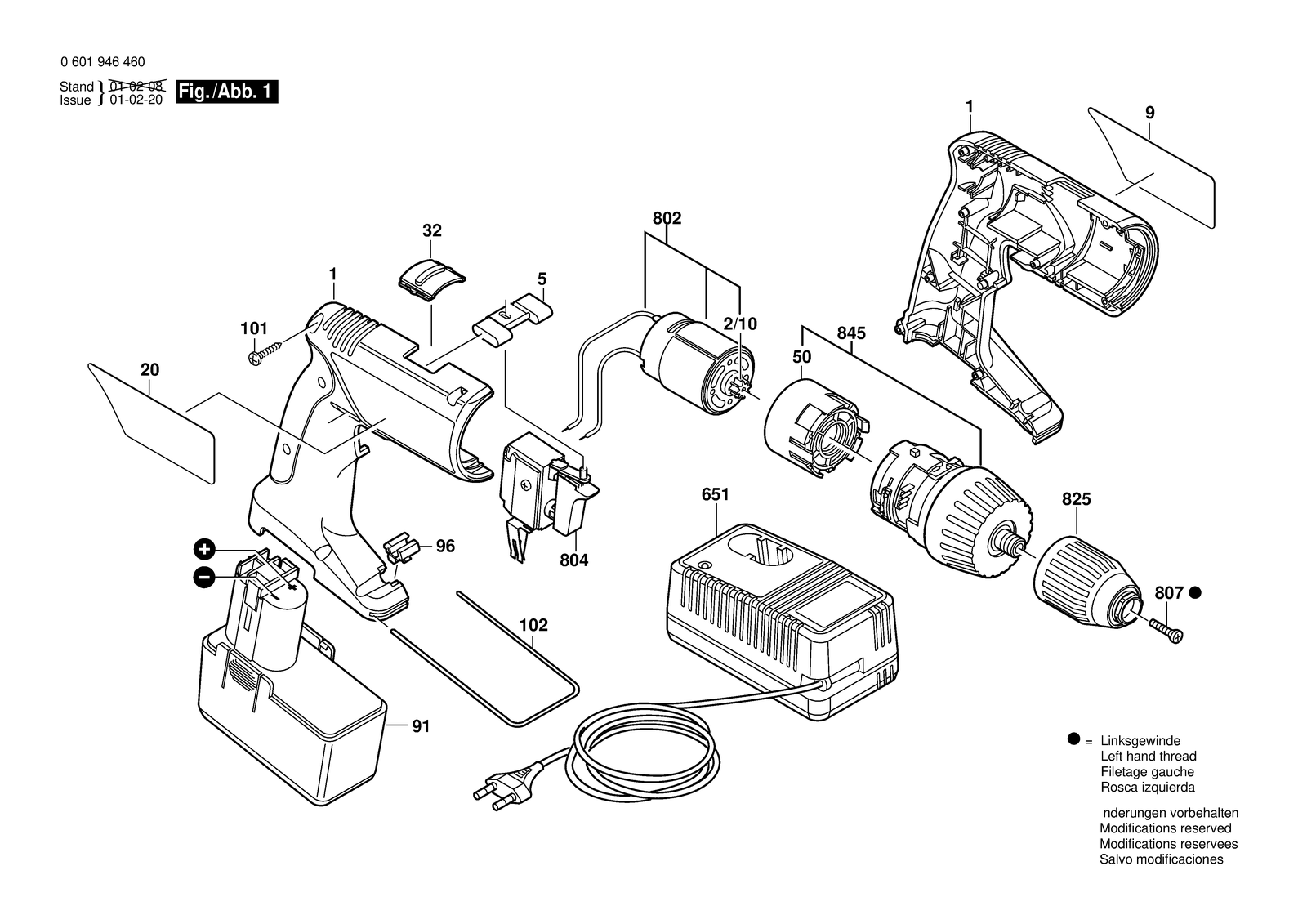

Bosch 3655 cordless drill driver: exploded parts diagram, 1 sheet, 17 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3655: 17 positions on 1 sheet
Bosch 3655 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104628 | Housing Section Blue |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 102 | 2601329041 | Retaining Bracket |
| 2/10 | 2606316182 | Pinion |
| 20 | 2610995416 | Armature Shaft |
| 32 | 2601099078 | Adjusting Slide Black |
| 5 | 2601099082 | Adjusting Slide Red |
| 50 | 2605719027 | Intermediate Flange |
| 651 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 802 | 2607022982 | DC motor 14,4V |
| 804 | 2607200353 | On-Off Switch |
| 807 | 2610908940 | Retaining Screw |
| 825 | 2610991210 | Packaging Instructions |
| 845 | 2606200908 | Planetary Gear Train |
| 9 | 2610995417 | Armature Shaft |
| 91 | 2607335156 | Accumulator package 14,4V,2,0AH,NICD |
| 96 | 2608040131 | Support |
