Makita 3600B
Makita 3600B: exploded parts diagram, 1 sheet, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 3600B: 65 positions on 1 sheet

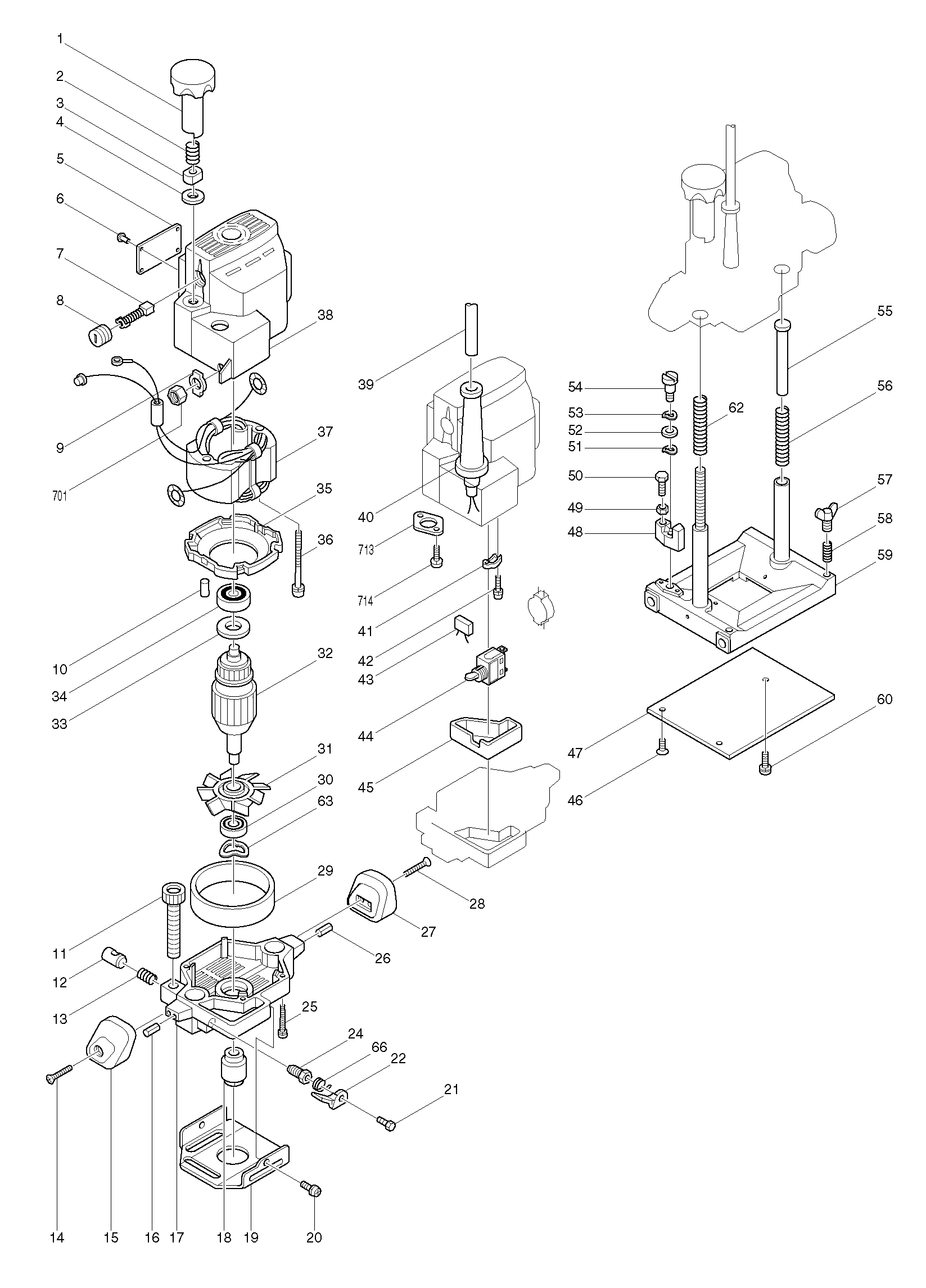

Sheet 1: Makita 3600B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 271215-8 | Makita 271215-8 KNOB 50 |
| 2 | 231231-2 | Makita 231231-2 COMPRESSION SPRING 12 |
| 3 | 252203-4 | Makita 252203-4 NUT M10-15 |
| 4 | 941251-5 | Makita 941251-5 FLAT WASHER 10 |
| 5 | 811818-2 | Makita 811818-2 NAME PLATE 3600B |
| 6 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 7 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 8 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 9 | 652155-3 | |
| 10 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 11 | 251861-3 | Makita 251861-3 SCREW M10X77 |
| 12 | 323559-3 | Makita 323559-3 HALF NUT |
| 13 | 231142-1 | Makita 231142-1 COMPRESSION SPRING 10 |
| 14 | 912357-6 | Makita 912357-6 COUNTERSUNK HEAD SCREW M6 X35 |
| 15 | 272404-8 | |
| 16 | 951160-0 | Makita 951160-0 SPRING PIN 5-18 |
| 17 | 157705-4 | Makita 157705-4 UNDER HOUSING |
| 18 | 763601-2 | Makita 763601-2 Collet Chuck 12mm for 3600BR |
| 19 | 345114-1 | Makita 345114-1 CHIP COVER |
| 20 | 911201-4 | Makita 911201-4 PAN HEAD SCREW M5X8 |
| 21 | 265269-5 | Makita 265269-5 HEX. BOLT M5X12 |
| 22 | 341933-3 | Makita 341933-3 LOCK LEVER |
| 24 | 265813-8 | Makita 265813-8 SET BOLT M10 |
| 25 | 911263-2 | Makita 911263-2 PAN HEAD SCREW M5X40 WR, 4100NH |
| 26 | 951160-0 | Makita 951160-0 SPRING PIN 5-18 |
| 27 | 272403-0 | |
| 28 | 912357-6 | Makita 912357-6 COUNTERSUNK HEAD SCREW M6 X35 |
| 29 | 343267-0 | Makita 343267-0 BAFFLE PLATE |
| 30 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 31 | 241612-2 | Makita 241612-2 FAN 86 |
| 32 | 514898-4 | Makita 514898-4 ARMATURE ASSY 3600B |
| 33 | 681624-7 | Makita 681624-7 INSULATION WASHER |
| 34 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 35 | 410258-7 | Makita 410258-7 BAFFLE PLATE |
| 36 | 911290-9 | Makita 911290-9 PAN HEAD SCREW M5X65 |
| 37 | 524425-9 | Makita 524425-9 FIELD ASS Y 220V |
| 38 | 159470-1 | Makita 159470-1 MOTOR HOUSING COMPLETE |
| 39 | 665016-8 | Makita 665016-8 POWER SUPPLY CORD 1.00-2- |
| 40 | 682504-0 | Makita 682504-0 CORD GUARD 10-85, 5606B |
| 41 | 687002-9 | Makita 687002-9 STRAIN RELIEF |
| 42 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 43 | 645003-3 | Makita 645003-3 NOISE SUPPRESSOR |
| 44 | 651472-8 | POKA NET Genuine Makita 651472-8 Switch ST220KDY-1 for 3702B 3700B |
| 45 | 411232-8 | Makita 411232-8 SEPARATE |
| 46 | 413017-8 | |
| 47 | 912112-6 | Makita 912112-6 Countersunk Screw M4X10 for RP0900 |
| 48 | 316829-7 | Makita 316829-7 STOPPER |
| 49 | 931303-0 | Makita 931303-0 HEX. NUT M6 |
| 50 | 921342-8 | Makita 921342-8 HEX. BOLT M6X25 |
| 51 | 253932-2 | Makita 253932-2 WAVE WASHER 10, 2012NB |
| 52 | 253173-0 | Makita 253173-0 FLAT WASHER 10 |
| 53 | 253932-2 | Makita 253932-2 WAVE WASHER 10, 2012NB |
| 54 | 251423-7 | Makita 251423-7 - FLAT HEAD SCREW M6 |
| 55 | 314062-5 | Makita 314062-5 POLE |
| 56 | 233053-6 | Makita 233053-6 COMPRESSION SPRING 12 |
| 57 | 924316-8 | Makita 924316-8 WING BOLT M6X15, 5806B |
| 58 | 231071-8 | |
| 59 | 154307-7 | |
| 60 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 62 | 233053-6 | Makita 233053-6 COMPRESSION SPRING 12 |
| 63 | 253905-5 | Makita 253905-5 WAVE WASHER 23 |
| 66 | 231574-2 | Makita 231574-2 TORSION SPRING 15 |
| 701 | ||
| 713 | ||
| 714 |
