Bosch 35618 cordless drill driver: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 35618: 48 positions on 1 sheet

Bosch 35618 parts list (1 sheet)

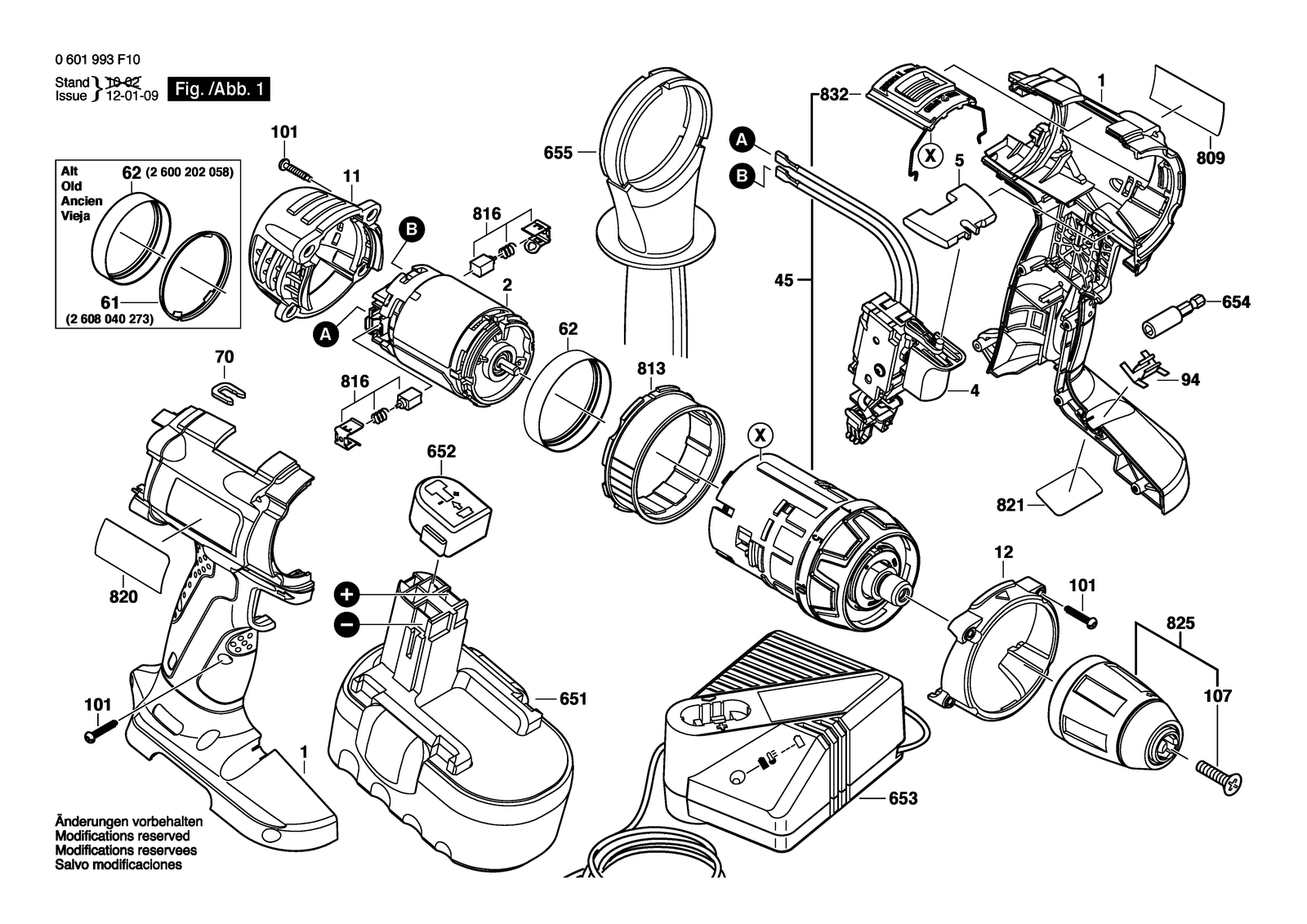

Bosch 35618 parts diagram, sheet 1
No.Part numberPart name
12605105102Housing Section Blue
12605105102Housing Section Blue
1012603490018Torx Oval-Head Screw 3X18
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
112600508064End cap Black
112600508064End cap Black
122600510011Front Cap
122600510011Front Cap
22607022316DC motor 18V
22607022320DC motor 18V
42607230122Electronics Module
42607230122Electronics Module
452606200253Planetary Gear Train
452606200254Planetary Gear Train
52601099155Adjusting lever Red
52601099155Adjusting lever Red
622600202067Retaining snap ring
622600202067Retaining snap ring
6512607335717Accumulator package 18V,2,4AH, Hd
6512607335717Accumulator package 18V,2,4AH, Hd
6522609100101Protective Cap
6522609100101Protective Cap
6532607225033Fast Charger USA 120/7,2-24V, 30 Min.
6532607225033Fast Charger USA 120/7,2-24V, 30 Min.
6542610917319Holder
6542610917319Holder
6552602025158Auxiliary Handle
6552602025158Auxiliary Handle
702601250009Pickup Clip
702601250009Pickup Clip
8092601115014Manufacturer's nameplate
8092601115018Manufacturer's nameplate
8132600510012Locating ring
8132600510012Locating ring
8162607034904Carbon-Brush Set
8162607034904Carbon-Brush Set
8202601115359Warning Plate
8202601115359Warning Plate
8212601115015Nameplate
8212601115019Nameplate
8252608572902Keyless Chuck
8252608572902Keyless Chuck
8322601099213Adjusting lever
8322601099213Adjusting lever
942604690043Spring Element
942604690043Spring Element
