Bosch 3365 portable planer: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3365: 34 positions on 1 sheet

Bosch 3365 parts list (1 sheet)

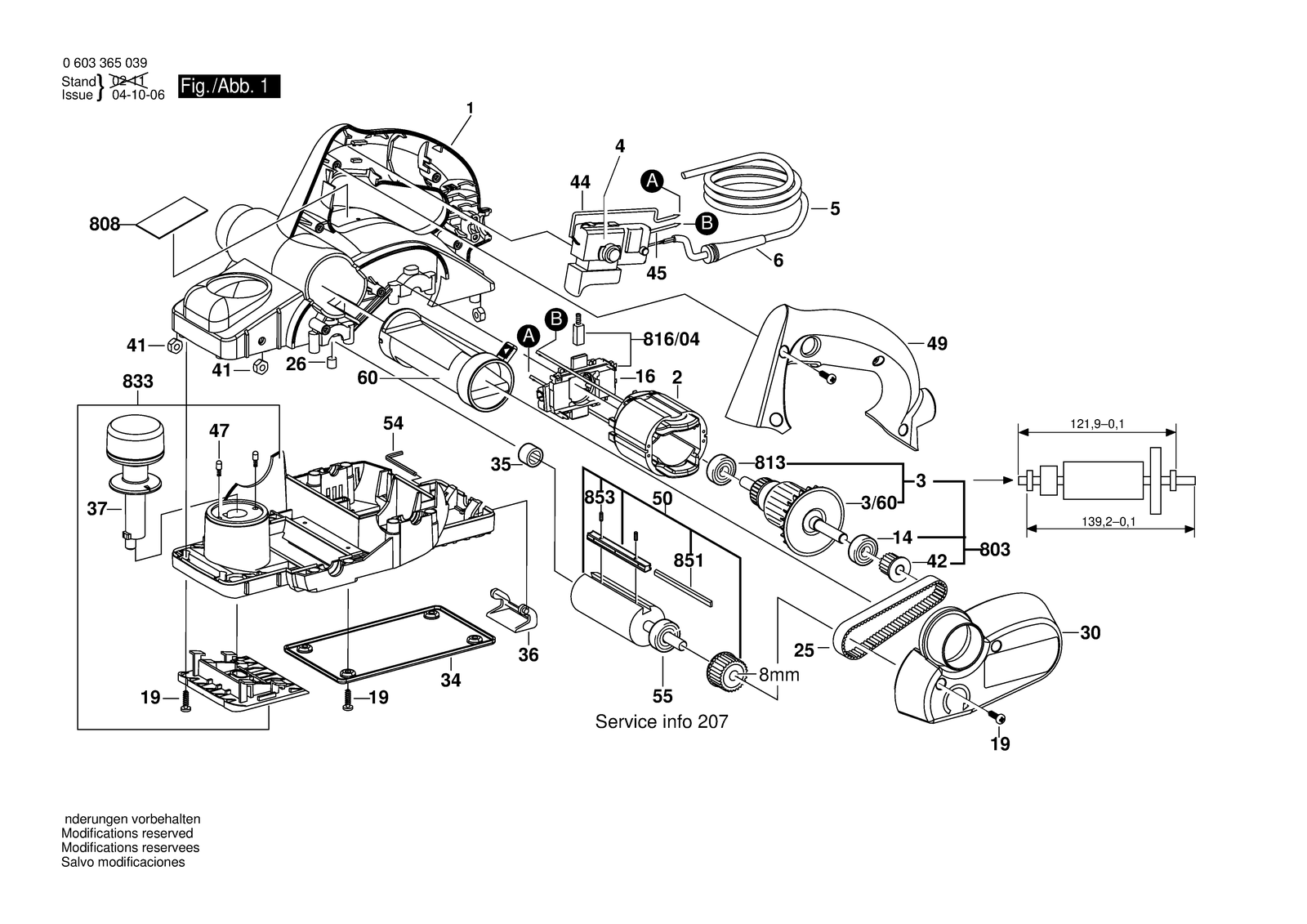

Bosch 3365 parts diagram, sheet 1
No.Part numberPart name
12605105036Housing Section Blue
141610905011Groove ball bearing 9X24X7
162604337106Brush Plate
192603490022Screw 4X16
22604220644Field 115-127V
252604736001Toothed Belt
262603100056Damping rubber
32604011214Armature 115-127V
3/602606610096Fan
302605500194Gear Cover
342608000225Base Plate
351610910057Needle bearing Ø8XØ12X10 MM
362601329104Knife Guard
372602026094Handle Black
42607200534Switch
412915011007Hex Nut DIN 934-M6-8-A
422606625030Toothed Belt Wheel
442604448221Connecting Cable White L = 300 MM
452604448222Connecting Cable White L = 325 MM
472600590006Ratchet Cap
492605133027Handle Plate Blue
52604460231Power supply cord Usa/cdn 3,3M 2 X 082MM SJ 18/2
502608584003Planer Head
541907950003Offset Screwdriver DIN 911 SW2,5
552600905052Groove ball bearing 8X22X7
62600703018Grommet Ø7,3-Ø8,6X76 MM
602600409025Deflector Pipe
8032604010992Armature 110V
8082610998442Marking Plate
8132600905051Groove ball bearing 7X19X6
816/042604321914Carbon-Brush Set
8332608000922Base Frame
8512608635341Planing knife
8532603400016Set screw
