Bosch 33612 batt-oper screwdriver: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 33612: 43 positions on 1 sheet

Bosch 33612 parts list (1 sheet)

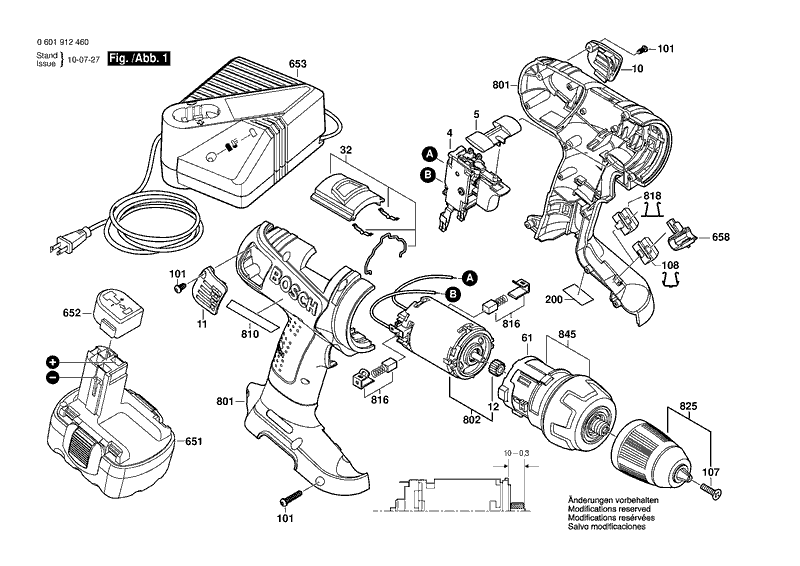

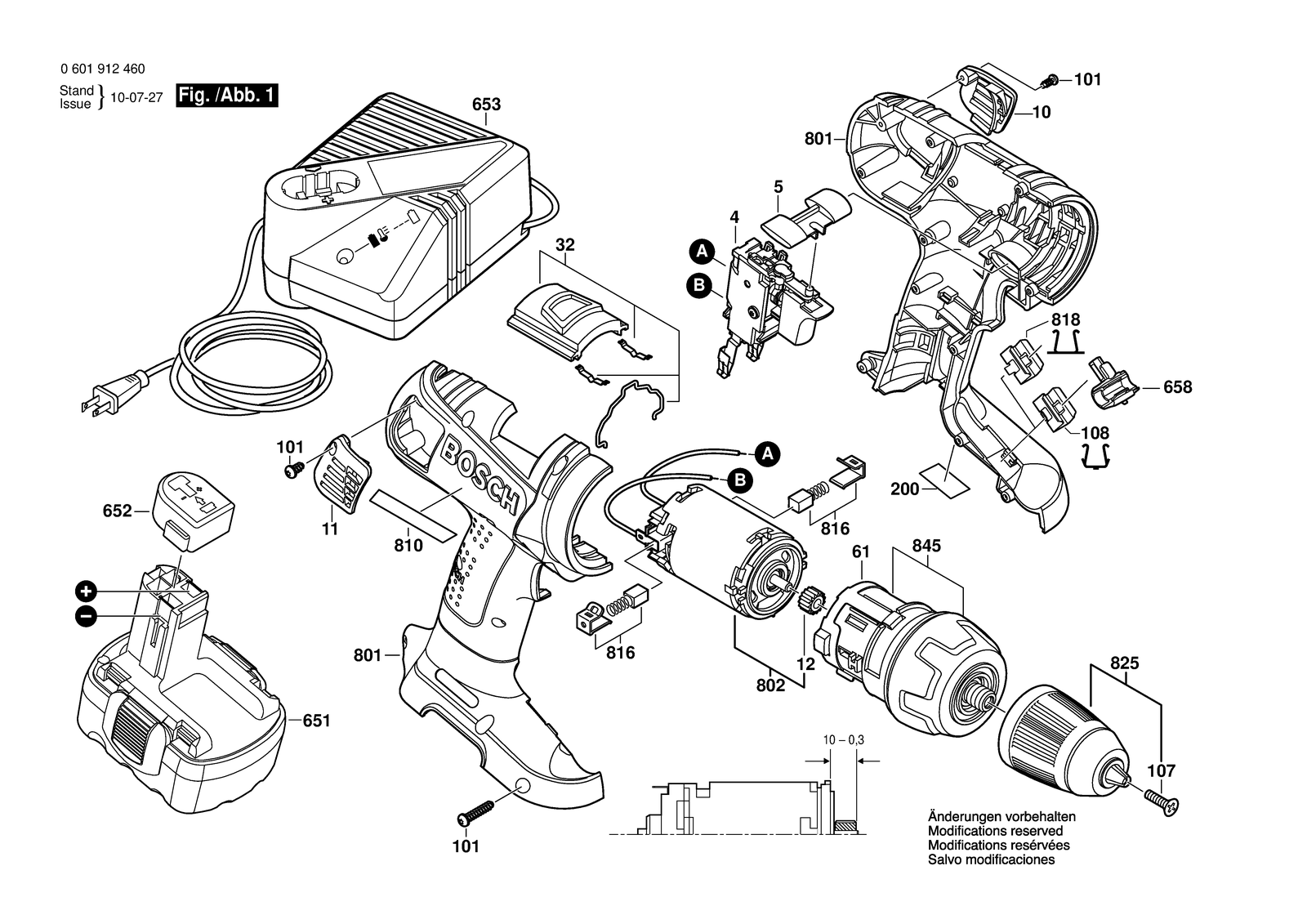

Bosch 33612 parts diagram, sheet 1
No.Part numberPart name
102600508051Cover Black
102600508051Cover Black
1012603490018Torx Oval-Head Screw 3X18
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1082604690035Spring Element
1082604690035Spring Element
112600508052Cover Black
112600508052Cover Black
122606316222Pinion
122606316222Pinion
2002601116195Reference Plate
2002601116196Reference Plate
322601099127Adjusting Slide
322601099127Adjusting Slide
42607200456On-Off Switch
42607200456On-Off Switch
52601099112Adjusting Slide Red
52601099112Adjusting Slide Red
612608040190Support
612608040190Support
6512607335669Accumulator package 14,4V,2.0AH,NICD
6512607335667Accumulator package 12V,2.0AH,NICD
6522609100101Protective Cap
6522609100101Protective Cap
6532607225033Fast Charger USA 120/7,2-24V, 30 Min.
6532607225033Fast Charger USA 120/7,2-24V, 30 Min.
6582608040208Auxiliary Support
6582608040208Auxiliary Support
8012605105916Housing Section Blue
8012605105915Housing Section Blue
8022607022864DC motor 14,4V
8022607022863DC motor 12V
8102601111636Warning Plate
8162607034904Carbon-Brush Set
8162607034904Carbon-Brush Set
8182604690026Spring Element
8182604690026Spring Element
8252608572900Keyless Chuck
8252608572900Keyless Chuck
8452606200931Planetary Gear Train
8452606200931Planetary Gear Train
