Bosch 3360

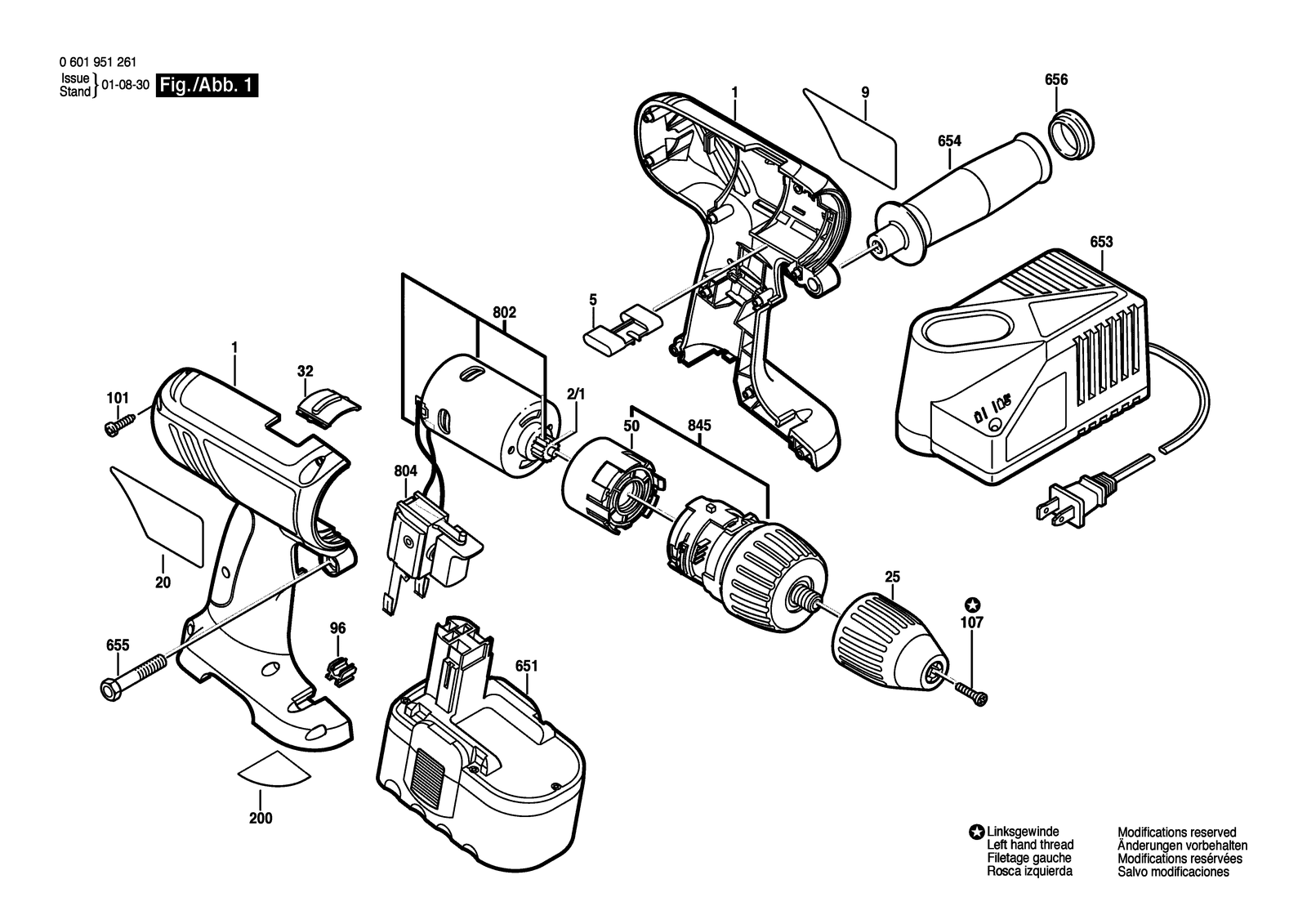

Bosch 3360 cordless screwdriver: exploded parts diagram, 1 sheet, 100 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3360: 100 positions on 1 sheet
Bosch 3360 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104678 | Housing Section Blue |
| 1 | 2605104679 | Housing Section Blue |
| 1 | 2605104677 | Housing Section Blue |
| 1 | 2605104749 | Housing Section |
| 1 | 2605104748 | Housing Section |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 107 | 2610908940 | Retaining Screw |
| 107 | 2610908940 | Retaining Screw |
| 107 | 2603421008 | Countersunk-Head Screw |
| 107 | 2610908940 | Retaining Screw |
| 107 | 2610908940 | Retaining Screw |
| 2/1 | 2606316202 | Pinion |
| 2/1 | 2606316202 | Pinion |
| 2/1 | 2606316202 | Pinion |
| 2/1 | 2606316188 | Pinion |
| 2/1 | 2606316188 | Pinion |
| 20 | 2610998406 | Nameplate |
| 20 | 2610998400 | Nameplate |
| 20 | 2601116114 | Warning Plate |
| 20 | 2610908573 | Label |
| 20 | 2610908553 | Screw |
| 200 | 2610998915 | Nameplate |
| 200 | 2610909036 | Nameplate |
| 200 | 2601116053 | Diamond segment |
| 200 | 2610908572 | Plain Washer |
| 200 | 2610908552 | Spring Washer |
| 25 | 2610991210 | Packaging Instructions |
| 25 | 2610991210 | Packaging Instructions |
| 25 | 2610991210 | Packaging Instructions |
| 25 | 2610991210 | Packaging Instructions |
| 25 | 2610991210 | Packaging Instructions |
| 32 | 2601099086 | Adjusting Slide Black |
| 32 | 2601099086 | Adjusting Slide Black |
| 32 | 2601099086 | Adjusting Slide Black |
| 32 | 2601099086 | Adjusting Slide Black |
| 32 | 2601099086 | Adjusting Slide Black |
| 5 | 2601099085 | Adjusting Slide Red |
| 5 | 2601099085 | Adjusting Slide Red |
| 5 | 2601099085 | Adjusting Slide Red |
| 5 | 2601099085 | Adjusting Slide Red |
| 5 | 2601099085 | Adjusting Slide Red |
| 50 | 2605719901 | Intermediate Flange |
| 50 | 2605719901 | Intermediate Flange |
| 50 | 2605719901 | Intermediate Flange |
| 50 | 2605719901 | Intermediate Flange |
| 50 | 2605719901 | Intermediate Flange |
| 651 | 2607335451 | Slide-In Accu Package 24V, 2,4AH, Nicd |
| 651 | 2607335671 | Accumulator package 18V/2,0 Ah , Nicd, Hd |
| 651 | 2607335671 | Accumulator package 18V/2,0 Ah , Nicd, Hd |
| 651 | 2607335669 | Accumulator package 14,4V,2.0AH,NICD |
| 651 | 2607335667 | Accumulator package 12V,2.0AH,NICD |
| 653 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 653 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 653 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 653 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 653 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 654 | 2602025108 | Auxiliary Handle |
| 654 | 2602025108 | Auxiliary Handle |
| 654 | 2602025108 | Auxiliary Handle |
| 654 | 2602025108 | Auxiliary Handle |
| 654 | 2602025108 | Auxiliary Handle |
| 655 | 2911061207 | Hex Screw M 6X35 DIN 933-8.8 |
| 655 | 2911061207 | Hex Screw M 6X35 DIN 933-8.8 |
| 655 | 2911061207 | Hex Screw M 6X35 DIN 933-8.8 |
| 655 | 2911061207 | Hex Screw M 6X35 DIN 933-8.8 |
| 655 | 2911061207 | Hex Screw M 6X35 DIN 933-8.8 |
| 656 | 2610998827 | Sealing cap |
| 656 | 2610998827 | Sealing cap |
| 656 | 2610998827 | Sealing cap |
| 656 | 2610998827 | Sealing cap |
| 656 | 2610998827 | Sealing cap |
| 802 | 2607022999 | DC motor 24V |
| 802 | 2607022996 | DC motor 18V |
| 802 | 2607022882 | DC motor 18V |
| 802 | 2607022889 | DC motor 14,4V |
| 802 | 2607022890 | DC motor 12V |
| 804 | 2607200413 | On-Off Switch |
| 804 | 2607200413 | On-Off Switch |
| 804 | 2607200413 | On-Off Switch |
| 804 | 2607200421 | On-Off Switch |
| 804 | 2607200421 | On-Off Switch |
| 845 | 2606200914 | Planetary Gear Train |
| 845 | 2606200921 | Planetary Gear Train |
| 845 | 2606200914 | Planetary Gear Train |
| 845 | 2606200917 | Planetary Gear Train |
| 845 | 2606200917 | Planetary Gear Train |
| 9 | 2610998407 | Label |
| 9 | 2610998401 | Manufacturer's nameplate |
| 9 | 2610998401 | Manufacturer's nameplate |
| 9 | 2610908569 | Spring Washer |
| 9 | 2610908551 | Screw |
| 96 | 2608040131 | Support |
| 96 | 2608040131 | Support |
| 96 | 2608040131 | Support |
| 96 | 2608040131 | Support |
| 96 | 2608040131 | Support |
