Bosch 335
Bosch 335 rotary hammer: exploded parts diagram, 2 sheets, 240 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

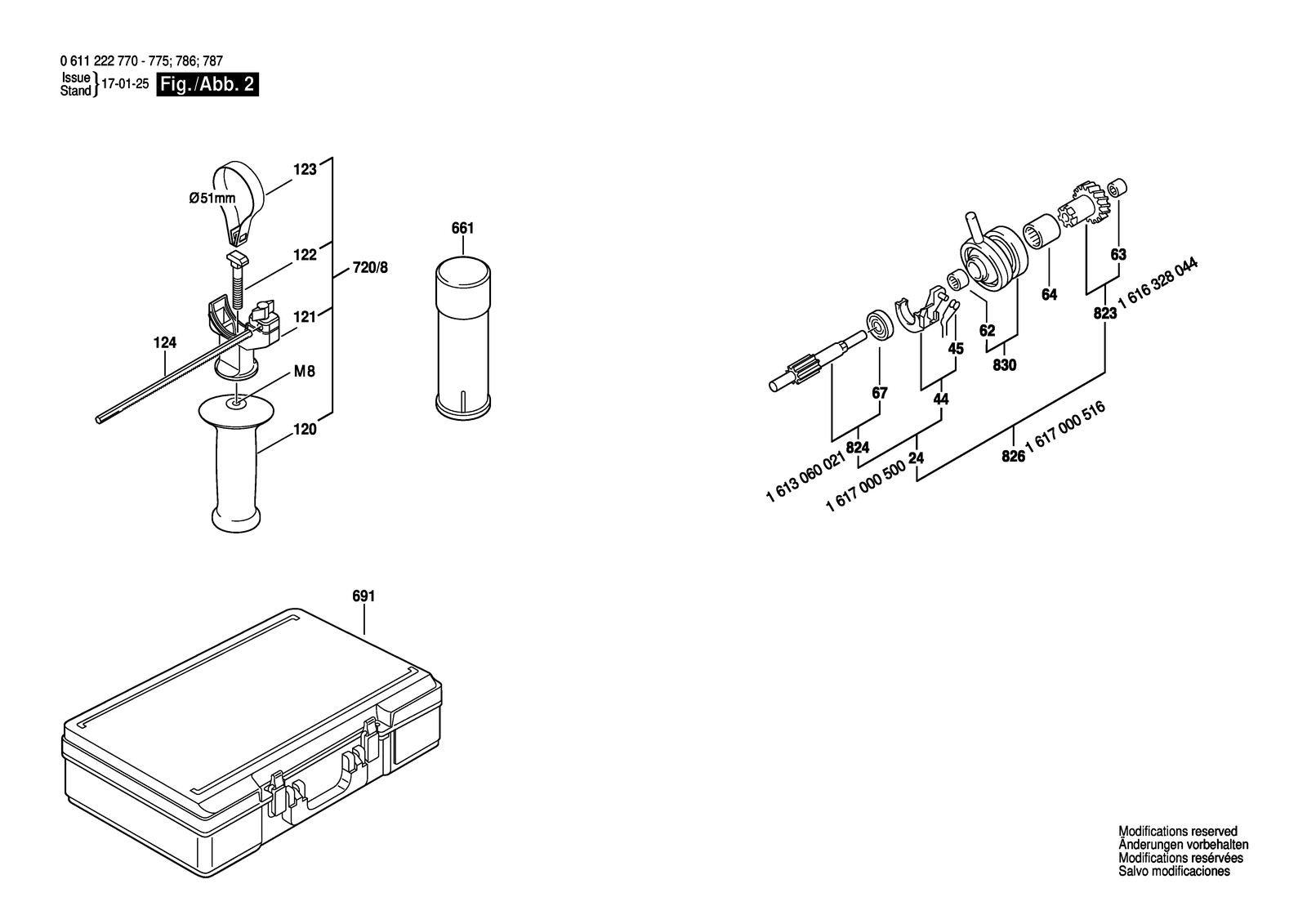

All parts of Bosch 335: 240 positions on 2 sheets
Bosch 335 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615108064 | Motor Housing Orange |
| 1 | 1615108064 | Motor Housing Orange |
| 106 | 1615510000 | Light Conductor |
| 106 | 1615510000 | Light Conductor |
| 120 | 1612025041 | Auxiliary Handle Black M8 |
| 120 | 1612025041 | Auxiliary Handle Black M8 |
| 121 | 1618040065 | Support clamp Ø51 MM |
| 121 | 1618040065 | Support clamp Ø51 MM |
| 122 | 1613490002 | T-Head Bolt M8X40 MM |
| 122 | 1613490002 | T-Head Bolt M8X40 MM |
| 123 | 1611316015 | Clamping Band Ø51 MM |
| 123 | 1611316015 | Clamping Band Ø51 MM |
| 124 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 124 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 13 | 1610905025 | Groove ball bearing 7X19X6 |
| 13 | 1610905025 | Groove ball bearing 7X19X6 |
| 14 | 1900900289 | Groove ball bearing 12X28X8 |
| 14 | 1900900289 | Groove ball bearing 12X28X8 |
| 15 | 1606610132 | Fan |
| 15 | 1606610132 | Fan |
| 16 | 1614336019 | Brush Holder |
| 16 | 1614336023 | Brush Holder |
| 16 | 1614336019 | Brush Holder |
| 16 | 1614336023 | Brush Holder |
| 17 | 1617233018 | Speed governor 230V |
| 17 | 1617233019 | Speed governor 100V |
| 17 | 1617233020 | Speed governor 110V |
| 17 | 1617233021 | Speed governor 115V |
| 17 | 1617233018 | Speed governor 230V |
| 17 | 1617233019 | Speed governor 100V |
| 18 | 1610591011 | Air-Deflector Ring |
| 18 | 1610591011 | Air-Deflector Ring |
| 180 | 3601119137 | Warning Plate Caution |
| 2 | 1614220111 | Field 100-115V |
| 2 | 2604220549 | Field 230-240V |
| 2 | 1614220111 | Field 100-115V |
| 2 | 2604220549 | Field 230-240V |
| 22 | 1616317602 | Cylindrical Gear Z=50 |
| 22 | 1616317602 | Cylindrical Gear Z=50 |
| 24 | 1617000500 | Toothed Shaft Z=3/9 |
| 24 | 1617000500 | Toothed Shaft Z=3/9 |
| 26 | 1618700063 | Hammer Piston |
| 26 | 1618700063 | Hammer Piston |
| 27 | 1618710060 | Striker |
| 27 | 1618710060 | Striker |
| 28 | 1613124043 | Striker Pin |
| 28 | 1613124043 | Striker Pin |
| 29 | 1613105012 | Piston Pin |
| 29 | 1613105012 | Piston Pin |
| 3 | 1614010128 | Armature With Fan 220-230V |
| 3 | 1614010129 | Armature With Fan 110V |
| 3 | 1614010160 | Armature With Fan 100-115V |
| 3 | 1614010161 | Armature With Fan 100V |
| 3 | 1614010128 | Armature With Fan 220-230V |
| 3 | 1614010129 | Armature With Fan 110V |
| 32 | 1612026059 | Clamp Handle Black |
| 32 | 1612026059 | Clamp Handle Black |
| 325/54 | 1616333029 | Crown Gear Z=32 |
| 325/54 | 1616333029 | Crown Gear Z=32 |
| 325/79 | 2600210003 | O-Ring 40,0X1,5 MM |
| 325/79 | 2600210003 | O-Ring 40,0X1,5 MM |
| 33 | 1610190016 | Perforated disk |
| 33 | 1610190016 | Perforated disk |
| 34 | 1610005000 | Felt Disc |
| 34 | 1610005000 | Felt Disc |
| 35 | 1610206021 | Rubber Ring |
| 35 | 1610206021 | Rubber Ring |
| 36 | 1610390016 | Guide Bushing |
| 36 | 1610390016 | Guide Bushing |
| 37 | 1610390032 | Damping Bushing Ø21 MM |
| 37 | 1610390032 | Damping Bushing Ø21 MM |
| 38 | 1610102026 | Supporting Disc |
| 38 | 1610102026 | Supporting Disc |
| 41 | 1610101011 | Shim washer Thick 1,2 MM |
| 41 | 1610101011 | Shim washer Thick 1,2 MM |
| 42 | 1610202015 | Plain bearing |
| 42 | 1610202015 | Plain bearing |
| 43 | 1611098005 | Tab Washer |
| 43 | 1611098005 | Tab Washer |
| 44 | 1615820092 | Switching Element |
| 44 | 1615820092 | Switching Element |
| 45 | 1614651014 | Switch Spring |
| 45 | 1614651014 | Switch Spring |
| 46 | 1614690002 | Driver Pin |
| 46 | 1614690002 | Driver Pin |
| 48 | 1611016003 | Holding Plate |
| 48 | 1611016003 | Holding Plate |
| 49 | 1612026054 | Switch Button Orange |
| 49 | 1612026054 | Switch Button Orange |
| 5 | 1614460052 | Power supply cord |
| 5 | 1614460057 | Power supply cord Usa/cdn 4,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1614460061 | Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460084 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460061 | Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F |
| 50 | 1618598175 | Quick-Change Collet Chuck Sds-Plus L=70 MM |
| 50 | 1618598177 | Quick-Change Collet Chuck |
| 50 | 1618598198 | Quick-Change Collet Chuck |
| 50/9 | 1610508026 | Protective Cap L=21,5 Mm, Sds-Plus |
| 50/9/2 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 52 | 1615500292 | Cover Orange |
| 52 | 1615500292 | Cover Orange |
| 57 | 1610390025 | Stop Bushing |
| 57 | 1610390025 | Stop Bushing |
| 58 | 1610390026 | Guide Ring |
| 58 | 1610390026 | Guide Ring |
| 59 | 1610910080 | Needle bearing |
| 59 | 1610910080 | Needle bearing |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 60 | 1610910073 | Needle-Roller Bearing |
| 60 | 1610910073 | Needle-Roller Bearing |
| 61 | 1610910098 | Needle bearing |
| 61 | 1610910098 | Needle bearing |
| 62 | 1610200020 | Plain bearing |
| 62 | 1610910074 | Needle bearing |
| 62 | 1610200020 | Plain bearing |
| 63 | 1610910064 | Needle bearing |
| 63 | 1610910064 | Needle bearing |
| 64 | 1610913010 | Needle-Roller Assembly |
| 64 | 1610913010 | Needle-Roller Assembly |
| 65 | 1610591016 | Plain bearing |
| 65 | 1610591016 | Plain bearing |
| 661 | 1615430009 | Grease Tube 30 Ml |
| 661 | 1615430009 | Grease Tube 30 Ml |
| 67 | 1610905016 | Groove ball bearing |
| 67 | 1610905016 | Groove ball bearing |
| 68 | 1610119009 | Retaining ring |
| 68 | 1610119009 | Retaining ring |
| 69 | 1610283041 | Rotary shaft lip seal |
| 69 | 1610283041 | Rotary shaft lip seal |
| 691 | 1615438268 | Carrying Case |
| 691 | 1615438268 | Carrying Case |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 70 | 1610283023 | Rotary shaft lip seal |
| 70 | 1610283023 | Rotary shaft lip seal |
| 71 | 1610290029 | Scraper |
| 71 | 1610290029 | Scraper |
| 720/8 | 1612025048 | Auxiliary Handle M8 |
| 720/8 | 1612025048 | Auxiliary Handle M8 |
| 73 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 73 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 74 | 1610210104 | O-Ring 11,0X3,5 MM |
| 74 | 1610210104 | O-Ring 11,0X3,5 MM |
| 75 | 1610210159 | O-Ring 18,0X3,5 MM |
| 75 | 1610210159 | O-Ring 18,0X3,5 MM |
| 76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 77 | 1610210106 | O-Ring 60,0X3,0 MM |
| 77 | 1610210106 | O-Ring 60,0X3,0 MM |
| 78/1 | 1610134005 | Shim Thick 0,1 MM |
| 78/1 | 1610134005 | Shim Thick 0,1 MM |
| 78/2 | 1610134006 | Shim Thick 0,2 MM |
| 78/2 | 1610134006 | Shim Thick 0,2 MM |
| 80 | 1614634006 | Compression Spring |
| 80 | 1614634006 | Compression Spring |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3HC | Nameplate |
| 808 | 160111A3HC | Nameplate |
| 81 | 1614611009 | Compression Spring |
| 81 | 1614611009 | Compression Spring |
| 816/010 | 1617014124 | Carbon-Brush Set |
| 816/010 | 1617014128 | Carbon-Brush Set |
| 816/010 | 1617014124 | Carbon-Brush Set |
| 816/010 | 1617014128 | Carbon-Brush Set |
| 816/012 | 1613212004 | Rubber Buffer |
| 816/012 | 1613212004 | Rubber Buffer |
| 816/08 | 1611323002 | Contact Strap |
| 816/08 | 1611323002 | Contact Strap |
| 816/09 | 1614652002 | Spiral Spring |
| 816/09 | 1614652002 | Spiral Spring |
| 819 | 1617000988 | Impact Mechanism Housing Orange |
| 819 | 1617000988 | Impact Mechanism Housing Orange |
| 820 | 1617000315 | Gear Housing |
| 820 | 1617000315 | Gear Housing |
| 821 | 1617000978 | Ratchet Sleeve |
| 821 | 1617000978 | Ratchet Sleeve |
| 821/01 | 1617000979 | Ratchet Sleeve |
| 821/01 | 1617000979 | Ratchet Sleeve |
| 823 | 1616328044 | Gear Sleeve Z=25 |
| 823 | 1616328044 | Gear Sleeve Z=25 |
| 825 | 1615805064 | Bearing Flange |
| 825 | 1615805064 | Bearing Flange |
| 826 | 1617000516 | Toothed Shaft Z=3/9 |
| 826 | 1617000516 | Toothed Shaft Z=3/9 |
| 83 | 1614611010 | Compression Spring |
| 83 | 1614611010 | Compression Spring |
| 830 | 1615819022 | Drive bearing |
| 830 | 1615819022 | Drive bearing |
| 84 | 1610101627 | Supporting Disc Thick 1,2 MM |
| 84 | 1610101627 | Supporting Disc Thick 1,2 MM |
| 85 | 1614601011 | Retaining ring |
| 85 | 1614601011 | Retaining ring |
| 853 | 1617000196 | Pinion Z=15 |
| 853 | 1617000196 | Pinion Z=15 |
| 855 | 1617000982 | Jack Shaft Z=9 |
| 855 | 1617000982 | Jack Shaft Z=9 |
| 86 | 1614601024 | Retaining ring |
| 86 | 1614601024 | Retaining ring |
| 865 | 1610920007 | D-Groove Ball Thr Bearing |
| 865 | 1610920007 | D-Groove Ball Thr Bearing |
| 87 | 1610390027 | Screw Bushing |
| 87 | 1610390027 | Screw Bushing |
| 878 | 1610134008 | Plain Washer Thick 0,5 MM |
| 878 | 1610134008 | Plain Washer Thick 0,5 MM |
| 88 | 1613200007 | Roller |
| 88 | 1613200007 | Roller |
| 89 | 2910141168 | Hex Socket Head Cap Screw DIN 912-M 5X35-8.8 |
| 89 | 2910141168 | Hex Socket Head Cap Screw DIN 912-M 5X35-8.8 |
| 897 | 1617000989 | Handle |
| 897 | 1617000989 | Handle |
| 898 | 1617000228 | Wear and Tear Part Set |
| 898 | 1617000257 | Wear and Tear Part Set |
| 898 | 1617000228 | Wear and Tear Part Set |
| 898 | 1617000257 | Wear and Tear Part Set |
| 899 | 1617000229 | Wear and Tear Part Set |
| 899 | 1617000258 | Wear and Tear Part Set |
| 899 | 1617000229 | Wear and Tear Part Set |
| 899 | 1617000258 | Wear and Tear Part Set |
| 9 | 1611110697 | Manufacturer's nameplate |
| 9 | 1611110697 | Manufacturer's nameplate |
| 90 | 2910141168 | Hex Socket Head Cap Screw DIN 912-M 5X35-8.8 |
| 90 | 2910141168 | Hex Socket Head Cap Screw DIN 912-M 5X35-8.8 |
| 91 | 2910211038 | Tapping Screw DIN 7971-ST4,8X38-F |
| 91 | 2910211038 | Tapping Screw DIN 7971-ST4,8X38-F |
| 92 | 2912401019 | Tapping Screw DIN7981-ST3,9X16-C-Z |
| 92 | 2912401019 | Tapping Screw DIN7981-ST3,9X16-C-Z |
| 93 | 2910141162 | Hex Socket Head Cap Screw DIN 912-M5X20-8.8 |
| 93 | 2910141162 | Hex Socket Head Cap Screw DIN 912-M5X20-8.8 |
| 94 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 94 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 95 | 2910091082 | Pan head screw DIN 85-M3,5X6-4.8 |
| 95 | 2910091082 | Pan head screw DIN 85-M3,5X6-4.8 |
| 96 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 96 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 98 | 1612026060 | Switch-Pawl Orange |
| 98 | 1612026060 | Switch-Pawl Orange |
| 99 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 99 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
