Bosch 3310

Bosch 3310 batt-oper screwdriver: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3310: 22 positions on 1 sheet

Bosch 3310 parts list (1 sheet)

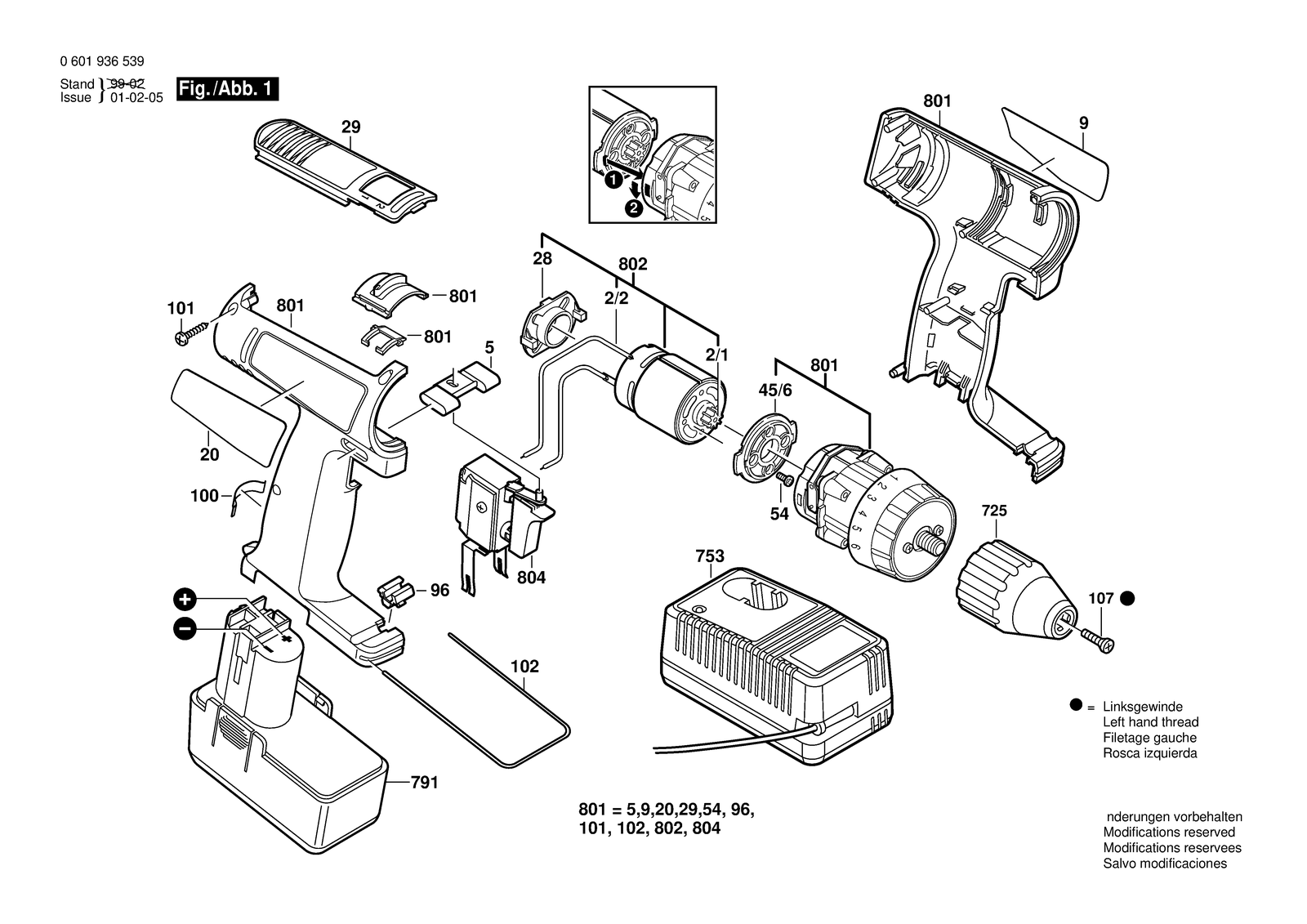

Bosch 3310 parts diagram, sheet 1
No.Part numberPart name
1002601322016Clamp Spring
1012603490018Torx Oval-Head Screw 3X18
1022601329041Retaining Bracket
1072609110721Countersunk-Head Screw M5X20
2/12606316161Pinion Z=12
2/22604413012Connecting Cable
202610909834Manufacturer's nameplate
202610911310Screw
282605719015Adapter Insert Black
292605510130Insert Piece Black
45/62605719008Intermediate Flange
52610967639Change-Over Switch Black
542603414049Torx SH cap screw M4X8-4,8-Z
7252608572214Keyless Chuck
7532607224431Fast Charger USA 120/7,2-24V, 1H
7912610910405Accumulator package 12V
8012610910448Dummy
8022607022946DC motor 12V
8042607200353On-Off Switch
92610909835Reference Plate
92610909847Reference Plate
962608040131Support
