Bosch 3310

Bosch 3310 cordless screwdriver: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3310: 26 positions on 1 sheet

Bosch 3310 parts list (1 sheet)

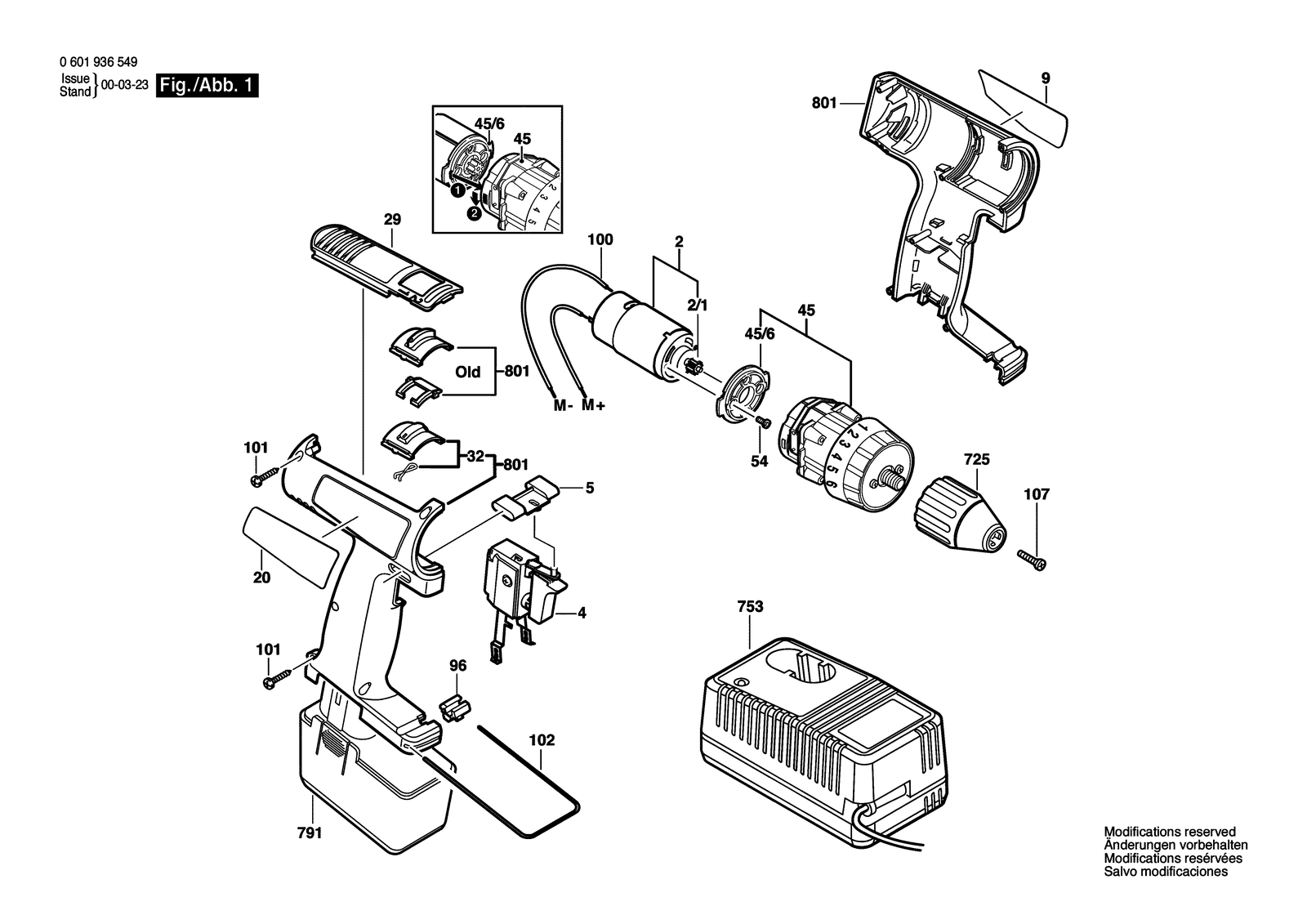

Bosch 3310 parts diagram, sheet 1
No.Part numberPart name
1002604413012Connecting Cable
1002610991216Cable
1012603490018Torx Oval-Head Screw 3X18
1022601329041Retaining Bracket
1072609110721Countersunk-Head Screw M5X20
22610991237DC motor 12V
22610993804Motor
2/12610967116Pinion Z=12
202610993071Packaging Instructions
202610993072Packaging Instructions
292605510130Insert Piece Black
322601099126Adjusting Slide
42607200353On-Off Switch
452606200065Planetary Gear Train
45/62605719008Intermediate Flange
52610967639Change-Over Switch Black
542603414049Torx SH cap screw M4X8-4,8-Z
7252608572214Keyless Chuck
7532607224431Fast Charger USA 120/7,2-24V, 1H
7912607335156Accumulator package 14,4V,2,0AH,NICD
7912610910405Accumulator package 12V
8012610910446Selector Switch
8012610910447Dummy
92610909847Reference Plate
92610968257Manufacturer's nameplate Sunny Side
962608040131Support
