Bosch 331 rotary hammer: exploded parts diagram, 2 sheets, 106 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 331: 106 positions on 2 sheets

Bosch 331 parts list (2 sheets)

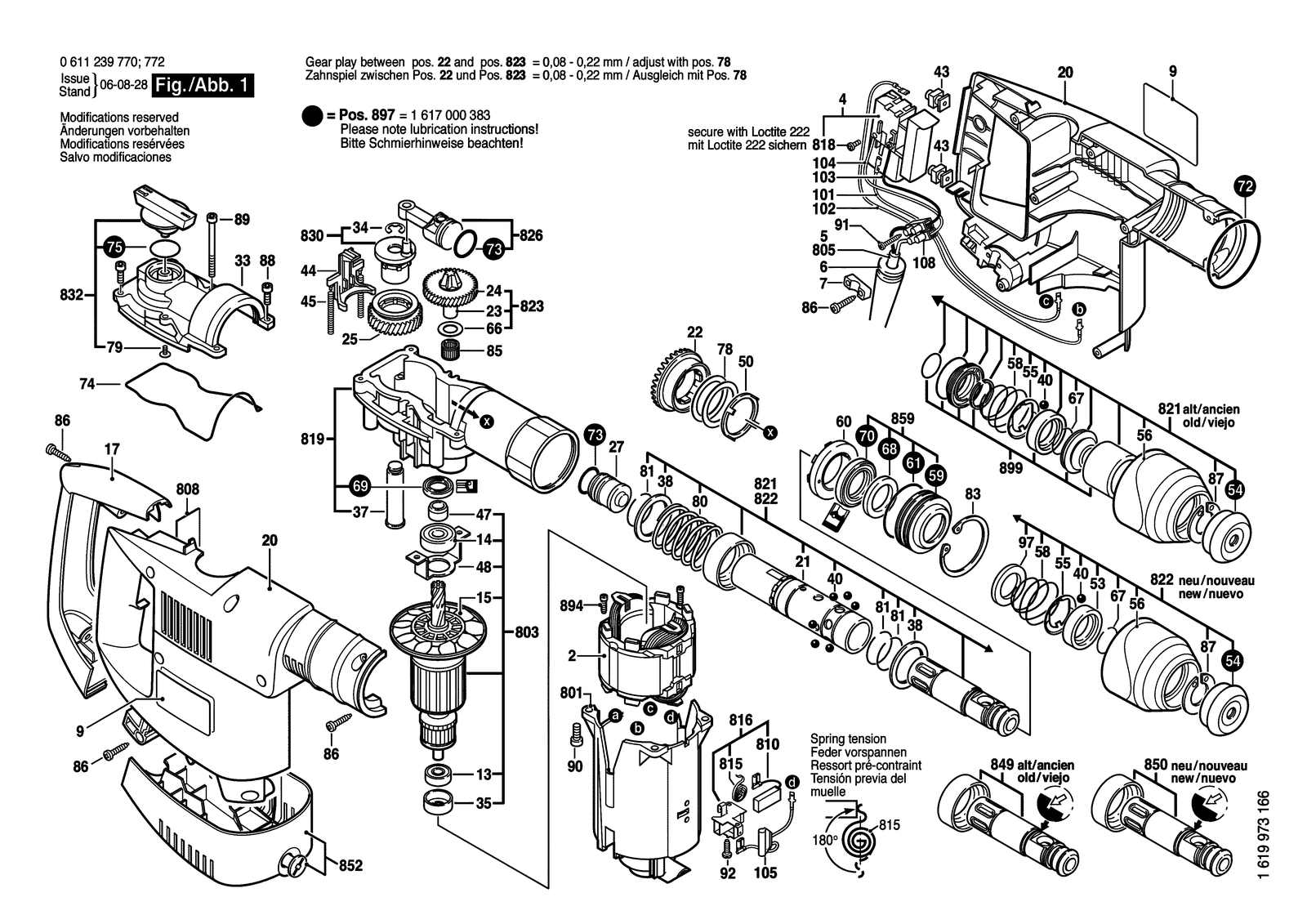

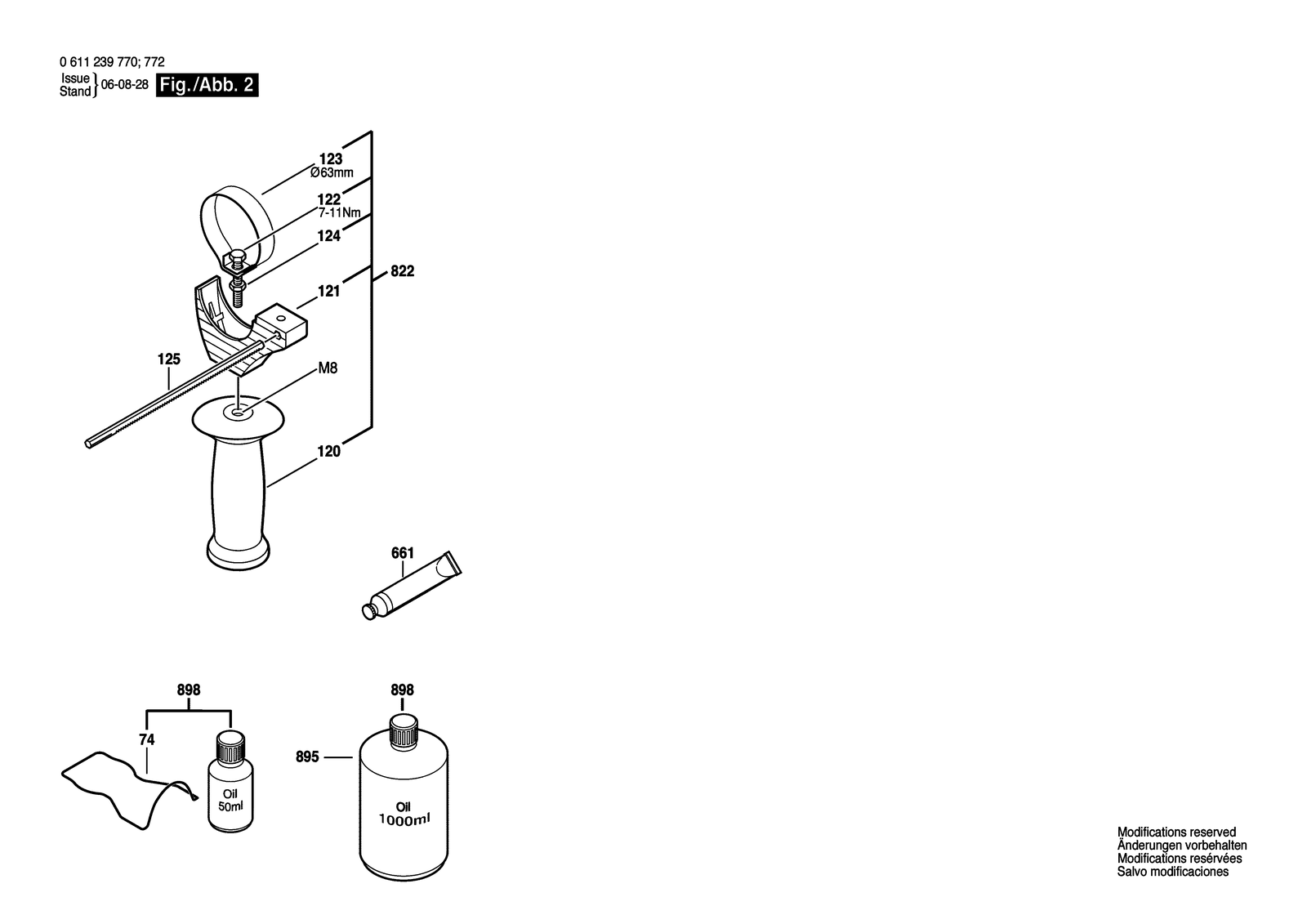

Bosch 331 parts diagram, sheet 1Bosch 331 parts diagram, sheet 2
No.Part numberPart name
1011614449012Connecting Cable White L=360 MM
1021614431028Connecting Cable White L=220 MM
1031614437017Connecting Cable Blue L=180 MM
1041614437018Connecting Cable
1051614431029Suppression Filter
1081611091003Connecting terminal 2-POLE
1081611091006Connecting terminal 2-POLE
1201612025041Auxiliary Handle Black M8
1211618040079Support clamp Black
1221613450017Hex Screw M 8X40 MM
1231611316018Clamping Band Ø 63 MM
1242915051180Hex Nut ISO-4035-M8-05
1251613001009Depth-Gauge SW 6X210 MM
132600905032Ball Bearing 7X19X6
141610905036Groove ball bearing 10X26X8
151616610088Fan
171615132090Handle Cover
21614220148Field 110-120V
21619P08343Field
201615104031Housing Section
211615806047Pipe
221616333038Crown Gear Z=31
231616333039Pinion Z=6
241616312005Cylindrical Gear
251616317061Eccentric Cog Wheel Z=31
271617000509Striker
331615808082Gear Cover
342916080910Locking washer DIN 6799-7-FST
351600502023Intermediate Ring
371613123004Eccentric Shaft
381610202018Supporting Disc
42607200512Switch
42607200577Switch
401903230013Ball DIN 5401-Ø7MM-III-ST
431610390043Screw Bushing
441611329019Control Fork
451614611016Compression Spring
471610250010Inner Ring
481611329020Fixing Plate
51614460061Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F
501610290059Friction Washer
531610422018Thrust Ring
541610508039Protective Cap L=13 MM
551610190040Holding Plate
561610499052Protection Sleeve
581614615004Compression Spring
591610314003Sealing Sleeve
62600703018Grommet Ø7,3-Ø8,6X76 MM
62600703019Grommet Ø8,7-Ø9,6X76 MM
601615190087Plain bearing
611610210156O-Ring 39,0X3,0 MM
661610100612Support Disc Thick 0,5 MM
6611615430009Grease Tube 30 Ml
671614601032Retaining ring
681610205008Felt Washer
691610283031Rotary shaft lip seal
72601035001Cable Clip
701610283032Rotary shaft lip seal
721610210157O-Ring 52,0X3,0 MM
731610210121O-Ring Green 17,0X3,0 MM
741611014002Sealing Frame
751610210155O-Ring 19,0X2,5 MM
781610102051Shim 0,3 MM
781610102052Shim 0,4 MM
781610102053Shim 0,5 MM
791928491082Oval-Head Screw
801614615003Compression Spring
8011615108103Insulating Housing
8031614010705Armature With Fan 220-230V
8031614010706Armature With Fan 110-120V
8051607000392Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
808160111A3HDNameplate
811614601033Retaining ring
8101617014137Carbon-Brush Set
8101617014139Carbon-Brush Set
8151614652003Spiral Spring
8161617000392Brush Holder
8161617000397Brush Holder
8182603410001Socket head cap screw M3X6,5-4.8
8191617000382Gear Housing
8211618598221Toolholder Sds-Plus
8221618598248Toolholder
8231617016009Pinion
8261618700085Hammer Piston
831614601036Spring retaining ring
8301612210118Eccentric
8321612026110Clamp Handle
8491618598220Tool Holding Fixture Sds-Plus
851610913015Needle-Roller Assembly
8501618598249Tool Holding Fixture
8521615500332Brush-Cover
8591610314004Sealing Sleeve
862603490023Torx Oval-Head Screw 4X20
871610209006Backup ring
881613414016Hex Socket Head Cap Screw
891613414017Hex Socket Head Cap Screw
8942603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
8951615430019Oil Reservoir 1000 Ml
8971617000383Wear and Tear Part Set
8981615437509Oil Reservoir 50 Ml
8991617000V76Wear and Tear Part Set
91611110C69Manufacturer's nameplate
902910131154Hex Socket Head Cap Screw DIN 7984-M5X12-8.8
912912401008Tapping Screw DIN 7983-ST-2,9X19
922910211005Tapping Screw DIN 7971-ST2,9X9,5-F
971610102025Friction Washer
