Bosch 3289 D
Bosch 3289 D combi orbital sander p: exploded parts diagram, 1 sheet, 41 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

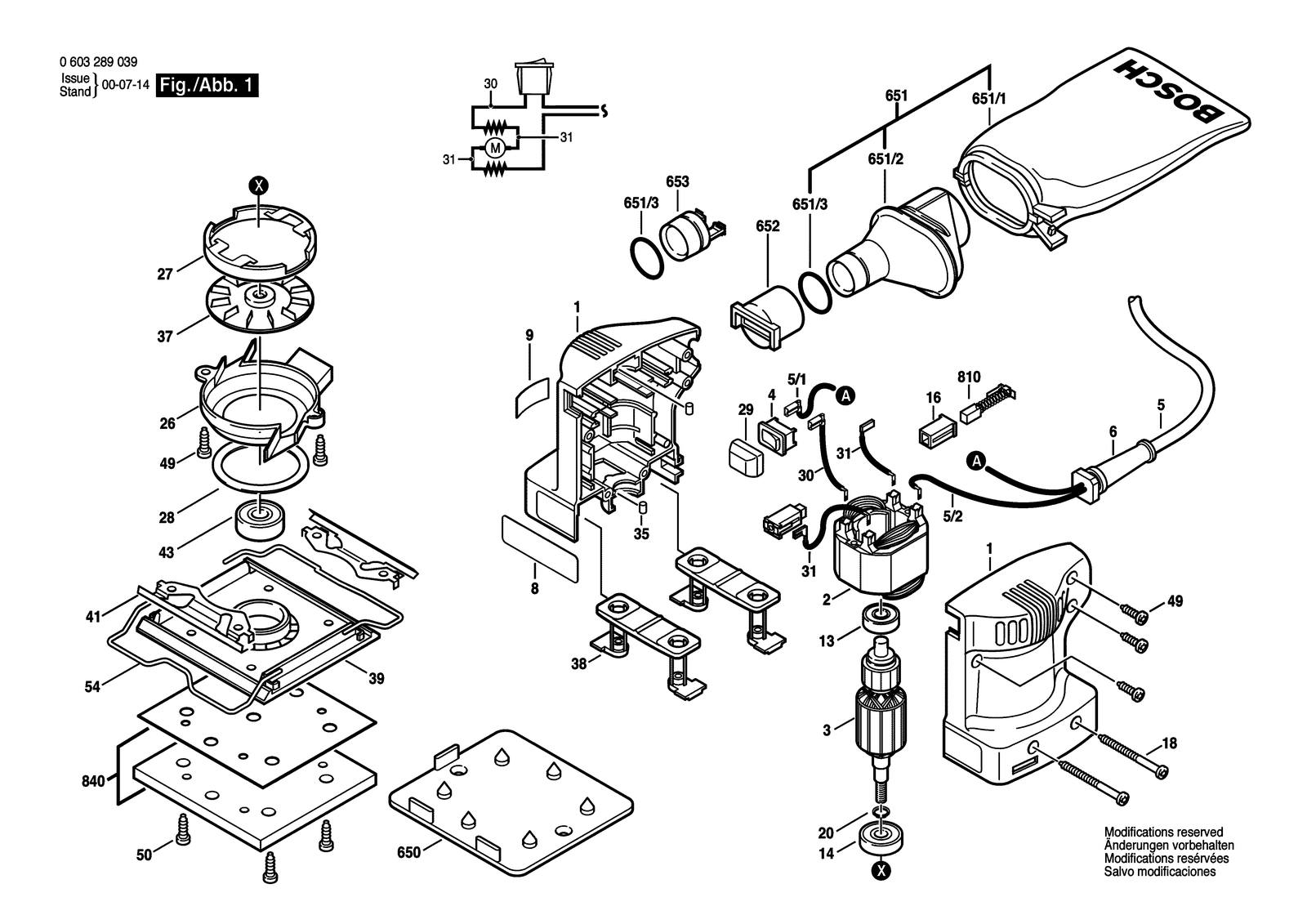

All parts of Bosch 3289 D: 41 positions on 1 sheet
Bosch 3289 D parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610905531 | Label |
| 13 | 2610351861 | Ball Bearing |
| 14 | 2610352770 | Bearing |
| 16 | 2610320548 | Brush Holder |
| 18 | 1619P01508 | Screw |
| 2 | 2610352766 | Field 120V |
| 20 | 2610931268 | Retaining snap ring |
| 26 | 2610352774 | Ring |
| 27 | 2610356794 | Air Guide Plate |
| 28 | 2610352805 | Felt Seal |
| 29 | 2610352763 | Protective Cap |
| 3 | 2610352765 | Dummy 120V |
| 30 | 2610038610 | Cable Black 50 MM |
| 31 | 2610038852 | Connecting Cable Blue 50 MM |
| 35 | 2610350103 | Pin |
| 37 | 2610358001 | Fan |
| 38 | 2610902931 | Base |
| 39 | 2610902933 | Swing-Plate |
| 4 | 2610910115 | Switch |
| 41 | 2610902932 | Clamp |
| 43 | 2610042699 | Groove ball bearing |
| 49 | 1619X00504 | Screw |
| 5 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5/1 | 2610352788 | Connecting terminal |
| 5/2 | 2610318744 | Connecting terminal |
| 50 | 2610352771 | Screw |
| 54 | 2610352839 | Lever |
| 6 | 2610313327 | Grommet |
| 650 | 2610358021 | Punching Tool |
| 651 | 2605411058 | Dust Bag |
| 651/1 | 2605411057 | Dust Bag |
| 651/2 | 2605702009 | Fitting |
| 651/3 | 1610210075 | O-Ring 20,0X1,5 MM |
| 652 | 2610905504 | Adjustable Adaptor |
| 653 | 2603126012 | Plug |
| 8 | 2610905757 | Box |
| 8 | 2610991960 | Packaging Instructions |
| 810 | 2610321617 | Carbon Brush |
| 840 | 2610352840 | Base Plate |
| 9 | 2610905756 | Dummy |
| 9 | 2610991959 | Packaging Instructions |
