Bosch 32614 batt-oper screwdriver: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 32614: 21 positions on 1 sheet

Bosch 32614 parts list (1 sheet)

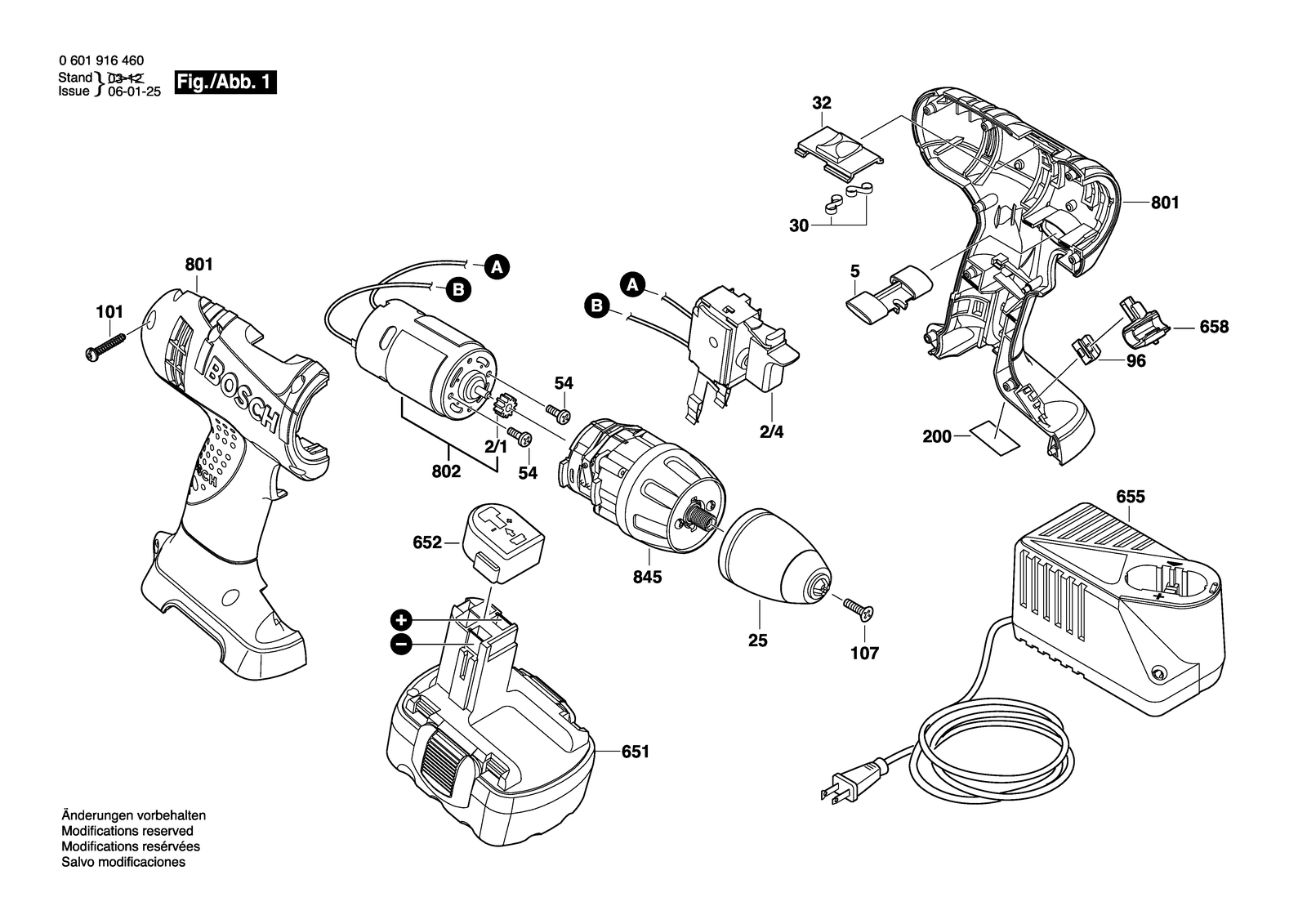

Bosch 32614 parts diagram, sheet 1
No.Part numberPart name
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072609110721Countersunk-Head Screw M5X20
2/12606316226Pinion
2/42607200461On-Off Switch
2002601116167Reference Plate
2002601116850Reference Plate
252608572177Keyless Chuck
302604690022Leaf Spring
322601099115Adjusting Slide Red
52601099114Adjusting Slide Red
542603414049Torx SH cap screw M4X8-4,8-Z
6512607335669Accumulator package 14,4V,2.0AH,NICD
6522609100101Protective Cap
6552607225033Fast Charger USA 120/7,2-24V, 30 Min.
6582608040208Auxiliary Support
8012605105923Housing Section
8022607022872DC motor 14,4V
8452606200940Planetary Gear Train
8452606200945Planetary Gear Train
962604690035Spring Element
