Bosch 3220 cordless percus screwdriv: exploded parts diagram, 1 sheet, 96 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3220: 96 positions on 1 sheet

Bosch 3220 parts list (1 sheet)

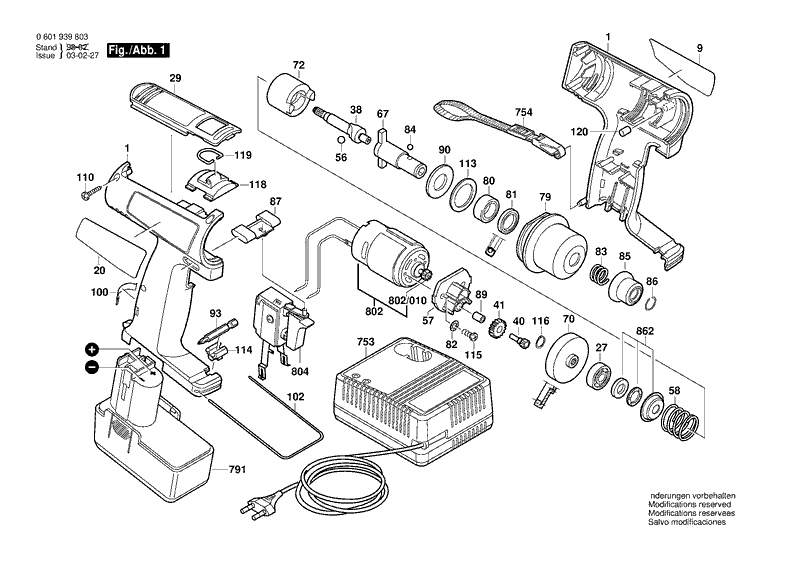

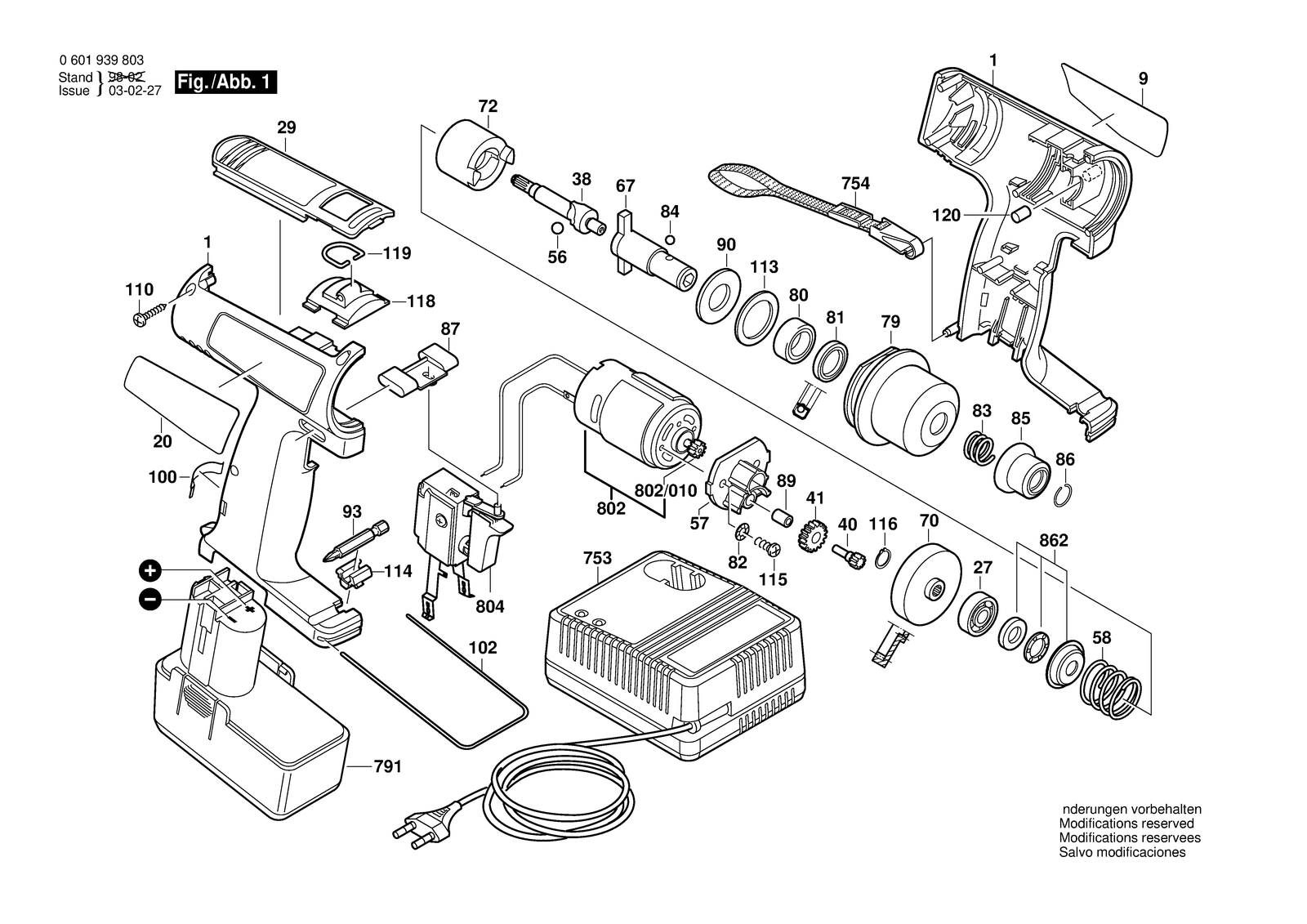

Bosch 3220 parts diagram, sheet 1
No.Part numberPart name
12605104474Housing Section Blue
12605104501Housing Section Blue
1002601322016Clamp Spring
1002601322016Clamp Spring
1022601329041Retaining Bracket
1022601329041Retaining Bracket
1102603490018Torx Oval-Head Screw 3X18
1102603490018Torx Oval-Head Screw 3X18
1132600100098Rubber Disc
1132600100098Rubber Disc
1142608040131Support
1142608040131Support
1152912301118Oval-Head Screw DIN 7985-M4X8-4.8-Z
1152912301118Oval-Head Screw DIN 7985-M4X8-4.8-Z
1162916640003Spring retaining ring DIN 471-6X0,7-FST
1162916640003Spring retaining ring DIN 471-6X0,7-FST
1182605510146Location Piece
1182605510146Location Piece
1192601310009Suspension Loop
1192601310009Suspension Loop
1202603100056Damping rubber
1202603100056Damping rubber
202601118643Reference Plate Shadow Side
202601118643Reference Plate Shadow Side
271900900224Groove ball bearing 7X22X7
271900900224Groove ball bearing 7X22X7
292605510143Insert Piece Black
292605510143Insert Piece Black
382603000016Jack Shaft
382603000016Jack Shaft
402606309045Pinion Shaft Z= 10
402606309045Pinion Shaft Z= 10
412606319086Cylindrical Gear Z=23
412606319086Cylindrical Gear Z=23
561903230010Ball DIN 5401-5,5MM-III-ST
561903230010Ball DIN 5401-5,5MM-III-ST
572605700231Intermediate Flange Black
572605700231Intermediate Flange Black
582604610038Compression Spring
582604610038Compression Spring
672606445010Coupling Half
672606445010Coupling Half
702606319085Ring Gear Z=46
702606319085Ring Gear Z=46
722600322051Striker
722600322051Striker
7532607224425Fast Charger EU 230/7,2-24V, 1H
7532607224427Fast Charger GB 230/7,2-24V, 1H
7532607224431Fast Charger USA 120/7,2-24V, 1H
7532607224435Fast Charger J 100/7,2-24V, 1H
7532607224443Fast Charger AUS 240/7,2-14,4V, 1H
7532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
7532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
7532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
7532607224708Fast Charger USA 120/7,2-14,4V, 30 Min.
7532607224711Fast Charger J 100/7,2-14,4V, 30 Min.
7532607224431Fast Charger USA 120/7,2-24V, 1H
7542601398009Carrying Loop
7542601398009Carrying Loop
792605806412Gear Housing Silver
792605806412Gear Housing Silver
7912607335149Slide-In Accu Package 9,6V,2,0AH,NICD
7912607336143Slide-In Accu Package 9,6V, 1,5 Ah, Nicd
7912610910400Accumulator package 9,6V
802605801018Plain bearing
802605801018Plain bearing
8022607022934DC motor 9,6V
8022607022934DC motor 9,6V
802/0102606316147Pinion Z=13
802/0102606316147Pinion Z=13
8042607200351On-Off Switch
8042607200342On-Off Switch
812601015062Radial Seal
812601015062Radial Seal
822916070006Serrated Lock-Washer A 4,3 DIN 6798-ST
822916070006Serrated Lock-Washer A 4,3 DIN 6798-ST
832604619016Compression Spring
832604619016Compression Spring
841903230406Ball DIN 5401-3,5-II
841903230406Ball DIN 5401-3,5-II
852600400032Taper Sleeve
852600400032Taper Sleeve
862916600007Retaining ring 12 DIN 9045
862916600007Retaining ring 12 DIN 9045
8622600923006Ball Cage
8622600923006Ball Cage
872601099055Adjusting Slide Red
872601099061Adjusting Slide Black
892605801019Plain bearing
892605801019Plain bearing
92601118642Manufacturer's nameplate Sunny Side
92601118642Manufacturer's nameplate Sunny Side
902600100638Plain Washer
902600100638Plain Washer
932607000442Screwdriver Blade
932607000442Screwdriver Blade
