Bosch 321
Bosch 321 rotary hammer: exploded parts diagram, 2 sheets, 186 positions. Spare parts with part numbers, availability and prices.
execution 3611BA0S00
Scroll to zoom · drag to move
All parts on this sheet0
Checking availability…

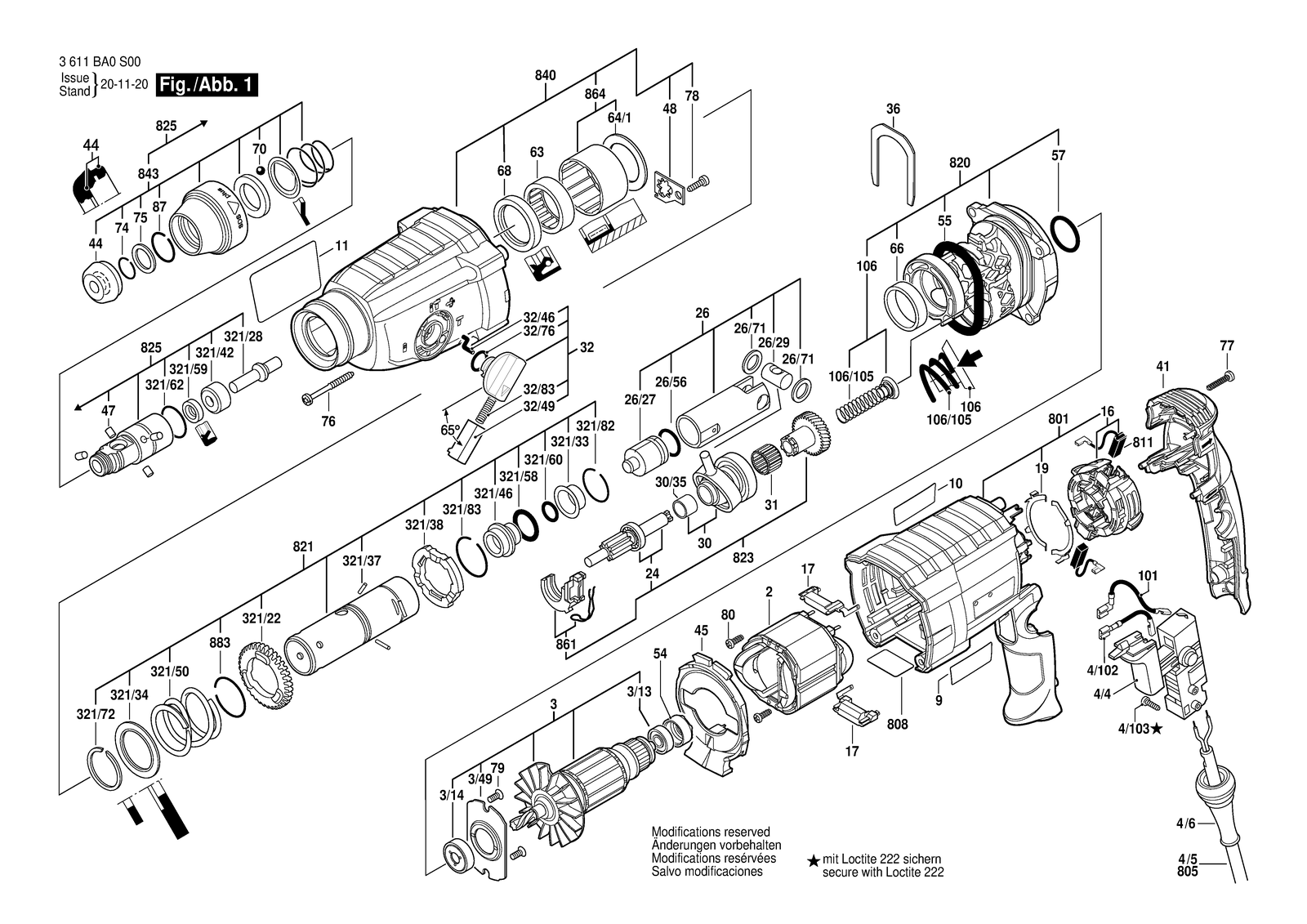

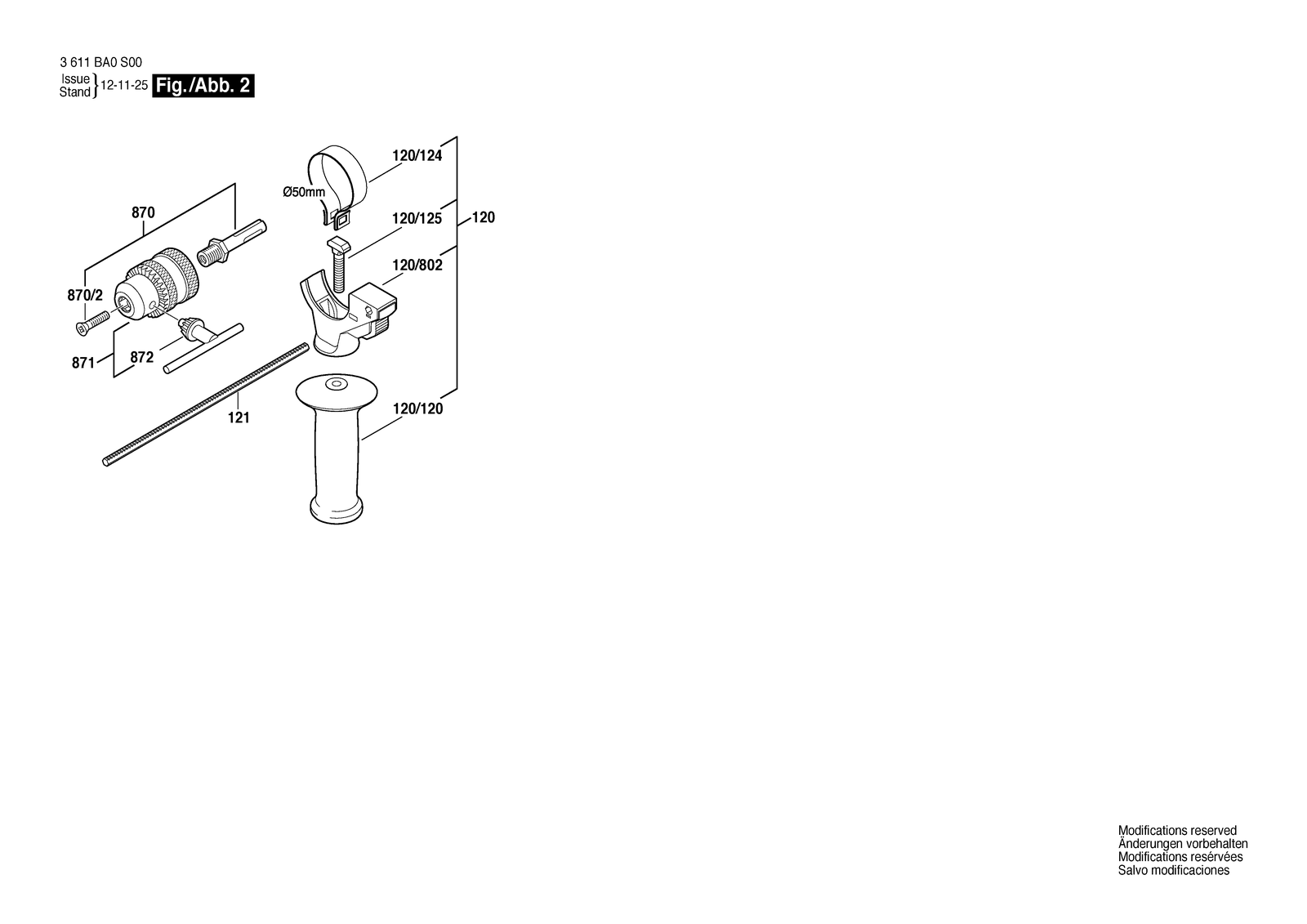

All parts of Bosch 321: 186 positions on 2 sheets
Bosch 321 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 161111C016 | Manufacturer's nameplate |
| 10 | 161111C00E | Manufacturer's nameplate |
| 101 | 1614449014 | Connecting Cable |
| 101 | 1614449014 | Connecting Cable |
| 106 | 1614611022 | Plain bearing |
| 106 | 1614611022 | Plain bearing |
| 106/105 | 1614611021 | Compression Spring |
| 106/105 | 1614611021 | Compression Spring |
| 11 | 161111C017 | Reference Plate |
| 11 | 161111C00Y | Reference Plate |
| 120 | 1612025074 | Auxiliary Handle |
| 120 | 1612025074 | Auxiliary Handle |
| 120/120 | 1612025041 | Auxiliary Handle Black M8 |
| 120/120 | 1612025041 | Auxiliary Handle Black M8 |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/802 | 1617000A44 | Support clamp |
| 120/802 | 1617000A44 | Support clamp |
| 121 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 121 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 16 | 1600A00137 | Brush Plate |
| 16 | 1600A00137 | Brush Plate |
| 17 | 1614465011 | Suppression Filter |
| 17 | 1614465011 | Suppression Filter |
| 19 | 1611329024 | Switch Contact |
| 19 | 1611329024 | Switch Contact |
| 2 | 1614220222 | Pole Shoe 240V |
| 2 | 1614220227 | Pole Shoe 230V |
| 24 | 16170006EJ | Toothed Shaft |
| 24 | 16170006EJ | Toothed Shaft |
| 26 | 1600A01U34 | Hammer Piston |
| 26 | 1600A01U34 | Hammer Piston |
| 26/27 | 1610311018 | Striker |
| 26/27 | 1610311018 | Striker |
| 26/29 | 1613105012 | Piston Pin |
| 26/29 | 1613105012 | Piston Pin |
| 26/56 | 1610210187 | O-Ring |
| 26/56 | 1610210187 | O-Ring |
| 26/71 | 1610101011 | Shim washer Thick 1,2 MM |
| 26/71 | 1610101011 | Shim washer Thick 1,2 MM |
| 3 | 1614010B1B | Armature 240V |
| 3 | 1614010275 | Armature 230V |
| 3/13 | 1610905032 | Groove ball bearing 7X19X6 |
| 3/13 | 1610905032 | Groove ball bearing 7X19X6 |
| 3/14 | 1610905048 | Groove ball bearing 9X24X7 |
| 3/14 | 1610905048 | Groove ball bearing 9X24X7 |
| 3/49 | 1615700044 | End Shield |
| 3/49 | 1615700044 | End Shield |
| 30 | 1600A01U33 | Drive bearing |
| 30 | 1600A01U33 | Drive bearing |
| 30/35 | 1610202024 | Plain bearing |
| 30/35 | 1610202024 | Plain bearing |
| 31 | 1610913016 | Needle-Roller Assembly |
| 31 | 1610913016 | Needle-Roller Assembly |
| 32 | 1612026068 | Clamp Handle Black |
| 32 | 1612026068 | Clamp Handle Black |
| 32/46 | 1614690002 | Driver Pin |
| 32/46 | 1614690002 | Driver Pin |
| 32/49 | 1612026069 | Switch Button Orange |
| 32/49 | 1612026069 | Switch Button Orange |
| 32/76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 32/76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 32/83 | 1614611006 | Compression Spring |
| 32/83 | 1614611006 | Compression Spring |
| 321/22 | 1616312004 | Cylindrical Gear |
| 321/22 | 1616312004 | Cylindrical Gear |
| 321/28 | 1613124081 | Striker Pin |
| 321/28 | 1613124081 | Striker Pin |
| 321/33 | 1610590014 | Holding Jacket |
| 321/33 | 1610590014 | Holding Jacket |
| 321/34 | 1610190067 | Supporting Disc |
| 321/34 | 1610190067 | Supporting Disc |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 321/38 | 1600A008AG | Catch Disk |
| 321/38 | 1600A008AG | Catch Disk |
| 321/42 | 1610102073 | Thrust Ring |
| 321/42 | 1610102073 | Thrust Ring |
| 321/46 | 1610390051 | Guide Bushing |
| 321/46 | 1610390051 | Guide Bushing |
| 321/50 | 1614611020 | Compression Spring |
| 321/50 | 1614611020 | Compression Spring |
| 321/58 | 1610210178 | O-Ring |
| 321/58 | 1610210178 | O-Ring |
| 321/59 | 1610283035 | Rotary shaft lip seal |
| 321/59 | 1610283035 | Rotary shaft lip seal |
| 321/60 | 1610210176 | O-Ring 9,0X3,5 MM |
| 321/60 | 1610210176 | O-Ring 9,0X3,5 MM |
| 321/62 | 1610210179 | O-Ring |
| 321/62 | 1610210179 | O-Ring |
| 321/72 | 1604601027 | Retaining ring |
| 321/72 | 1604601027 | Retaining ring |
| 321/82 | 1614601034 | Retaining ring |
| 321/82 | 1614601034 | Retaining ring |
| 321/83 | 1604601028 | Retaining ring A22 DIN 7993 |
| 321/83 | 1604601028 | Retaining ring A22 DIN 7993 |
| 36 | 1611016003 | Holding Plate |
| 36 | 1611016003 | Holding Plate |
| 4/102 | 1614449015 | Connecting Cable |
| 4/102 | 1614449015 | Connecting Cable |
| 4/103 | 1613435034 | Lens Head Screw 3X10 St |
| 4/103 | 1613435034 | Lens Head Screw 3X10 St |
| 4/4 | 1617200547 | Switch |
| 4/4 | 1617200547 | Switch |
| 4/5 | 2604460199 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 4/6 | 1600703034 | Grommet Ø7,3-Ø8,6X66 MM |
| 4/6 | 1600703034 | Grommet Ø7,3-Ø8,6X66 MM |
| 41 | 161550044E | Housing Cover |
| 41 | 161550044E | Housing Cover |
| 44 | 1610508047 | Protective Cap |
| 44 | 1610508047 | Protective Cap |
| 45 | 1610522015 | Air-Deflector Ring |
| 45 | 1610522015 | Air-Deflector Ring |
| 47 | 1613100030 | Needle Roller |
| 47 | 1613100030 | Needle Roller |
| 48 | 1611098008 | Tab Washer |
| 48 | 1611098008 | Tab Washer |
| 54 | 1610502016 | Rubber Bushing |
| 54 | 1610502016 | Rubber Bushing |
| 55 | 1610290226 | Seal Ring 53,0X7,0 MM |
| 55 | 1610290226 | Seal Ring 53,0X7,0 MM |
| 57 | 1610210068 | O-Ring 24,0X2,5 MM |
| 57 | 1610210068 | O-Ring 24,0X2,5 MM |
| 63 | 1610910063 | Needle bearing Ø30XØ37X12 MM |
| 63 | 1610910063 | Needle bearing Ø30XØ37X12 MM |
| 64/1 | 1610190060 | Supporting Disc |
| 64/1 | 1610190060 | Supporting Disc |
| 66 | 1610202021 | Plain bearing |
| 66 | 1610202021 | Plain bearing |
| 68 | 1610283036 | Rotary shaft lip seal |
| 68 | 1610283036 | Rotary shaft lip seal |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 74 | 1614601027 | Retaining ring |
| 74 | 1614601027 | Retaining ring |
| 75 | 1610101629 | Retaining Washer |
| 75 | 1610101629 | Retaining Washer |
| 76 | 1613435022 | Thread-forming tap. Screw |
| 76 | 1613435022 | Thread-forming tap. Screw |
| 77 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 77 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 78 | 2603490022 | Screw 4X16 |
| 78 | 2603490022 | Screw 4X16 |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 80 | 1613435043 | Screw |
| 80 | 1613435043 | Screw |
| 801 | 1617000A49 | Motor Housing |
| 801 | 1617000A49 | Motor Housing |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3HD | Nameplate |
| 808 | 160111A3HD | Nameplate |
| 811 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 811 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 820 | 16170006DX | Intermediate Flange |
| 820 | 16170006DX | Intermediate Flange |
| 821 | 1617000564 | Pipe |
| 821 | 1617000564 | Pipe |
| 823 | 16170006ET | Toothed Shaft |
| 823 | 16170006ET | Toothed Shaft |
| 825 | 1617000598 | Tool Holding Fixture |
| 825 | 1617000598 | Tool Holding Fixture |
| 840 | 1617000A48 | Gear Housing |
| 840 | 1617000A48 | Gear Housing |
| 843 | 1617000582 | Protection Sleeve |
| 843 | 1617000582 | Protection Sleeve |
| 861 | 1615820097 | Switching Element |
| 861 | 1615820097 | Switching Element |
| 864 | 1617000A07 | Supporting Disc |
| 864 | 1617000A07 | Supporting Disc |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 870 | 1613523011 | Drill Chuck Shank 1/2", Sds-Plus |
| 870 | 1613523011 | Drill Chuck Shank 1/2", Sds-Plus |
| 870/2 | 2603421207 | Countersunk-Head Screw Lefthand Threads M6X27-KØ11 |
| 870/2 | 2603421207 | Countersunk-Head Screw Lefthand Threads M6X27-KØ11 |
| 871 | 1608571089 | Key Chuck |
| 871 | 1608571089 | Key Chuck |
| 872 | 2607950007 | Chuck Wrench SG2 |
| 872 | 2607950007 | Chuck Wrench SG2 |
| 883 | 1604601028 | Retaining ring A22 DIN 7993 |
| 883 | 1604601028 | Retaining ring A22 DIN 7993 |
| 9 | 161111C015 | Manufacturer's nameplate |
| 9 | 161111C00D | Manufacturer's nameplate |
