Bosch 321
Bosch 321 rotary hammer: exploded parts diagram, 2 sheets, 88 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

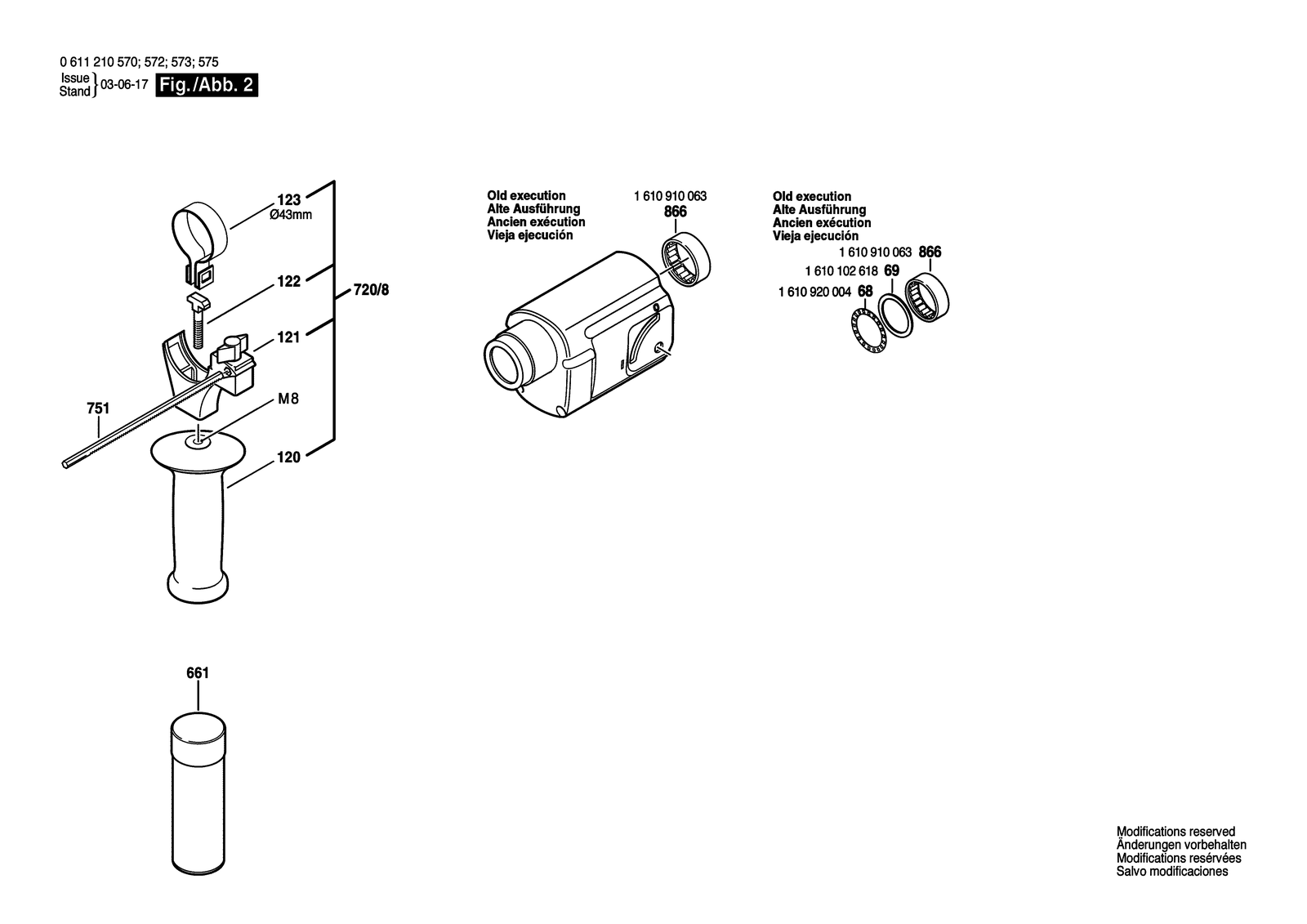

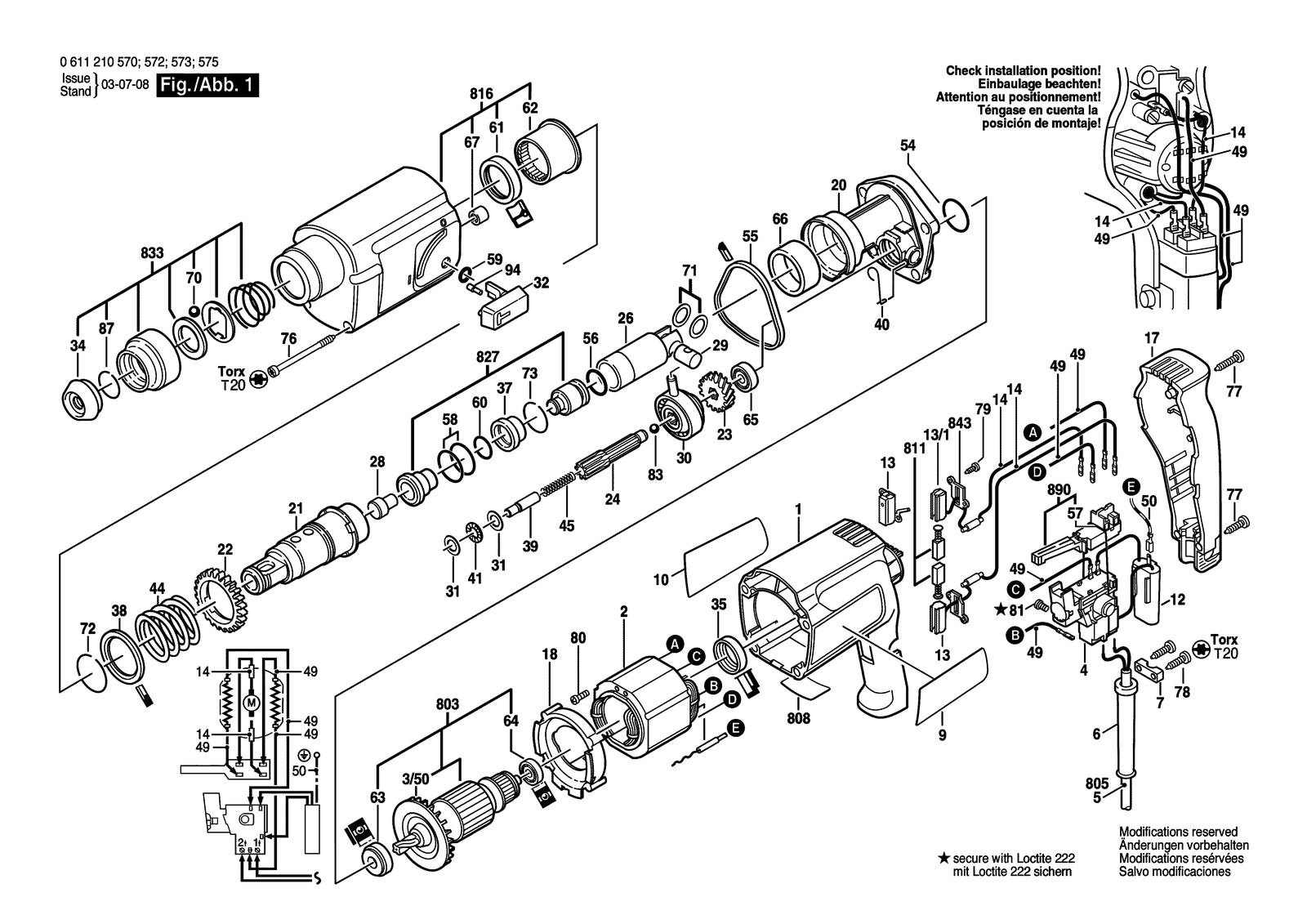

All parts of Bosch 321: 88 positions on 2 sheets
Bosch 321 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615108026 | Motor Housing Black |
| 10 | 1611110724 | Manufacturer's nameplate |
| 12 | 2607329096 | Suppression Filter |
| 120 | 1612025041 | Auxiliary Handle Black M8 |
| 121 | 1618040064 | Support clamp Ø43 MM |
| 122 | 1613490002 | T-Head Bolt M8X40 MM |
| 123 | 1611316006 | Clamping Band Ø43 MM |
| 13 | 2604337003 | Brush Holder |
| 13/1 | 1614465003 | Carb Brush Hold w-Supr |
| 14 | 2604465071 | Suppressor Box L=93/85 MM |
| 17 | 1615132031 | Housing Cover Black |
| 18 | 1610522008 | Air-Deflector Ring |
| 2 | 2604220428 | Field 110-120V |
| 2 | 2604220429 | Field 220-230V |
| 2 | 2604220430 | Field 240V |
| 20 | 1615700037 | Intermediate Flange |
| 21 | 1616490035 | Ratchet Sleeve S2S |
| 22 | 1616320007 | Cylindrical Gear Z=46 |
| 23 | 1616320002 | Cylindrical Gear Z=6/21 |
| 24 | 1613060010 | Toothed Shaft Z=6/10 |
| 26 | 1618700052 | Hammer Piston |
| 28 | 1613124026 | Striker Pin |
| 29 | 1613105012 | Piston Pin |
| 3/50 | 1616610072 | Fan Black |
| 30 | 1615819005 | Drive bearing |
| 31 | 1610100003 | Support Disc Thick 0,8 MM |
| 32 | 1612026023 | Clamp Handle Black |
| 34 | 1610508016 | Protective Cap L=24 MM |
| 35 | 1610206021 | Rubber Ring |
| 37 | 1610390011 | Damping Bushing |
| 38 | 1610102022 | Supporting Disc |
| 39 | 1613100013 | Straight Pin |
| 4 | 2607200179 | Switch |
| 4 | 2607200180 | On-Off Switch |
| 40 | 1614690001 | Holding Spring |
| 41 | 1610920003 | Roller-Cage Assembly |
| 44 | 1614633001 | Compression Spring |
| 45 | 1614614001 | Compression Spring |
| 49 | 2604448005 | Cable White L=130 MM |
| 5 | 1614460039 | Power supply cord I 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460061 | Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460084 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 50 | 2604448003 | Cable |
| 54 | 1610210068 | O-Ring 24,0X2,5 MM |
| 55 | 1610206023 | Seal Ring |
| 56 | 1610210070 | O-Ring 14,0X3,0 MM |
| 57 | 1610210084 | O-Ring 34,0X2,0 MM |
| 58 | 1610210058 | O-Ring 18,0X3,0 MM |
| 59 | 1610210069 | O-Ring 6,0X2,5 MM |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 60 | 1610210073 | O-Ring 10,0X3,5 MM |
| 61 | 1610283017 | Rotary shaft lip seal |
| 62 | 1610202026 | Plain bearing |
| 63 | 1610905048 | Groove ball bearing 9X24X7 |
| 64 | 2600905032 | Ball Bearing 7X19X6 |
| 65 | 1900900228 | Groove ball bearing 8X22X7 |
| 66 | 1610301000 | Bushing Ø30XØ37X15,7 MM |
| 661 | 1615430009 | Grease Tube 30 Ml |
| 67 | 1610910064 | Needle bearing |
| 7 | 1611035005 | Cable Clip |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 71 | 1610101011 | Shim washer Thick 1,2 MM |
| 72 | 2916540018 | Retaining ring DIN 7993-A32 |
| 720/8 | 1612025047 | Auxiliary Handle Ø43 MM |
| 73 | 1614601009 | Retaining ring DIN 9045-24 |
| 751 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 76 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 77 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 78 | 1603435050 | Tapping Screw ST3,9X19-TORX,T20 |
| 79 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 79 | 2910211206 | Tapping Screw DIN 7971-B 2,9X13 |
| 80 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 803 | 1614010039 | Armature With Fan 220-230V |
| 803 | 1614010041 | Armature With Fan 110-120V |
| 803 | 1614010042 | Armature With Fan 240V |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3HD | Nameplate |
| 81 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 811 | 1617014114 | Carbon Brush |
| 816 | 1615806081 | Gear Housing Orange |
| 827 | 1617000338 | Striker |
| 83 | 1903230309 | Ball 5 MM V DIN 5401 |
| 833 | 1617000168 | Protection Sleeve S2S |
| 843 | 2601015047 | Brush Plate |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 890 | 2607200206 | Change-Over Switch |
| 9 | 1611110723 | Manufacturer's nameplate |
| 94 | 1613120017 | Detent Pin |
