Bosch 3107 DVS random orbital sander: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3107 DVS: 33 positions on 1 sheet

Bosch 3107 DVS parts list (1 sheet)

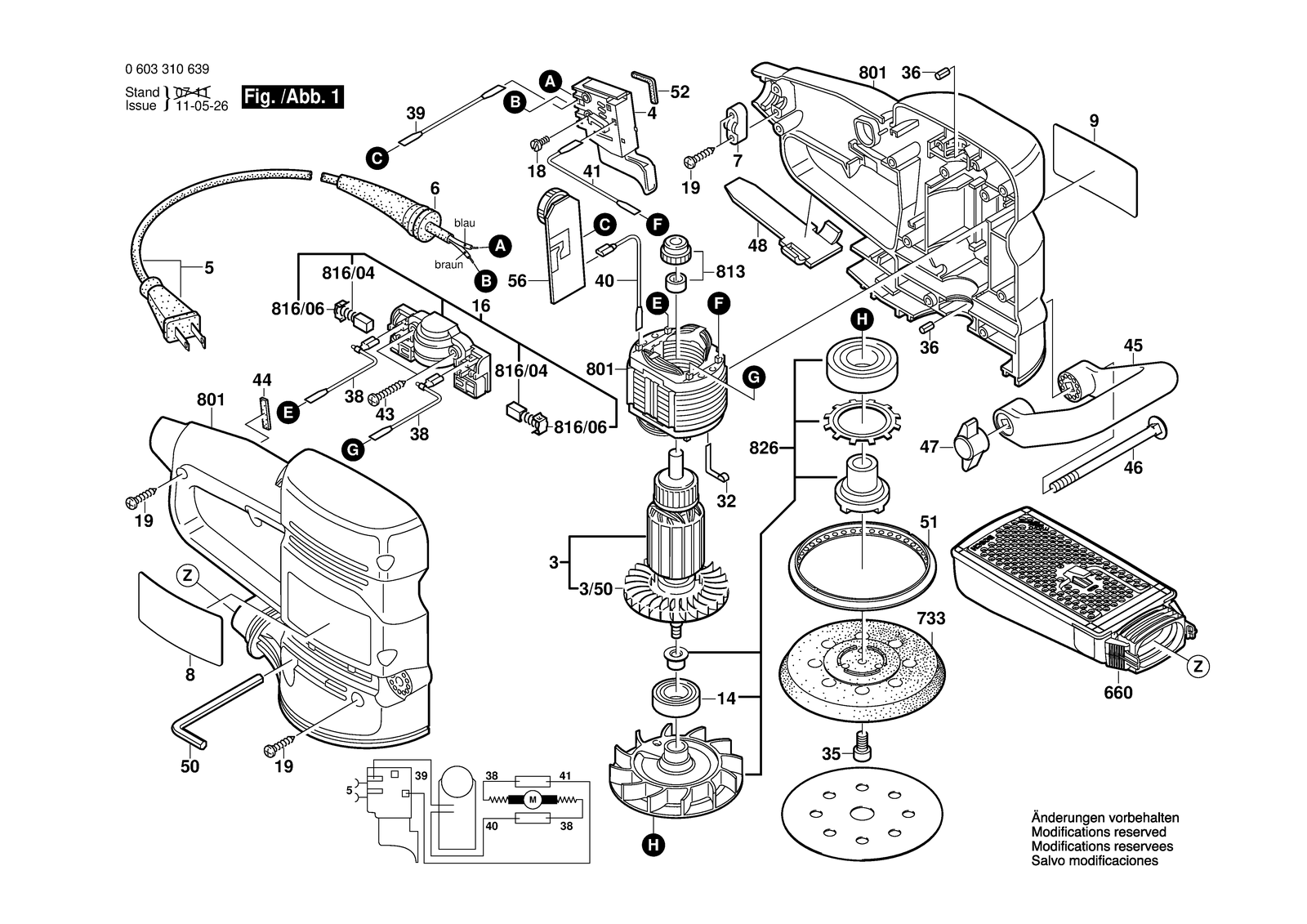

Bosch 3107 DVS parts diagram, sheet 1
No.Part numberPart name
142600905034Groove ball bearing
162604337122Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
192603490022Screw 4X16
32604011264Armature 115-120V
3/502606610077Fan
322601329057Contact Spring
352603414062Hex Socket Head Cap Screw
361603100036Rubber Buffer
382604448180Connecting Cable White L=113 MM
392604448181Connecting Cable White L=233 MM
42607200260Switch
432603490023Torx Oval-Head Screw 4X20
442602380003Seal Strip
452602025068Handle Black
462910285226Round-Head Bolt DIN 603-M6X110
471603339006Wing Nut M6
482608005043Pusher
52604460129Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2
502610364015Hexagon Socket Screw Key 5 MM
512600206015Friction Ring
522601022000Damping Plate
562607230120Rpm Actuator 100-120V
62600703018Grommet Ø7,3-Ø8,6X76 MM
72601035001Cable Clip
7332608601902Backing Pad
82601115652Nameplate
8012605104802Housing Section Blue
8132605805005Cartridge bearing
816/042604321905Carbon-Brush Set
816/062601322013Ratchet Cap
8262606610901Fan Lefthand Threads
92601117771Manufacturer's nameplate
