Bosch 3105

Bosch 3105 cordless screwdriver: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3105: 24 positions on 1 sheet

Bosch 3105 parts list (1 sheet)

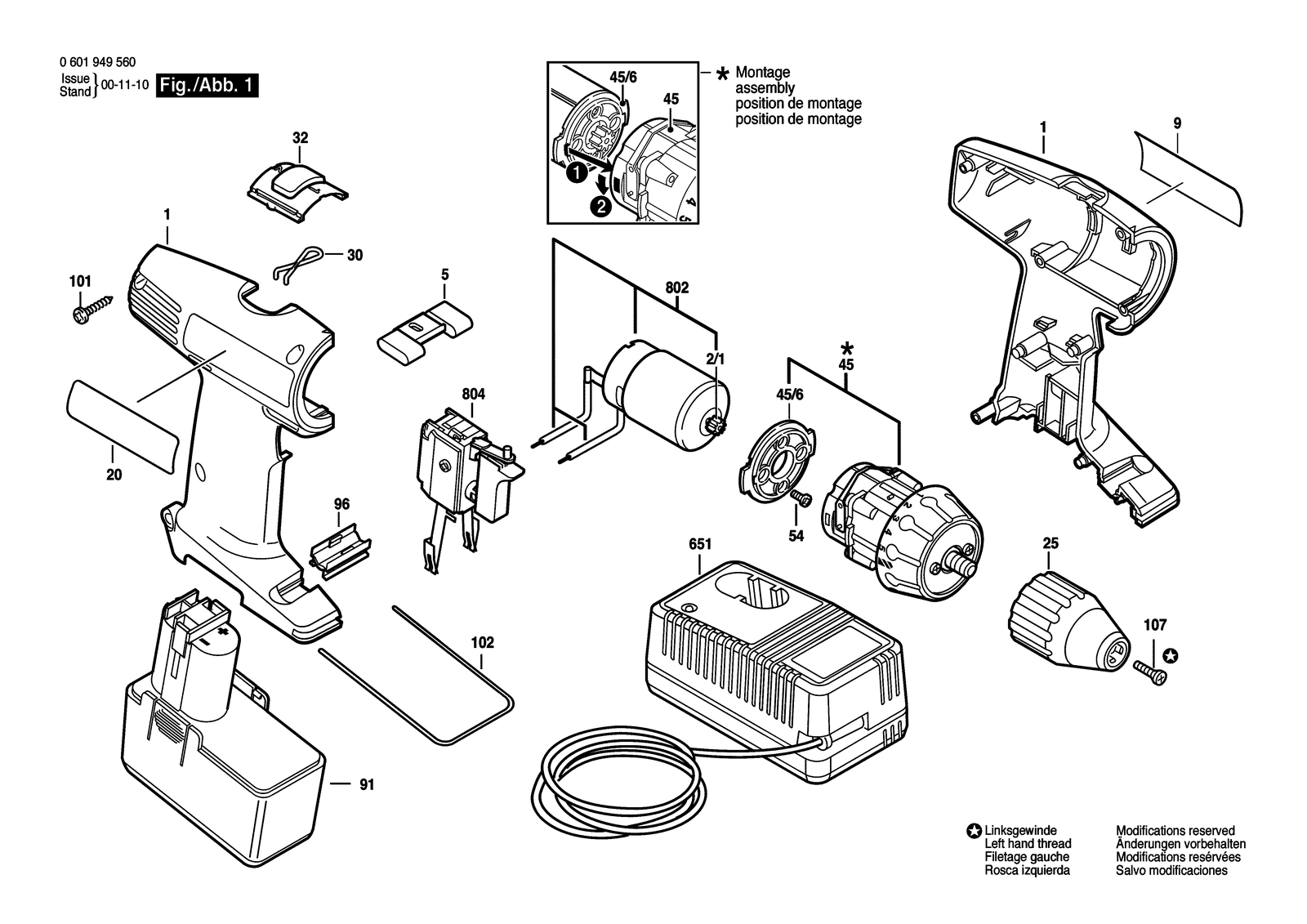

Bosch 3105 parts diagram, sheet 1
No.Part numberPart name
12605104648Housing Section Blue
12605104649Housing Section Blue
1012603490018Torx Oval-Head Screw 3X18
1022601329041Retaining Bracket
1072609110721Countersunk-Head Screw M5X20
2/12606316161Pinion Z=12
202610995405Housing
202610995407Label
252608572214Keyless Chuck
302602033008Control Fork
322601099092Adjusting Slide
452606200073Planetary Gear Train
45/62605719011Intermediate Flange
52610967639Change-Over Switch Black
542603414048Torx SH cap screw M3X5-8.8-Z
6512607224431Fast Charger USA 120/7,2-24V, 1H
6512607224707Fast Charger USA 120/7,2-14,4V, 30 Min.
8022610908943Motor assembly
8042607200353On-Off Switch
92610995404Instruction manual
92610995406Nameplate
912610910400Accumulator package 9,6V
912610910405Accumulator package 12V
962608040079Support
