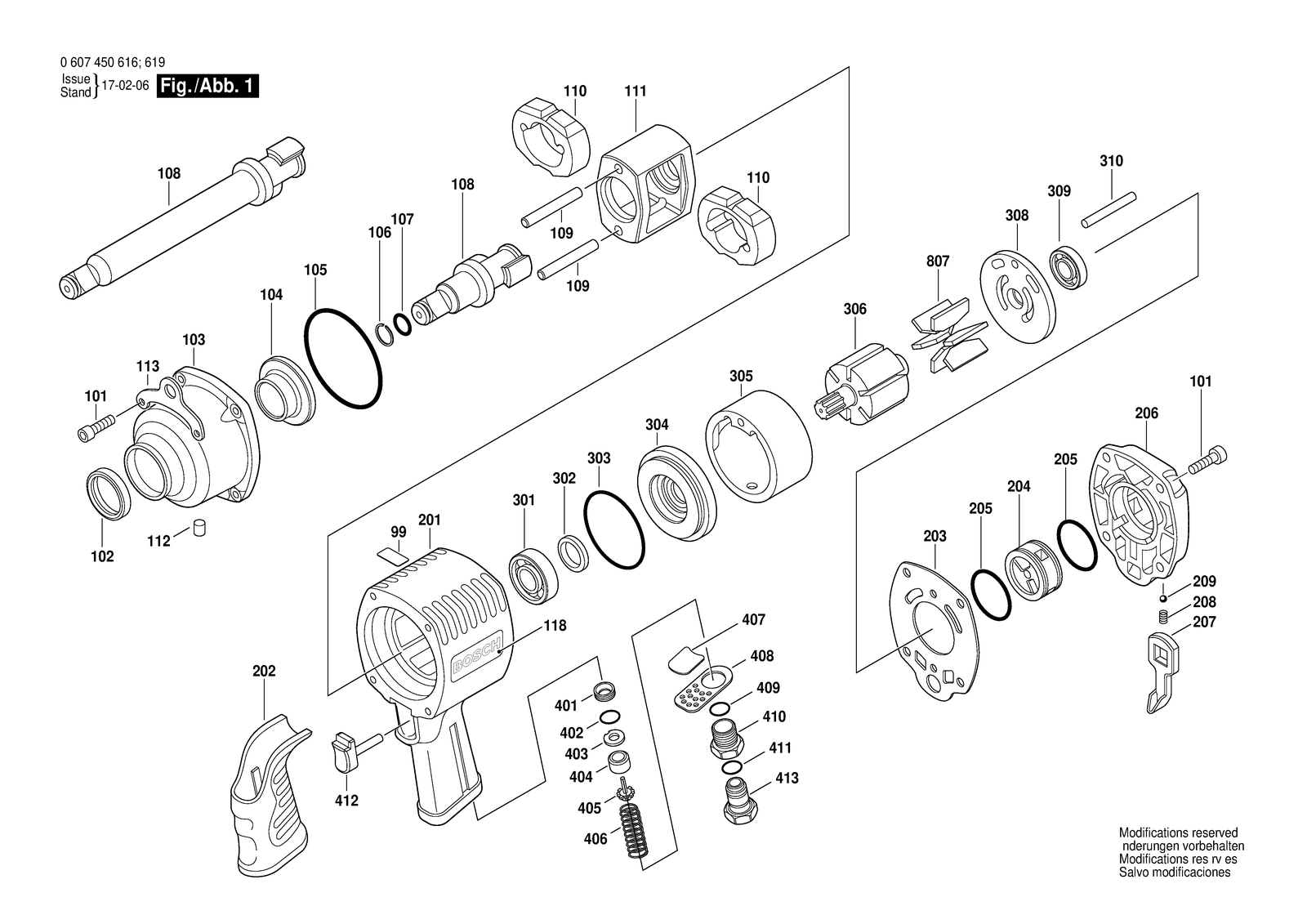

Bosch 3/4" P impact wrench: exploded parts diagram, 1 sheet, 143 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3/4" P: 143 positions on 1 sheet
Bosch 3/4" P parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 3609202917 | Socket head cap screw |
| 101 | 3609202917 | Socket head cap screw |
| 101 | 3609202917 | Socket head cap screw |
| 102 | 3609202953 | Seal Ring |
| 102 | 3609202953 | Seal Ring |
| 102 | 3609202953 | Seal Ring |
| 103 | 3609202903 | Grinding Glass |
| 103 | 3609202991 | Grinding Glass |
| 103 | 3609202991 | Grinding Glass |
| 104 | 3609202873 | Bushing |
| 104 | 3609202873 | Bushing |
| 104 | 3609202873 | Bushing |
| 105 | 3609202937 | O-Ring |
| 105 | 3609202937 | O-Ring |
| 105 | 3609202937 | O-Ring |
| 106 | 3609202922 | Retaining ring |
| 106 | 3609202922 | Retaining ring |
| 106 | 3609202922 | Retaining ring |
| 107 | 3609202944 | O-Ring |
| 107 | 3609202944 | O-Ring |
| 107 | 3609202944 | O-Ring |
| 108 | 3609202858 | Striker Spindle |
| 108 | 3609202958 | Striker Spindle |
| 108 | 3609202858 | Striker Spindle |
| 108 | 3609202858 | Striker Spindle |
| 109 | 3609202852 | Guide Pin |
| 109 | 3609202852 | Guide Pin |
| 109 | 3609202852 | Guide Pin |
| 110 | 3609202855 | Hammer Piston |
| 110 | 3609202855 | Hammer Piston |
| 110 | 3609202855 | Hammer Piston |
| 111 | 3609202861 | Cage |
| 111 | 3609202861 | Cage |
| 111 | 3609202861 | Cage |
| 112 | 3609202919 | Stud |
| 112 | 3609202919 | Stud |
| 112 | 3609202919 | Stud |
| 113 | 3609202913 | Suspension Loop |
| 113 | 3609202913 | Suspension Loop |
| 113 | 3609202913 | Suspension Loop |
| 118 | 3609202962 | Nameplate |
| 118 | 3609202964 | Nameplate |
| 118 | 3609202998 | Nameplate |
| 118 | 3609202999 | Nameplate |
| 201 | 3609202843 | Housing |
| 201 | 3609202992 | Housing |
| 201 | 3609202992 | Housing |
| 202 | 3609202881 | Handle |
| 202 | 3609202881 | Handle |
| 202 | 3609202881 | Handle |
| 203 | 3609202885 | Seal |
| 203 | 3609202885 | Seal |
| 203 | 3609202885 | Seal |
| 204 | 3609202877 | Change-Over Switch |
| 204 | 3609202877 | Change-Over Switch |
| 204 | 3609202877 | Change-Over Switch |
| 205 | 3609202939 | O-Ring |
| 205 | 3609202939 | O-Ring |
| 205 | 3609202939 | O-Ring |
| 206 | 3609202837 | Housing Cover |
| 206 | 3609202993 | Housing Cover |
| 206 | 3609202993 | Housing Cover |
| 207 | 3609202879 | Lever |
| 207 | 3609202879 | Lever |
| 207 | 3609202879 | Lever |
| 208 | 3609202867 | Spring |
| 208 | 3609202867 | Spring |
| 208 | 3609202867 | Spring |
| 209 | 3609202928 | Ball |
| 209 | 3609202928 | Ball |
| 209 | 3609202928 | Ball |
| 301 | 3609202950 | Ball Bearing |
| 301 | 3609202950 | Ball Bearing |
| 301 | 3609202950 | Ball Bearing |
| 302 | 3609202956 | Seal Ring |
| 302 | 3609202956 | Seal Ring |
| 302 | 3609202956 | Seal Ring |
| 303 | 3609202936 | O-Ring |
| 303 | 3609202936 | O-Ring |
| 303 | 3609202936 | O-Ring |
| 304 | 3609202888 | Housing Cover |
| 304 | 3609202888 | Housing Cover |
| 304 | 3609202888 | Housing Cover |
| 305 | 3609202897 | Stator |
| 305 | 3609202897 | Stator |
| 305 | 3609202897 | Stator |
| 306 | 3609202891 | Rotor |
| 306 | 3609202891 | Rotor |
| 306 | 3609202891 | Rotor |
| 308 | 3609202900 | Cover Plate |
| 308 | 3609202900 | Cover Plate |
| 308 | 3609202900 | Cover Plate |
| 309 | 3609202951 | Ball Bearing |
| 309 | 3609202951 | Ball Bearing |
| 309 | 3609202951 | Ball Bearing |
| 310 | 3609202853 | Dowel pin |
| 310 | 3609202853 | Dowel pin |
| 310 | 3609202853 | Dowel pin |
| 401 | 3609202872 | Bushing |
| 401 | 3609202872 | Bushing |
| 401 | 3609202872 | Bushing |
| 402 | 3609202941 | O-Ring |
| 402 | 3609202941 | O-Ring |
| 402 | 3609202941 | O-Ring |
| 403 | 3609202905 | Seal |
| 403 | 3609202905 | Seal |
| 403 | 3609202905 | Seal |
| 404 | 3609202874 | Bushing |
| 404 | 3609202874 | Bushing |
| 404 | 3609202874 | Bushing |
| 405 | 3609202841 | Tappet |
| 405 | 3609202841 | Tappet |
| 405 | 3609202841 | Tappet |
| 406 | 3609202845 | Spring |
| 406 | 3609202845 | Spring |
| 406 | 3609202845 | Spring |
| 407 | 3609202910 | Silencer |
| 407 | 3609202910 | Silencer |
| 407 | 3609202910 | Silencer |
| 408 | 3609202909 | Deflector |
| 408 | 3609202909 | Deflector |
| 408 | 3609202909 | Deflector |
| 409 | 3609202920 | Ring |
| 409 | 3609202920 | Ring |
| 409 | 3609202920 | Ring |
| 410 | 3609202847 | Fitting |
| 410 | 3609202847 | Fitting |
| 410 | 3609202847 | Fitting |
| 411 | 3609202933 | O-Ring |
| 411 | 3609202933 | O-Ring |
| 411 | 3609202933 | O-Ring |
| 412 | 3609202839 | Switch |
| 412 | 3609202839 | Switch |
| 412 | 3609202839 | Switch |
| 413 | 3609202848 | Fitting |
| 413 | 3609202848 | Fitting |
| 413 | 3609202848 | Fitting |
| 807 | 3609202A01 | Set Of Clutch Plates |
| 807 | 3609202A01 | Set Of Clutch Plates |
| 807 | 3609202A01 | Set Of Clutch Plates |
| 99 | 3601110562 | Sticker |
| 99 | 3601110562 | Sticker |
| 99 | 3601119236 | Reference Plate |
