Bosch 2LS VEGA

Bosch 2LS VEGA distance measuring unit: exploded parts diagram, 1 sheet, 11 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 2LS VEGA: 11 positions on 1 sheet

Bosch 2LS VEGA parts list (1 sheet)

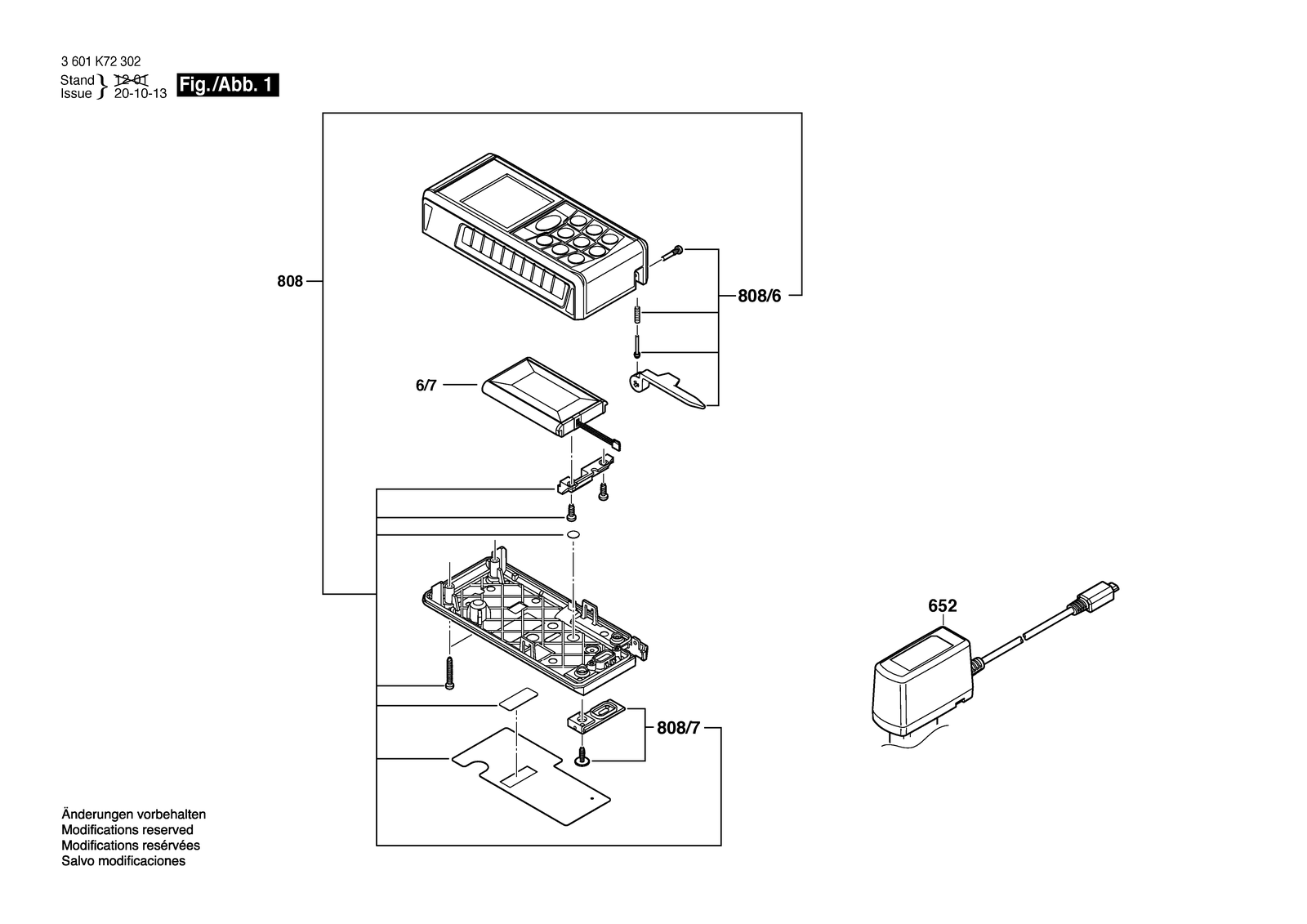

Bosch 2LS VEGA parts diagram, sheet 1
No.Part numberPart name
6/72609120417Accumulator
6522609120476Battery Charger EU 3,7 3H
6522609120478Battery Charger GB 230V 3,7V 3H
6522609120480Battery Charger J 3,7V 3H
6522609120481Battery Charger AUS 3,7V 3H
6522609120496Battery Charger CN 220V
8082609199511Battery Pack Li, 1,25 Ah, 4,7 Wh
8082609199514Battery Pack Li, 1,25 Ah, 4,7 Wh
8082609199516Battery Pack Li, 1,25 Ah, 4,7 Wh
808/62609169030Fastening parts kit
808/72609169032Cover
