Sheet 1: Makita 2712 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | JM27100031 | |
| 2 | JM27100032 | |
| 3 | JM27100033 | |
| 4 | JM27110001 | |
| 5 | JM27100111 | |
| 6 | JM27100035 | |
| 7 | JM27100018 | |
| 8 | JM27100016 | |
| 9 | JM27100036 | |
| 10 | JM27100104 | |
| 11 | JM27100037 | |
| 12 | JM27100038 | |
| 13 | JM27100039 | |
| 14 | JM27100040 | |
| 15 | JM27100041 | |
| 16 | JM27100042 | |
| 17 | JM27100043 | |
| 19 | JM27100044 | |
| 20 | JM27100047 | |
| 21 | JM27100046 | |
| 22 | JM27100048 | |
| 23 | JM27100049 | |
| 24 | JM27100045 | |
| 25 | JM27100046 | |
| 26 | JM27100046 | |
| 27 | JM27100045 | |
| 28 | JM27100050 | |
| 29 | JM27100051 | |
| 30 | JM27100052 | |
| 31 | JM27100053 | |
| 32 | JM27100054 | |
| 33 | JM27100055 | |
| 34 | JM27100106 | |
| 35 | JM27100057 | |
| 36 | JM27100056 | |
| 37 | JM27100025 | |
| 38 | JM27100053 | |
| 39 | JM27100052 | |
| 40 | JM27100058 | |
| 41 | JM27100072 | |
| 42 | JM27100073 | |
| 43 | JM27100059 |

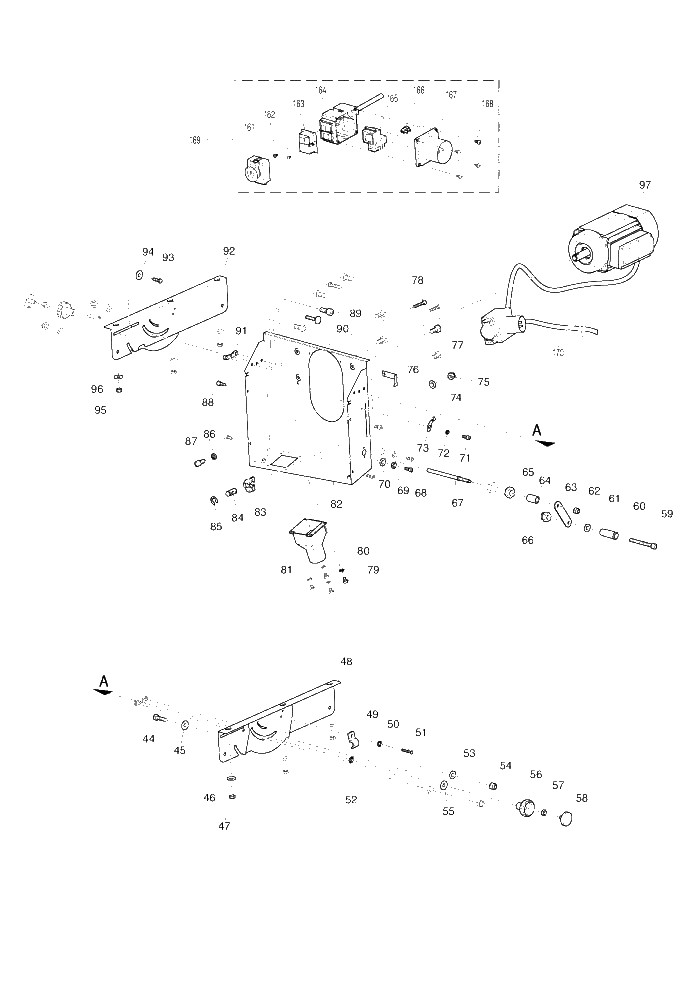

Sheet 2: Makita 2712 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 44 | JM27100011 | |
| 45 | JM27100018 | |
| 46 | JM27100018 | |
| 47 | JM27100016 | |
| 48 | JM27100080 | |
| 49 | JM27100078 | |
| 50 | JM27100032 | |
| 51 | JM27100031 | |
| 52 | JM27100079 | |
| 53 | JM27100052 | |
| 54 | JM27100053 | |
| 55 | JM27100018 | |
| 56 | JM27100077 | |
| 57 | JM27100108 | |
| 58 | JM27100076 | |
| 59 | JM27100066 | |
| 60 | JM27100067 | |
| 61 | JM27100054 | |
| 62 | JM27100016 | |
| 63 | JM27100068 | |
| 64 | JM27100069 | |
| 65 | JM27100070 | |
| 66 | JM27100053 | |
| 67 | JM27100071 | |
| 68 | JM27100109 | |
| 69 | JM27100065 | |
| 70 | JM27100032 | |
| 71 | JM27100109 | |
| 72 | JM27100065 | |
| 73 | JM27100082 | |
| 74 | JM27100054 | |
| 75 | JM27100020 | |
| 76 | JM27100083 | |
| 77 | JM27100050 | |
| 78 | JM27100107 | |
| 79 | JM27100031 | |
| 80 | JM27100032 | |
| 81 | JM27100063 | |
| 82 | JM27110002 | |
| 83 | JM27100062 | |
| 84 | JM27100061 | |
| 85 | JM27100060 | |
| 86 | JM27100065 | |
| 87 | JM27100109 | |
| 88 | JM27100110 | |
| 89 | JM27100074 | |
| 90 | JM27100075 | |
| 91 | JM27100081 | |
| 92 | JM27100084 | |
| 93 | JM27100011 | |
| 94 | JM27100018 | |
| 95 | JM27100016 | |
| 96 | JM27100018 | |
| 97 | JM27100001 | |
| 161 | JM27100133 | |
| 162 | JM27100134 | |
| 163 | JM27100135 | |
| 164 | JM27100136 | |
| 165 | JM27100138 | |
| 166 | JM27100140 | |
| 167 | JM27100141 | |
| 168 | JM27100143 | |
| 170 | JM27100003 | |
| 169 | JM27100112 |

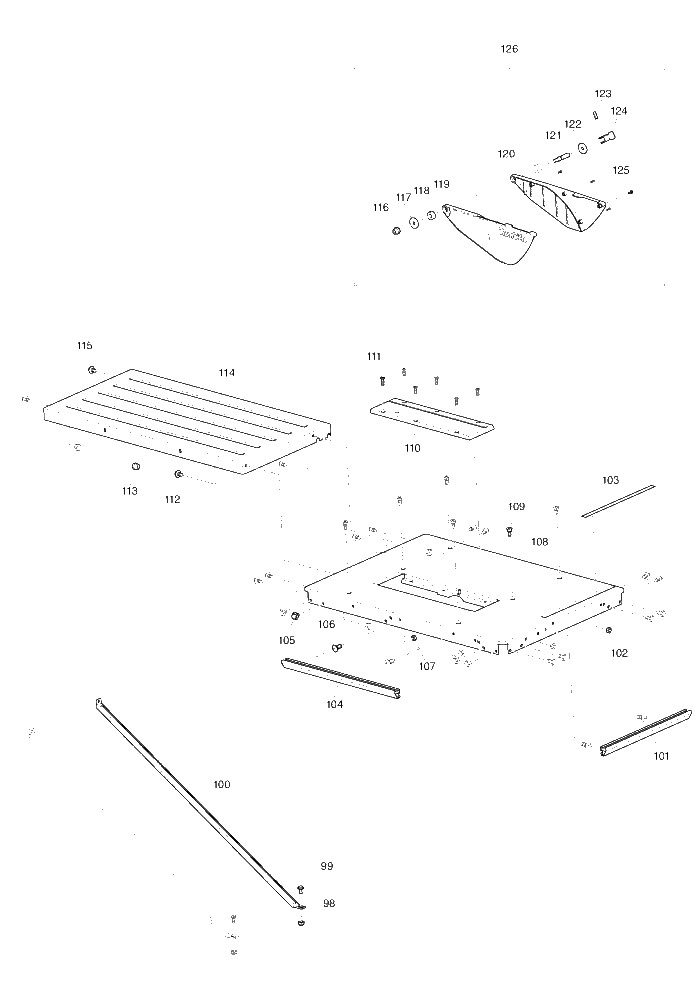

Sheet 3: Makita 2712 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 98 | JM27100016 | |
| 99 | JM27100131 | |
| 100 | JM27100089 | |
| 101 | JM27100101 | |
| 102 | JM27100016 | |
| 103 | JM27100100 | |
| 104 | JM27100085 | |
| 105 | JM27100131 | |
| 106 | JM27100086 | |
| 107 | JM27100016 | |
| 108 | JM27110003 | |
| 109 | JM27100087 | |
| 110 | JM27100148 | |
| 111 | JM27100091 | |
| 112 | JM27100131 | |
| 113 | JM27100016 | |
| 114 | JM27100092 | |
| 115 | JM27100131 | |
| 116 | JM27100016 | |
| 117 | JM27100093 | |
| 118 | JM27100094 | |
| 119 | JM27100095 | |
| 120 | JM27100096 | |
| 121 | JM27100097 | |
| 122 | JM27100103 | |
| 123 | JM27100099 | |
| 124 | JM27100098 | |
| 125 | JM27100105 | |
| 126 | JM27110004 |

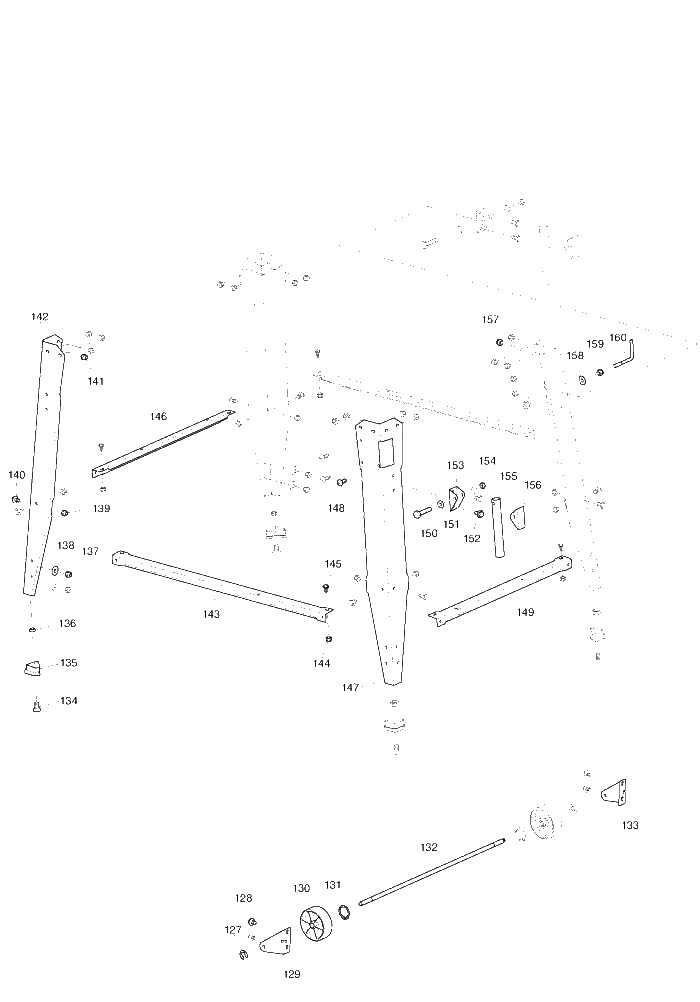

Sheet 4: Makita 2712 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 127 | JM27100009 | |
| 128 | JM27100131 | |
| 129 | JM27100010 | |
| 130 | JM27100012 | |
| 131 | JM27100102 | Makita JM27100102 RETAINING RING 10, LS1018L |
| 132 | JM27100013 | |
| 133 | JM27100014 | |
| 134 | JM27100022 | |
| 135 | JM27100021 | |
| 136 | JM27100020 | |
| 137 | JM27100016 | |
| 138 | JM27100018 | |
| 139 | JM27100016 | |
| 140 | JM27100131 | |
| 141 | JM27100016 | |
| 142 | JM27100015 | |
| 143 | JM27100019 | |
| 144 | JM27100016 | |
| 145 | JM27100131 | |
| 146 | ||
| 147 | JM27100024 | |
| 148 | JM27100023 | |
| 149 | JM27100017 | |
| 150 | JM27100029 | |
| 151 | JM27100054 | |
| 152 | JM27100131 | |
| 153 | JM27100028 | |
| 154 | JM27100053 | |
| 155 | JM27100027 | |
| 156 | JM27100026 | |
| 157 | JM27100016 | |
| 158 | JM27100018 | |
| 159 | JM27100108 | |
| 160 | JM27100030 |
