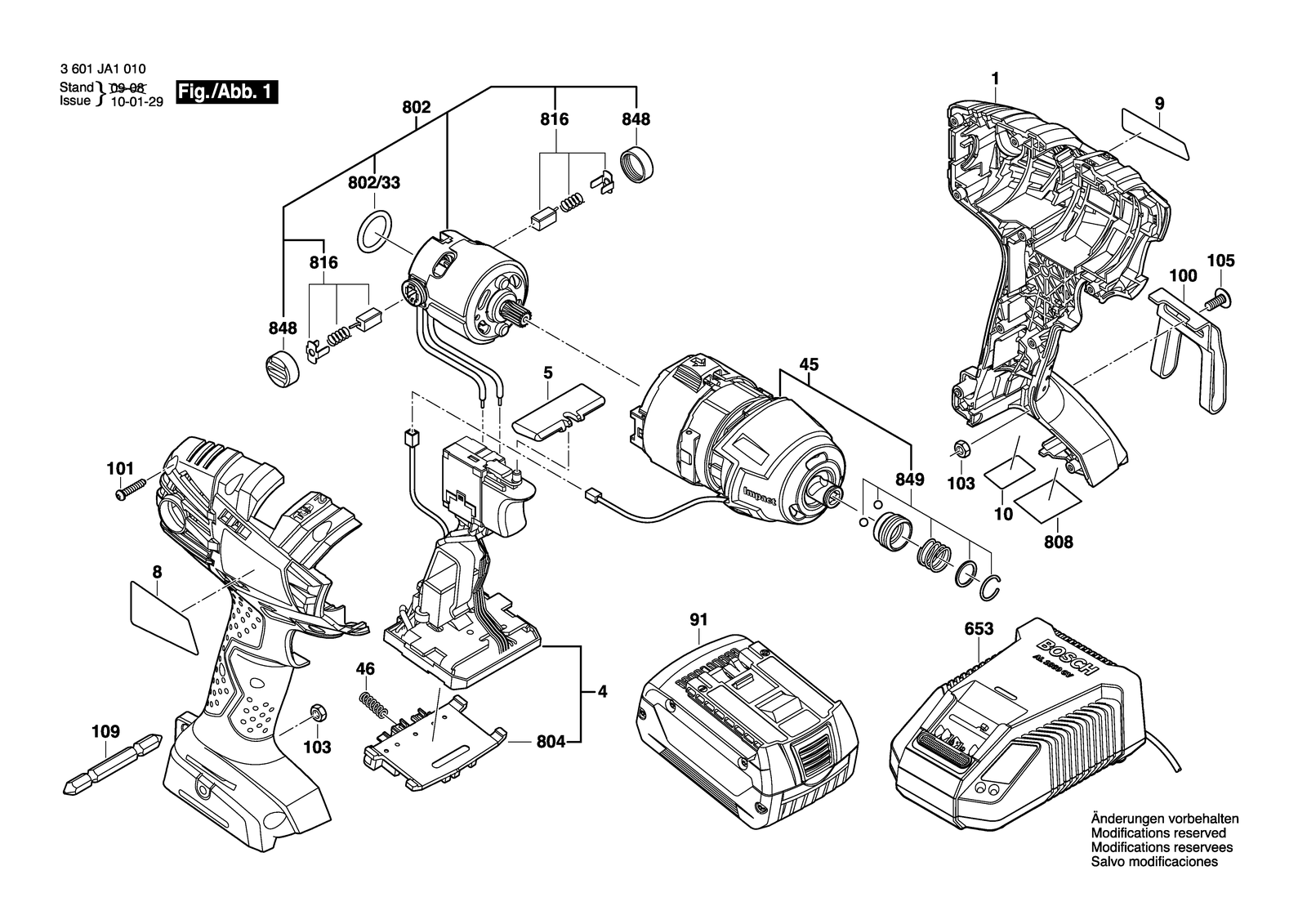

Bosch 26618 impact wrench: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.
execution 3601JA1010
Scroll to zoom · drag to move
All parts on this sheet0
Checking availability…
All parts of Bosch 26618: 22 positions on 1 sheet
Bosch 26618 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100788 | Housing Blue |
| 10 | 2609132615 | Reference Plate |
| 100 | 2609110833 | Clip |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 103 | 2609110835 | Nut |
| 105 | 2609110834 | Screw |
| 109 | 2609110343 | Screwdriver Blade |
| 4 | 1607233351 | Electronic Assembly |
| 45 | 2609199254 | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 5 | 2609100698 | Button |
| 8 | 2609132444 | Warning Label |
| 802 | 2609199263 | DC motor 18V |
| 802/33 | 2609170104 | O-Ring |
| 804 | 1609280478 | Contact retainer |
| 808 | 2609132419 | Nameplate |
| 816 | 2609199169 | Carbon-Brush Set |
| 848 | 2609199190 | Brush-Cover |
| 849 | 2609199223 | Bit holder |
| 9 | 2609132427 | Manufacturer's nameplate |
| 91 | 1607A350C0 | Battery Pack BAT611 18V 1.5AH LI Scm |
| 91 | 2607336819 | Battery Pack Usa BAT620 18V 4,0AH |
