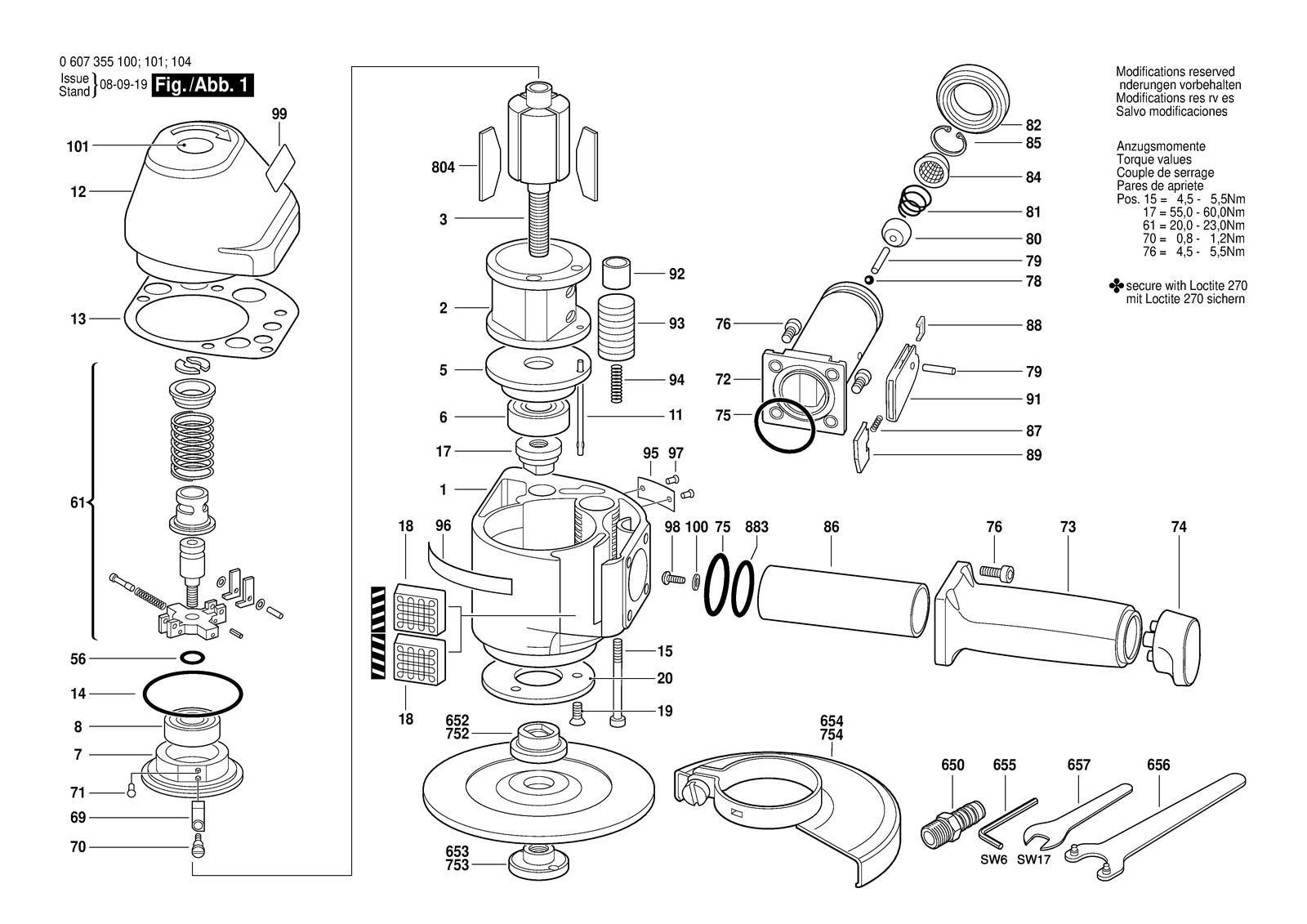

Bosch 2500W WS pneumatic vertical grinde: exploded parts diagram, 1 sheet, 112 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 2500W WS: 112 positions on 1 sheet
Bosch 2500W WS parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102005 | Motor Housing |
| 1 | 3605102005 | Motor Housing |
| 100 | 1600100629 | Plain Washer |
| 100 | 1600100629 | Plain Washer |
| 101 | 3601119253 | Reference Plate |
| 101 | 3601119254 | Reference Plate |
| 11 | 3604710018 | Straight Pin |
| 11 | 3604710018 | Straight Pin |
| 12 | 3605102007 | Upper Housing |
| 12 | 3605102007 | Upper Housing |
| 13 | 3600034000 | Seal |
| 13 | 3600034000 | Seal |
| 14 | 1600210006 | O-Ring 74,0X3,0 MM |
| 14 | 1600210006 | O-Ring 74,0X3,0 MM |
| 15 | 2910141179 | Hex Socket Head Cap Screw M 5X65 DIN 912-8.8 |
| 15 | 2910141179 | Hex Socket Head Cap Screw M 5X65 DIN 912-8.8 |
| 17 | 3600363001 | Threaded Bushing |
| 17 | 3600363001 | Threaded Bushing |
| 18 | 3602307000 | Silencer |
| 18 | 3602307000 | Silencer |
| 2 | 3604090033 | Stator 2,5KW |
| 2 | 3604090033 | Stator 2,5KW |
| 3 | 3604220016 | Rotor |
| 3 | 3604220016 | Rotor |
| 5 | 3605700026 | Bearing Flange |
| 5 | 3605700026 | Bearing Flange |
| 56 | 1900210113 | O-Ring 15X2,5 MM |
| 56 | 1900210113 | O-Ring 15X2,5 MM |
| 6 | 1900905326 | Groove ball bearing 6303-2 Z DIN 625 |
| 6 | 1900905326 | Groove ball bearing 6303-2 Z DIN 625 |
| 61 | 3607021009 | Flyweight Assembly |
| 61 | 3607021010 | Flyweight Assembly |
| 650 | 3603386004 | Hose fitting |
| 650 | 3603386004 | Hose fitting |
| 652 | 2600501006 | Clamping-Flange Ø45 MM |
| 653 | 2603345004 | Round Nut M14 |
| 654 | 2605510089 | Protective Cover Ø 230 MM |
| 655 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 655 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 656 | 1607950061 | Pin-Type Face-Wrench |
| 656 | 1607950061 | Pin-Type Face-Wrench |
| 657 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 657 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 69 | 3601036000 | Throttle flap |
| 69 | 3601036000 | Throttle flap |
| 7 | 3605700025 | Bearing Flange |
| 7 | 3605700025 | Bearing Flange |
| 70 | 2910271050 | Pan head screw DIN 923-M3X8-5.8 |
| 70 | 2910271050 | Pan head screw DIN 923-M3X8-5.8 |
| 71 | 2917721031 | Round-Head Grooved Pin DIN 1476-2X3-ST |
| 71 | 2917721031 | Round-Head Grooved Pin DIN 1476-2X3-ST |
| 72 | 3605132000 | Handle |
| 72 | 3605132000 | Handle |
| 73 | 3605132001 | Handle |
| 73 | 3605132001 | Handle |
| 74 | 3600508001 | Sealing Cap |
| 74 | 3600508001 | Sealing Cap |
| 75 | 1900210342 | O-Ring 40X2,5 MM |
| 75 | 1900210342 | O-Ring 40X2,5 MM |
| 752 | 2600501006 | Clamping-Flange Ø45 MM |
| 752 | 2600501006 | Clamping-Flange Ø45 MM |
| 753 | 1603345025 | Round Nut M14 |
| 753 | 1603345025 | Round Nut M14 |
| 754 | 3605510008 | Protective Cover Ø 180 MM |
| 76 | 2910141154 | Hex Socket Head Cap Screw DIN 912-M5X12-8.8 |
| 76 | 2910141154 | Hex Socket Head Cap Screw DIN 912-M5X12-8.8 |
| 78 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 78 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 79 | 1903201064 | Needle Roller DIN5402-A3,5X34,8-G2 |
| 79 | 1903201064 | Needle Roller DIN5402-A3,5X34,8-G2 |
| 8 | 1900905119 | Groove ball bearing 20X42X12 |
| 8 | 1900905119 | Groove ball bearing 20X42X12 |
| 80 | 3603231001 | Valve Body |
| 80 | 3603231001 | Valve Body |
| 804 | 3607030281 | Assembly Of Service Parts 4 Piece |
| 804 | 3607030281 | Assembly Of Service Parts 4 Piece |
| 81 | 3604643006 | Compression Spring |
| 81 | 3604643006 | Compression Spring |
| 82 | 3600290000 | Backup ring |
| 82 | 3600290000 | Backup ring |
| 84 | 3600002005 | Strainer |
| 84 | 3600002005 | Strainer |
| 85 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 85 | 2916661008 | Spring retaining ring DIN 472-24X1,2 MM |
| 86 | 3600409001 | Screening Tube |
| 86 | 3600409001 | Screening Tube |
| 87 | 3604612003 | Compression Spring |
| 87 | 3604612003 | Compression Spring |
| 88 | 3601320000 | Holding Bracket |
| 88 | 3601320000 | Holding Bracket |
| 883 | 3607010026 | Parts Set 10 Piece |
| 883 | 3607010026 | Parts Set 10 Piece |
| 89 | 3601000000 | Lock Bolt |
| 89 | 3601000000 | Lock Bolt |
| 91 | 3601902002 | Control Lever |
| 91 | 3601902002 | Control Lever |
| 92 | 3603200003 | Power piston |
| 92 | 3603200003 | Power piston |
| 93 | 3608750008 | Control Piston |
| 93 | 3608750008 | Control Piston |
| 94 | 3604611013 | Compression Spring |
| 94 | 3604611013 | Compression Spring |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 96 | 1601110046 | Sticker |
| 96 | 1601110046 | Sticker |
| 97 | 3603133000 | Grooved Nail |
| 97 | 3603133000 | Grooved Nail |
| 98 | 2918140026 | Tapping Screw B 4,2X16 DIN 7981-B2 |
| 98 | 2918140026 | Tapping Screw B 4,2X16 DIN 7981-B2 |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
