Bosch 24618

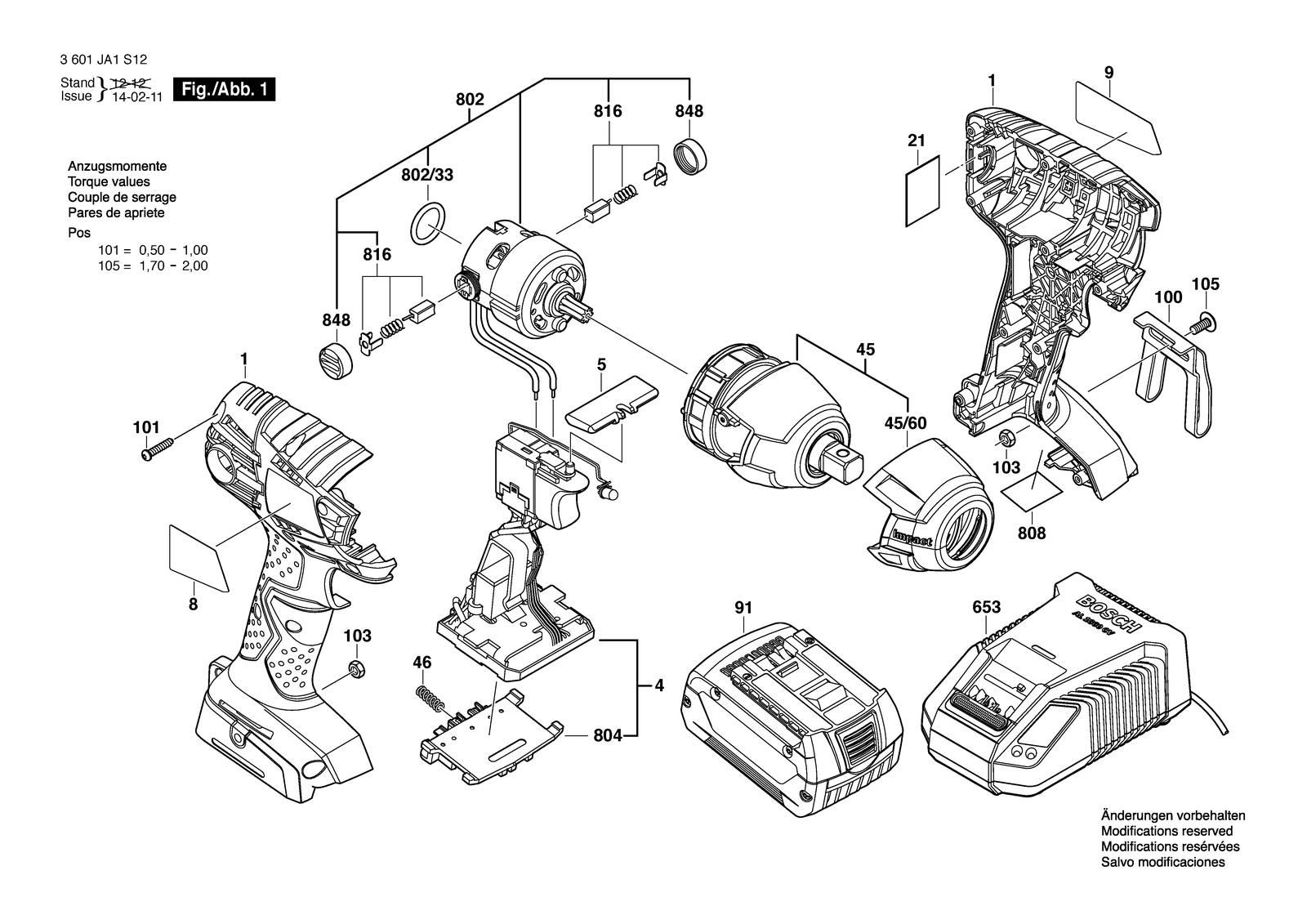

Bosch 24618 impact wrench: exploded parts diagram, 1 sheet, 44 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 24618: 44 positions on 1 sheet
Bosch 24618 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101136 | Housing |
| 1 | 2609101136 | Housing |
| 100 | 2609110833 | Clip |
| 100 | 2609110833 | Clip |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 103 | 2609110835 | Nut |
| 103 | 2609110835 | Nut |
| 105 | 2609110834 | Screw |
| 105 | 2609110834 | Screw |
| 21 | 2609111485 | Wire Mesh |
| 21 | 2609111485 | Wire Mesh |
| 4 | 1607233480 | Electronics Module |
| 4 | 1607233480 | Electronics Module |
| 45 | 2609199257 | Gear Box |
| 45 | 2609199257 | Gear Box |
| 45 | 2609199696 | Gear Box |
| 45/60 | 2609170128 | Cap |
| 45/60 | 2609170128 | Cap |
| 46 | 1609280477 | Compression Spring |
| 46 | 1609280477 | Compression Spring |
| 5 | 2609100698 | Button |
| 5 | 2609100698 | Button |
| 8 | 2609131990 | Warning Label |
| 8 | 2609131990 | Warning Label |
| 802 | 2609199313 | DC motor |
| 802 | 2609199276 | DC motor 18V |
| 802/33 | 2609170104 | O-Ring |
| 802/33 | 2609170104 | O-Ring |
| 804 | 1609280478 | Contact retainer |
| 804 | 1609280478 | Contact retainer |
| 808 | 2609132403 | Nameplate IWH181 |
| 808 | 2609132599 | Label 24618 |
| 808 | 2609132603 | Label IWH181 |
| 816 | 2609199169 | Carbon-Brush Set |
| 816 | 2609199169 | Carbon-Brush Set |
| 848 | 2609199190 | Brush-Cover |
| 848 | 2609199190 | Brush-Cover |
| 9 | 2609132046 | Nameplate Impactor 18V |
| 9 | 2609132046 | Nameplate Impactor 18V |
| 91 | 1607A350BM | Battery Pack BAT612 18V 2.0AH LI Scm |
| 91 | 2607336819 | Battery Pack Usa BAT620 18V 4,0AH |
| 91 | 1607A350BM | Battery Pack BAT612 18V 2.0AH LI Scm |
| 91 | 2607336819 | Battery Pack Usa BAT620 18V 4,0AH |
